• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

Portable 20w Fiber Laser Marking Equipment for Code Logo Date Numbers

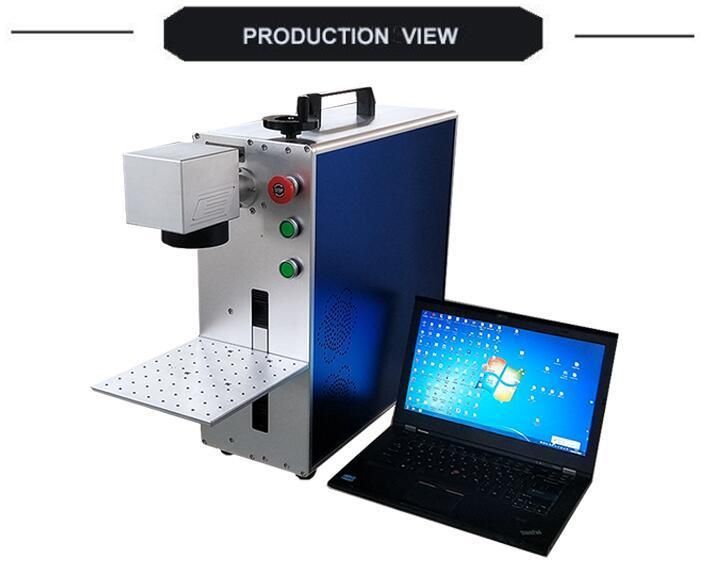

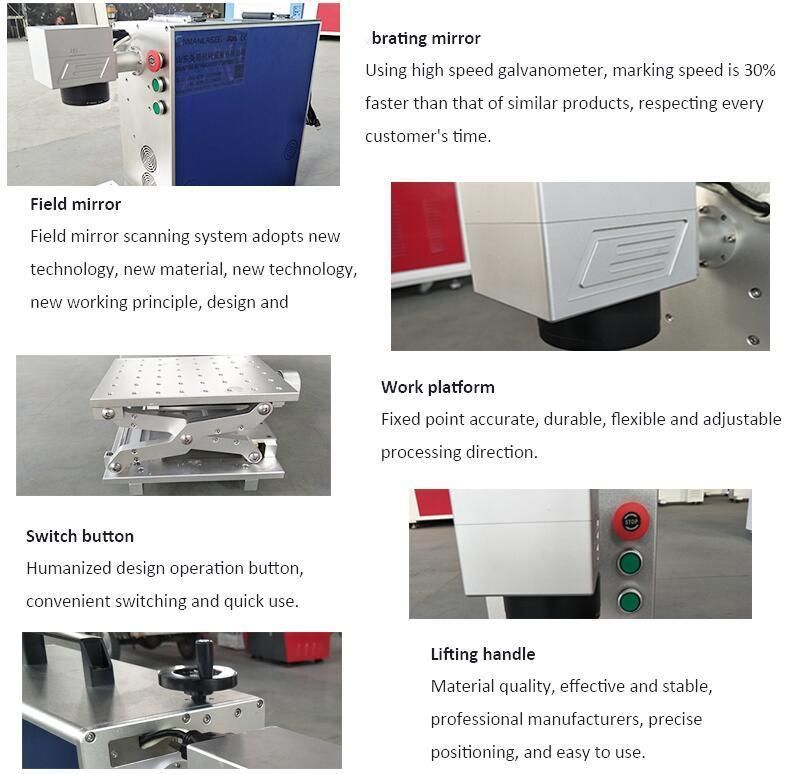

IMAGES DETAILS :


 TECHNICAL  PARAMETER :

Laser Source	Fiber Laser
Output Power	50W30W/20w/ 10w
Wavelength	1060nm
Beam Quality	<2
Repeat Frequency	10khz--- 100khz
Pulse Energy	2mJ
Beam Divergence	-0.3 to +0.3mrad
Laser Class	IV
Resolution	18μ
Repeatablility	50μ
Marking Scope	110mmx 110mm/ 175mmx 175mm (optional)
Linear Speed	800 character/ s
Marking Linear Speed	≤12,000mm/s
Marking Depth	Max. 1.0- 1.5mm (hard steel)
Min. Line Width	0.012mm
Min. Character Size	0.15mm
Repeat Accuracy	±0.003mm
Input Power	0.5kw
Electrical Source	220v/50hz or 60hz

Feature :

1.Adopting separated design.

The portable part can move according to processing demand, and mark on big and heavy materials directly,

which break through the limitation of working table and bring more convenience to our respected customers.

2.Equipped with focal length adjustable protective covering, to ensure marking accuracy.

3. High quality laser path suitable for delicate marking. Reaching nearest to the limit of diffraction.

Exporting TEMOO of fundamental transverse mode. M2 near to 1. Beam divergence angle is only 1/4 of diode laser.

Focus dot diameter is not over 20 um.

4. High pulse repeating rate and stable power bring high speed laser marking. Unit pulse power surge is lower than 1%.

Easy control laser dot size, thickness and shape.

5. High speed 2-3 times over than traditional diode pumped marking machine.

6. Air-cooling smart machine size!

7. Long lifetime Ultra-low power consumption of 0.5 kw. Efficiency conversion reach to over 30%.

8.Suitable for various fiber laser generators.

9.Easily Operating: Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency.

You can input and output by computer according to edit in the both of the specific marking software

and the graphic software such as AutoCAD, CorelDRAW or Photoshop.

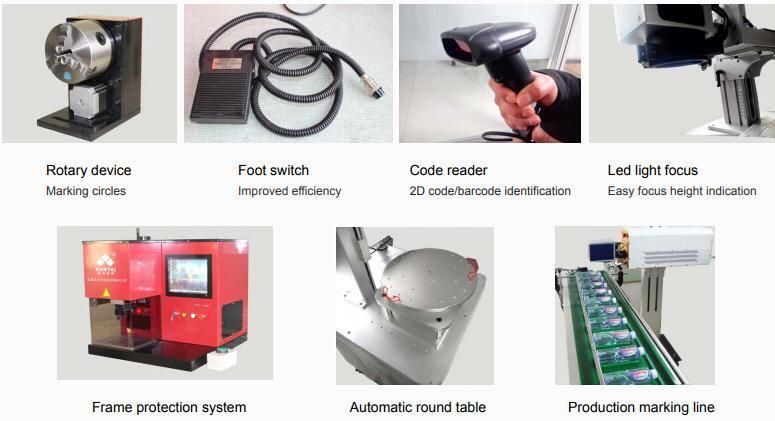

Optional Laser Parts :

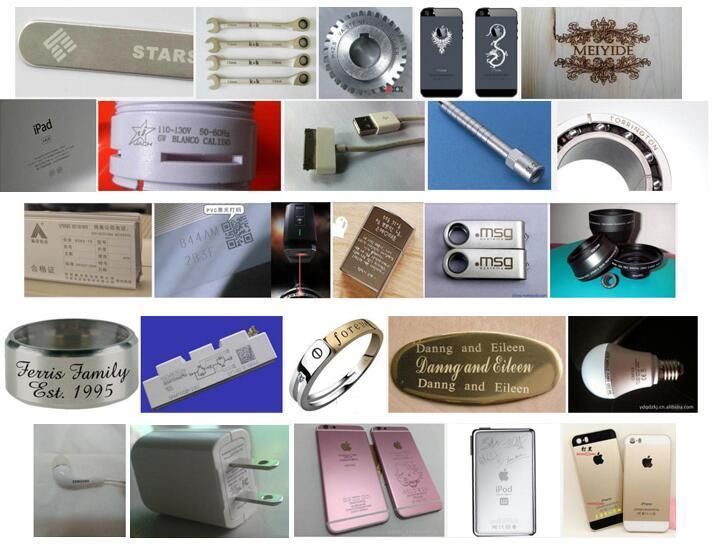

 SAMPLE SHOW :

>>Applicable Material:

gold & sliver, stainless steel, ceramic, plastic, glass, stone, leather, cloth, bamboo and so on.

>>Applicable Industry:

gold & silver jewelry, sanitary ware, food packing, tobacco products, medicine packing, medical apparatus

and instruments, watches&glassware, auto accessories, electronic hardware.

>>Representative Working Samples:

auto accessories marking, tobacco products marking, beer bottle marking, ring marking, electronic products marking.

 Fiber Laser Marking Machine Models:

 ITEM: 3D laser engraving machine | 3D deep marking | 3D curve engraving

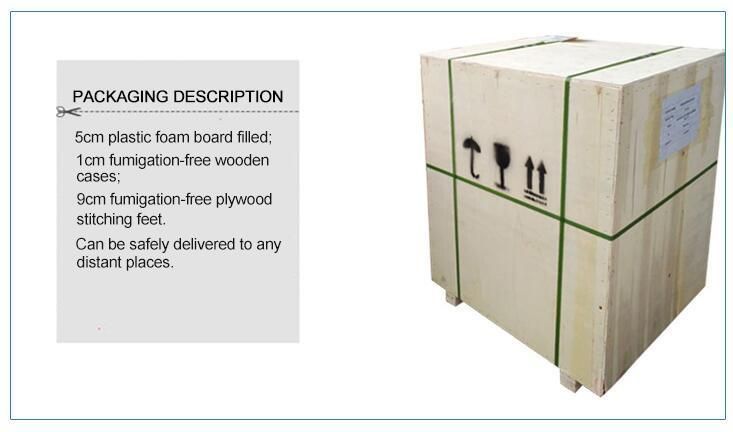

PACKAGING & SHIPPING   :

About shipment

1.Packaging :   foam &carton / Wood Box

   2.Shipping:

      1). We ship to world wide

      2). Most orders ship within 1~7days after payment

      3). Item shipped from china mainland using airmail by EMS, DHL, TNT or Hong Kong post,

           we accept the customer's shipping request

      4).100%T/T before shipment, after we shipped the goods, we will email you the shipping information

ABOUT US  :

1. What's your after-sales service?

-- 24/7 supported by chat online.

-- 24/7 supported by phone.

-- Lifelong and free technical support.

-- We are responsible for troubleshooting.

-- Service overseas: if the questions need to be solved face to face, we will dispatch an engineer to your door.

Under warranty, we are responsible all costs. Out of warranty, you are responsible for all costs.

-- We have international after-sales engineer to solve all problems for our customers.

2. What's your guarantee?

-- Fiber laser source, field lens, galvanometer and all parts are 100% genuine and certificate is with it.

-- Machine is verified and inspection and adjustments is completed as well as verified in writing.

-- Testing is done and results is verified in writing.

3. What's your warranty?

-- 3 years.

4. What's your Payment Terms Supported?

-- By 100% T/T in advance.

-- By 30% T/T in advance, 70% balance paid before shipment or after shipment.

-- By Alibaba Trade Assurance, PayPal, Western Union, L/C.

5. What's your date of delivery?

-- Within 7 working days after receiving payment.

6. What's your packaging?

-- Exported wooden case or according to your requirements.

7. What watt is suitable for me?

-- If you are not sure, please tell me what the machine will be used to do, it's better to send me pictures of your products.

I would like to recommend you a suitable and right watt according to my experience.

8. How much is shipping cost?

-- If you prefer by sea, please tell me destination port.

-- If you prefer by air or by land, please tell me your city and detailed address.
