• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：900*800*1150mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 900*800*1150mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

20W 30W Curved Surface Engraving Fiber Laser Marker for Metal Wood

 PRODUCTION :



Description:

Characters:

01 .·High speed with galvanometer.

02. ·Low power,consumption power is less than 500w.

03. ·Completely air cooling,low power consumption.

04. ·No influence of the severe enviroment and temperature change.If no power,battery and car cigarette lighter can be used for working.

05. ·Greatly reduce the depreciation cost,satisfying customers' stable large quantities production..

Application scope:

1.  Metal field: SUS product, hardware industry, clock industry, gold & silver jewelry, mould and all metal material

2.  Non-metal field: PVC industry, PCB circuit board, ABS shell, chip industry, plastic marking, ceramics products and so on.

3.  Surface treatment oil paint or printing ink, anodizing oxidation, electroplate and electrophoresis for engraving logo or oxygen conductive treatment.

IMAGES DETAILS :



 TECHNICAL  PARAMETER :


Laser power	Fiber 10W/20W/30W/50W air cooling
Working area	100*100mm
Laser Wavelength	1064nm
Response time	0.5ms
Frequency of pulse	20-100KHz
Max marking depth	≤0.4mm
Marking speed	≤7000mm/s
Marking lines	1-10 lines(in the marking area)
Minimum line width	0.1mm
Minimum character	0.15mm
Repeatability accuracy	±0.002mm
Resolution ratio	0.1mm
Marking content	Text,pattern,date,bar code,etc
Operation system	Microsoft Windows XP or Windows 2000
Control software	EZCAD control software or laser2.1 marking control software
Graphic format supported	bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.
Unit power	≤1.2KW
Operation temperature	5°C-40°C
Relative moisture	≤ 90%,no fog
Supply Voltage	220V/50Hz/10A

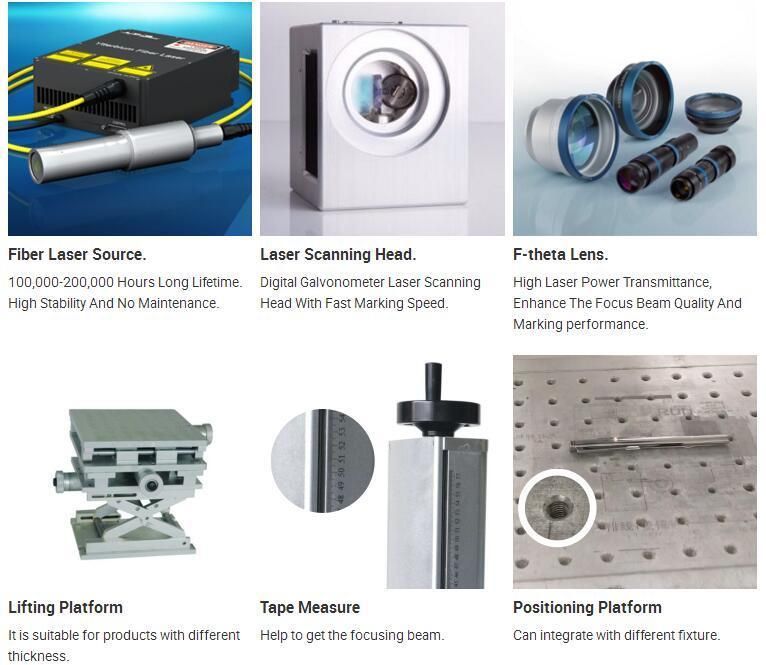

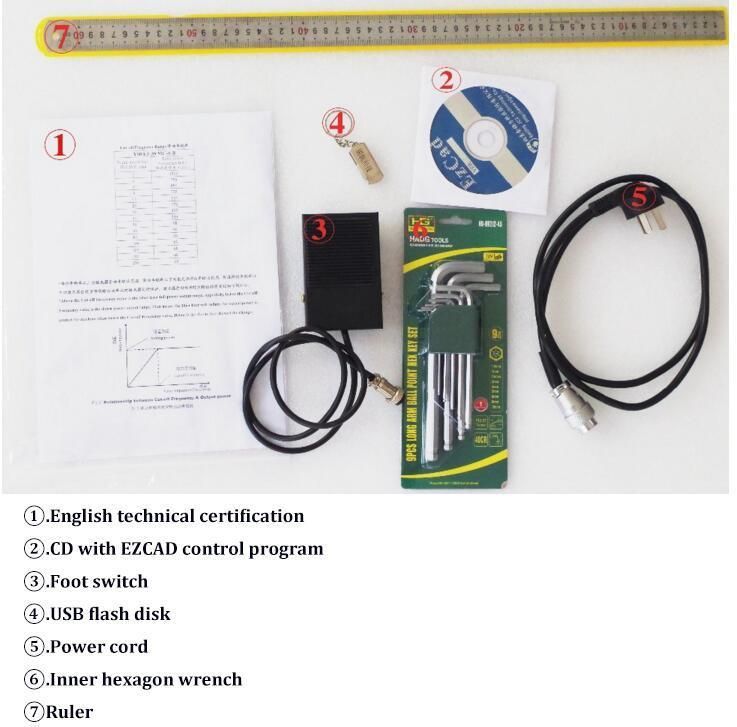

Standard  Laser Parts :

Optional  Laser Parts :

1. 3d Work table:

The table is made by anodized aluminium alloy, light weight and stainless. Itsupport CO2,Fiber,YAG and UV platform.

It apply tovarious industry :laser marking on moving workpiece,visual postitioning,edge cutting for embroidery and other industries.

2. Rotating worktable: Rtating worktable can achieve multi-station marking of surface.

3. Rotary fixture :

The rotary is mainly apply to the surface of curved and cylinder marking. drived by high precision step motors,

can be used to mark cylinder items, like rings, Yeti cups, pens and etc.
 SAMPLE SHOW :

Applicable Industry:

gold & silver jewellery, sanitary ware, food packing, tobacco products, medicine packing, medical apparatus

and instruments, watches & glassware,  auto accessories, electronic hardware.

Applicable Materials:

gold & silver, stainless steel, ceram, plactic, glass, stone, leather, cloth, bamboo and so on.

Applicaion Show:

auto accessories marking, tobacco products marking, beer bottle marking,ring marking, electronic products marking.



PACKAGING &  SHIPPING :



ABOUT US   :

-What is your certificate of the fiber laser marking machine?

1.CE certificate

2.FDA for American Clients

3. SGS certificate

FAQ   :

Q: How can I choose suitable machine?

A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:

1) .What work table size you will need?

2).What work you will do?

Q: What's your payment terms? Delivery time and MOQ?

A: We accpet T/T(bank transfer), L/C, Paypal, Western union etc.

Usually we need 30% as deposit, balance paid before shipment.

Delivery Time: 3-5 days after payment

MOQ: 1set

Q: If I bought a machine, how could you make it safe while shipping.

A: We have a professtional package suitable for oversea transpotation. Machine will be fixed well in the case.

Q: What's your quality control system?

A: All machines will be tested after finished. We have QC department response for this job. And we already got CE and FDA approved.

Q: If I don't know how to use the machine, can you teach me?

A: 1) There is a DVD disc including machine user manual and software user manual c/w machine.

2) Online (phone)

3) Remote desktop software (Teamviewer)

4) Demo Video
