• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

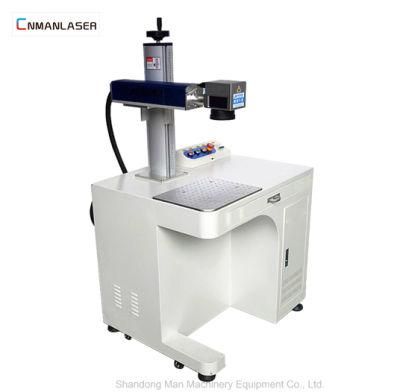

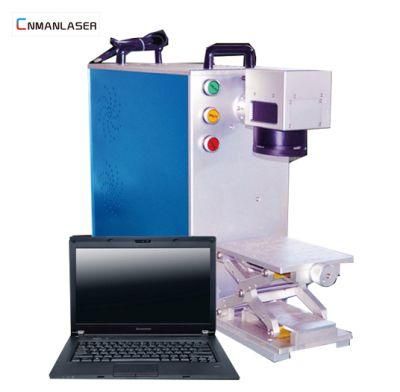

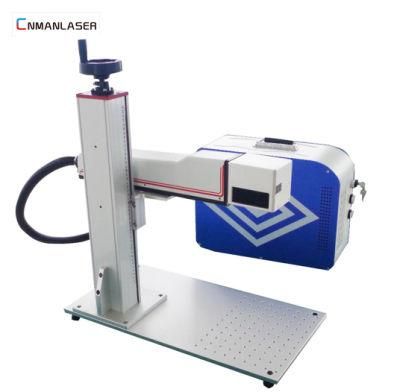

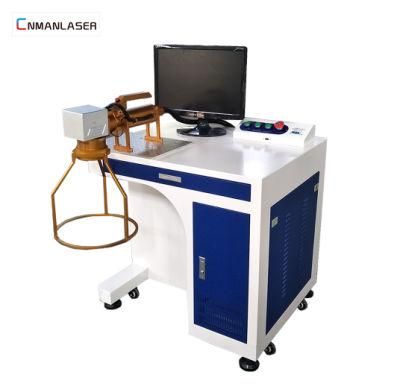

10W 20W Fiber Laser Marking Machine for Ring Stainless Steel Metal

 PRODUCTION :


 How to choose the fiber laser marking machine:

1. Marking material: metal, rare metal, plastic, wood, organic material etc

2. Marking area: 100x100mm, 150x150mm, 200x200mm, 300x300mm or 400x400mm, 500x500mm, 600x600mm

3. Machine type: Floor type, Desktop type, Portable type, Handheld type

4. Marking method: Flat surface marking, round marking, flying marking, round table marking, marking line
  TECHNICAL  PARAMETER :


Laser power	10W 20W 30W 50W
Laser wavelength	1064nm ±10nm
Q-frequency	20KHz~100KHz
Pules frequency	20KHz~200KHz
Divergence	0.3mard
Marking range	110*110mm/205*205mm/290*290mm
Minimum line width	0.001mm
Minimum character	0.1mm
Marking speed	10000mm/s
Marking depth	0~0.5mm
Engraving line speed	≤ 7000mm/s
Repeat accuracy	±0.001mm
Beam quality	M2:1.2~1.8
Marking format	Graphics, text, bar code,two-dimensionai code,  automatically marking the date, batch number,  serial number, frequency,etc.
Graphic  format supported	bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
Working voltage	220V ± 10%/50HZ/4A
Unit power	<0.5KW
Use of the environment	Clean and dust free of dust less
Working condition:Humidity	5%-75%,Free of condensed water
Laser module life	>100000 hours

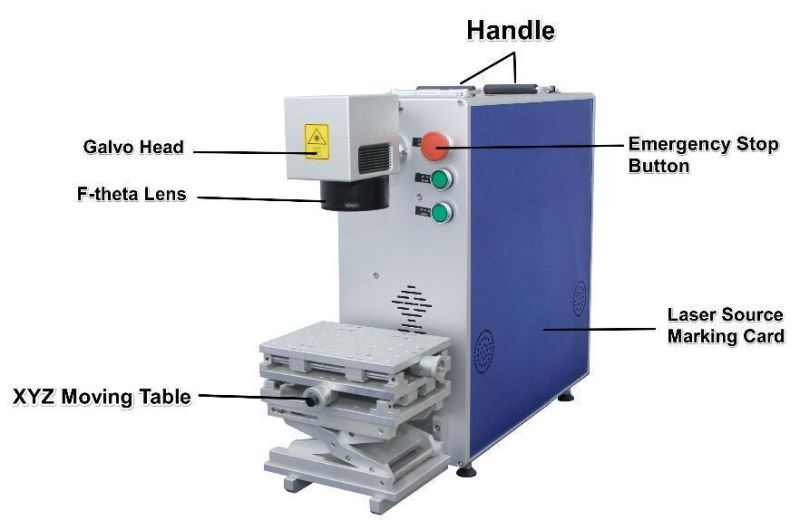

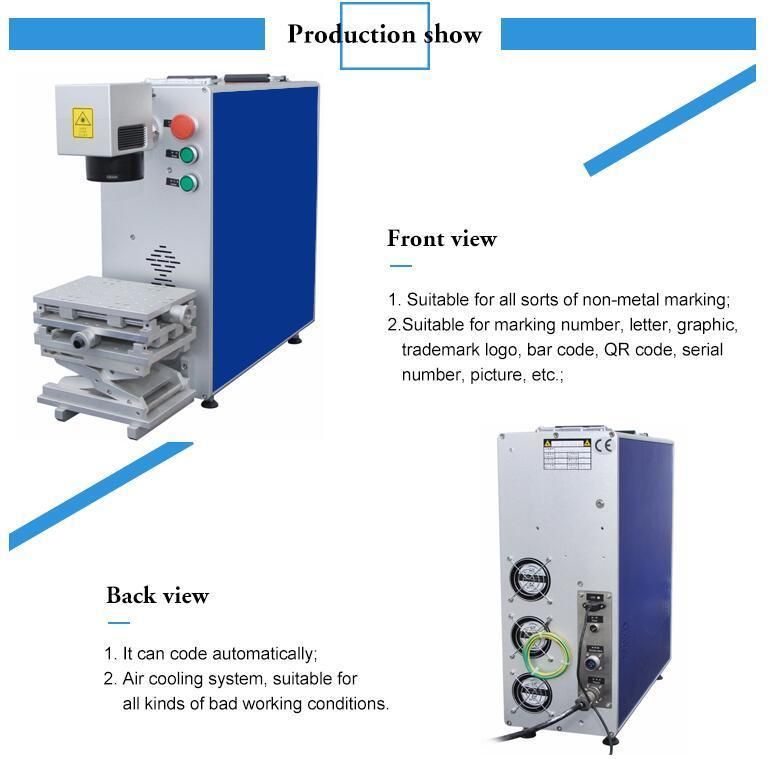

IMAGES DETAILS :


01. High speed digital scanning galvanometer system

It adopt the imported high-speed galvanometer scanning head,greatly reduced the time delay and improved the marking speed.

The speed is 3-10 times of first generation YAG and second generation semiconductor marking machine.

02. Fiber used specialized controller

 The marking software has strong functions,which can be compatible with coreldrow,AutoCAD ,photoshop

and other softwares;support plt,pcx,dxf,bmp format etc ;can use shx ttf font directly.It also can support autocoding,

Print the serial number,batch number,date,bar code,QR code,Automatic jump number and so on.

03. Multi-function work table

Steady lifting, safe and convenient

04. DC power supply

To provide a stable and reliable DC power to devices

05. Field Lens

The field lens has good light effect,which can improve the ability of edge laser beam incident on sensor,and

make the non-uniform illumination on sensor's photosensitive surface more homogenize.

06. Precision scale

Ruler to more accurately measure the focal length

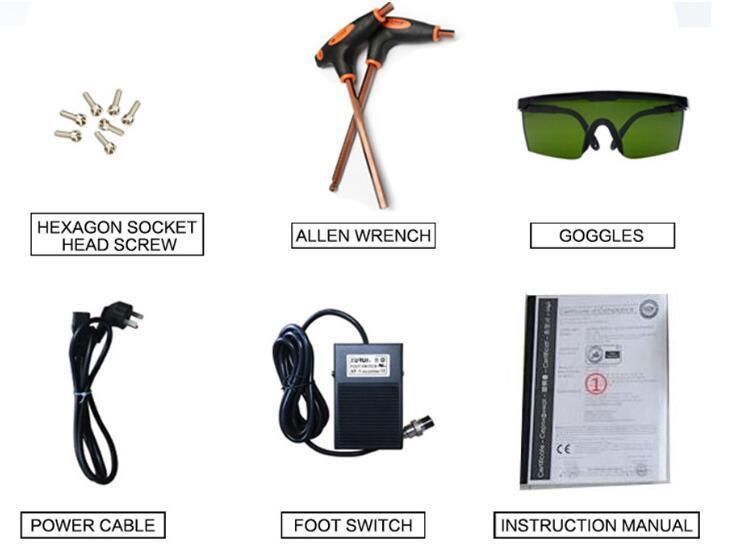

Standard Laser Parts :

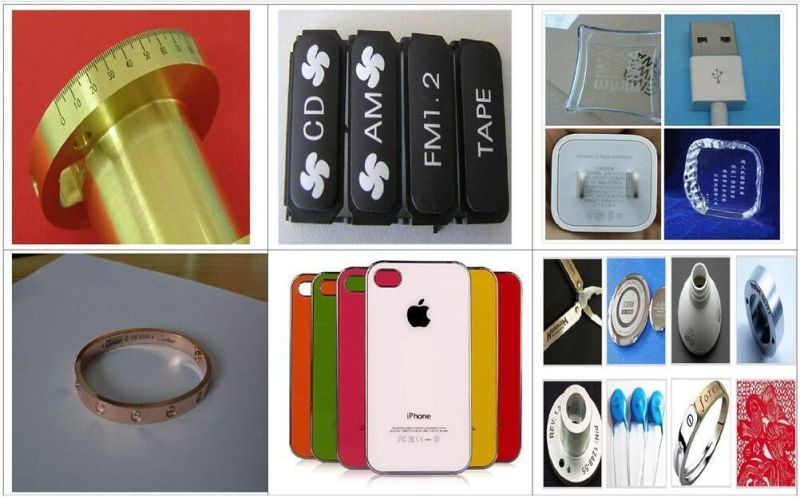

SAMPLE SHOW :

Application Industry

Electrical -- Engineering and Electrical part and component

Mobile -- ( Cover, battery, keyboard , I Phone Case )

Jewelry -- (Ring , pedeant , bracelet ) , eyeglass , clocks and craft

Building materials , PVC pipe, Car motor car spare part , Insturments and meters and cutting tool

Plastic -- plastic case , aviation and aerospace,

Military product -- hardware fitting and accessory , sanitary appliance

Food and beverage -- Medicine package and medical instrument , solar PV industry

PACKAGING &  SHIPPING :

Package details:

1. Standard plywood case, its compressive strength and bearing quality is better.

2. the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.

3. when importing, the plywood case is with fumigation-free, the procedure is simple.

4. Delivery Detail: within 7-15 days after received your payment .



ABOUT US :

We care what is client care about

Our Service

We provide Three-years machine warranty. In case it exists machine problem, we will solve the problem through email, skype, phone or video.

If the problem still exists, we will send our technician to customer's plan for machine repair.

We will respond to customer's question within two hours.

Quality Control of Metal Engraving Machine Laser Engraving

Metal Engraving Machine Laser Engraving is our core competencies. Quality is our culture.

Our professional quality control team will make strict quality checking for every part of the machine before entering into warehouse.

Before shipment, our engineer will do machine checking within 24 continuous hours to ensure high performance and high stability.
