• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

 20W Handle Portable Carbon Aluminum Laser Marking Machine with Safety Cover

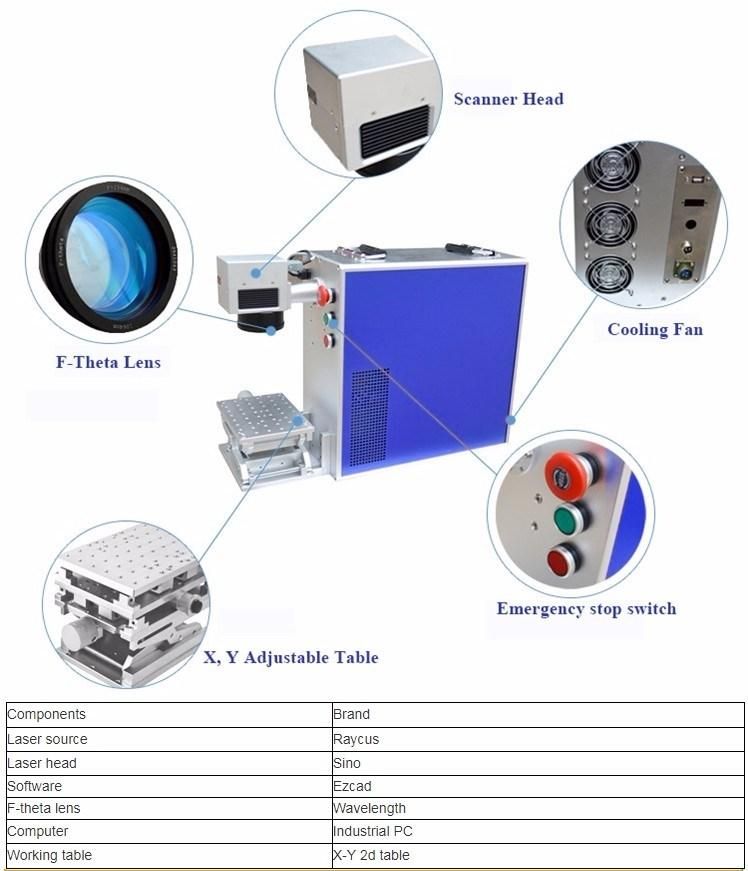

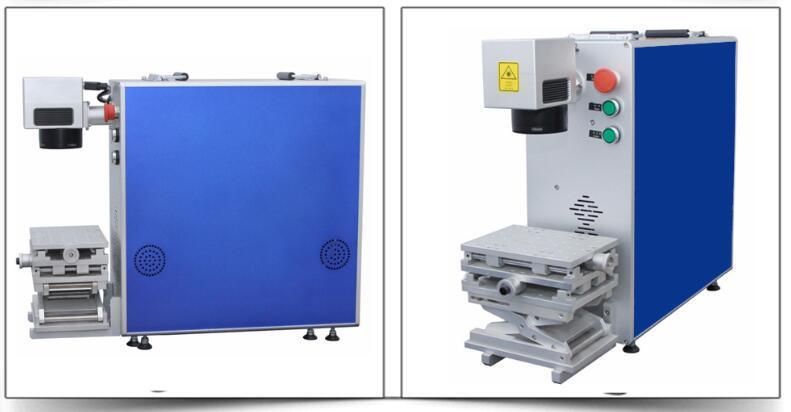

IMAGES DETAILS :



1. Wide range: mini Fiber laser marking machine can be used on many metal and nonmetal materials.

2. Permanent marking: Laser marking is a permanent marking. It won't fade.

3. Long service time: Fiber laser model has a over 100,000 hours working life. Almost no maintenance during this period.

4. Easy to operate: Support almost any Windows-based software like Coreldraw, AutoCAD, Photoshop.

5. High precision: 0.0025mm re-position accuracy. Minimum line width 0.01mm.

6. Non-contact process: Won't cause mechanical extrusion or mechanical stress to materials. Laser beam won't move the work piece.

7. Portable: Small footprint, easy to move and transportation. Size like a computer case.

8. 10w/20w/30w/50w fiber laser source for choose.
  TECHNICAL  PARAMETER :

Laser Source	Fiber Laser
Output Power	50W30W/20w/ 10w
Wavelength	1060nm
Beam Quality	<2
Repeat Frequency	10khz--- 100khz
Pulse Energy	2mJ
Beam Divergence	-0.3 to +0.3mrad
Laser Class	IV
Resolution	18μ
Repeatablility	50μ
Marking Scope	110mmx 110mm/ 175mmx 175mm (optional)
Linear Speed	800 character/ s
Marking Linear Speed	≤12,000mm/s
Marking Depth	Max. 1.0- 1.5mm (hard steel)
Min. Line Width	0.012mm
Min. Character Size	0.15mm
Repeat Accuracy	±0.003mm
Input Power	0.5kw
Electrical Source	220v/50hz or 60hz

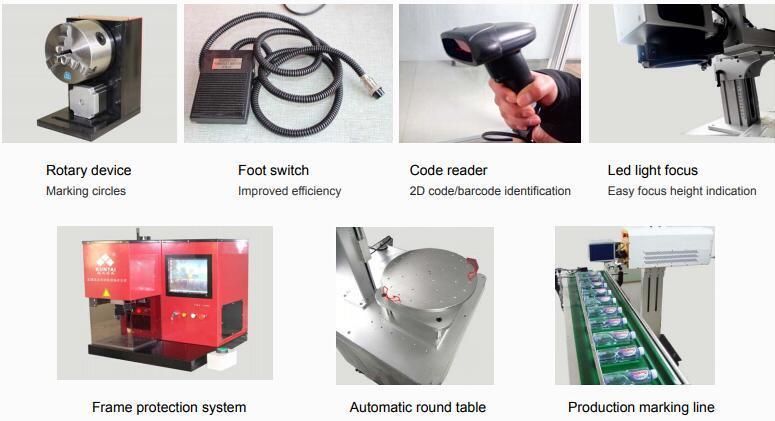

Optional Laser Parts :

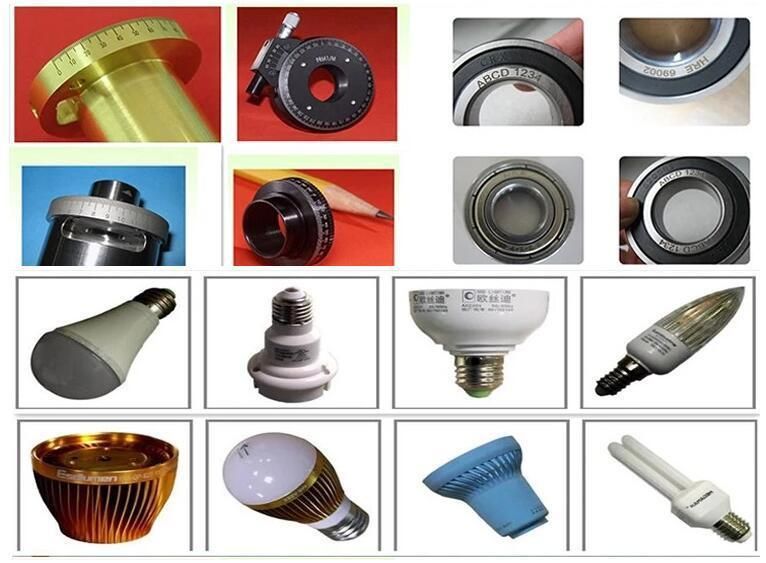

 SAMPLE SHOW :

Applicable Industries

Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits(IC), electrical appliances,

communication products, sanitary ware, tool, accessories, knives, eyeglasses and clocks, jewelry, auto parts,

luggage buckle, cooking utensils, stainless steel products and other industries.

Applicable Materials

Metals(including rare metals), engineering plastic, electroplating materials, coating materials, plastics, rubber,

epoxy, resin, ceramic, plastic, ABS, PVC,PES, steel, titanium, copper and other materials.

>>Representative Working Samples:

auto accessories marking, tobacco products marking, beer bottle marking, ring marking, electronic products marking.

 Fiber Laser Marking Machine Models:

 ITEM: 3D laser engraving machine | 3D deep marking | 3D curve engraving

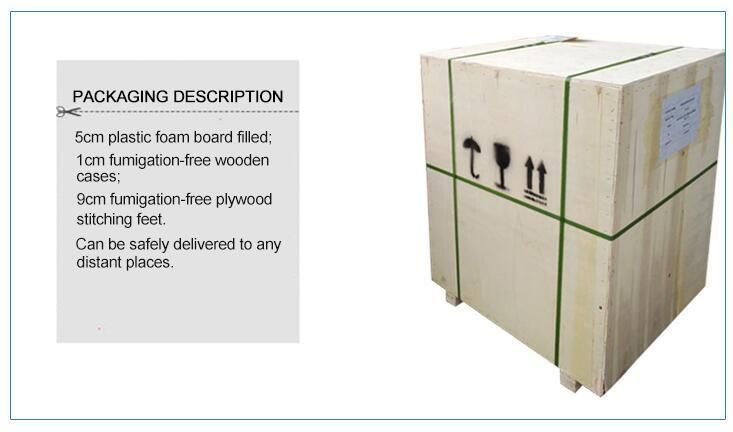

PACKAGING & SHIPPING   :

About shipment

ABOUT US  :

1. What's your after-sales service?

-- 24/7 supported by chat online.

-- 24/7 supported by phone.

-- Lifelong and free technical support.

-- We are responsible for troubleshooting.

-- Service overseas: if the questions need to be solved face to face, we will dispatch an engineer to your door.

Under warranty, we are responsible all costs. Out of warranty, you are responsible for all costs.

-- We have international after-sales engineer to solve all problems for our customers.

2. What's your guarantee?

-- Fiber laser source, field lens, galvanometer and all parts are 100% genuine and certificate is with it.

-- Machine is verified and inspection and adjustments is completed as well as verified in writing.

-- Testing is done and results is verified in writing.

3. What's your warranty?

-- 3 years.

4. What's your Payment Terms Supported?

-- By 100% T/T in advance.

-- By 30% T/T in advance, 70% balance paid before shipment or after shipment.

-- By Alibaba Trade Assurance, PayPal, Western Union, L/C.

5. What's your date of delivery?

-- Within 7 working days after receiving payment.

6. What's your packaging?

-- Exported wooden case or according to your requirements.

7. What watt is suitable for me?

-- If you are not sure, please tell me what the machine will be used to do, it's better to send me pictures of your products.

I would like to recommend you a suitable and right watt according to my experience.

8. How much is shipping cost?

-- If you prefer by sea, please tell me destination port.

-- If you prefer by air or by land, please tell me your city and detailed address.
