• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

Jewelry Number ring Plastic Name Plate Fiber Laser Marker with Ce


  PRODUCTION :


Laser Marking Usage

1 Marking Alphanumeric, Serial Numbers, Part Numbers

2 Marking of Logos, Schematics, Complex Graphics, Images and Pictures

3 Bar-coding, 2D Data Matrix Codes, Lot Codes, Date Codes

4 UID Marking (Unique Identification)

5 Deep Engraving

6 Paint Removal from Plastic and Metal Surfaces

  TECHNICAL  PARAMETER :


Laser type	fiber laser
Laser power	20w /30w
Software	Ezcad
Supports graphical format	PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF ect.
Beam quality:	<1.8
Power stability:	(8h) <± 1% rms
Pulse repetition frequency	20-100KHz
Power consumed:	<800W
Minimum line width	50μm
Minimum character:	1*1mm
Working speed:	800 characters/s
Laser Wavelength	1064nm
Engraving depth:	≤2mm
Galvanometer Size:	110 * 110mm /160mm*160mm(optional)
Min line width	0.01mm
Repetitive precision	±0.001mm
Cooling way:	Air cooling
Operating voltage	110/220V ± 10% /50/60HZ
Ambient operating temperat	15 ° C - 35 ° C
Warranty	3  years

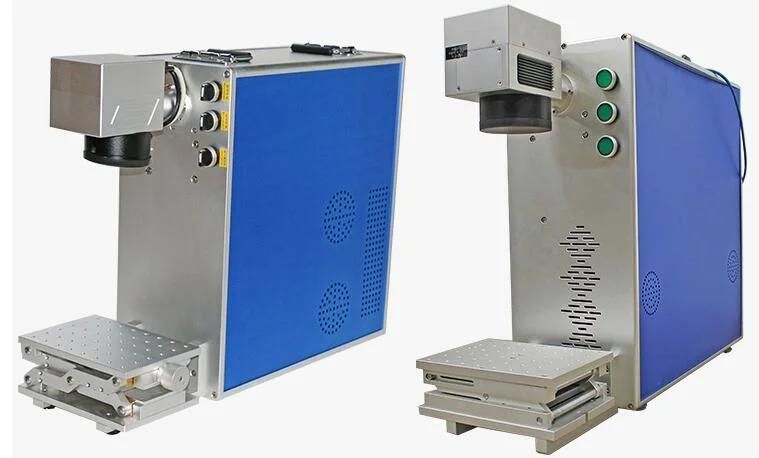

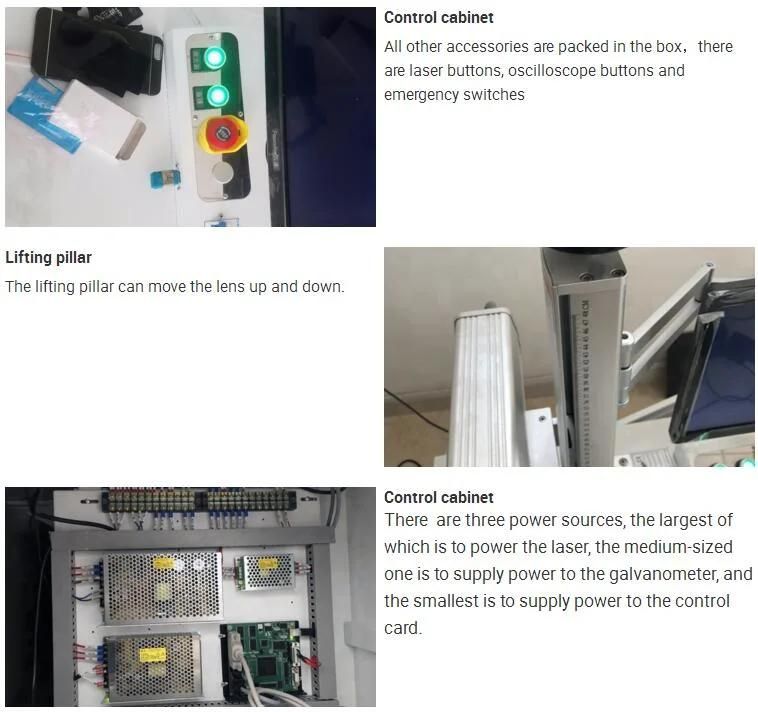

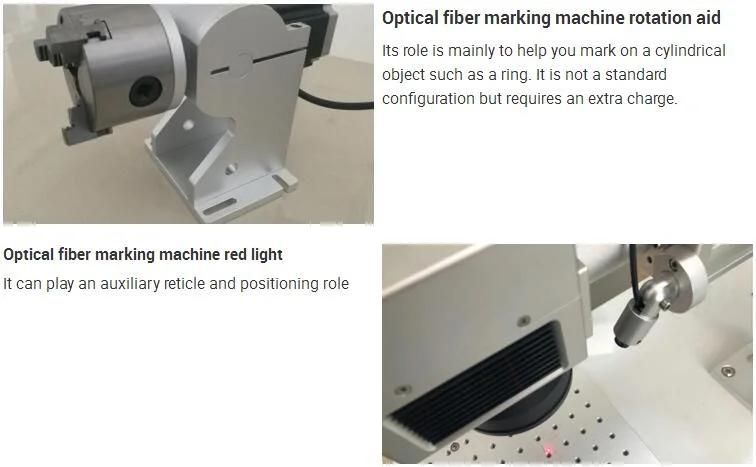

IMAGES DETAILS :

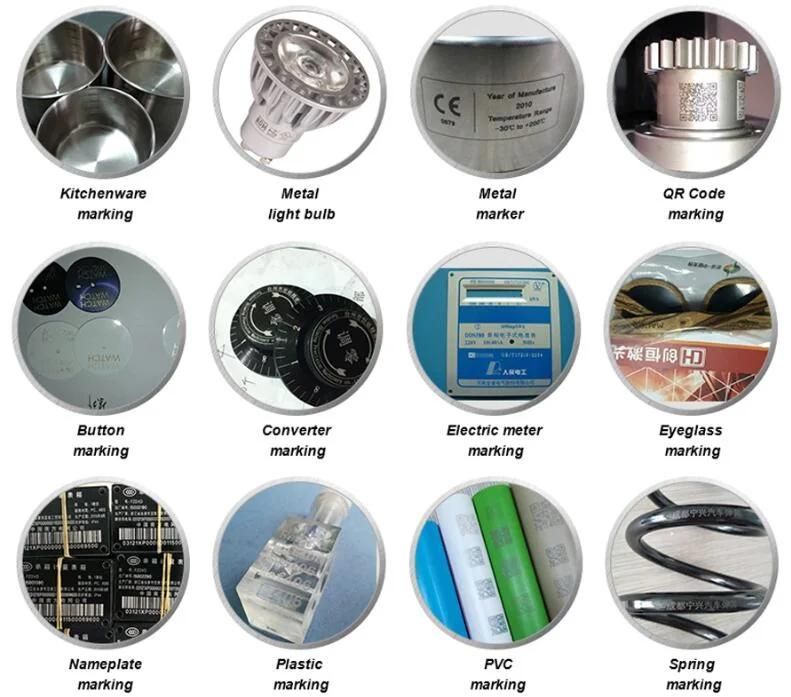

 SAMPLE SHOW :



  PACKAGING &  SHIPPING :

Inside Packing

Use professional Stretch Film to cover the whole lathe

Stretch film package with foam protection in each corner.

Outside Packing

Standard export wooden cases and pylwood cases

Save space as much as possible for container loading.

Transport

We support shipping, air, land and express

You can choose the most suitable way of transport



 Company Information :

Shandong Man Machinery Equipment  Co.,Ltd. is a industiral machine manufacture.

By far,our machines have seen sold to all round the world , Nowadays, more and more factories and distributors choose us,

because they realized good reliable quality with reasonable prices is the basic of long-term business.

Our products as below:

Fiber laser marking machine;

UV laser marking machine;

Co2 laser marking machine;

Laser Engraving Machine

 Laser Cutting Machine
