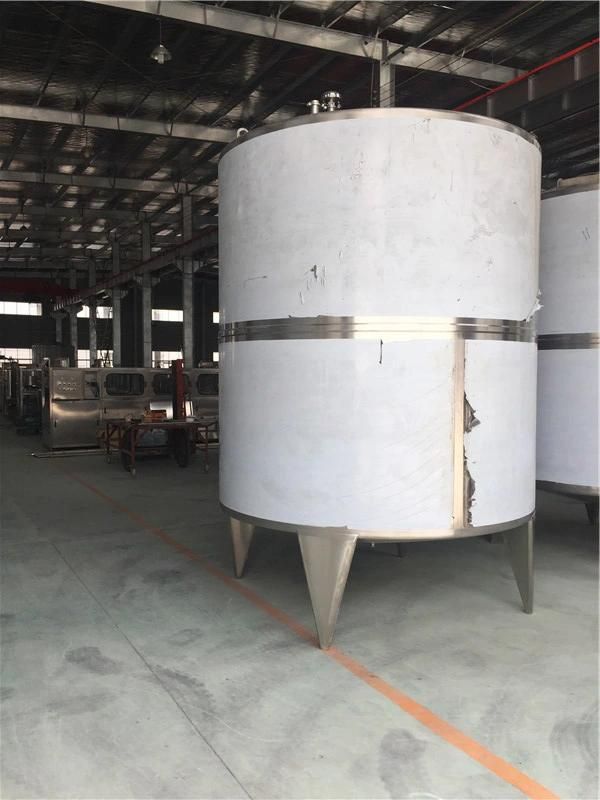

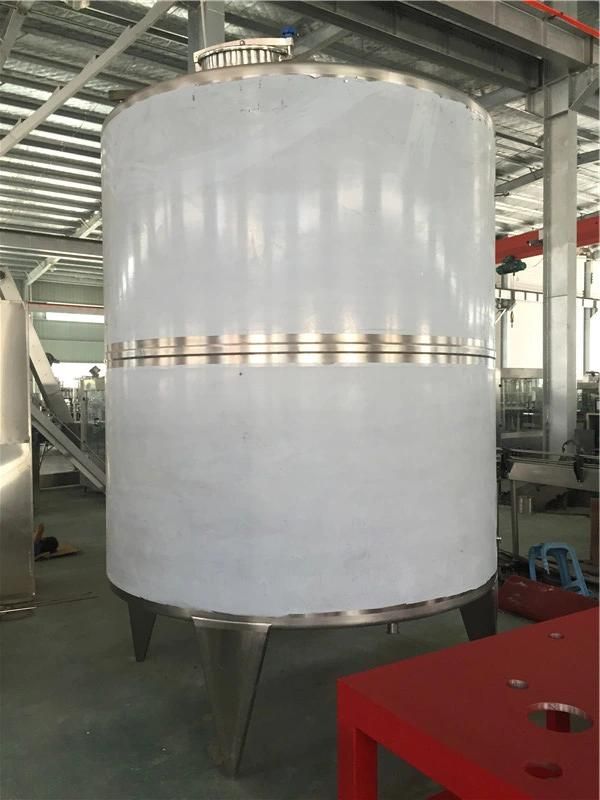

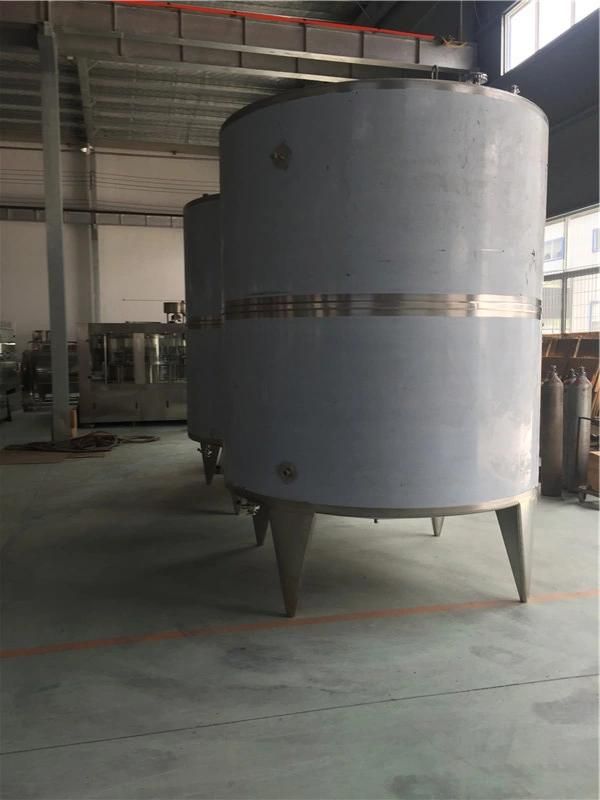

Juice Mixing Tank Beverage Tank Heating Tank Tank Mixer
NINGBO HAISHU JUDIN PACKING PRODUCTS CO., LTD.- After-sales Service：Online Service
- Warranty：One Year
- Name Details：Juice Mixing Tank,Beverage Mixing Tank
- Material：Food Grade Stainless Steel 304 , 316
- Liquid Mixing Tank Capacity：100L-30000L
- Insulation：Polyurethane Foam
Base Info
- Model NO.：MT
- Application：Liquid and Powder, Liquid and Liquid
- Tank Type：Single Wall Tank, Jacket Wall, Three Walls
- Mixer Shape：Customized
- Tank Inside and Outside：Mirror Polished, Sub-Light and Frosted, Customized
- Mixer Speed：36rpm, 60rpm, 960rpm, 2900rpm
- Certificate：ISO
- Packing：Wooden Box
- Motor Brand：Siemens ,ABB ,China Brand
- Level Meter：Yes
- Temperature：Sensor
- Air Vent：Yes ,No
- Transport Package：Wood Box
- Specification：CUSTOMIZED
- Trademark：KQ
- Origin：Shanghai, China
- HS Code：8479820090
- Production Capacity：1000units,Month
Description
Common rotation speed 35,43,60 ; stepless speed reducer or dual-speed reducer are also available600 920*1000 2850 60 38 0.55 700 990*1000 2850 60 38 0.55 800 950*1220 3000 60 38 0.55 900 1010*1220 3000 60 38 0.55 1000 1060*1220 3150 60 51 0.75 1500 1160*1500 3350 60 51 0.75 2000 1340*1500 3410 60 51 1.1 3000 1410*2000 4000 60 51 1.5 4000 1620*2000 4250 60 51 1.5 5000 1810*2000 4300 60 51 2.2 6000 1980*2000 4550 60 51 2.2 7000 1930*2440 5000 60 51 2.2 8000 2060*2440 5000 60 51 3 9000 2180*2440 5050 60 51 3 10000 2300*2440 5050 60 51 3 12000 2270*3000 5600 60 51 4 15000 2530*3000 5700 60 51 4 20000 2640*3660 6400 60 51 5.5
