• Model NO.：KQ Series
• Working Life Span：More Than 10years
• Tank Function：Heating, Fermenting, Mixing , Warm Keeping
• Tank Material：SS304,SS316
• Customized Type：Accept
• Motor：Siemens ,ABB,China Brand
• Packing：Wooden Box
• Working Life：More Than 10 Years
• Insulation Wall：PU , Polyurethane Foam
• Spare Parts：Available
• Transport Package：Standard Export Wooden Box
• Specification：ISO
• Trademark：KQ
• Origin：Shanghai China
• HS Code：8479820090
• Production Capacity：100sets Per Month

Basic Info.

Model NO. KQ Series Working Life Span More Than 10years Tank Function Heating, Fermenting, Mixing , Warm Keeping Tank Material SS304/SS316 Customized Type Accept Motor Siemens ,ABB,China Brand Packing Wooden Box Working Life More Than 10 Years Insulation Wall PU / Polyurethane Foam Spare Parts Available Transport Package Standard Export Wooden Box Specification ISO Trademark KQ Origin Shanghai China HS Code 8479820090 Production Capacity 100sets Per Month

Product Description

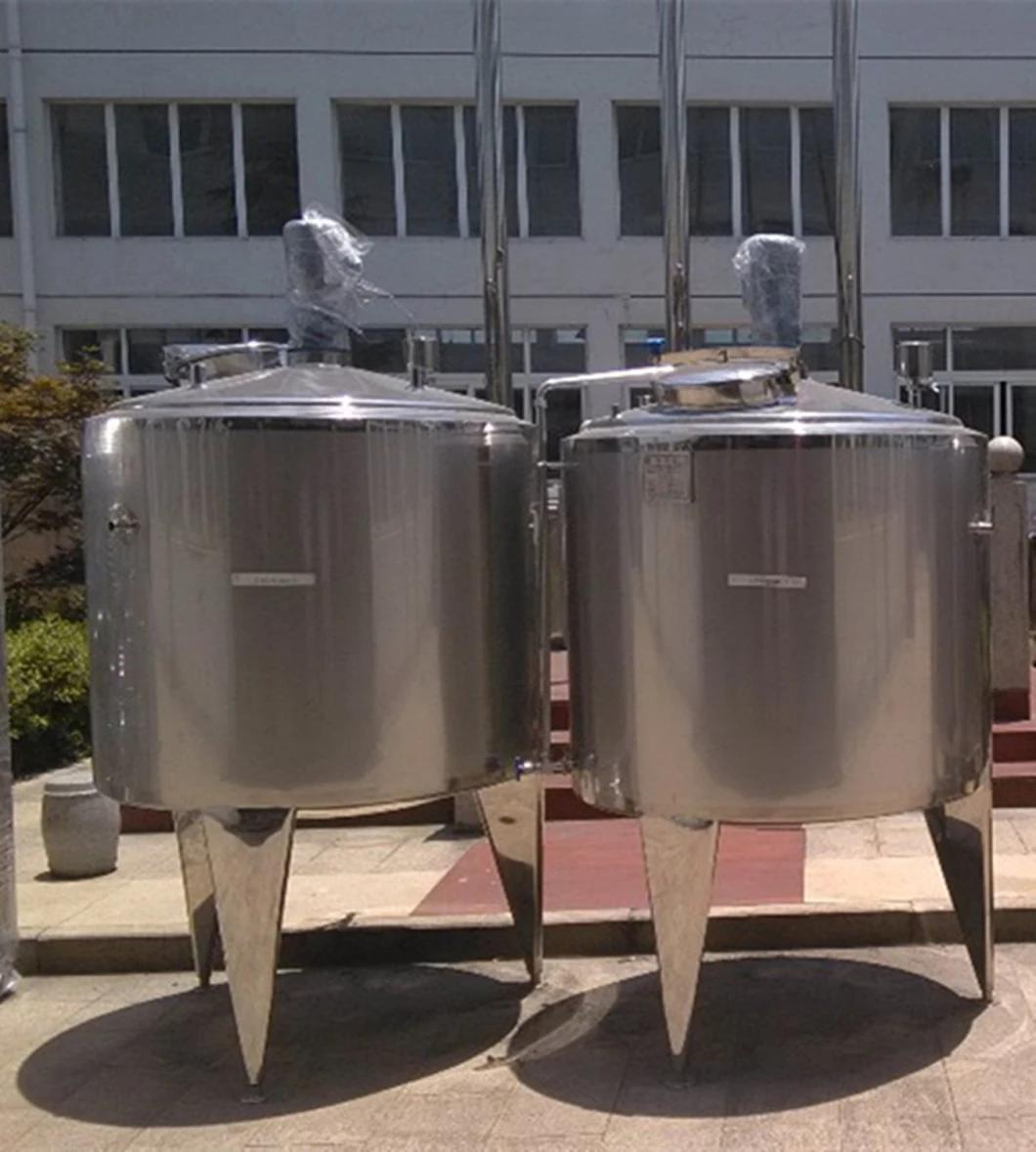

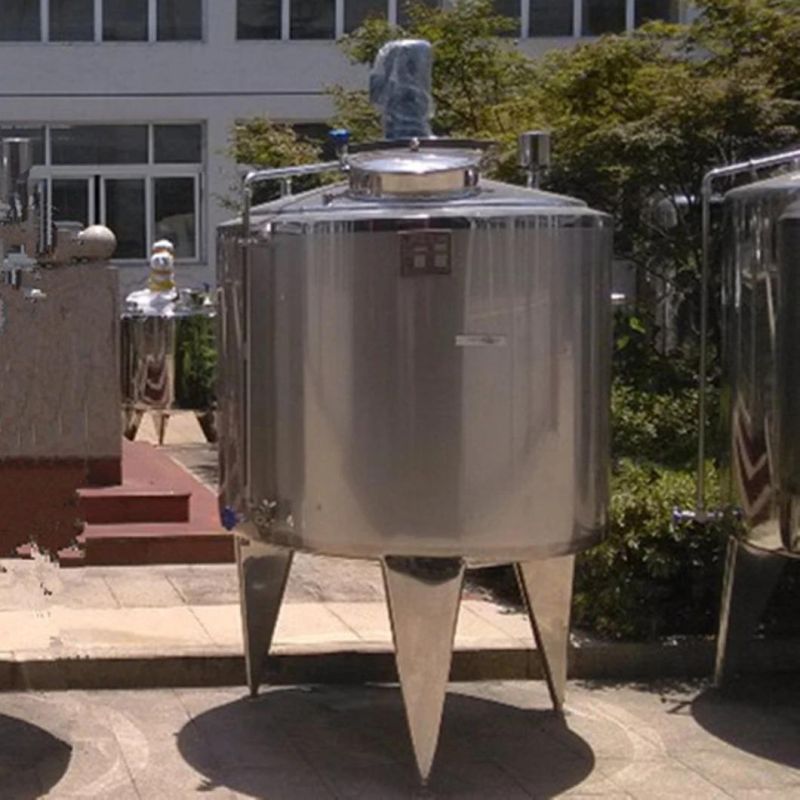

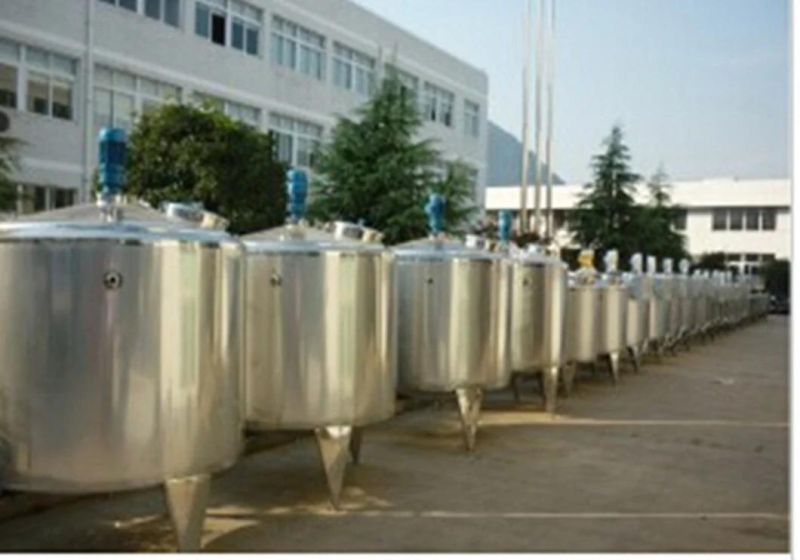

Steam Heating Water Cooling Heating Mixing Stainless Steel Tank




Electric heating pasteurizer for milk , juice,
Small electric heating tank pasteurizer for dairy, jucie factorys.

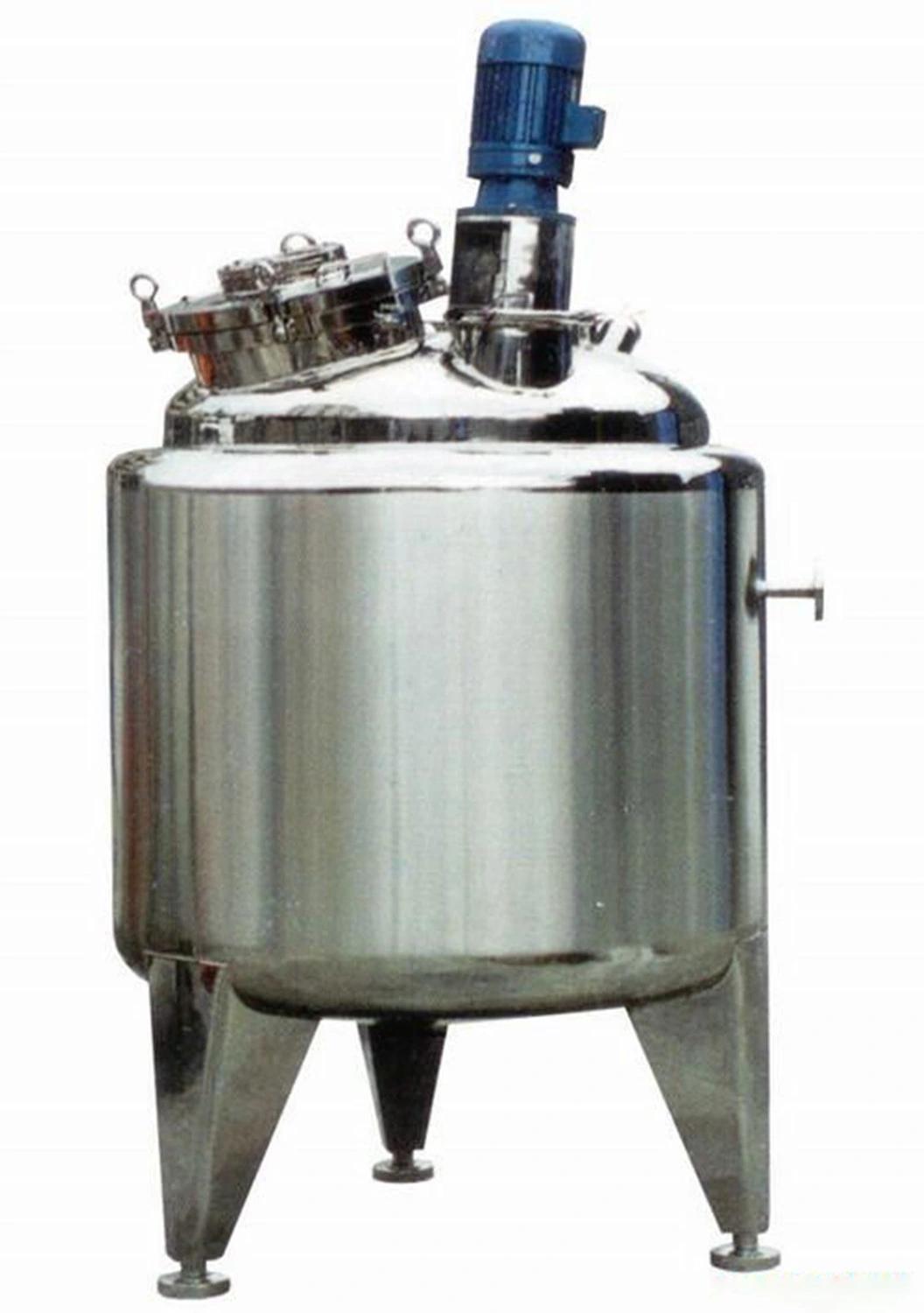

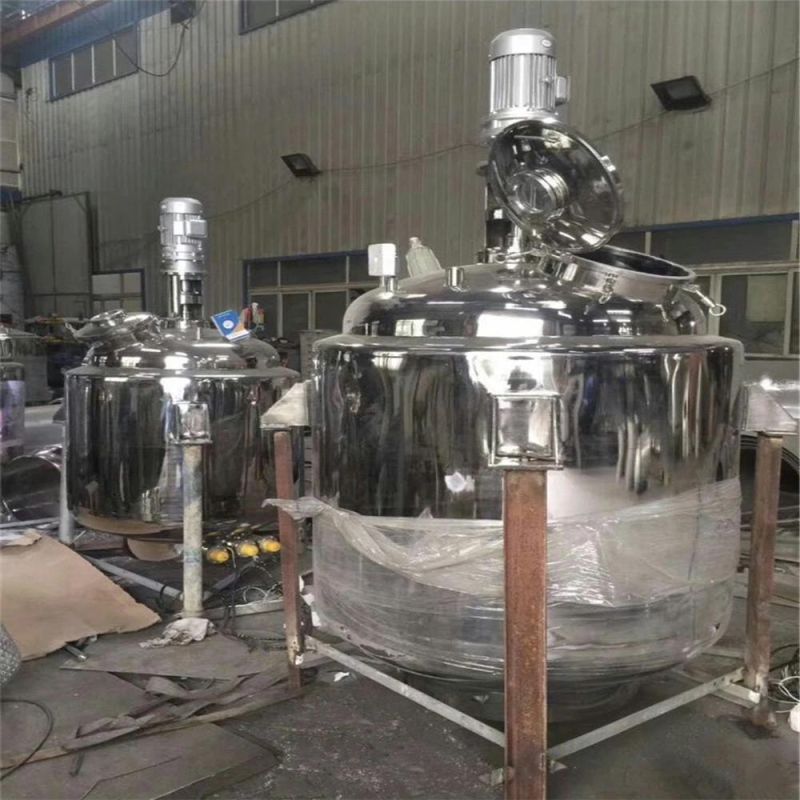

Electric heating and mixing tank
Shanghai Kaiquan Machine Valves Co.ltd offers the broadest range of tank heating solutions in the electric heatingindustry. .... jacketed vessel application is the heating of chocolate

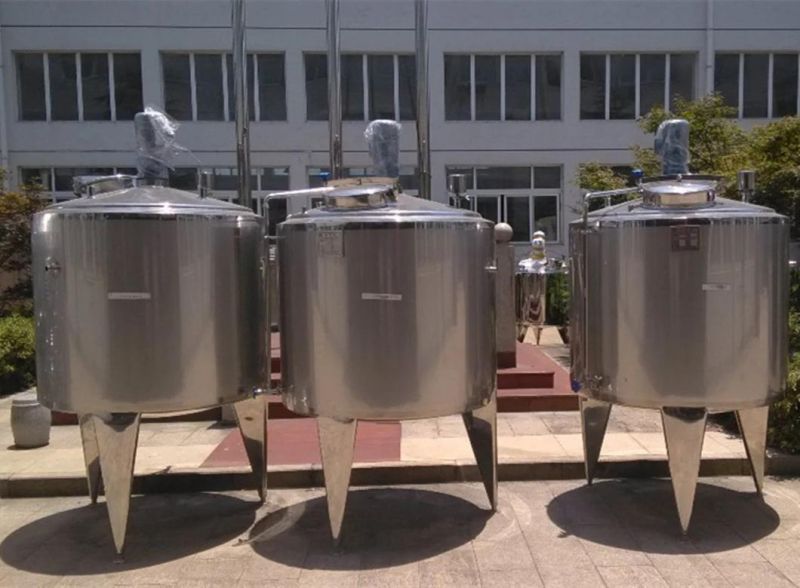

ELECTRIC HEATING MILK BATCH PASTEURIZER
200l, 300L, 400L ,500L, 600L JUICE PASTEURIZER, MILK PASTEURIZER.
Newest electric double jacketed heating cable for tank
Heating by Electric(380V, 50Hz)

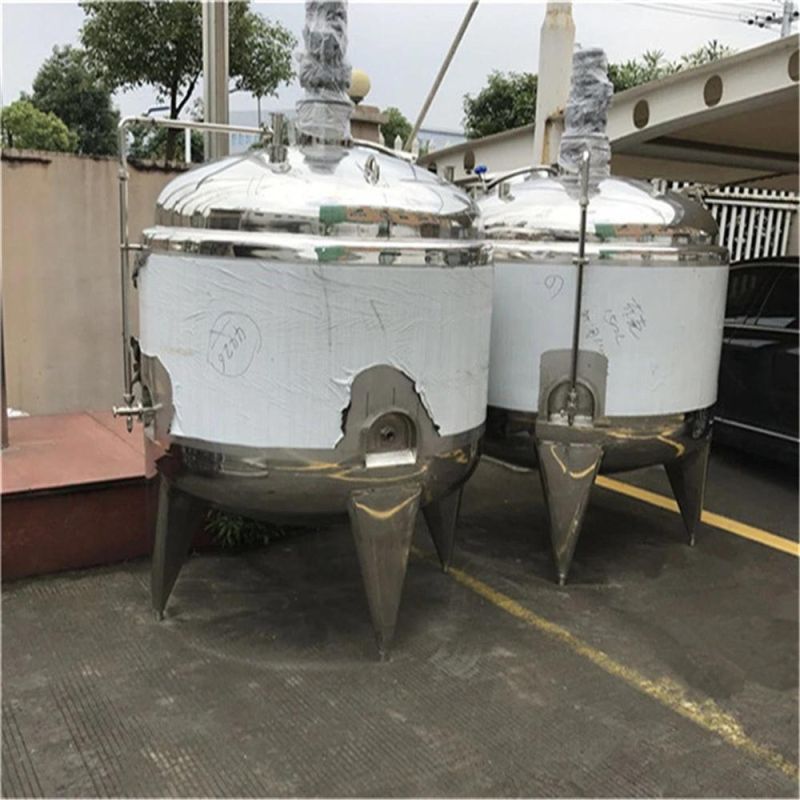

* Type: With Jacket and insulation
* Internal shell thickness: 3 mm
* Jacket thickness: 3 mm
* Outer shell thickness: 1.5 mm

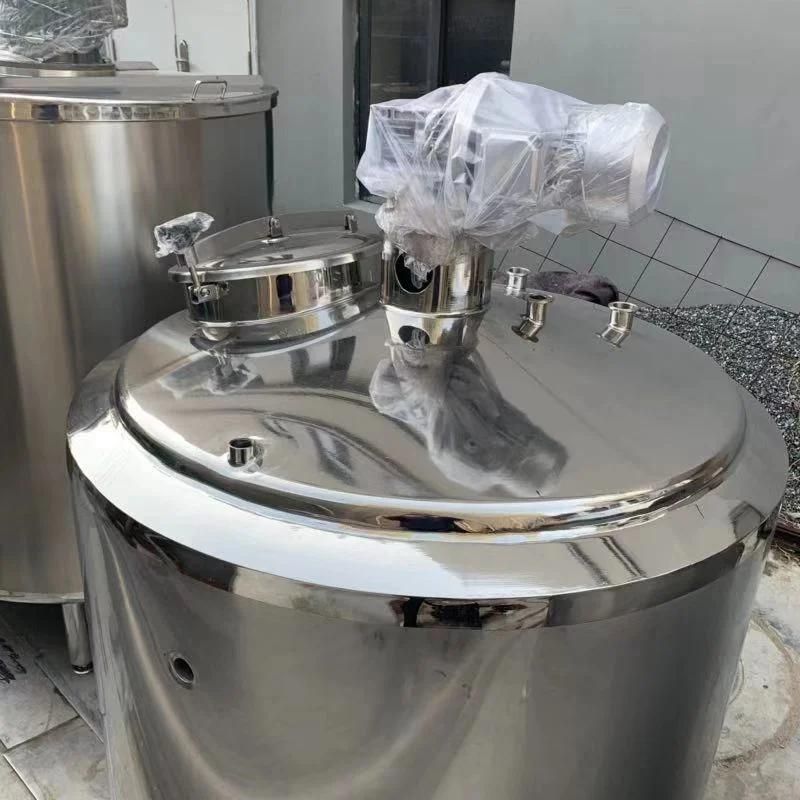

* Appearance: Ellipsoidal head top and down
* Accessories:

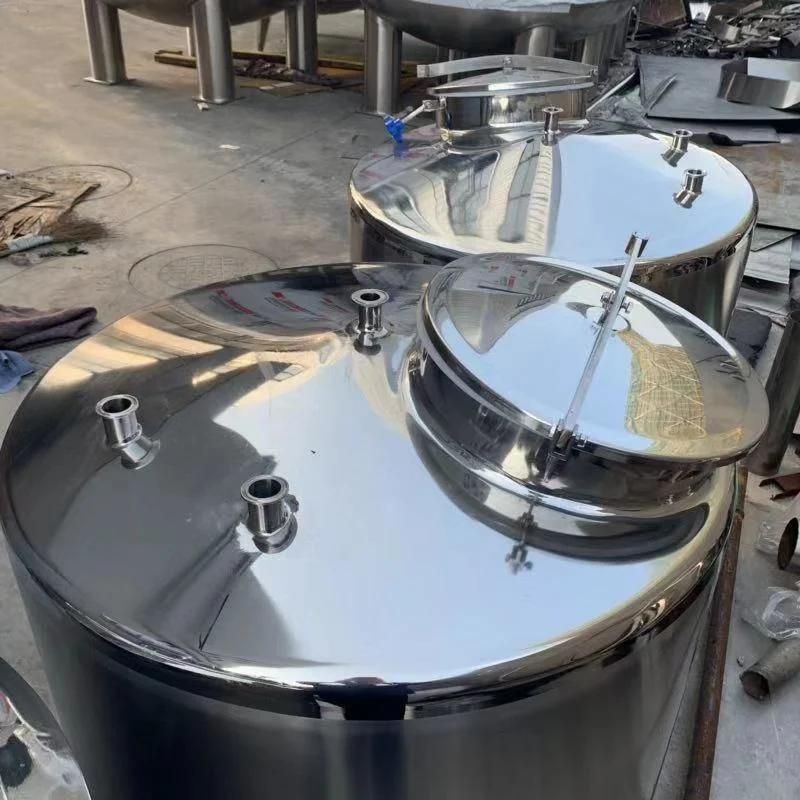

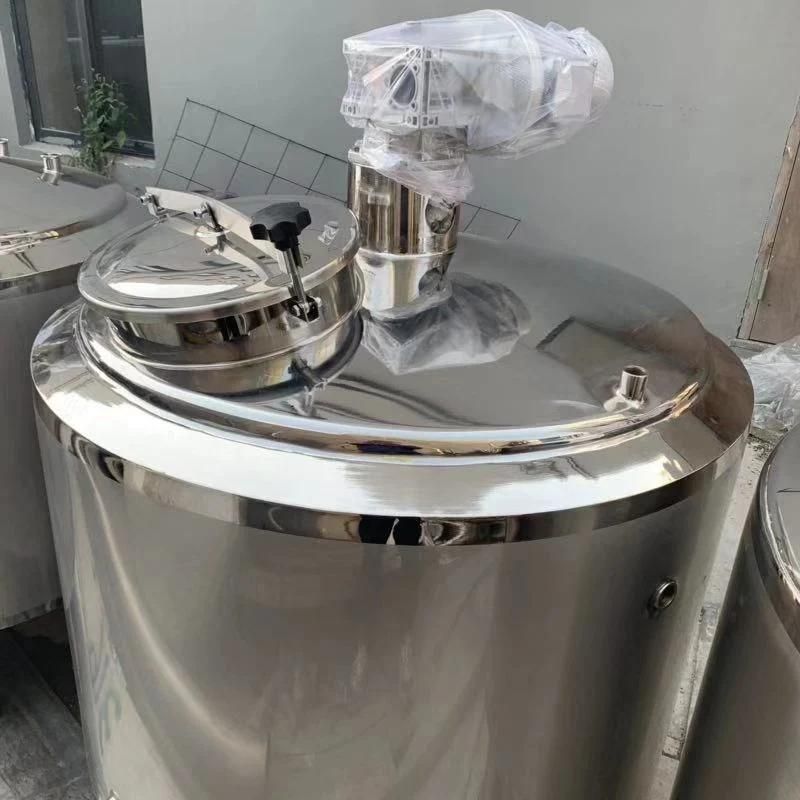

(1)Lid able to open on the top
(2) Charging/discharging hole at the bottom,
(3) Heat transfer oils (water) Inlet/outlet,
(4) Temperature probe,
(5) CIP cleaning ball,
(6) Heating tube, (7) Electric cabinet, (8) Reduction gears, (9) Rack & blender etc. (10)The electric motor(2.2KW, 380V, 50Hz)

TankCapacity(L)	200, SS304	300, SS304	500, SS304	1000,SS304
REV	36r/min	36r/min	36r/min	36r/min
Electric motor of the agitator	0.55KW,380v,50hz	0.75KW,380v,50hz	0.75KW,380v,50hz	1.1KW,380v,50hz
Electric heating tube power	15KW,380v,50hz	18KW,380v,50hz	24KW,380v,50hz	45KW,380v,50hz
Heating Area(M2)	0.9	1.1	1.9	4.5
Material Input/output(DN MM)	38	38	38	50
OUTSIDE DEMENSION(L*W*H)MM	900*900*1600	1000*1000*1500	1100*1100*1700	1400*1400*1750
GROSS WEIGHT(KGS)	150	200	300	450

Small Pasteurizer Milk Batch Pasteurizer Heating Tank
Steam Heating Water Cooling Heating Mixing Stainless Steel Tank
