• Model NO.：GJB Series
• Name：Two Stage Stainless Steel Homogenizer for Milk Ice
• Material：Stainless Steel 304 ,316
• Capacity：500lph to 10000lph
• Condition：New
• Certificate：Ce
• Pressure：250bar to 700bar
• Motor Power：5.5-110kw.
• Warranty：in One Year
• Homogenizer Spare Parts：Provided
• Homogenizer Electricity：220V,380V,415V,440V
• Packing：Wooden Box
• Working Life：More Than 10 Years
• Motor Brand：Siemens ,ABB ,China Brand
• Delivery：15 Days After Get Your Advance Payment .
• Stage：Two Stage
• Transport Package：Wooden Box
• Specification：CE
• Trademark：KQ JGB
• Origin：China
• HS Code：847982009
• Production Capacity：100sets Per Month

Basic Info.

Model NO. GJB Series Name Two Stage Stainless Steel Homogenizer for Milk Ice Material Stainless Steel 304 /316 Capacity 500lph to 10000lph Condition New Certificate Ce Pressure 250bar to 700bar Motor Power 5.5-110kw. Warranty in One Year Homogenizer Spare Parts Provided Homogenizer Electricity 220V,380V,415V,440V Packing Wooden Box Working Life More Than 10 Years Motor Brand Siemens /ABB /China Brand Delivery 15 Days After Get Your Advance Payment . Stage Two Stage Transport Package Wooden Box Specification CE Trademark KQ JGB Origin China HS Code 847982009 Production Capacity 100sets Per Month

Product Description

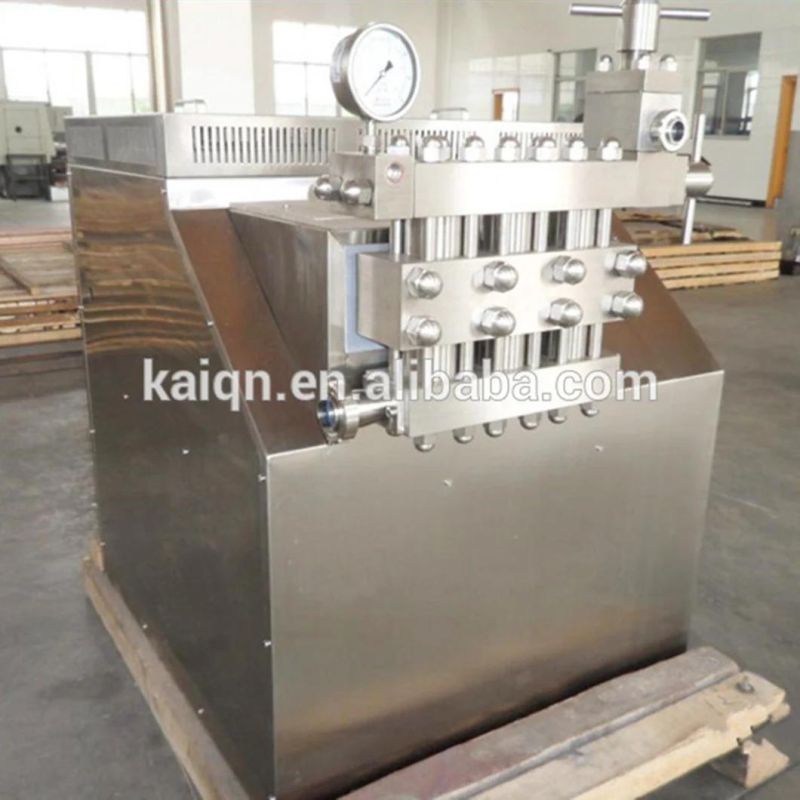

Two Stage Stainless Steel Homogenizer For Milk Ice Cream
Milk High Pressure Homogenizer, You Can Buy Various High QualityMilk High Pressure Homogenizer Products from us, the 250bar milk homogenizer FROM US
CE CERTIFICATED HOMOGENIZER FOR MILK, JUICE, DAIRY, ICECREAM, SOYBEAN MILK, HONEY
Soybean milk homogenizer, 40MPA homogenizer
Tea drinks homogenizer, juice homogenizer



Homogenizer pumps
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life Series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
Ice Cream Homogenizer Homogenizer Price Yogurt Homogenizer Homogenizer Factory

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

Two Stage Stainless Steel Homogenizer For Milk Ice Cream .
