• Model NO.：KQ1000-25
• Name：Ce Certificate 1000L Milk High Pressure Beverage J
• Homogenizer Certificate：Ce
• Capacity：500L,H-10000L,H
• Pressure：25MPa -70MPa (250bar to 700bar)
• Homogenizer Appication：Milk ,Juice, Beverage, Butter, Honey, Cream
• High Pressure Homogenizer：Customized Electricity Motor
• Motor：Siemens ,ABB,China Brand
• Pistion：Two,Three Stage
• Homogenizer Working Life：More Than 10years
• Warranty Period：One Year
• Spare Parts：Available
• Voltage：Make It to Your Order
• MOQ：1set
• Working Life：More Than 10 Years
• OEM：Yes
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. KQ1000-25 Name Ce Certificate 1000L Milk High Pressure Beverage J Homogenizer Certificate Ce Capacity 500L/H-10000L/H Pressure 25MPa -70MPa (250bar to 700bar) Homogenizer Appication Milk ,Juice, Beverage, Butter, Honey, Cream High Pressure Homogenizer Customized Electricity Motor Motor Siemens /ABB/China Brand Pistion Two/Three Stage Homogenizer Working Life More Than 10years Warranty Period One Year Spare Parts Available Voltage Make It to Your Order MOQ 1set Working Life More Than 10 Years OEM Yes Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

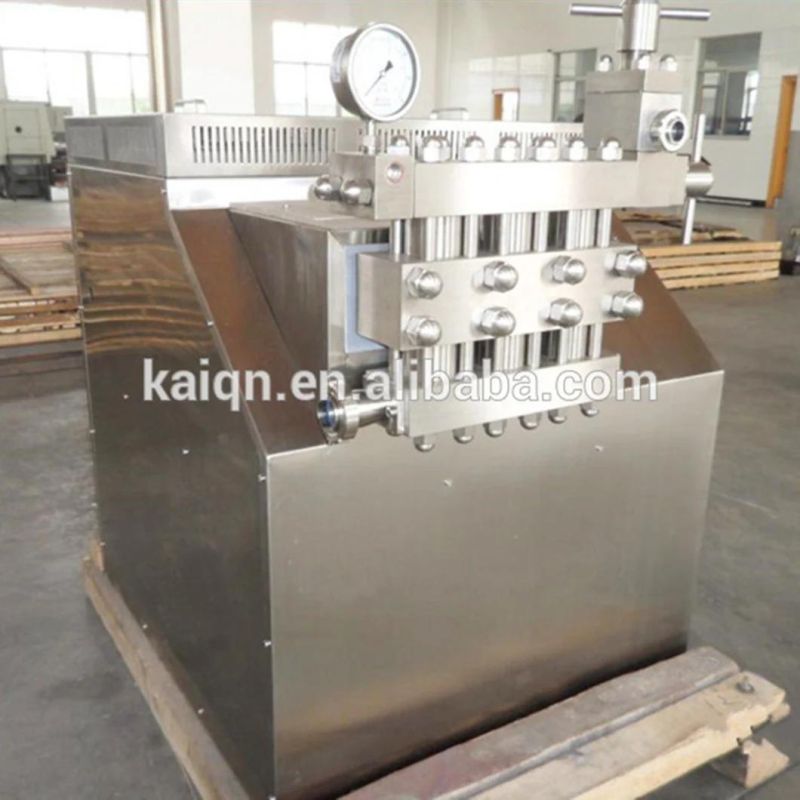

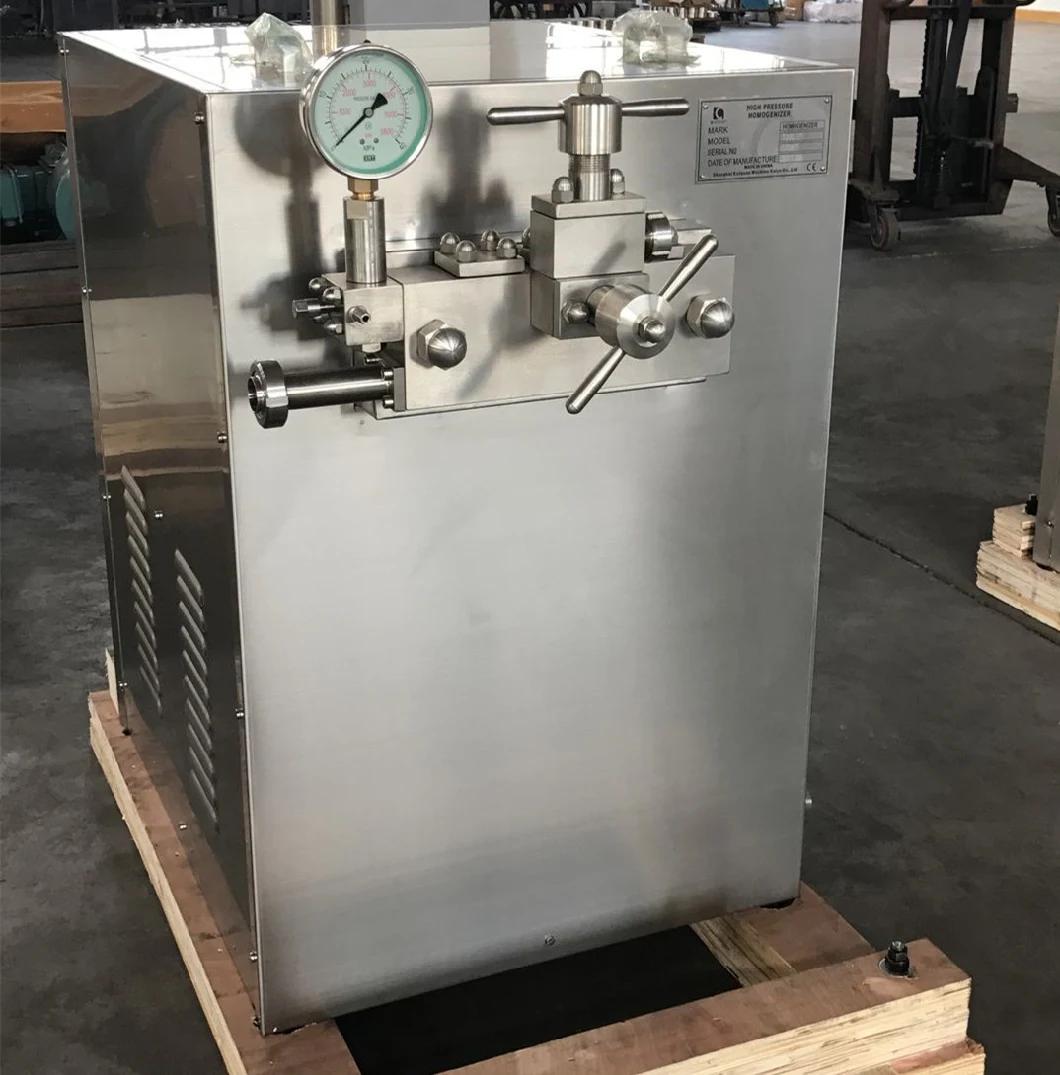

CE Certificate 1000L Milk High Pressure Beverage Juice Homogenizer 25MPa


Milk High Pressure Homogenizer, You Can Buy Various High QualityMilk High Pressure Homogenizer Products from us,  the 250bar milk homogenizer,
CE CERTIFICATED HOMOGENIZER FOR MILK, JUICE, DAIRY, ICECREAM, SOYBEAN MILK, HONEY
Soybean milk homogenizer,  40MPA homogenizer
Tea drinks homogenizer,  juice homogenizer .

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

homogenizer pumps
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.




The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
