• Model NO.：KQ
• Name：10000L Juice Milk Cream Small Homogenizer for Foo
• Product Material：Stainless Steel 304 ,316
• Capacity：500L,H--10000L,H
• Stage：Two Stage
• Pressure：250bar to 700bar
• Homogenizer Life Time：More Than 10years
• Warranty：in One Year
• Packing：Plywood Box
• Warranty Period：220V,380V,415V,440V
• Certificated：Ce Certificate
• Plunger：4 Plunger
• Factory：Shanghai China
• Delivery：10-15 Days After Get Your Advance Payment
• MOQ：1set
• Motor Brand：ABB ,Siemens ,China Brand

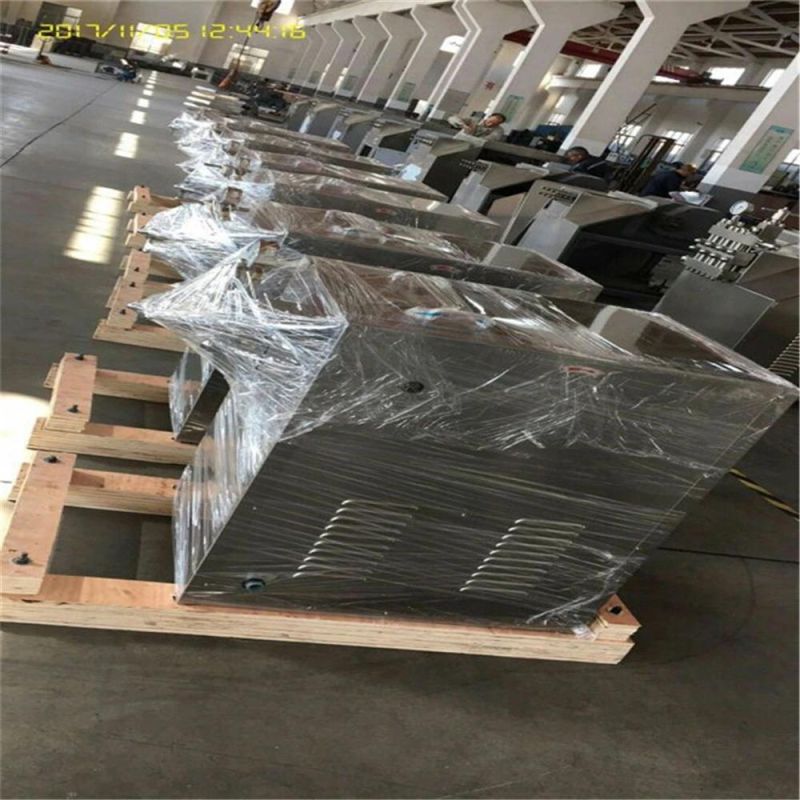

• Transport Package：Standard Wooden Box
• Specification：CUSTOMIZED
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. KQ Name 10000L Juice Milk Cream Small Homogenizer for Foo Product Material Stainless Steel 304 /316 Capacity 500L/H--10000L/H Stage Two Stage Pressure 250bar to 700bar Homogenizer Life Time More Than 10years Warranty in One Year Packing Plywood Box Warranty Period 220V,380V,415V,440V Certificated Ce Certificate Plunger 4 Plunger Factory Shanghai China Delivery 10-15 Days After Get Your Advance Payment MOQ 1set Motor Brand ABB /Siemens /China Brand Transport Package Standard Wooden Box Specification CUSTOMIZED Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

Homogenizing Machine Homogenizer Pump 5T Homogenizer 6T Homogenizer Cream Homogenizer

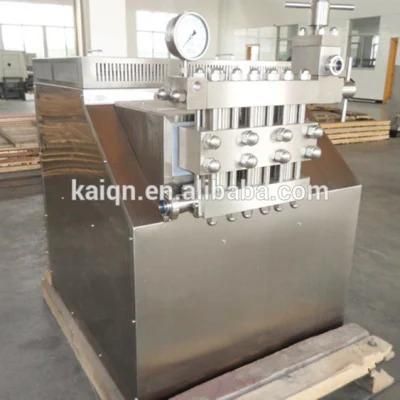

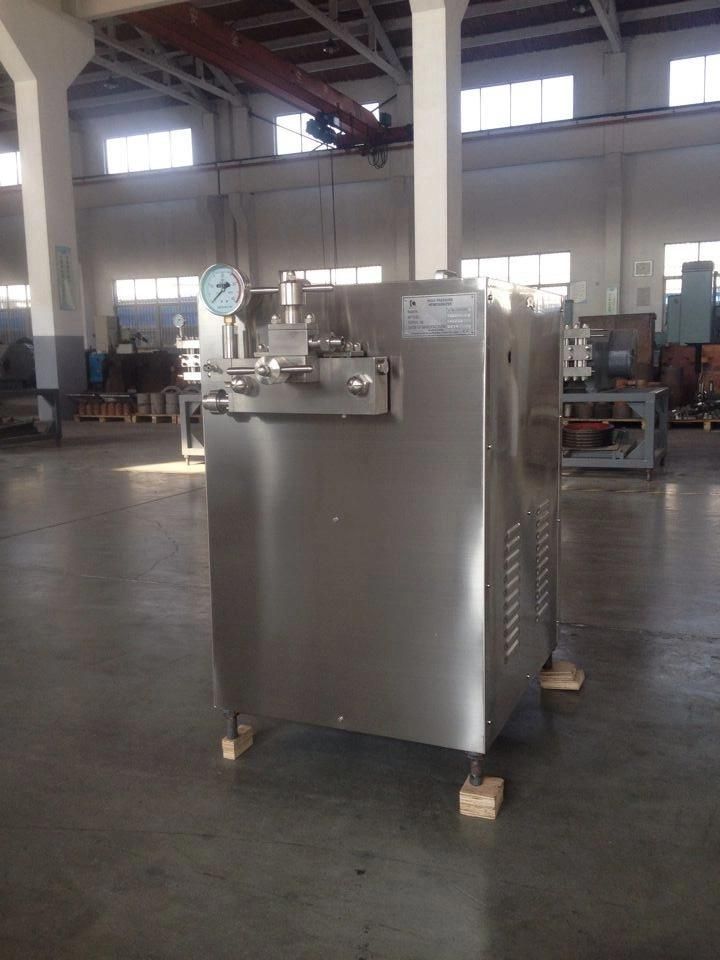

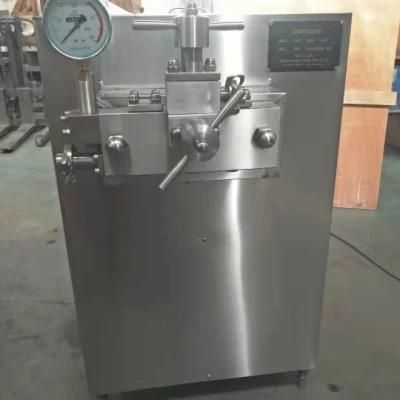

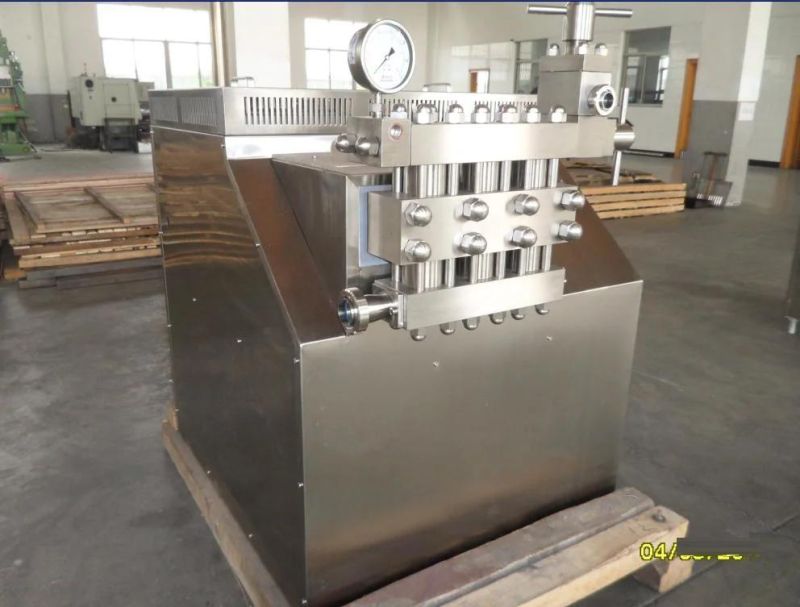

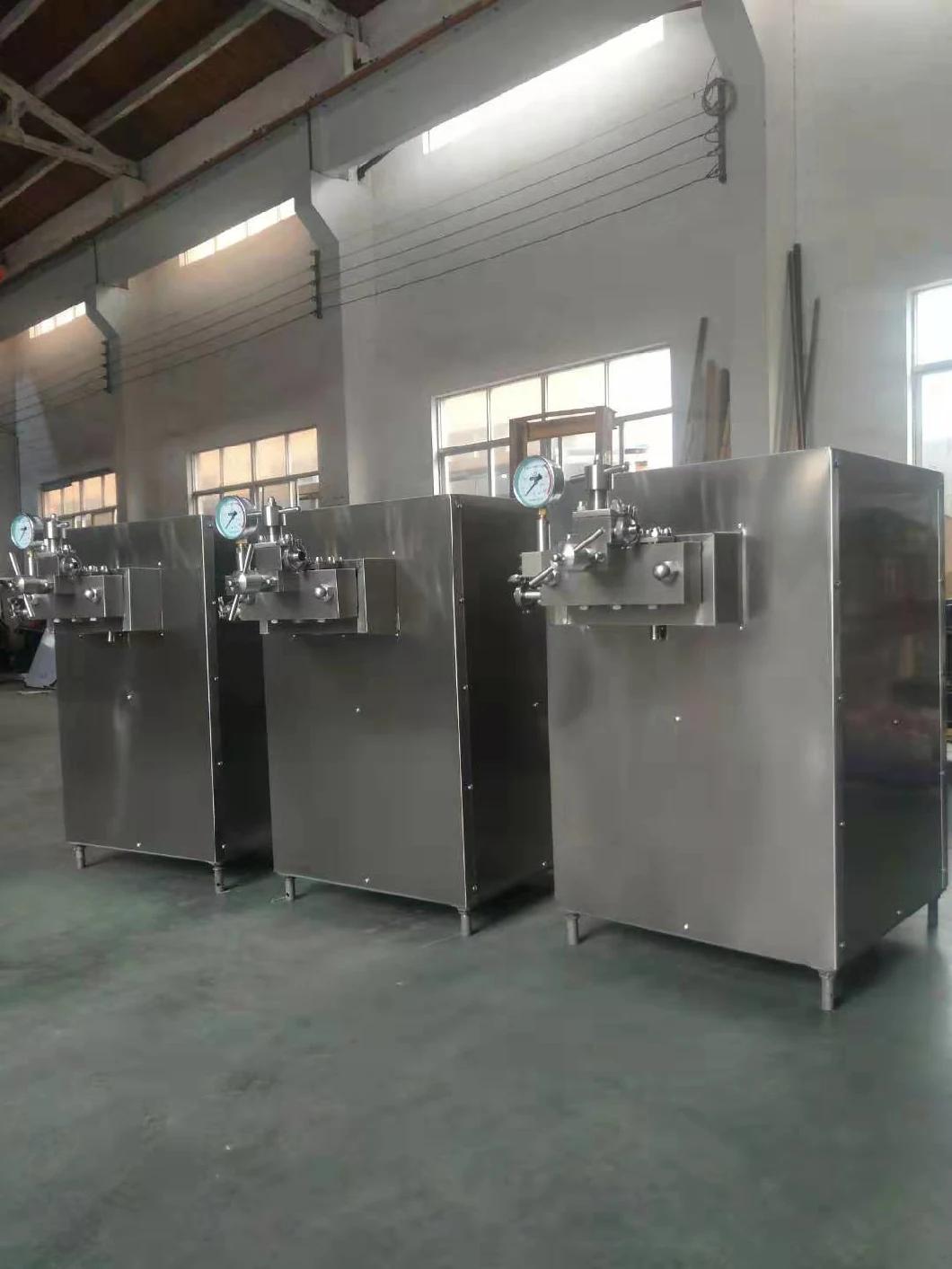

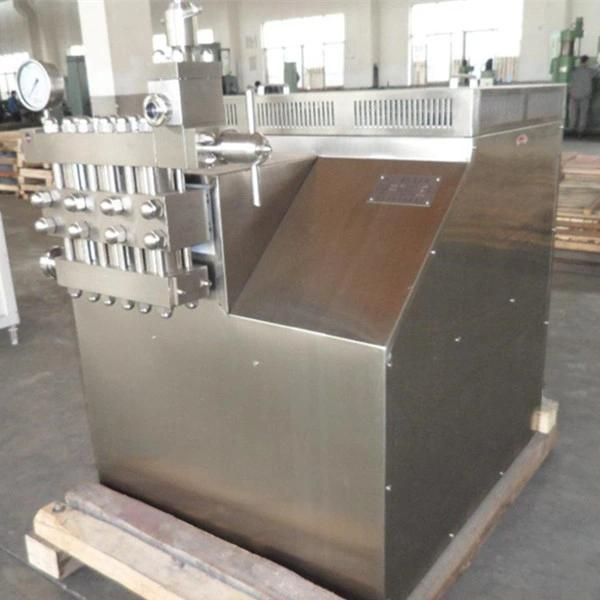

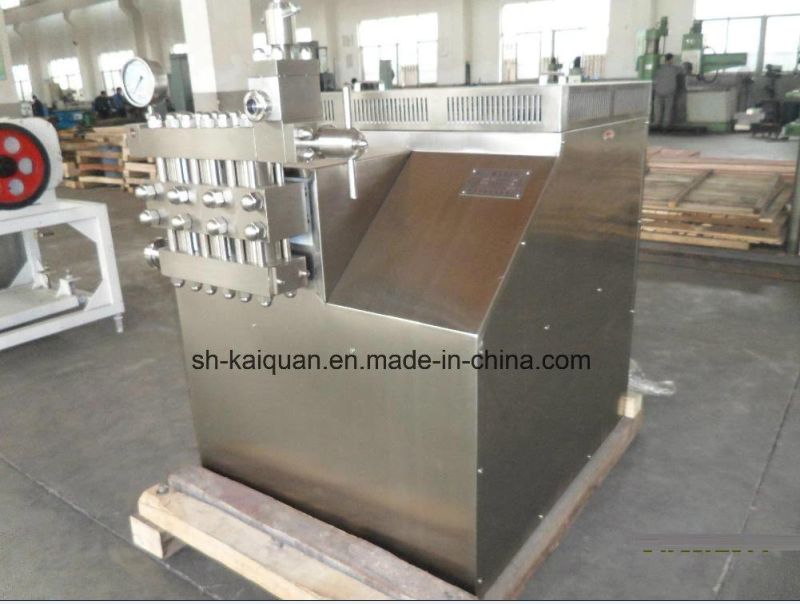

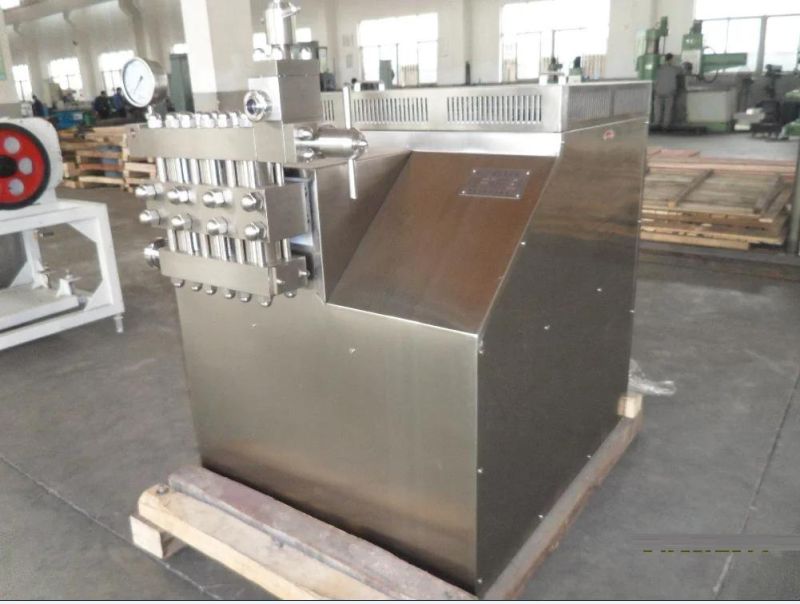

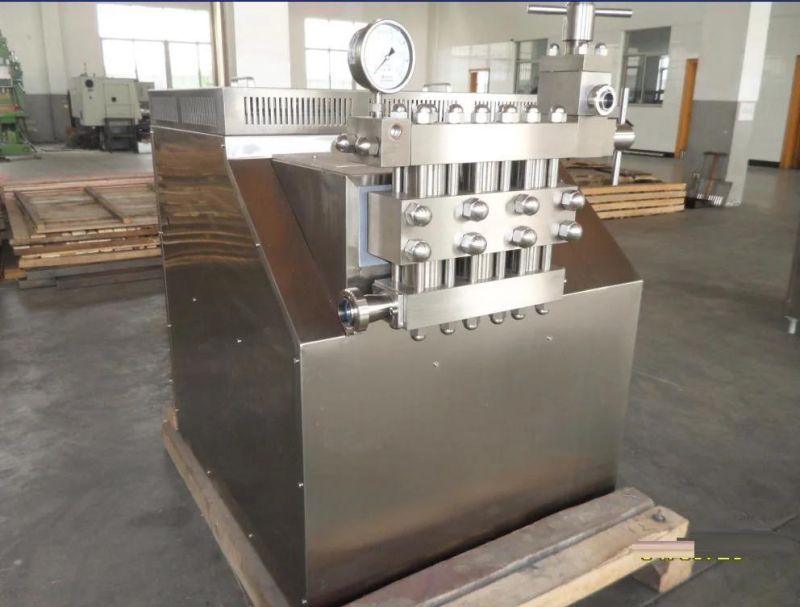

10000L Juice Milk Cream Small Homogenizer For Food Industry

Milk High Pressure Homogenizer, You Can Buy Various High QualityMilk High Pressure Homogenizer Products from us, the 250bar milk homogenizer FROM US

CE CERTIFICATED HOMOGENIZER FOR MILK, JUICE, DAIRY, ICECREAM, SOYBEAN MILK, HONEY
Soybean milk homogenizer, 40MPA homogenizer

Tea drinks homogenizer, juice homogenizer
Homogenizer pumps
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
Series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7
