• Model NO.：MAN-30
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：860*360*760mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-30 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 860*360*760mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

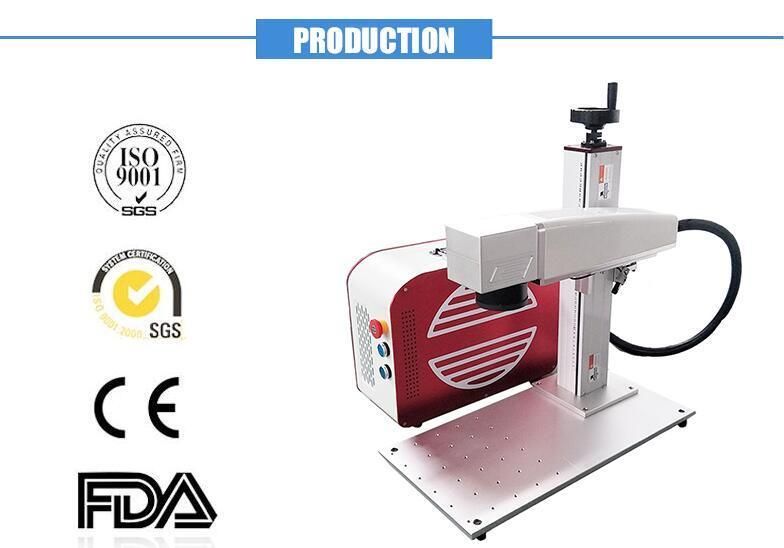

Product Description

Plastic Bottle Cable 30W 50W Laser Marking Machine for Sale





Simple Introduction:

1) Fiber Laser Marking Machine  is high integrated, has superior laser beam and uniform power density.

Output laser power is stable. This design highly increase the machine's anti-reflection ability, be able to mark on aluminum,

copper, gold and silver without the shadow and virtual open phenomenon.

2) Adopts advanced digital high speed scanning galvanometer, small volume, quick speed, good stability,

performance reached the international advanced level.

3) Modular design, separate laser generator and lifter, more flexible, can marker on bigger area and complicated surface.

4) Adopt the embedded operating system, which the performance is leading domestic peers, good touch interface and

powerful control system, can meet the demand of most industry application process in market.

5) Adopt special flying marking control system, with good performance and easy operation.

                     TECHNICAL  PARAMETER :


Laser power	10W/20W/30W/50W
Marking area	110*110mm,200mm*200mm,300*300mm
Laser wave length	1064nm
Frequency of pulse	20KHz~100KHz
Max marking depth	≤0.2mm(according to power and material)
Marking speed	0-9000mm/s
Minimum line width	0.01mm
Marking content	Text,pattern,date,bar code,etc
Minimum character	0.2mm
Repeated accuracy	±0.001mm
Graphic format supported	bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.
Power supply	AC220V±10% 50Hz,or AC110V±10% 60Hz
Operation system	Microsoft Windows XP or Windows 7
Operation temperature	5ºC-40ºC
Supply Voltage	220V/50Hz/10A
Cooling method	Air cooling

                          DETAILS   IMAGES :

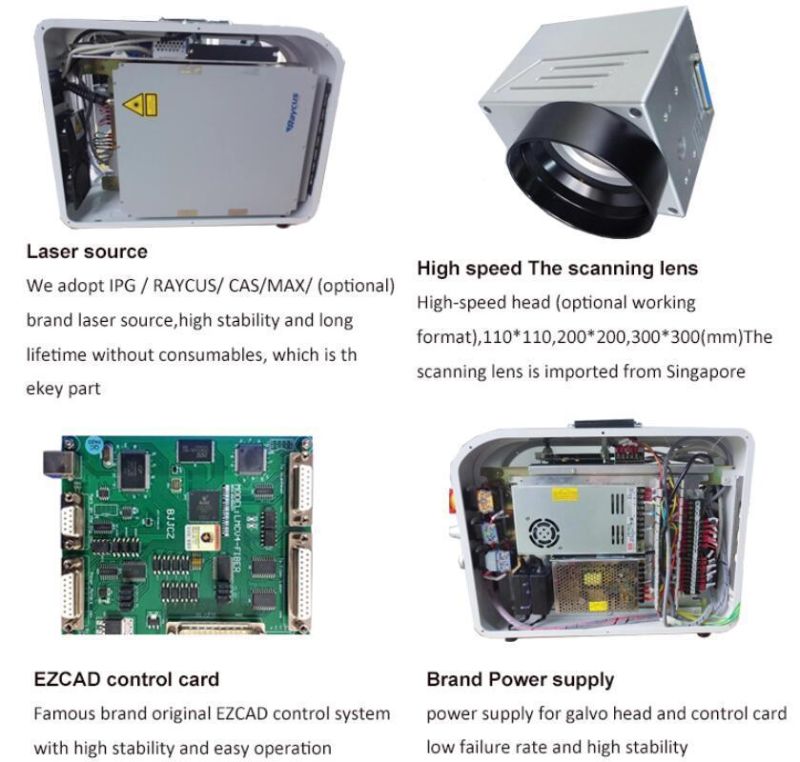

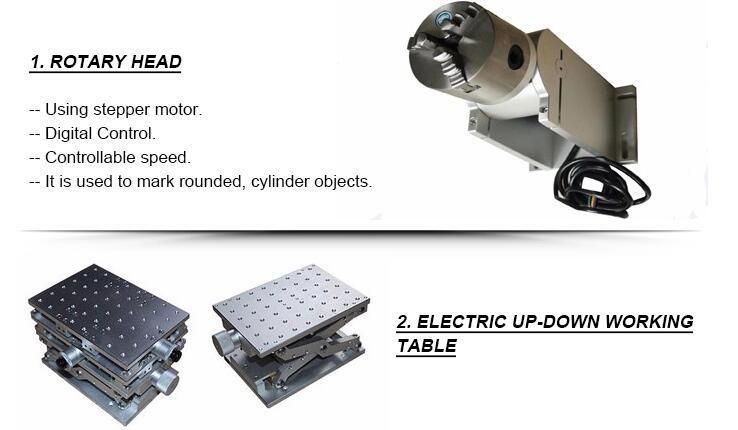

Laser parts with the machine :



                        SAMPLE SHOW :

Applicable Industries

Fiber Laser Marking Machine  is widely used in food and beverage, pharmaceutical, tobacco, leather, packaging,

building materials, lighting, accessories, cosmetics, electronics and other industries, low consumption, non-toxic, no pollution.

 Applicable Materials

This series portable fiber laser marking machine apply to Plastic, stainless steel, aluminum and other metal surface marking.

                PACKAGING &  SHIPPING :

Shipping:

Trade terms: FOB, CIF, EXW

Payment terms: T/T, Western Union, Escrow, MoneyGram

Payment condition: 30% deposit before production, 70% balance before delivery

Delivery time: 1-3 working days after deposit

Packaging: Crate box to protect the machine inside and delivery in safety.

Shipping: By sea, by air or express delivery



                     SERVICES  :

1. provides 36 months warranty for the machine. Warranty starts from receipt of the machine or parts.

2. All extra parts for the machine can be purchased with agent price.

3. Email/ Skype/ MSN/ Trade manager online to support.

4. Life-long technical support and free after-sale service.

5. Professional technical team and sales person help you with trouble shooting procedures via Internet and Phone any time when needed.

6. Free and professional training at our factory.

7. Door-to-door service if necessary.
