• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

Automation Portable 20W Fiber Laser Marking Machine for Metal Advertising

 PRODUCTION :



Feature

1-Focusing spot is very small, and processing heat-affected zone is small.

2-Can be ultra-fine marking, marking of special materials.

3-Suitable for processing materials more widely.

4-Not only the beam quality is good, the spotlight is smaller.

5-Marking speed, high efficiency.

6-Machine performance is stable, low power consumption.

IMAGES DETAILS :



 TECHNICAL  PARAMETER :


Laser Power	20W,30W, 50W
Wavelenth	1064nm
Standard Marking Area:	110mm*110mm
Optional Marking Area:	150mm*150mm,200mm*200mm,300*300mm
Marking Speed	≤3000mm/s
Minimum Line Width	0.02mm
Minimum letter	English: 0.2 x 0.2mm
Marking Depth	0 ~0.5mm
Location precision	≤0.01mm
Resetting positioning accuracy	0.002
Beam Quality	M2:1.2~1.8
Electrical Requirements:	Ac220V±10%.50HZ.5Amp
Cooling mode	Air cooled
Scan Head	High Precision Digital Scan Head
Unit Power	<0.5kw
Operational Temp Range	10-40C
Operational Humidity Range	5%-75%, Non-condensing
Warranty:	3 years on laser source

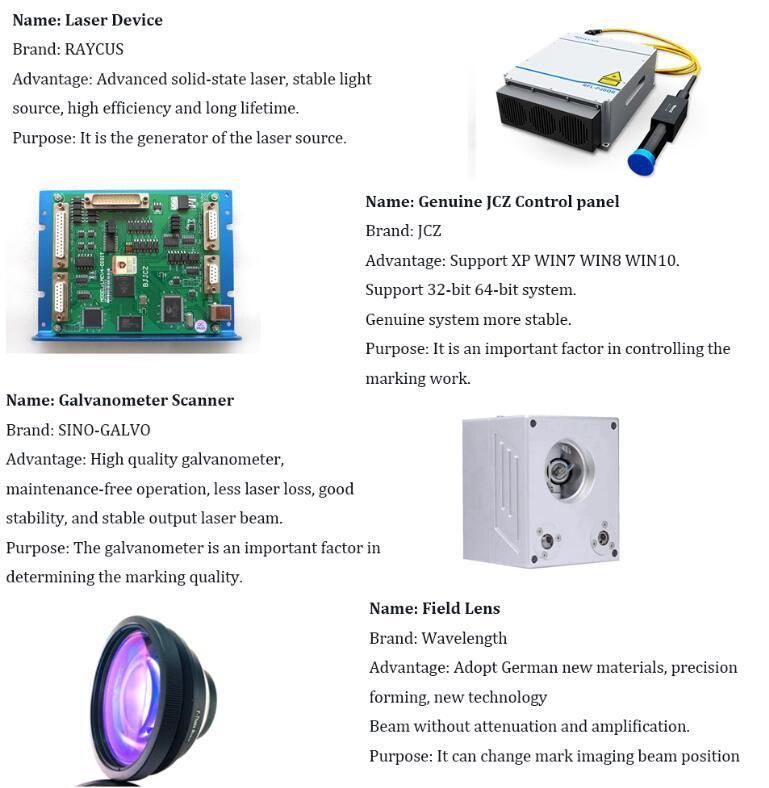

 Standard Laser Parts For Laser Machine  :

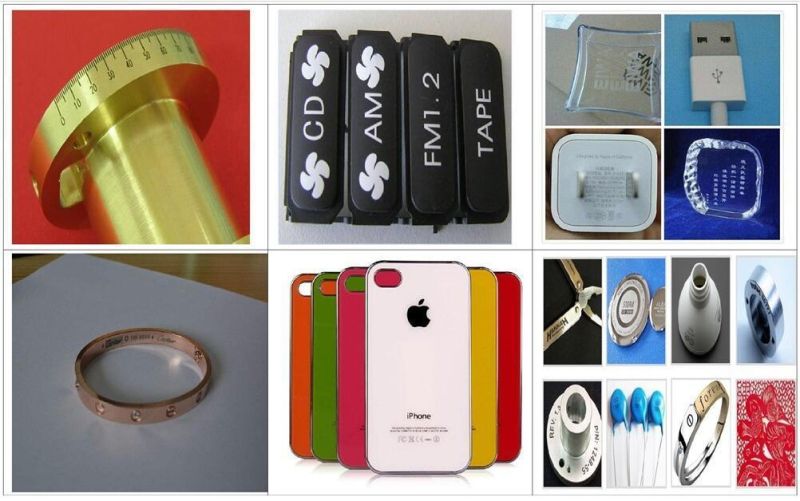

 SAMPLE SHOW :

Applicable Industries:

Gold and silver jewelry, sanitary ware, food packaging, tobacco and drinks, medicine packaging, medical apparatus

and instruments, watches& glassware, auto spare parts, electronic hardware

Applicable Materials:

Gold and silver, stainless steel, ceramics, plastic, glass, stone, leather, cloth, bamboo and wood, etc.


PACKAGING &  SHIPPING :

Inside Packing

Use professional Stretch Film to cover the whole lathe ,Stretch film package with foam protection in each corner.

Outside Packing

Standard export wooden cases and pylwood cases ,Save space as much as possible for container loading.

Transport

We support shipping, air, land and express You can choose the most suitable way of transport


ABOUT US   :

Q1: I knew nothing about this machine, what kind of machine I should choose?

Very easy to choose. Just tell us what you want to do by using CNC marking machine, then let us give you perfect solutions and suggestions.

Q2: When I got this machine, but I don't know how to use it. What should I do?

We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or whatsapp and e-mail.

Q3: If some problems happen to this machine during warranty period, what should I do?

We will supply free parts during machine warranty period if machine have some problems. So any doubts, just let us know, we will give you solutions.

Q4: Before sending me an inquiry on our CNC router, it is better for you to provide me the following information

1)Your cutting size. Because in our factory, we have different models according to working area.

2)Your materials: wood ,MDF, acrylic, PVC, aluminum, or other materails

3) If there is any engraving sample or photos show to us ?

We will recommend suitable spindle power according to your demand

Q4: Our Service:

1) 24 Hours online service

2) 36 months warranty for the whole machine except for wearing parts.

3) Engineers available to service machinery overseas.
