• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：900*800*1150 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 900*800*1150 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

Fiber Laser Marking Machine for Numbers Ring Logo Automotive Parts

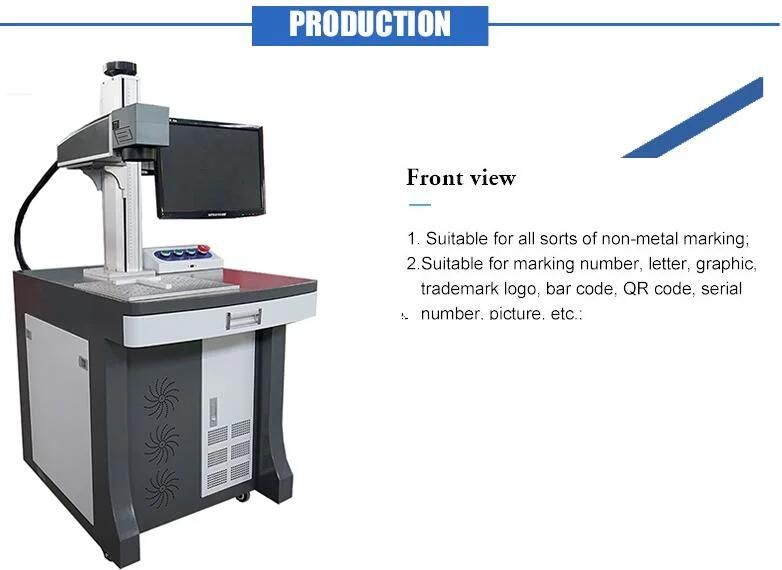

 PRODUCTION :



What is the  Advantages of Fiber Laser  Marking machine?

It does not affect the integrity of the part;

Produce a high-contrast permanent mark;

Requires almost no maintenance;

Can be operated from almost any Windows-based software;

Is exceptionally easy to use by practically anyone in your organization!

 TECHNICAL  PARAMETER :


Laser power	Fiber 10W/20W/30W/50W air cooling
Working area	100*100mm
Laser Wavelength	1064nm
Response time	0.5ms
Frequency of pulse	20-100KHz
Max marking depth	≤0.4mm
Marking speed	≤7000mm/s
Marking lines	1-10 lines(in the marking area)
Minimum line width	0.1mm
Minimum character	0.15mm
Repeatability accuracy	±0.002mm
Resolution ratio	0.1mm
Marking content	Text,pattern,date,bar code,etc
Operation system	Microsoft Windows XP or Windows 2000
Control software	EZCAD control software or laser2.1 marking control software
Graphic format supported	bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.
Unit power	≤1.2KW
Operation temperature	5°C-40°C
Relative moisture	≤ 90%,no fog
Supply Voltage	220V/50Hz/10A

 IMAGES DETAILS :



You will be get the machine including:

 1.Laser source (according the price of what you choose , there are Raycus , Max and IPG for your choose ,

different laser source with different price)

2.Laptop with software

3.EZCAD motherboard card  ( or you could choose our OEM motherboard card , it has high price - performance ratio,

and same operation as the EZCAD)

4.Free pedal

5.Free protective goggles

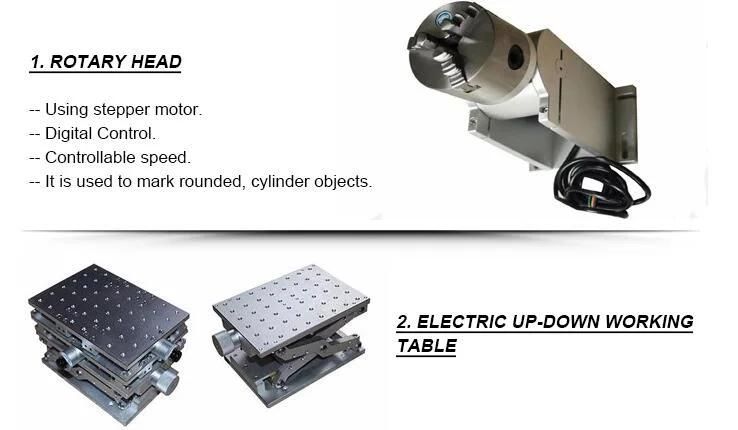

Rotary is the optional accessories , we have two type of rotary :1. 100mm diameter , can bear the weight of material

within 5 kg .2.50mm diameter , can bear the weight of material within 1kg .

Attention:

01. 3d Work table:--

The  table is made by anodized aluminium alloy, light weight and stainless.

It support CO2,Fiber,YAG and UV platform.It apply tovarious industry :laser marking on moving workpiece,

visual postitioning,edge cutting for embroidery and other industries.

02. Rotating worktable:--Rtating worktable can achieve multi-station marking of surface.

03. Rotary fixture :--The rotary  is mainly apply to the surface of curved and cylinder marking.

drived by high precision step motors, can be used to mark cylinder items, like rings, Yeti cups, pens and etc.


 SAMPLE SHOW :

Application Industries:

Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances,

communication products, sanitary ware, tools,accessories, knives, eyeglasses and clocks, jewelry, auto parts,

luggage buckle, cooking utensils, stainless steel products and other industries.

Application Materials:

Metals (including rare metals), engineering plastic, electroplating material, coating material, plastics, rubber,

epoxy resin, ceramic, plastic, ABS, PVC, PES, steel titanium, cooper and other materials



PACKAGING &  SHIPPING :

Package and shipment

1. Our Wooden Case is after fumigation treatment.Needn't timber inspection,saving shipping time.

2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool.

Avoiding all damages that could happen in the delivery process.

Then we'll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.

3. The outmost is Wooden Case With Fixed Formwork.

4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.



ABOUT US  :

1. 24 hours Technical support by Email or Calling.

2. English manual and CD video for machine using and maintaining.

3. Hardware: 3 years for machine,

                     Software: Whole life on update for free.

4.Maintenance and technological support: Whole life.
