• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

Mini 20W Raycus Fiber Laser Marking Machine with up-Down Table

 PRODUCTION :


Feature

1. Adopt optical fiber solid laser, high beam quality, long life, save electricity and energy saving, lower cost.

2. Adopts advanced computer control system, the software function is very powerful.

3. The software can be compatible with CorelDraw, AutoCAD, Photoshop etc..

4. Suitable material: metal, metal oxide material, laser marking EP materials .ABS plastic etc, printing ink and paint process

5.Application industries:Metal parts manufacturer, Auto spare parts, Digital products parts, communication products,

sanitary ware, electronics, jewelry, glasses and watches, medical equipment and other industries.

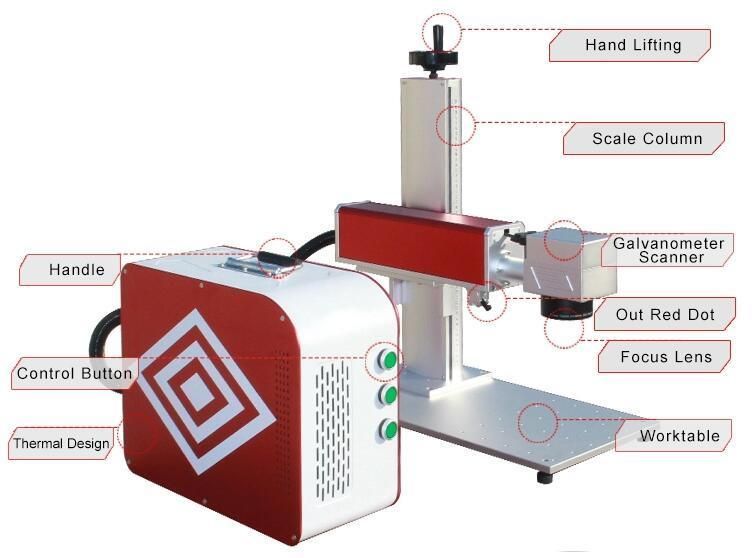

IMAGES DETAILS :


1.World Famous Fiber laser source

A wide selectivity of operating wavelengths Ultra-low amplitude noise High stability and ultra-long lifetime

2.Fast Speed Digital Galvanometer Scanning Head

Fast response ability<0.7ms,can realize high speed marking and high precision

3.Focus Mirror

famous "wavalength" brand.Fast speed,high conversion rate

4.Control Card

The text in the computer converted into analog signal or digital signal, such as design and the spread to the galvanometer

5. 3D Working Table

Can be lifting and shifting from left to right,up and down,easy to adjust the laser focus distance

6.Switching Power Supply and Control System

Control system use famous Taiwan "MW" power supply with stable performance.professional technology and long lifetime

7.Exhaust Fan

Adopts the heat generated by the air cooling system

 TECHNICAL  PARAMETER :


Laser Power	20W,30W, 50W
Wavelenth	1064nm
Standard Marking Area:	110mm*110mm
Optional Marking Area:	150mm*150mm,200mm*200mm,300*300mm
Marking Speed	≤3000mm/s
Minimum Line Width	0.02mm
Minimum letter	English: 0.2 x 0.2mm
Marking Depth	0 ~0.5mm
Location precision	≤0.01mm
Resetting positioning accuracy	0.002
Beam Quality	M2:1.2~1.8
Electrical Requirements:	Ac220V±10%.50HZ.5Amp
Cooling mode	Air cooled
Scan Head	High Precision Digital Scan Head
Unit Power	<0.5kw
Operational Temp Range	10-40C
Operational Humidity Range	5%-75%, Non-condensing
Warranty:	3 years on laser source

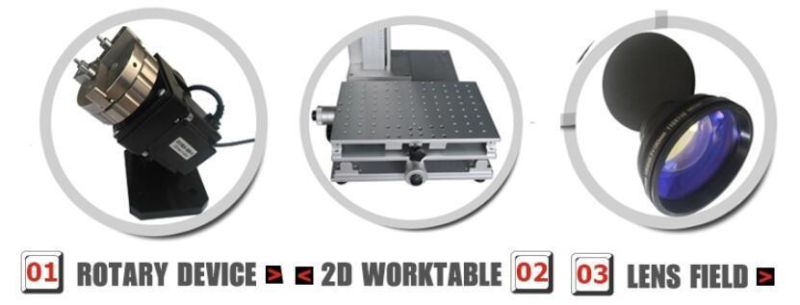

 Standard Laser Parts For Laser Machine  :

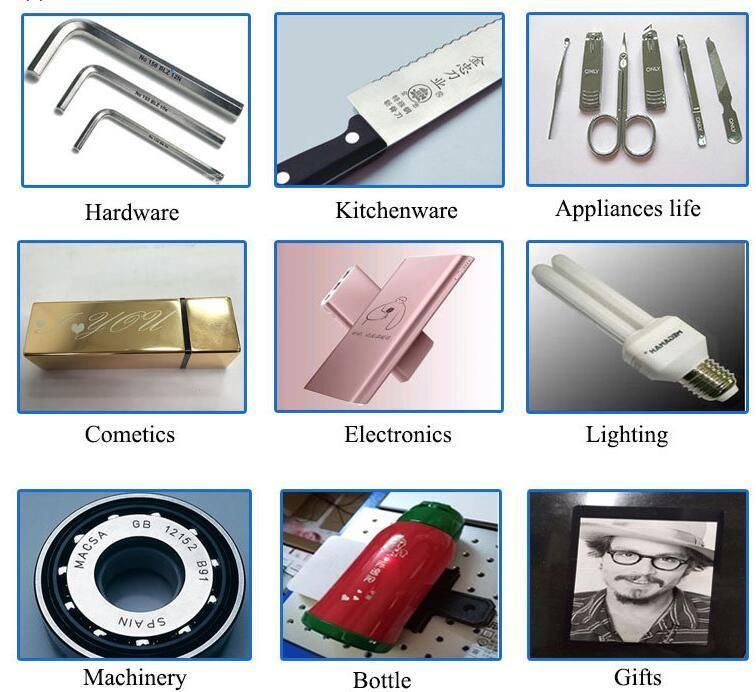

 SAMPLE SHOW :

Application Industries:

Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances,

communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts,

luggage buckle, cooking utensils, stainless steel products and other industries.

Application Materials:

Metals (including rare metals), engineering plastic, electroplating material, coating material, plastics, rubber, epoxy resin,

ceramic, plastic, ABS, PVC, PES, steel titanium, cooper and other materials.

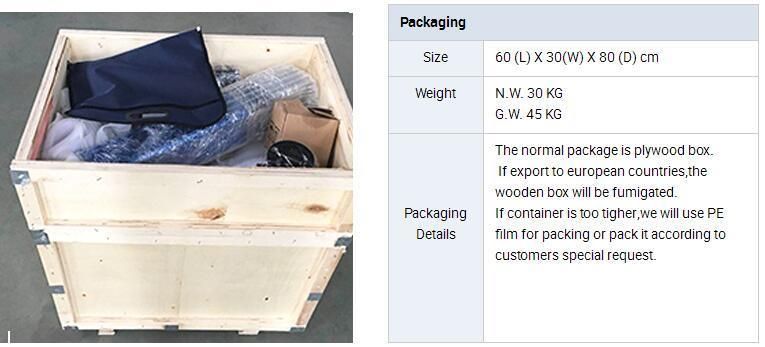

PACKAGING &  SHIPPING :

Inside Packing

Use professional Stretch Film to cover the whole lathe ,Stretch film package with foam protection in each corner.

Outside Packing

Standard export wooden cases and pylwood cases ,Save space as much as possible for container loading.

Transport

We support shipping, air, land and express You can choose the most suitable way of transport



ABOUT US   :

Q1: I knew nothing about this machine, what kind of machine I should choose?

Very easy to choose. Just tell us what you want to do by using CNC marking machine, then let us give you perfect solutions and suggestions.

Q2: When I got this machine, but I don't know how to use it. What should I do?

We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or whatsapp and e-mail.

Q3: If some problems happen to this machine during warranty period, what should I do?

We will supply free parts during machine warranty period if machine have some problems. So any doubts, just let us know, we will give you solutions.

Q4: Before sending me an inquiry on our CNC router, it is better for you to provide me the following information

1)Your cutting size. Because in our factory, we have different models according to working area.

2)Your materials: wood ,MDF, acrylic, PVC, aluminum, or other materails

3) If there is any engraving sample or photos show to us ?

We will recommend suitable spindle power according to your demand

Q4: Our Service:

1) 24 Hours online service

2) 36 months warranty for the whole machine except for wearing parts.

3) Engineers available to service machinery overseas.
