• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：900*800*1150 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 900*800*1150 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

CE SGS Certificates Metal Part 30w Fiber Laser Marking Machine

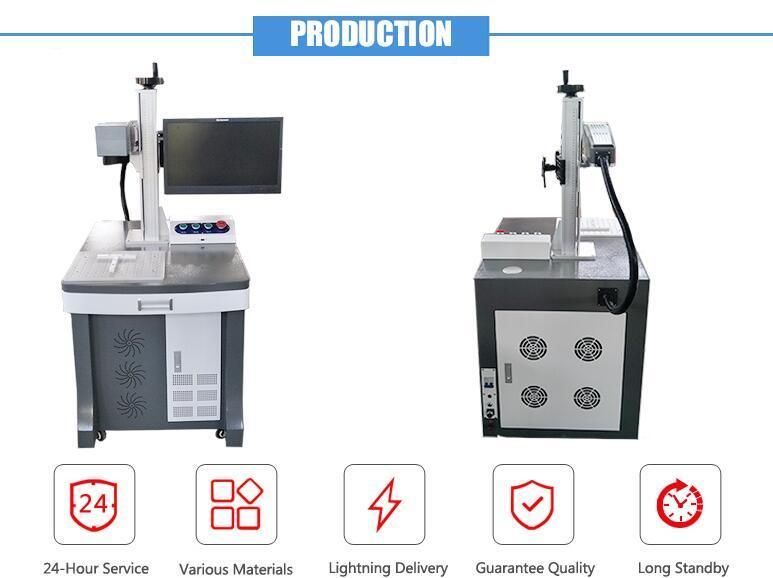

 PRODUCTION :


What is the  Advantages of Fiber Laser  Marking machine?

It does not affect the integrity of the part;

Produce a high-contrast permanent mark;

Requires almost no maintenance;

Can be operated from almost any Windows-based software;

Is exceptionally easy to use by practically anyone in your organization!

How can I choose the power of the fiber laser marking machine ?

1. According to the marking area:

    20w :100mmx100mm,175mmx175mm

    30w:100mmx100mm,175mmx175mm,200mmx200mm

    50w:100mmx100mm,175mmx175mm,200mmx200mm,250mmx250mm,300mmx300mm

2.According to the depth requet:

   20w :0.2mm (depend on the materials)

   30w:0.3mm(depend on the materials)

  50w:0.5mm(depend on the materials)

Please noted that laser marking machine is not good at marking depth ,

if you want to get the effect depth you want , it will be need marking many times.

 TECHNICAL  PARAMETER :


Laser power	Fiber 10W/20W/30W/50W air cooling
Working area	100*100mm
Laser Wavelength	1064nm
Response time	0.5ms
Frequency of pulse	20-100KHz
Max marking depth	≤0.4mm
Marking speed	≤7000mm/s
Marking lines	1-10 lines(in the marking area)
Minimum line width	0.1mm
Minimum character	0.15mm
Repeatability accuracy	±0.002mm
Resolution ratio	0.1mm
Marking content	Text,pattern,date,bar code,etc
Operation system	Microsoft Windows XP or Windows 2000
Control software	EZCAD control software or laser2.1 marking control software
Graphic format supported	bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.
Unit power	≤1.2KW
Operation temperature	5°C-40°C
Relative moisture	≤ 90%,no fog
Supply Voltage	220V/50Hz/10A

 IMAGES DETAILS :




Attention:

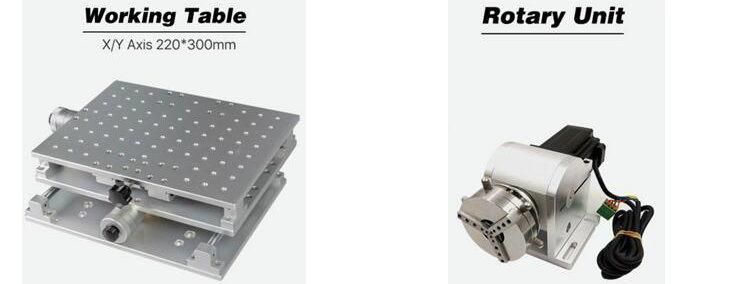

01. 3d Work table:--

The  table is made by anodized aluminium alloy, light weight and stainless.

It support CO2,Fiber,YAG and UV platform.It apply tovarious industry :laser marking on moving workpiece,

visual postitioning,edge cutting for embroidery and other industries.

02. Rotating worktable:--Rtating worktable can achieve multi-station marking of surface.

03. Rotary fixture :--The rotary  is mainly apply to the surface of curved and cylinder marking.

drived by high precision step motors, can be used to mark cylinder items, like rings, Yeti cups, pens and etc.

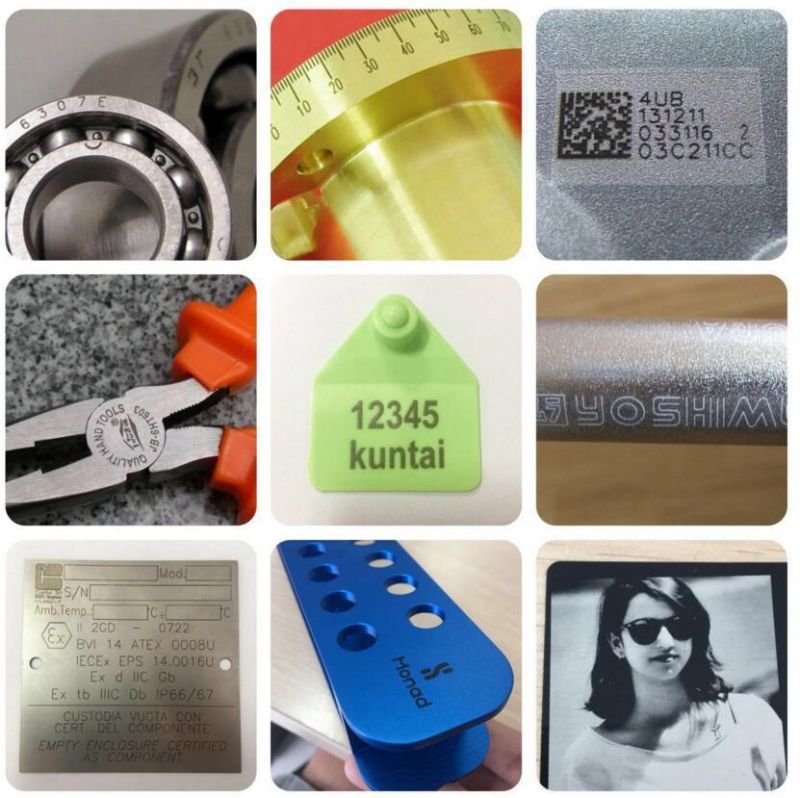

 SAMPLE SHOW :

Applicable materials:

 fiber laser marking machine is suitable for marking all metal materials and most of non-metal materials.

 fiber laser marking machine  is widely applied to many industries, such as Electronics, Auto parts & hardware, handcrafts, packing and so on.

01. Electronic and communication products, IC products, electric lines, cable computer components and electric appliances.

02. Automobile and motorcycle parts, instrumentation, aerospace, military products, hardware machinery, medical instruments,

measuring and cutting tools.

03. l Handicrafts, Jewelry, garments, glasses, instruments, gifts, office devices, brand scutcheon, sanitary ware appliances and other workpieces.

04.  The packing for dishware, food, drinking, smoking and alcohol, etc.



PACKAGING &  SHIPPING :

Package and shipment

1.This laser marking machine will packed intostandard plywood case, its compressive strength and bearing quality is better.

2.the board area is bit, the soil structure is good,  it is better in leakproofness and waterproof.

3.when importing, the plywood case is with fumigation-free, the procedure is simple.

4.Delivery Detail: within 3-5 days after received your payment


ABOUT US  :

1) before-sale:

We will try to know your requirement about our marking machine and what kind of work you will do
.
Then we will offer our best solution for your requirement. Then it can confirm each customer can get their real needed machine.

2) during production:

We will send photos of machines during making. So customers can know more details about the procession of making their machines

and give them suggestions.

3) before shipping:

We will take delivery photo and confirm  the specification of order to avoid the mistake.Machine will be adjusted before it is delivered.

4) after shipping:

We will check when the machine arrive your sea port and approximate date of arrival.

So customers can know when it will arrive and make enough preparation.

5) after arrival:

We will confirm with customers if machine is in good condition and see if any spare parts missing.

6) about teaching:

 There are some manual and video about how to use machine, if you have question  about it,

we will have professional technicist to help you install and teach how to use through skype ,calling, video or mail.

7) about warranty: We offer 3  years warranty, and offer you whole lifetime technique support.
