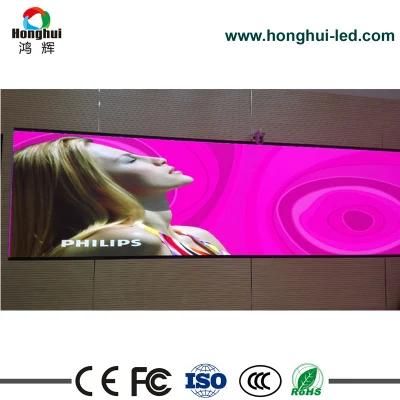

P1.667 True HD Series Small Pixel Pitch Indoor LED Display

Freezer Spacer
  • Tube Chip Color：Full Color
  • Display Function：Video Display, Image & Text Display, Text Display, Market Display
  • Pixel Pitch：1.667mm
  • Pixel Configuration：SMD1010
  • Pixel Density：360000DOT,M2
  • Scanning Mode：1,30 Scan

Base Info

  • Model NO.：p1.667
  • System Operating Platform：Windows XP , Windows 7 , Windows 8 ,8.1 , Windows
  • Display Type：LED Video Display
  • Application：Stage Performance, Advertising, Shopping Guide, Exhibition
  • IP Rating：IP43
  • Certification：CE, RoHS, FCC, SGS
  • Product Name：P1.667 Indoor LED Display
  • Module Size：200mm*150mm
  • Cabinet Size：400mm*300mm
  • Scan：1,30s
  • Brightness：800-1100CD,M2
  • LED Lamp：SMD1010
  • Gray Levels：65536
  • Color Temperature：6500-7000K
  • Refresh Rate：1920,3840Hz
  • Display Contrast：2000:1
  • Frame Rate：60Hz,S
  • Service Life：100000h
  • Use Voltage：AC 90-240V
  • Operating Voltage：DC5V
  • Maximum Power Consumption：600W,M2
  • Transport Package：Carton,Case
  • Specification：200mm*150mm
  • Trademark：Honghui
  • Origin：Shenzhen, China
  • HS Code：8528591090
  • Production Capacity：350000

Description

            1Pixel Pitch 1.667mm 2Cabinet Size 400mm*300mm3Pixel density 359,856dots/m2 4Color temperature6000K--8000K5Viewing angleH:140;V:1406Dead LED lamp rate≤0.1‰7Non-Flatness<0.2mm8Module interval<0.2mm9Gross Weight(KG)30kg/m210Packaging dimensionup to cabinets size and quantity11Maximal power/m2 600 W/m212Brightness adjusted256 grade by auto-optic/color &8 grade by hand13Input signalRF,S-video,RGB,RGBHV,YUV,YC&Composition,etc14Life-span ≥1 00,000 hours15MTBF 5,000 hours16Frame frequency25 - 60 Hz / s17Refresh rate≥2,000 Hz  / s18Signak Input(with video processor)HDMI, DVI, VGA, RF, S-Video, RGB,
RGBHV, YUV, YC&Composition, etc.19Control Distance120 m (no repeating); Optical fiber
transmission: 0.5km- 10km20Systems Operating PlatformWindows XP, Win 7, Win8, Win8.1, Win10

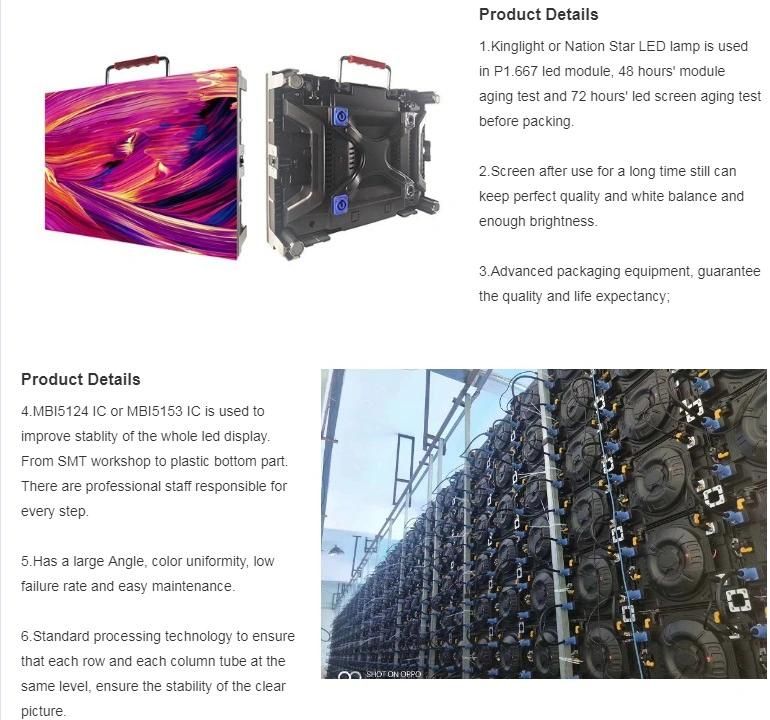

Product Details

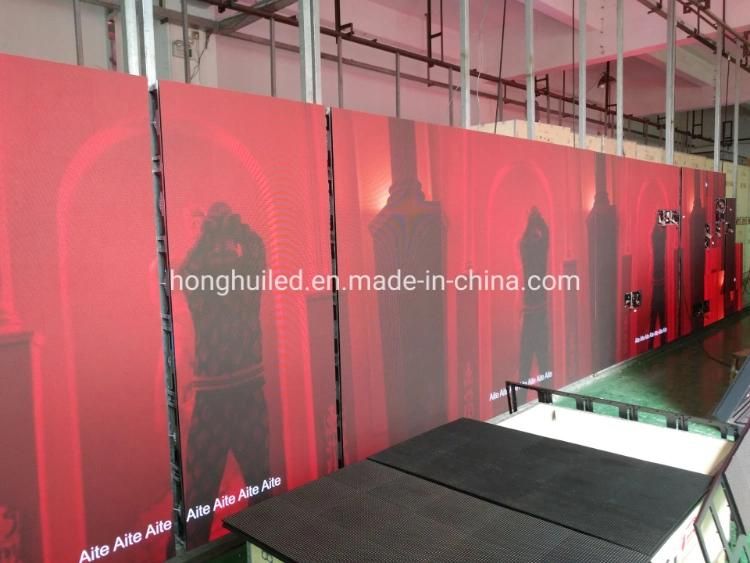

P1.667 True HD Series Small Pixel Pitch Indoor LED Display
P1.667 True HD Series Small Pixel Pitch Indoor LED Display
P1.667 True HD Series Small Pixel Pitch Indoor LED Display

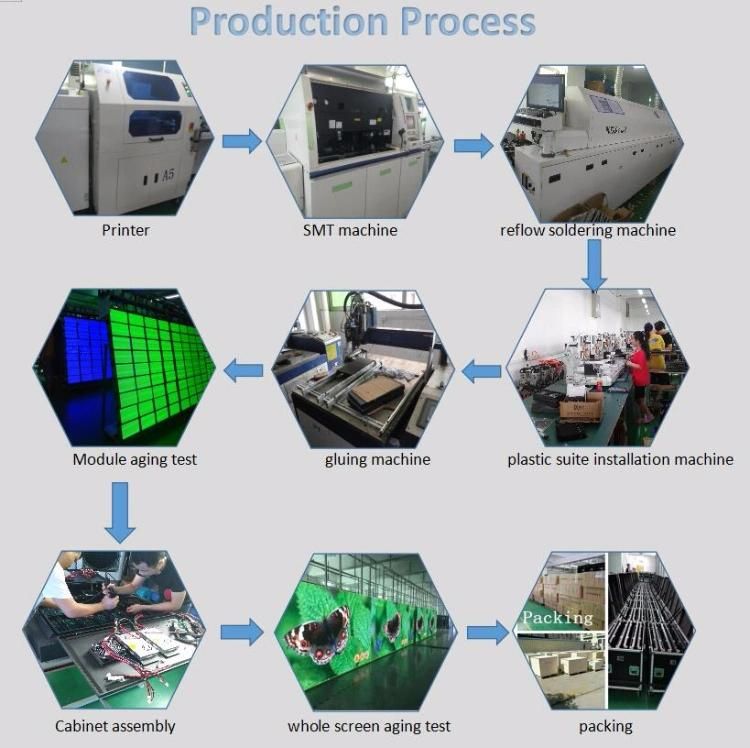

Production process

P1.667 True HD Series Small Pixel Pitch Indoor LED Display

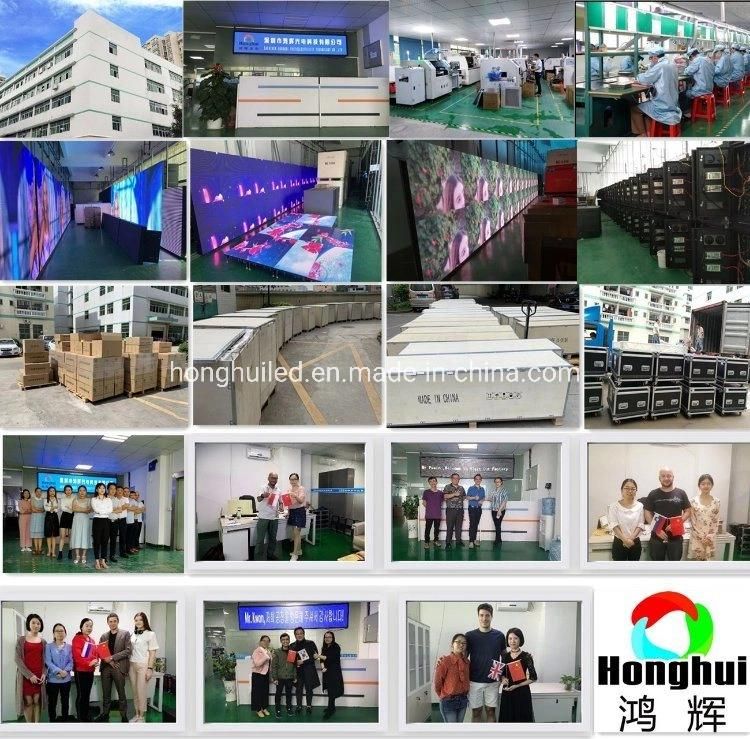

Our Factory and Our Service

P1.667 True HD Series Small Pixel Pitch Indoor LED Display

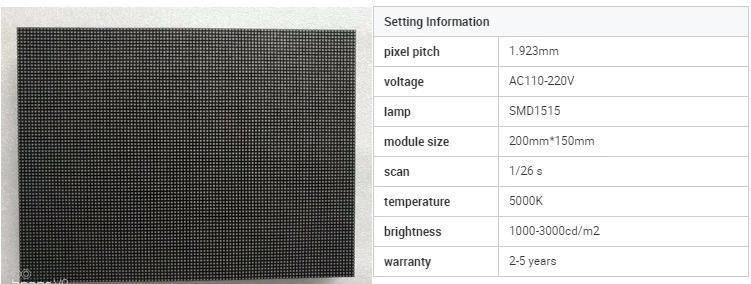

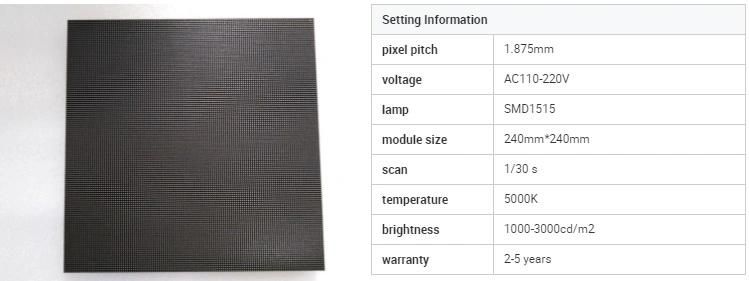

Other near pixel pitch

P1.667-1.923, these three types are mainly for the indoor retal event,
high resolution of them, which can bring good visual effect to the audiance.
