• Model NO.：P3.91 led display cabinet
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：31
• Certification：CE, RoHS, UL, CCC, ETL
• Panel Size：250mm*250mm
• Cabinet Size：500mm*500mm
• Brightness：1600CD
• LED Specification：2121
• LED Chip：Episar
• Drive IC：2027,5124
• View Angle：Horizontal140°,Vertical20
• Humidity：10%~95%
• Life Span：100000 Hours
• Refresh Frequency：240-1000Hz,S
• Transport Package：Air Box & Carton Box & Wooden Box
• Specification：CE, FCC, RO-HS, SGS
• Trademark：JIACAI
• Origin：Quanzhou, Fujian, China
• HS Code：8531200000
• Production Capacity：6000spm,Month

Basic Info.

Model NO. P3.91 led display cabinet System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating 31 Certification CE, RoHS, UL, CCC, ETL Panel Size 250mm*250mm Cabinet Size 500mm*500mm Brightness 1600CD LED Specification 2121 LED Chip Episar Drive IC 2027/5124 View Angle Horizontal140°/Vertical20 Humidity 10%~95% Life Span 100000 Hours Refresh Frequency 240-1000Hz/S Transport Package Air Box & Carton Box & Wooden Box Specification CE, FCC, RO-HS, SGS Trademark JIACAI Origin Quanzhou, Fujian, China HS Code 8531200000 Production Capacity 6000spm/Month

Product Description

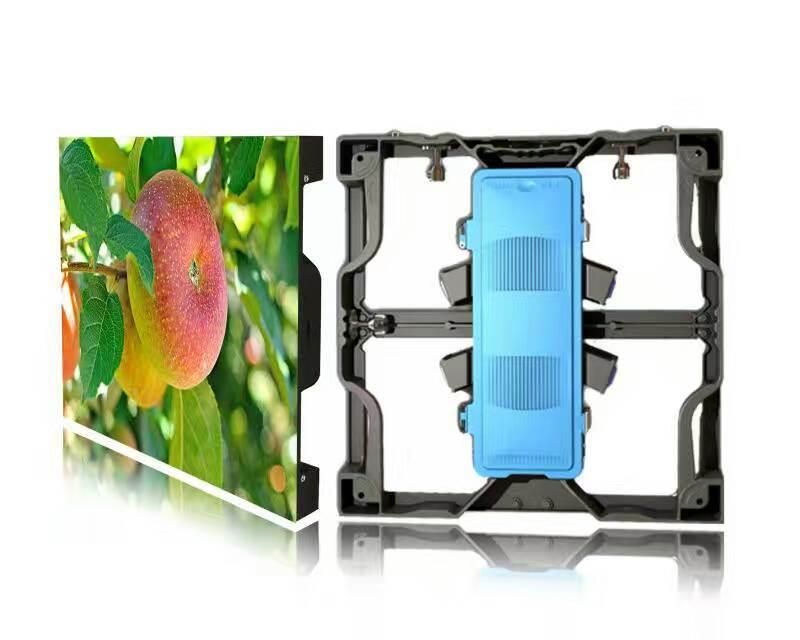

P3.91 Indoor Die casting aluminum LED Display Cabinet







Variable Message Signs,Stadium LED Display,LED Screen Hire,Electronic Display,LED Display Board,Programmable LED Sign,Full Color LED Display


LED Display Cabinet Features:

1.Super light and thin die-casting aluminum cabinet;

2.High refresh rate

3.Noiseless design;

4.Fine and smooth picture;

5.Seamless connection between cabinet;

6,High brightness

7.Fast installation and dismantlement.

Specification



Item
Model NO.	P3.91
Pixel Pitch	3.91mm
Pixel Configuration	1R1G1B
Density	65500dots/m2
Brightness	1600CD
Color Temperature	6500-9500K
Scan Method	1/13
Cabinet Size	500x500mm
Module Resolution	64x64
Cabinet Resolution	128x128
Cabinet Weight	7.2Kg/cabinet
Max. Power Consumption	900W/m2
Ave. Power Consumption	500W/m2
Best View Angle	H:140 Degrees, V:120 degrees
Refresh Rate	1000Hz
Gray Scale	16bit
Best View Distance	>3m
Protection Level	IP31
Cabinet Material	Die-casting Aluminum
Operation Voltage	110-220V AC  50-60Hz
Working Temperature	-25-+55 degrees celsius
Working Humidity	10%-90%
Signal Input Source	VGA, DVI, HDMI, SDI, HD-SDI
Control Distance	Ethernet cable:100m, Multi-mode optical fiber:500m,singel-mode optical fiber:20Km

Our service

 1. Your inquiry related to our products or price will be replied in 24hrs2. OEM&ODM, any your customized lightings we can help you to design and put into product3. Distributorship are offered for your unique design and some our current models4. Protection of your sales area, ideas of design and all your private information5. Top quality+Reasonable price+Responsible After Service=Successful & Win6. Jiacai can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
 Trade Terms

 1. Package: Anti-shaking wooden package, Air flight case or Carton package2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery3. Shipping freight are quoted under your requests4. Shipping port: Xiamen, China5. Warranty time: 2 years6. Delivery time:3-15 working days
