• Model NO.：P5
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Image & Text Display, Text Display, Market Display, Video, Animation, Picture, Graphic, Text, Moving M
• Average Power Consumption：480W,Sqm
• Pixel Density：40000 Dots,Sqm
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide etc
• Certification：CE, RoHS, CCC, ISO9001, CB, FCC
• LED Chip：Sanan,Nationalstar,Other Customized
• Colors：1.07 Billion
• Moduel Size：320*160 mm
• Moduel Resolution：64*32 Dots
• Viewing Angle：H,V 160,140degree
• Pixel Composition：SMD 3 in 1
• Viewing Distance：>5m
• Warranty：2 Years
• Brightness(Average)：≥6500CD,Sqm
• Net Weight：50 Kg,Sqm
• Transport Package：Wooden Case or Flight Case
• Specification：Customized size
• Trademark：Qichuang
• Origin：Guangzhou, China.
• HS Code：8528591090
• Production Capacity：10000 Square Meters,Month

Basic Info.

Model NO. P5 Pixel Configuration 1R, 1G, 1B Display Function Video Display, Image & Text Display, Text Display, Market Display, Video, Animation, Picture, Graphic, Text, Moving M Average Power Consumption 480W/Sqm Pixel Density 40000 Dots/Sqm Scanning Mode 1/8 Scan Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide etc Certification CE, RoHS, CCC, ISO9001, CB, FCC LED Chip Sanan/Nationalstar/Other Customized Colors 1.07 Billion Moduel Size 320*160 mm Moduel Resolution 64*32 Dots Viewing Angle H/V 160/140degree Pixel Composition SMD 3 in 1 Viewing Distance >5m Warranty 2 Years Brightness(Average) ≥6500CD/Sqm Net Weight 50 Kg/Sqm Transport Package Wooden Case or Flight Case Specification Customized size Trademark Qichuang Origin Guangzhou, China. HS Code 8528591090 Production Capacity 10000 Square Meters/Month

Product Description

Outdoor Full Color P5 Movable & Rental LED Display Screen

Product DescriptionLED is the abbreviation for light emitting diode. LEDs are arrayed breadthwise and lengthways with stable pitch that form LED matric-LED Display Screen. Each LED of the LED Display has a corresponding luminance control circuit. A computer controls the circuit, the circuit influence the brightness of each LED, then form the picture or letters we desire in the led display screen.






 Technical Parameters

Pitch size	5 mm
Pixel configuration	1 Red, 1 Green ,1 Blue, SMD 3-in-1
Cabinet solution(W*H)	192 dots * 192 dots
Pixel density	40000 dots/sqm
Cabinet size(W*H)	960 mm*960mm
Brightness(average)	≥6500 cd/ sqm
View angle(H/V)	H/V  140/120 degree
Power consumption	100 W/sqm ~ 1200 W/sqm
Net weight	50 kg/sqm
Voltage	220V/110V±15% 50 Hz
Color scale	256~65536 degree /1.07 billion colors
Display mode	VGA 640X480-VGA 1600X1024
Life span	≥100,000 hours
Refresh frame frequency	≥360 HZ
Exchange frame speed	>150 frames per second
Control distance	≤100M (Cat.5 without repeater) /500 M (multi-mode optical fiber)/20000m(single-mode optical fiber)
Operating temperature	-25°C~+60°C
Operating humidity	10%-95% RH
Software	LED studio
Best view distance	>5m
Communication port	VGA
Control mode	Synchronous,  real time with PC
Drive mode	Constant current driving
Protection of power supply	Overtemperature, overcurrent, overvoltage  etc.
Operating system	Windows 98/Me/2000/Xp
Brightness adjustment	100 levels automatically or by hand
Drive mode	1/8 scan, constant current

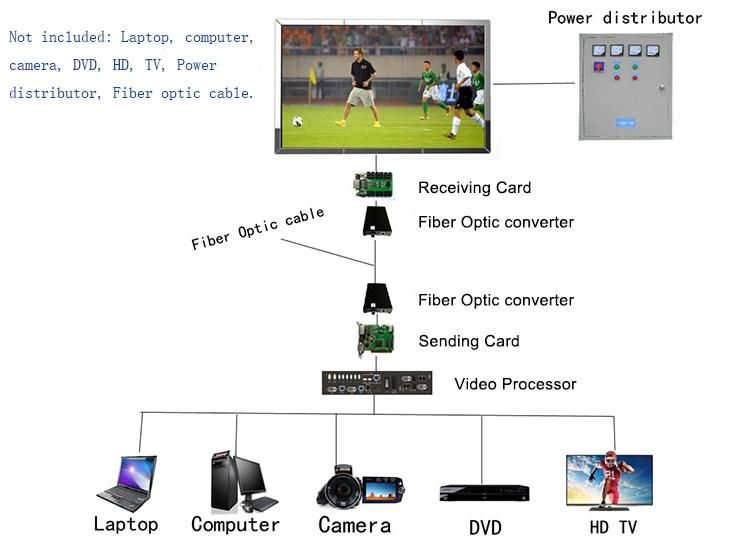

Connection System Diagram:




Advantages of LED Display:1) High Definition and can be adjusted, can showing DVD, TV, Dynamic images, VCRS, graphs, letters and animations for 24 hours. Sharp, colorful, synchronized with computer monitor. Waterproof, Sun-screen, antistatic, damp proof, anti-freeze, anti-thundering etc.
2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light
3) To pictures and character, have clear, exquisite and real display effect of led sign.
4) Big viewing angle to horizontal line and vertical line, can see at every angle at this range, no picture change, no   color excursion.
5) Can repair each led lamps, so the cost of maintain is lower, and easy to repair for led sign!

Company Information




Packaging & Shipping




Our ServicesOUR COMPANY provides on site product installation, debugging and maintenance service for our LED display. Such as:
1. After-sales service:
1) Service principles: response in time, solve problems as soon as possible and ensure the use.
2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
4) Under normal use and storage, Our Company will be responsible for the equipment.

2. Pre-sales service:
1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time.  Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
2) Our company can train the users based on the manual.  The training include system use, system maintenance and equipment protection.
FAQWhy choose Guangzhou Qichuang Electronic & Technology Co., Ltd.
1),Vivid and exact picture, minimum noise, advanced test equipment, support any pc operation system and play a variety of information like video, word, flash, music, clock, graph etc.
2),High brightness and support brightness automatically adjustment.
3),Long lifespan, can reach more than 100,000 hours, while the power consumption is lower than one tenth of lamp or neon;
4),Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display system;
5),Rich outdoor full color LED display screen engineering experience both in domestic and international market.
6),Well before, in,after-service.all for our customer reassurance.
