• Model NO.：P10
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display
• Average Power Consumption：400W,Sqm
• Pixel Density：10000 dot , m²
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, FCC
• Installation：Easy
• Life-Pan：100, 000 Hours
• Model Number：P10
• Shape：Rectangle or Square
• Transport Package：Wooden Case Packing: 1200*550*1300mm
• Specification：P10 Outdoor LED Advertising Display
• Trademark：Qichuangled
• Origin：China Guangdong
• HS Code：4451963098
• Production Capacity：3000 Square meter,month

Basic Info.

Model NO. P10 Pixel Configuration 1R, 1G, 1B Display Function Video Display Average Power Consumption 400W/Sqm Pixel Density 10000 dot / m² Scanning Mode 1/4 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, FCC Installation Easy Life-Pan 100, 000 Hours Model Number P10 Shape Rectangle or Square Transport Package Wooden Case Packing: 1200*550*1300mm Specification P10 Outdoor LED Advertising Display Trademark Qichuangled Origin China Guangdong HS Code 4451963098 Production Capacity 3000 Square meter/month

Product Description

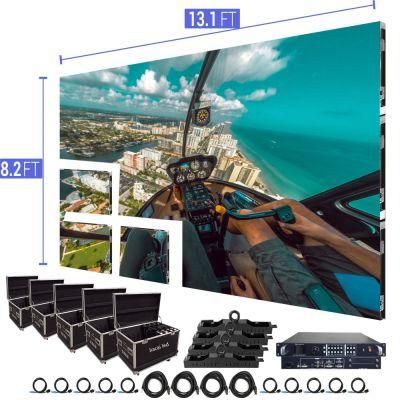

P10 Outdoor full color LED Advertising Display:
1). Our LED displays are widely used in commercial advertising, outdoor LED video wall, background LED display, entertainment industry, financial industry, communications, power sector, traffic, stadium, plaza, school, airport etc., for advertising and displaying messages.
2). For outdoor display, super bright, support any format of video.
3). Easy and simple installation interface and user friendly software to ensure the easy operation the LED display system.

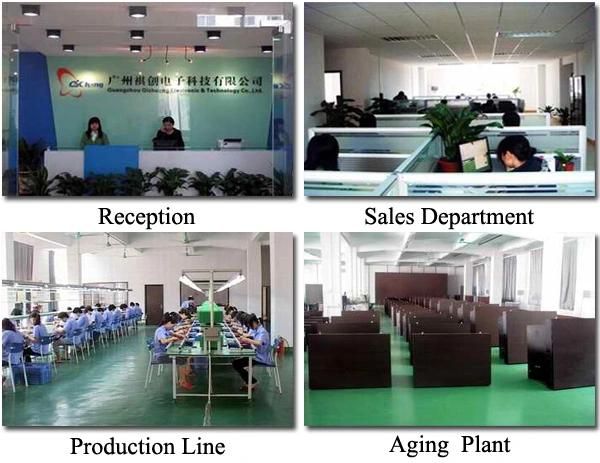

Factory:

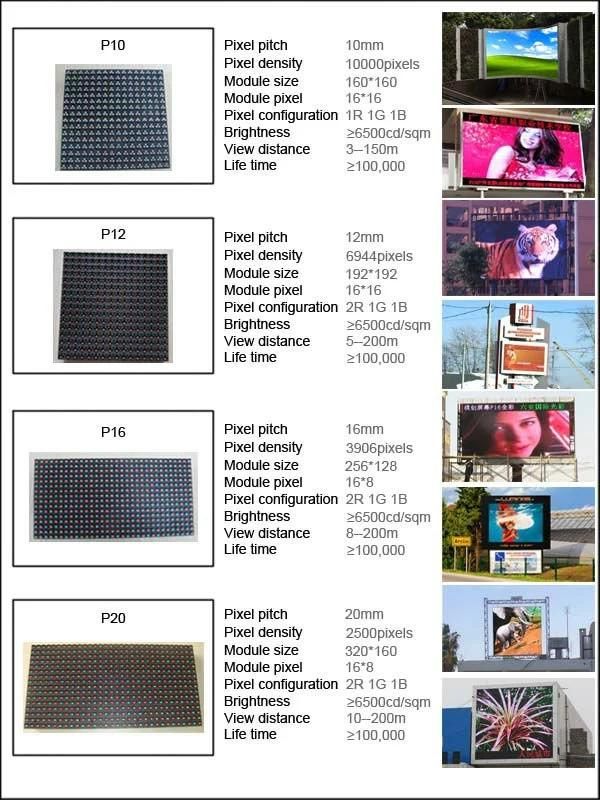

Outdoor led display module:

Certificate:

No.	Specifications
1.	Part No.	P10  outdoor full color led display
2.	LED chip	Taiwan/Silan/Cree/Cree Cotco
3.	Physical Pixel Pitch	10mm
4.	Physical Pixel Density	10000dots/m 2
5.	Pixel composition	1Red, 1Green, 1Blue
6.	Moduel Size	160*160mm
7.	Moduel resolution	16*16dots
8.	Cabinet thickness	< 170 mm
9.	Bracket of cabinet	Easy to install onto the LED cabinet and uninstall.
10.	Brightness	≥ 6500 nits
11.	Colors	16.7million
12.	Viewing angle	Horizontal ≥ 120° ,     Vertical  : ≥   45°
13.	Viewing distance	10m -300m
14.	Soft Rubber Mask	To protect player and LED display itself.
15.	Scan frequency	≥ 600 Hz There will be one receive card in each cabinet  , so that the LED display won' t sparked. Also it is very easy to move and connetct
16.	Video Frame Rate	≥ 150 fps
17.	Color temperature	6500° K to 9500° K adjustable
18.	Control method	Controlled by PC, synchronous display
19.	Life span( half brightness)	≥ 100, 000 hours
20.	Weight	70Kg   /sqm
21.	IP rate	IP65 ( front side and rear side)
22.	Average power consumption	400W/sqm
23.	Peak power consumption	1300W/sqm
24.	Input voltage	AC220V/50Hz ± 10%       or  AC110V/60Hz ± 10%  or AC380V/60Hz ± 10%
25.	Operating Environment	Temperature: -20+60          Humidity: 10%95%RH
26.	Operating system	Windows 98/2000/ME/XP
27.	Type of video signal	S-video, composite video, RGB, VGA, DVI
