Bus Paint Spray Booth Bus Paint Booth Bus Spray Booths with Lifter
Hangzhou Mig Packaging Co., Ltd.- After-sales Service：24 Hours After Service
- Warranty：2 Years
- Type：Spray Booth
- Certification：CE
- Substrate：Steel
- Brand：Infitech
Base Info
- Model NO.：IT-16-6B
- Coating：Powder Coating
- Airflow Direction：Lateral Undershot-type
- Heating Mode：Electric
- Paint Mist Treatment：Dry-type
- Condition：New

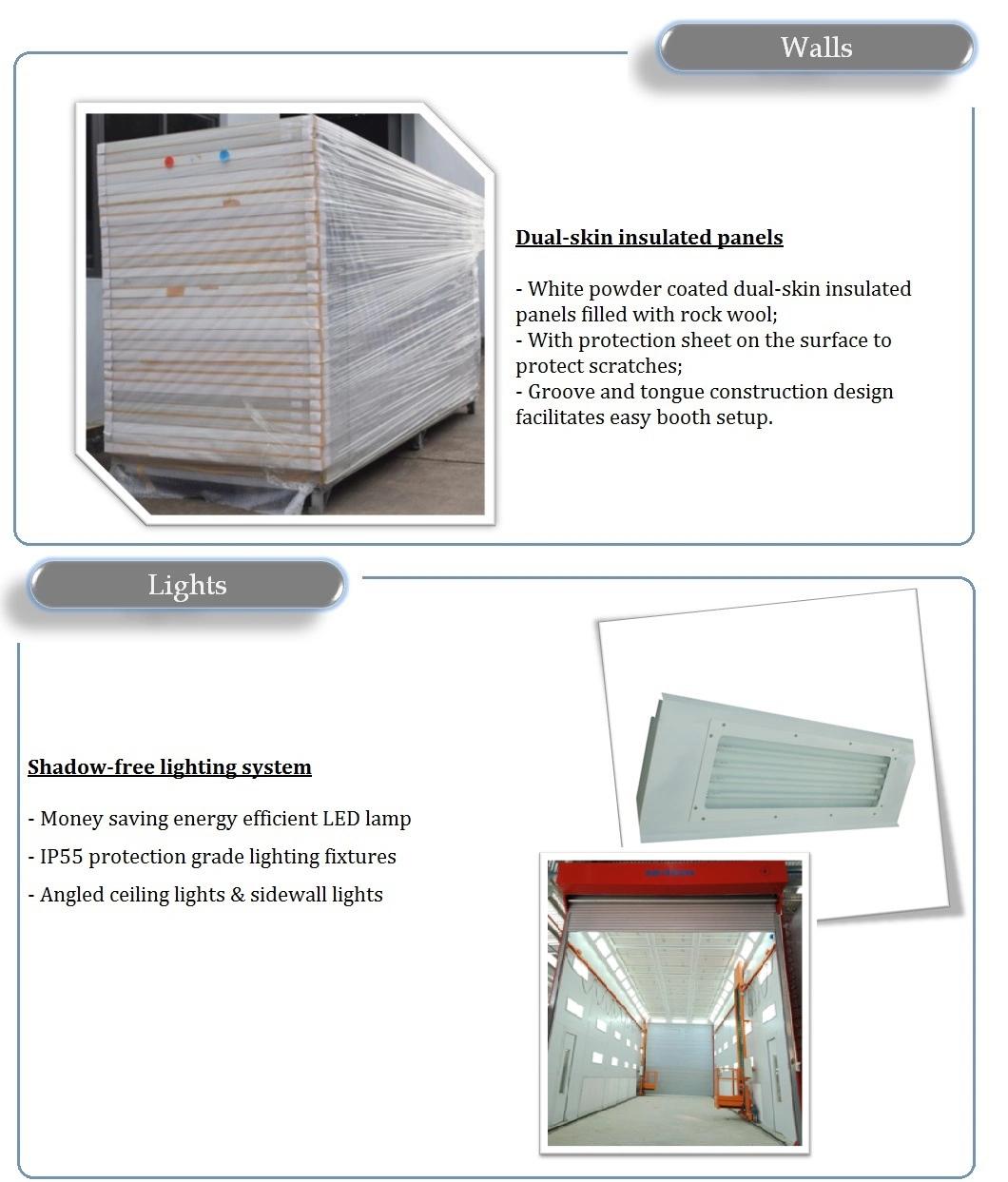

- Walls：Rock Wool Panels
- Lights：LED Lamps
- Illumination：1,000lux
- Noise：<78dB

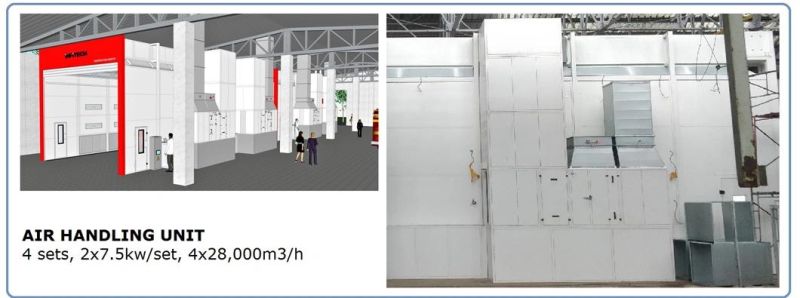

- Fan Unit：Direct-Drive, 4X 2X7.5kw

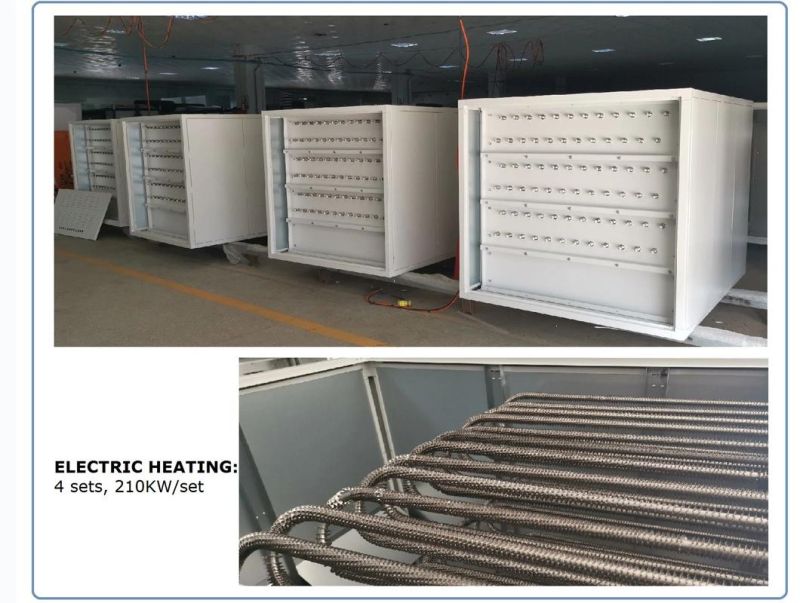

- Heats：Electric Heating, 4X210kw
- Air Volume：4 X 28,000m3,H
- Empty Loaded Air Speed：0.32m,S
- Transport Package：Loaded on Pallets Handled by Forklifts
- Specification：16000*6000*5000mm
- Trademark：INFITECH
- Origin：Guangzhou, China
- HS Code：8419899090
- Production Capacity：1000 Pieces,Year
Description
Bus Paint Spray Booth Bus Paint Booth Bus Spray Booths With LifterITEMS SPECIFICATIONS Design standard BS EN 13355: 2004+A1:2009

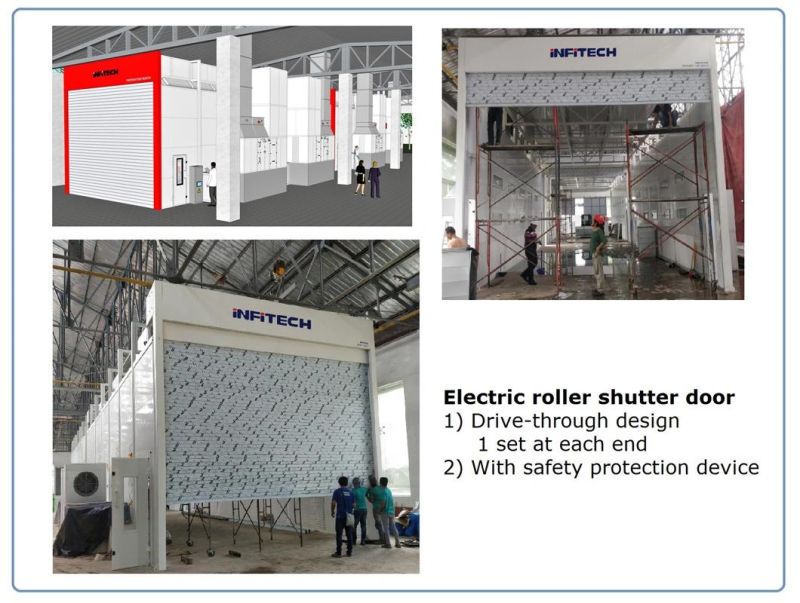

BS EN 60204: 2006+A1:2009 Internal dimensions 16000 X 6000 X 5000mm (L X W X H) External dimensions 16200 X 9120 X 5860mm (L X W X H) Airflow Side Downdraft Plenum 800mm high Extraction Through exhaust plenum chambers on both sides Extraction area 26.4m2 Entrance door 5500x4500mm (WxH), 2 sets, electric roller shutter door Service door 800x2300mm(WxH), 4 sets Ceiling lights (LED) 28 sets, each 4 X 18W, 2,016W total Sidewall lights 20 sets, each 4 X 18W, 1,440W total Brightness >1,000LUX Filters Bag filter, high efficiency ceiling filter, floor filter, exhaust filter Intake/Exhaust unit Direct-type turbine fan, 4 x 2x7.5KW Air volume 4x28,000m3/h Empty loaded air speed 0.32m/s Heats Electric heating, 4 sets, 210KW per set

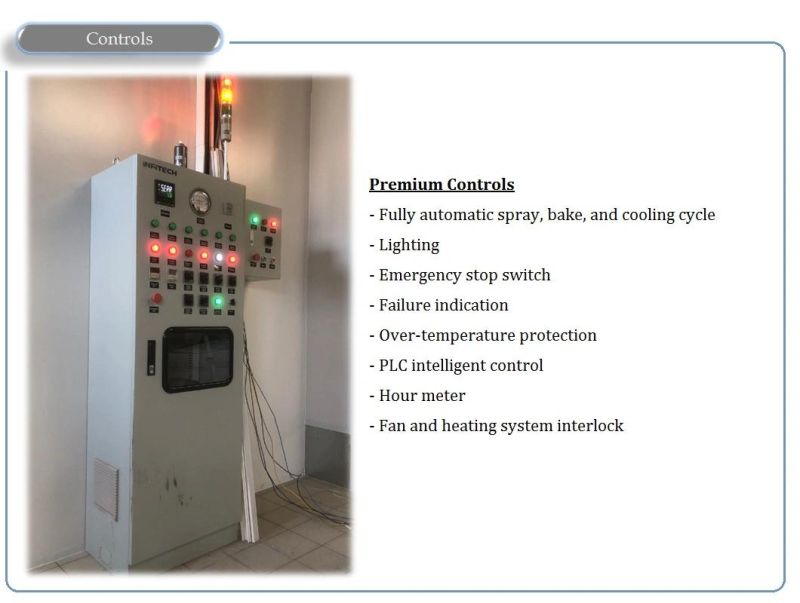

Gas and diesel heating as option Controls CE standard control box Inverter Option Rated power 915KW
3. Details

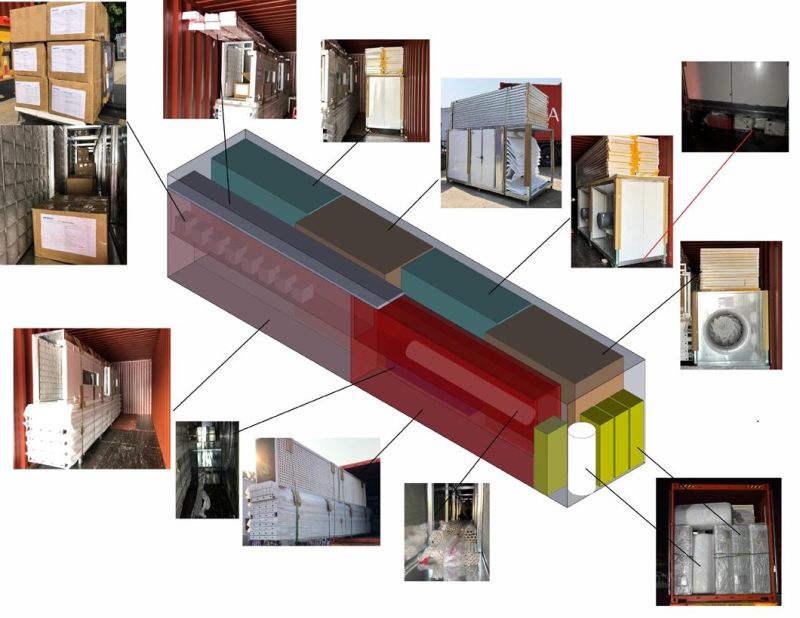

4. Loading

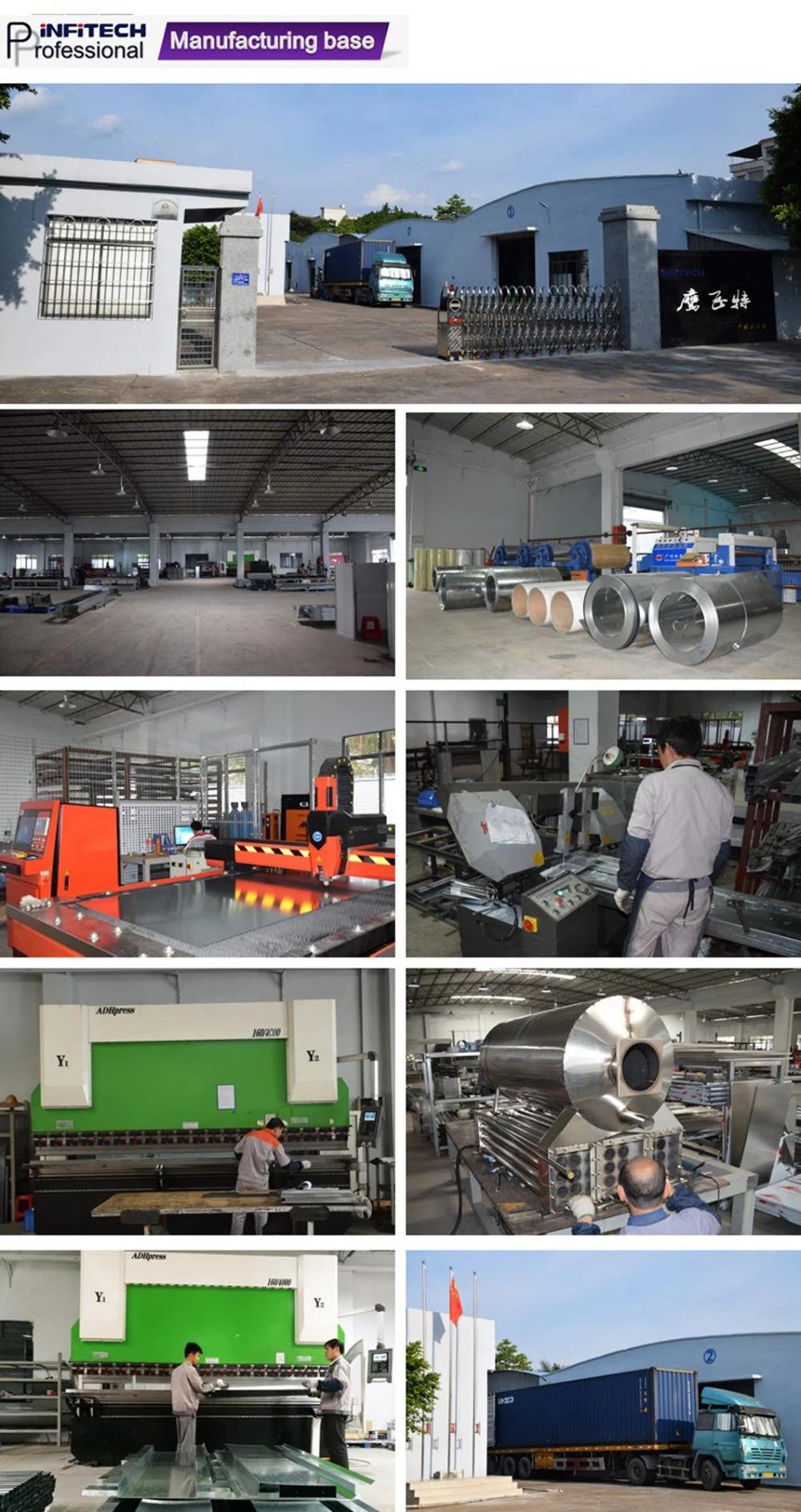

5. Factory photos

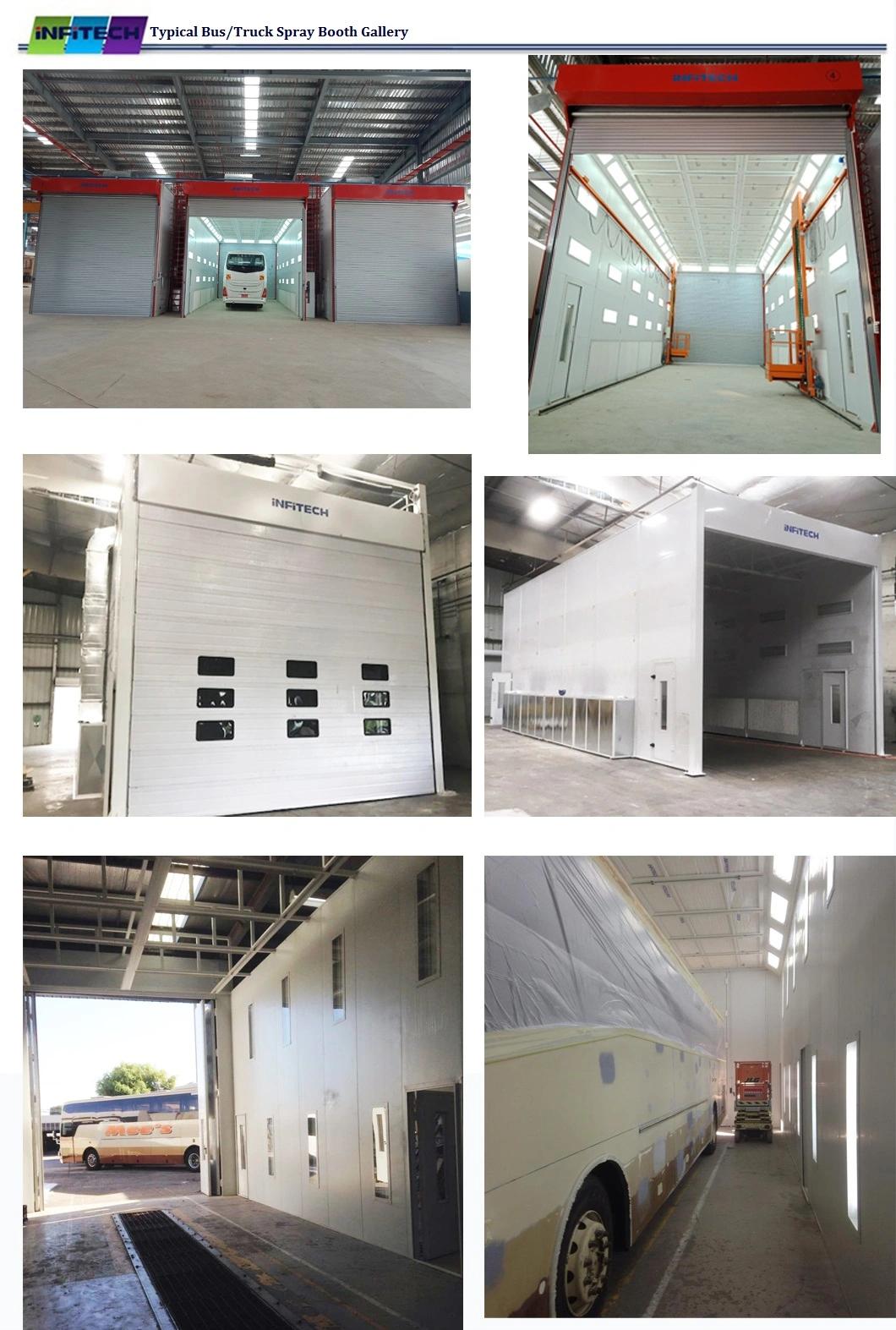

6. Typical projects display
