Infitech Hot Sale Auto Refinish Full Downdraft Automotive Spray Booth with Infrared Heating
Hangzhou Mig Packaging Co., Ltd.- Type：Spray Booth
- Certification：CE
- Substrate：Steel
- Coating：Powder Coating
- Airflow Direction：Fully Undershot-type
- Heating Mode：Infrared Ray
Base Info
- Model NO.：IT-511
- Paint Mist Treatment：Dry-type
- Condition：New
- Plenum Height：600mm
- Walls：50mm Rock Wool Panel
- Lighting：LED Lamp
- Brightness：>1000lux
- Filter：High Efficiency Filters
- Air Volume：28,000m3,H
- Empty Loaded Air Speed：+,-0.27m,S
- Controls：Ce Standard Control Box
- Warranty：2 Years
- Transport Package：Polyfoam and Metal Frame
- Specification：7000 x 4000 x 2800mm
- Trademark：INFITECH
- Origin：Guangzhou, China
- HS Code：8419899090
- Production Capacity：900 Sets,Year
Description
INFITECH hot sale auto refinish full downdraft automotive spray booth with infrared heating Design standard BS EN 13355: 2004 + A1: 2009
BS EN 60204: 2006 + A1: 2009 Internal dimensions 7000 x 4000 x 2800mm (L X W X H) External dimensions 7110 X 5570 X 3460mm (L X W X H) Plenum height 600mm Entrance door 1 set, 3200 X 2700mm (W X H) Personnel door 1 set, 800 X 2000mm (W X H) Ceiling lighting 10 sets, each 4 X 18W, 720W total, LED lamp Sidewall lighting Optional Brightness >1,000LUX Purification Pre-filter, ceiling filter, floor filter, extract filter Air intake Direct-type turbine fan, 7.5KW SIEMENS motor Air exhaust Direct-type turbine fan, 7.5KW SIEMENS motor Air volume 28,000m3/h Empty loaded air speed +/-0.27m/s Heating system Wall mounted infrared heating system, 10 units, 10 x 3KW Controls CE standard control box Rated power 49KW
Features
Produce details
BS EN 60204: 2006 + A1: 2009
Features
| Airflow • Full downdraft for spray and cure • Controlled airflow ceiling | Construction • White pre-coated galvanized steel • Dual-skin insulated panels filled with rock wool, 50mm thick • 600mm high plenum • Full grids (650kg/wheel), with pit for extraction |

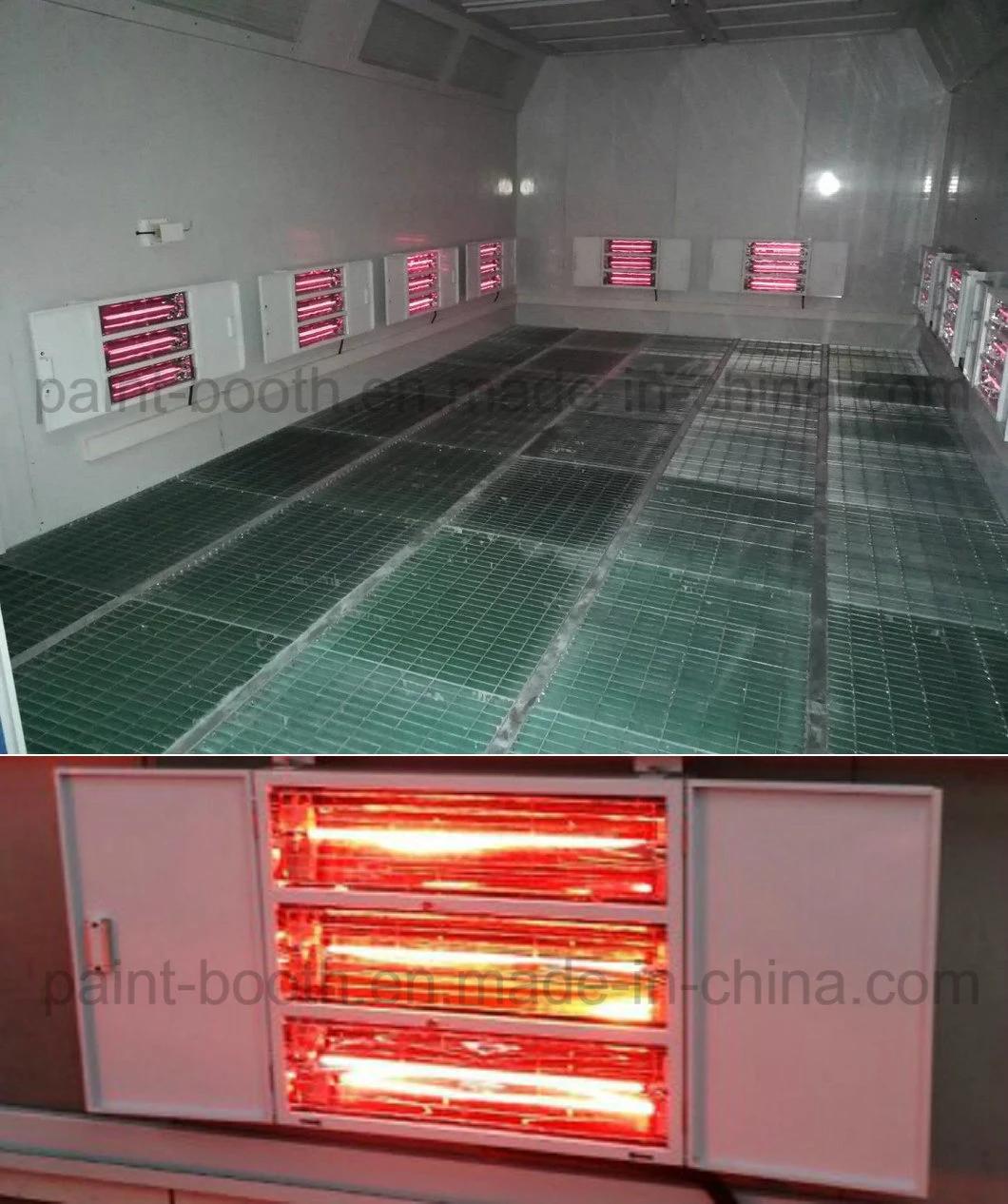

| Doors • 3-wing entry door, big tempered glass window • Personnel door with observation window | Heat • Infrared heating lamps, 10 units, 3x1KW/unit Service time of the lamps can last as long as 5,000hr • Temperature control • Time control • Group control All units can work together, or every unit works individually • Power adjustment • Automatic slow start |
| Filtration • Pre-filter: G3 grade pre-filter plate filter • Ceiling filter: F5 grade filter cotton, Model SP-600G • Floor filter: G2 grade fiberglass paint arrestor filters • Extract filter: Fiberglass filter | Controls • PLC controller, pressure gauge Functions: Painting, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indication, baking delay stop protection, motor over-load and over-current protection |
Produce details

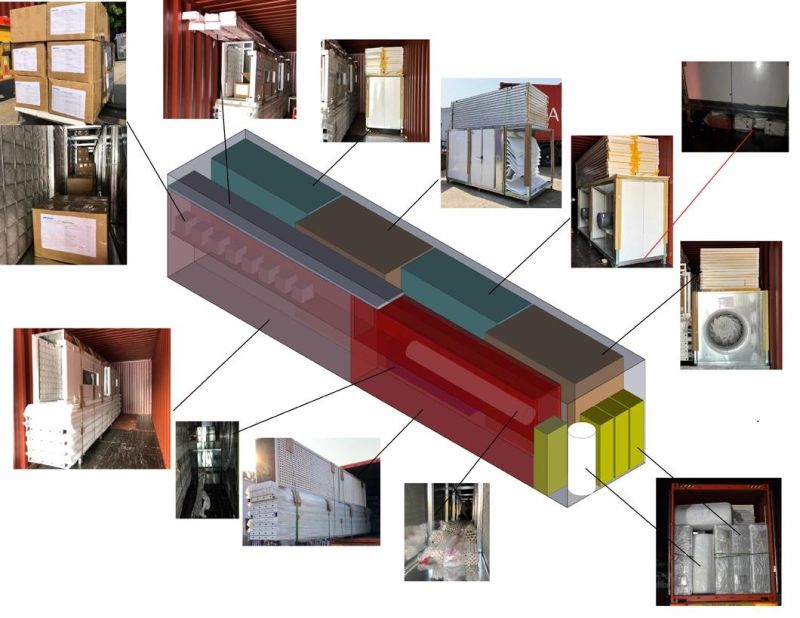

Packaging and loading

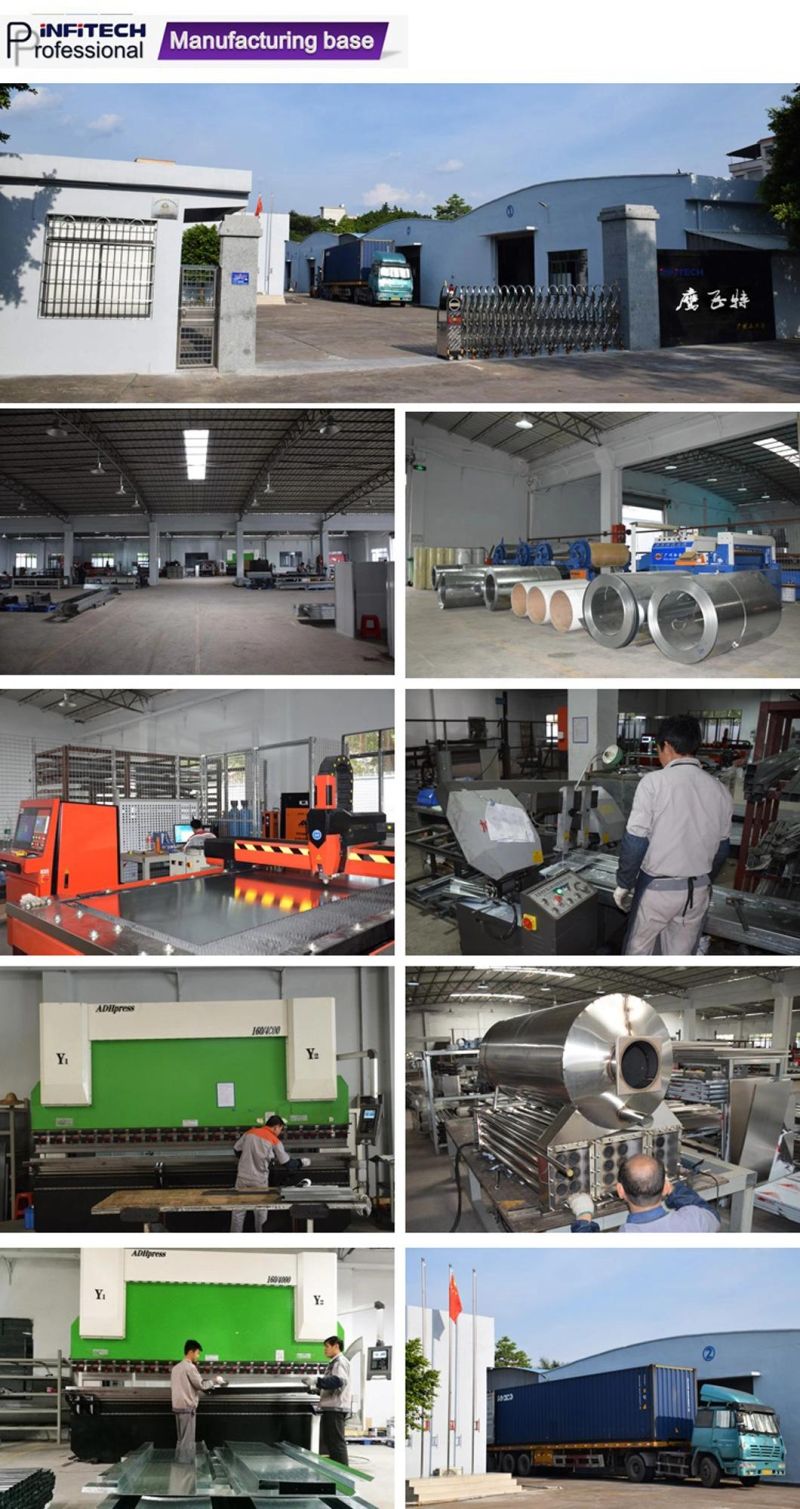

Company information
Guangzhou Infitech is professional manufacturer of customized European standard spray booths in China. We stick to European standard for spray booth since the business started. What we supply ranges from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your customers' individual needs.
