Ce Compliance Downdraft Spray Booth for Industrial Vans

Hangzhou Mig Packaging Co., Ltd.
  • Type：Spray Booth
  • Certification：CE
  • Substrate：Steel
  • Coating：Powder Coating
  • Airflow Direction：Fully Undershot-type
  • Heating Mode：Gas

Base Info

  • Model NO.：IT-L9
  • Paint Mist Treatment：Dry-type
  • Condition：New
  • Fan Unit：2X11kw, 35,000m3,H
  • Lights：LED Lamp
  • Illumination：>1,000lux
  • Burner：Riello RS5d Burner
  • Walls：Rock Wool Walls
  • Noise：<78dB
  • Transport Package：Packed on Pallets Handled by Forklifts
  • Specification：9000*5000*3500mm
  • Trademark：INFITECH
  • Origin：Guangzhou, China
  • HS Code：8419899090
  • Production Capacity：1000 Pieces,Year

Description

CE Compliance Spray BoothITEMSSPECIFICATIONSDesign standardBS EN 13355: 2004+A1:2009
BS EN 60204: 2006+A1:2009Internal dimensions 9000 X 5000 X 3500mm (L X W X H)External dimensions9110 X 6750 X 4160mm (L X W X H)AirflowDowndraftPlenum600mm highExtractionThrough pit in the groundExtraction area30m2Entrance door4240x3400mm (WxH), 1 setService door800x2000mm(WxH), 3 setsCeiling lights (LED)12 sets, each 6 X 18W, 1,296W totalSidewall lights10 sets, each 2 X 18W, 360W totalBrightness>1,000LUXFiltersBag filter, high efficiency ceiling filter, floor filter, exhaust filterIntake/Exhaust unitDirect-type turbine fan, 2 X 11KW SIEMENS motorAir volume35,000m3/hHeats315KW, RIELLO gas burner RS5DControlsCE standard control boxInverterYes, inverter controlRated power28KW

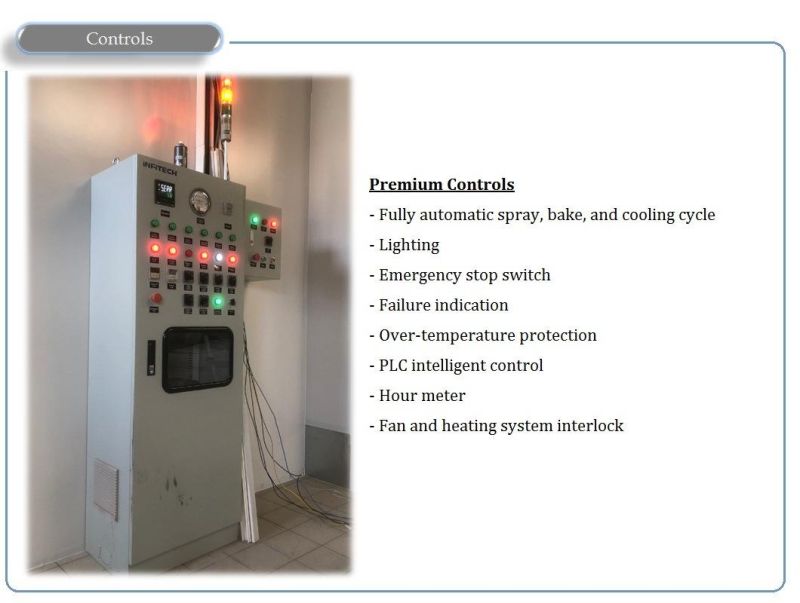

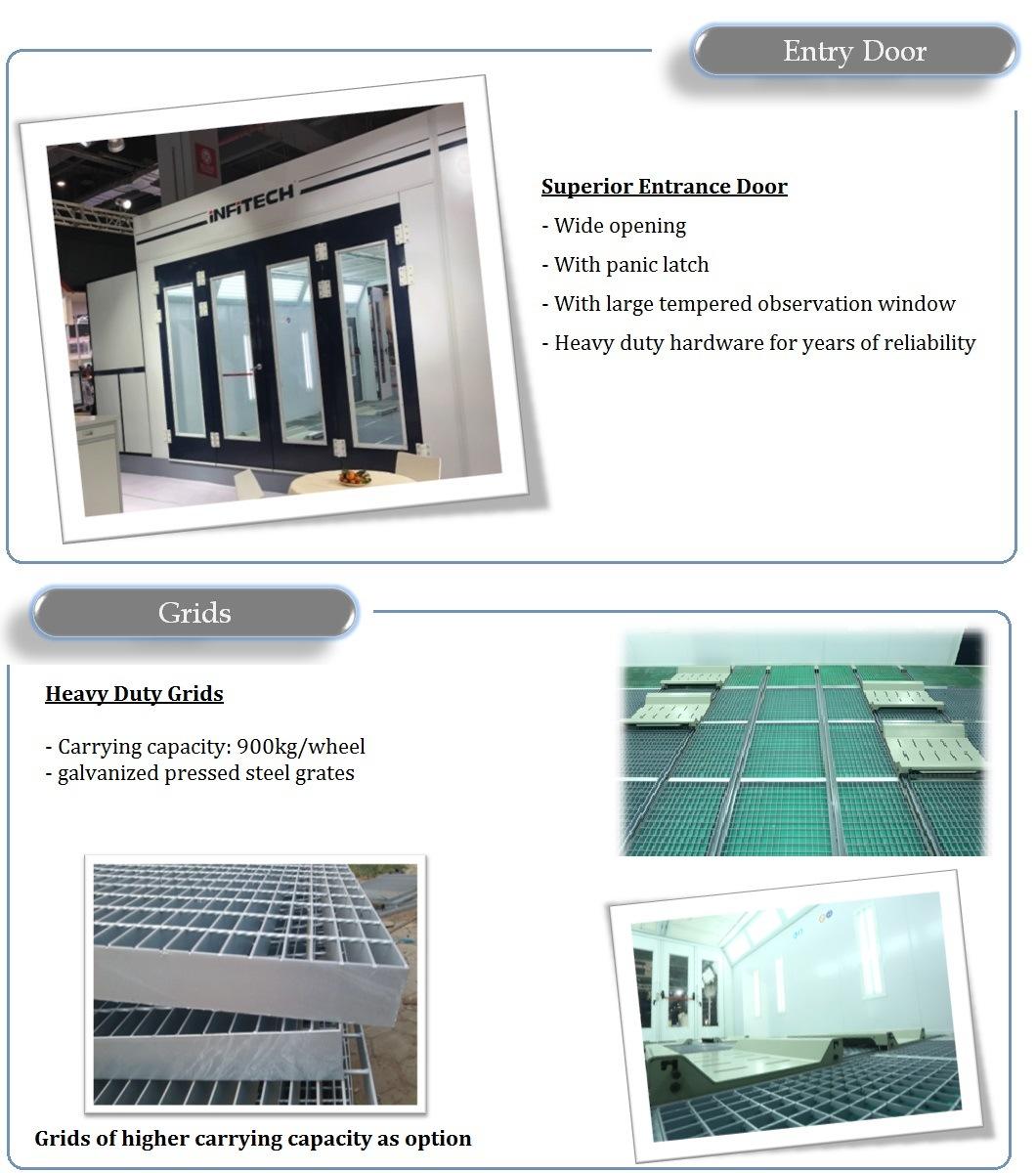

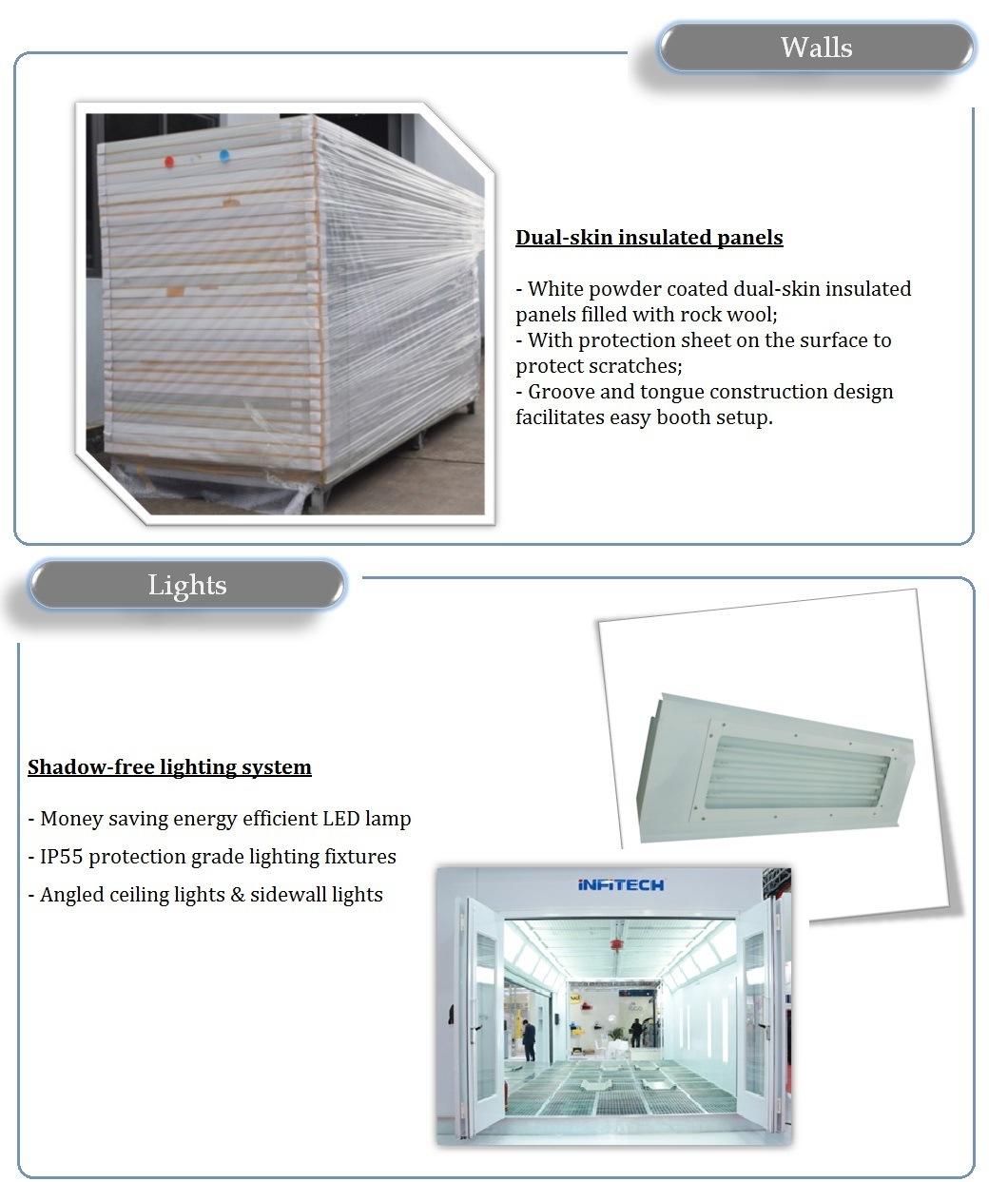

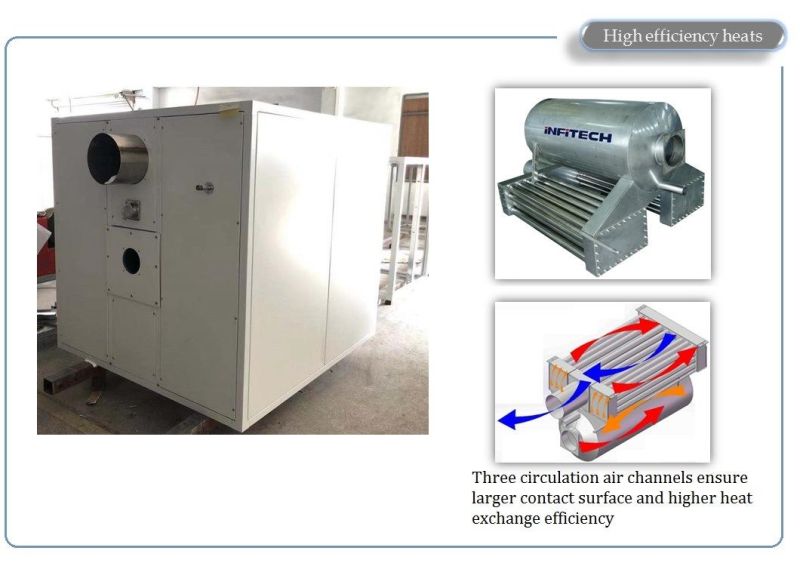

3. Details
Ce Compliance Downdraft Spray Booth for Industrial Vans
Ce Compliance Downdraft Spray Booth for Industrial Vans
Ce Compliance Downdraft Spray Booth for Industrial Vans

Ce Compliance Downdraft Spray Booth for Industrial Vans
Ce Compliance Downdraft Spray Booth for Industrial Vans

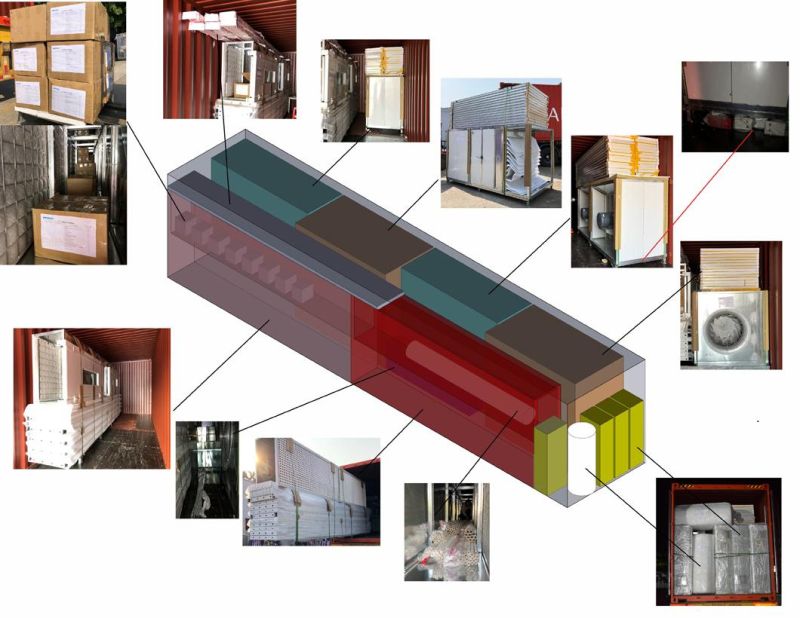

4. Loading
Ce Compliance Downdraft Spray Booth for Industrial Vans

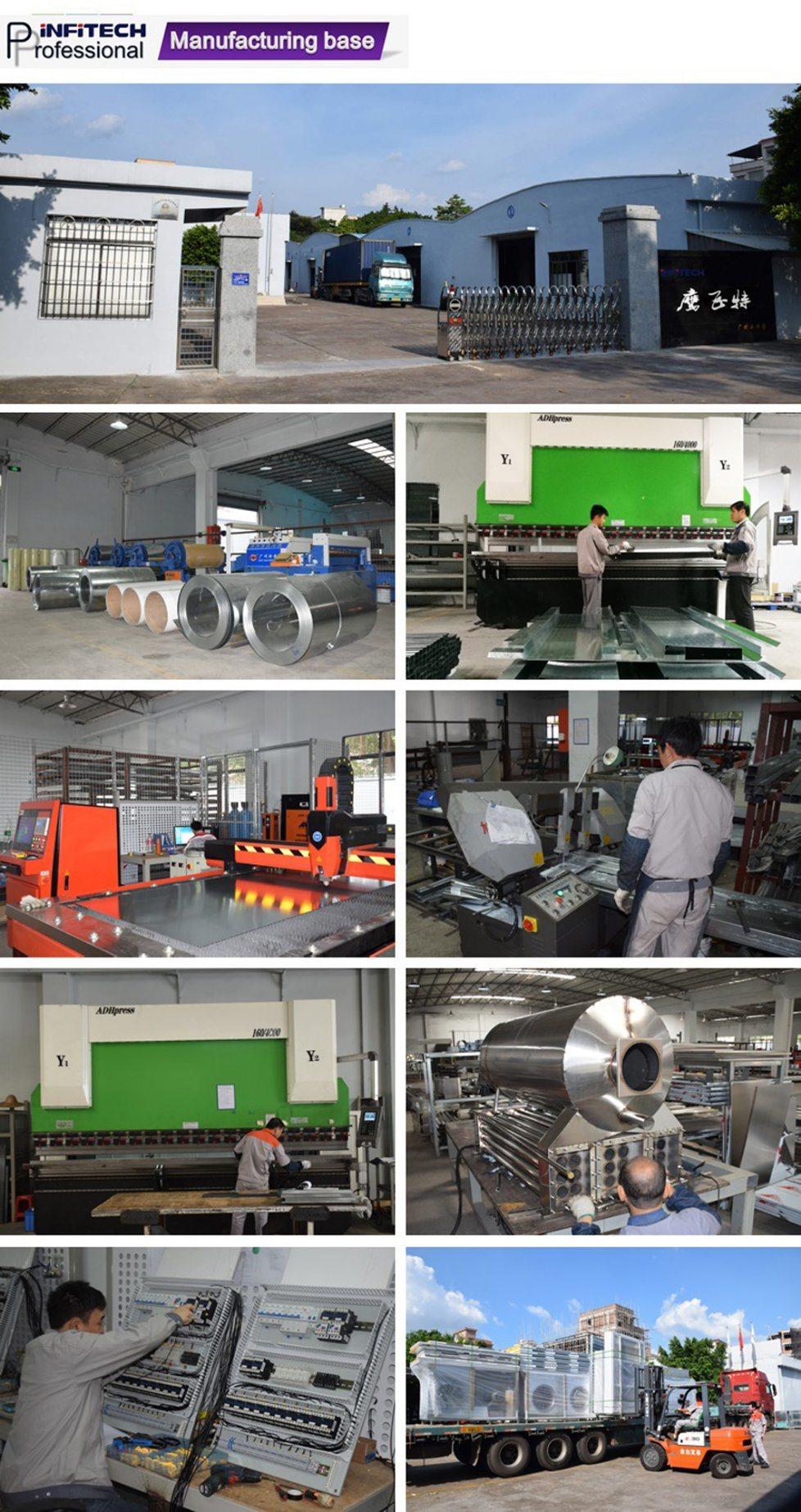

5. Factory Photos
Ce Compliance Downdraft Spray Booth for Industrial Vans

5. Spray Booth Gallery
Ce Compliance Downdraft Spray Booth for Industrial Vans
