New Zealand Standard Customized Industrial Bus Paint Booth with 2 Work Zones
Hangzhou Mig Packaging Co., Ltd.- Type：Spray Booth
- Certification：CE
- Substrate：Steel
- Coating：Powder Coating
- Airflow Direction：Fully Undershot-type
- Heating Mode：Gas Heating
Base Info
- Model NO.：IT-16-6A
- Paint Mist Treatment：Dry-type
- Condition：New
- Fan：Direct-Drive Big Impeller Fan
- Motor：2X11kw, Siemens
- Burner：2 X Riello RS5d
- Heat Exchanger：2 X 315kw
- Plenum：800mm High
- Extraction：Through 3 Rows of Pits

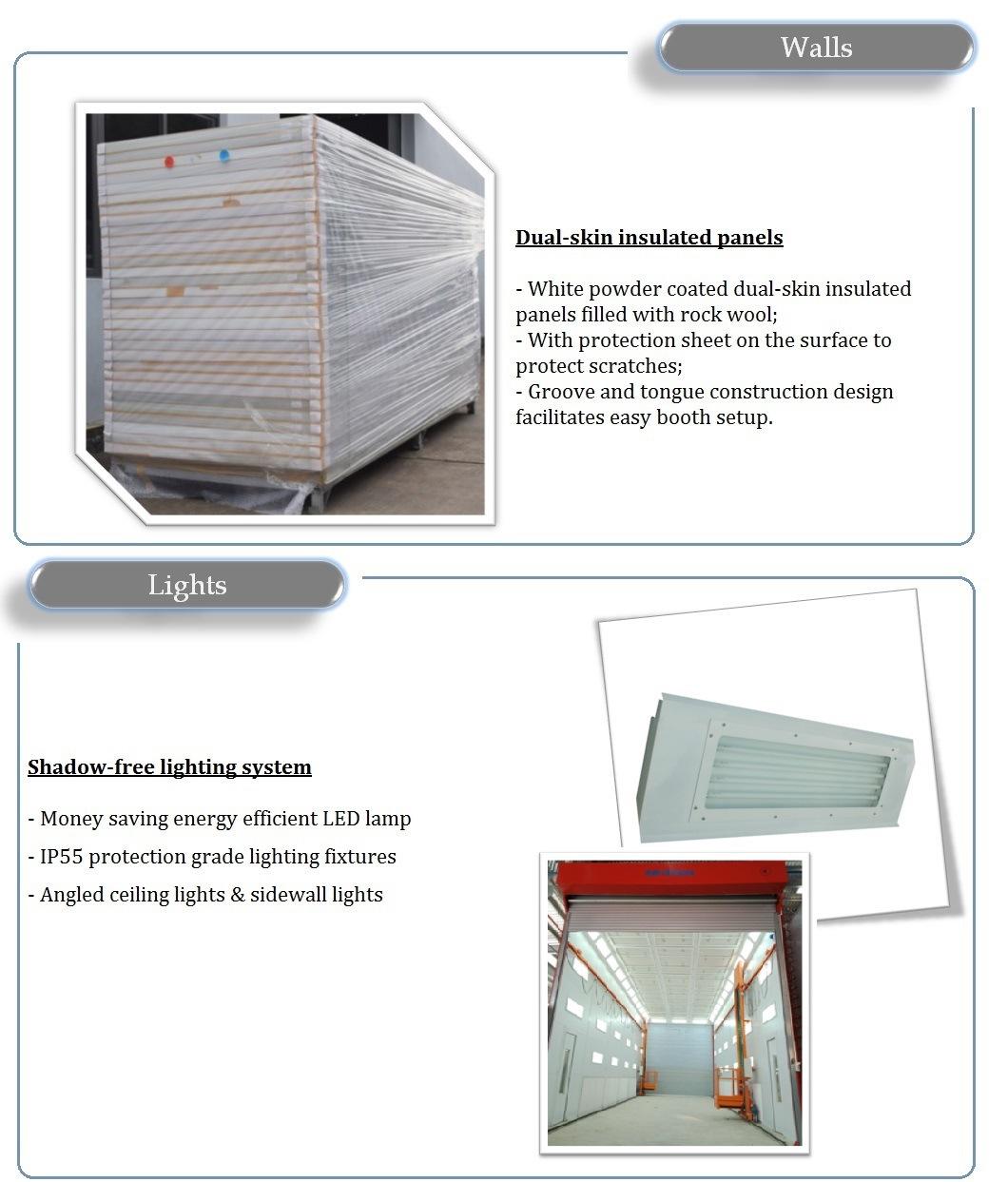

- Walls：60mm Thick Rock Wool Panels
- Lights：LED Lamp
- Illumination：>1,000lux
- Noise：<78dB
- Warranty：2 Years

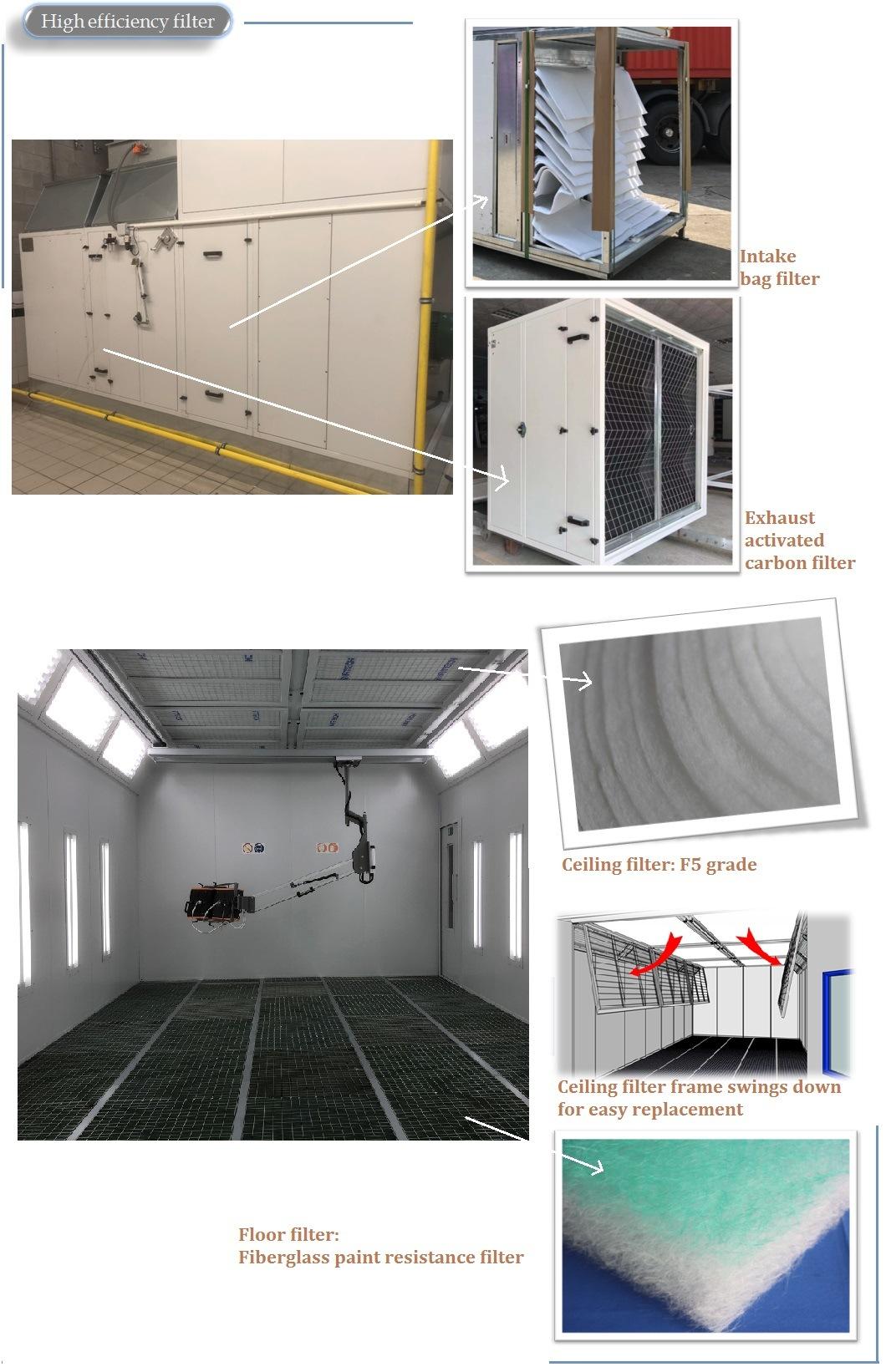

- Filters：High Efficiency Filters
- Air Volume：2 X 35,000m3,H
- Empty Loaded Air Speed：0.20m,S

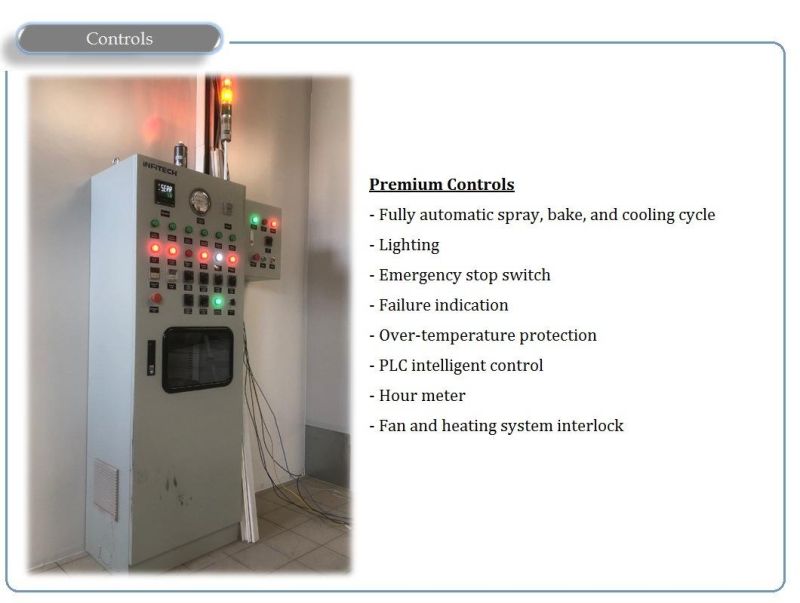

- Controls：Ce Standard
- Transport Package：Polyfoam and Metal Frame
- Specification：16000*6000*5000mm
- Trademark：INFITECH
- Origin：Guangzhou, China
- HS Code：8419899090
- Production Capacity：1000 Pieces,Year
Description
CE Certified Industrial Spray BoothITEMS SPECIFICATIONS Design standard BS EN 13355: 2004+A1:2009
BS EN 60204: 2006+A1:2009 Internal dimensions - Zone 1 8000 X 6000 X 5000mm (L X W X H) Internal dimensions - Zone 2 8000 X 6000 X 5000mm (L X W X H) External dimensions 16170 X 7810 X 5860mm(L X W X H) Airflow Downdraft Plenum 800mm high Extraction Through three rows of 800mm deep pits in the ground Entrance door 2 sets, manual door, 4270 X 4900mm (W X H) Divider door in-between 1 set, manual door, 4270 X 4900mm (W X H) Personnel door 4 sets, 800 X 2000mm (W X H) Walls 60mm thick rock wool panels Ceiling lighting (LED) 20 sets, each 4 X 18W, 1,440W total Sidewall lighting (LED) 28 sets, each 4 X 18W, 2,016W total Brightness >1,200LUX Filters Pre-filter, high efficiency filter, floor filter, exhaust filter Air intake Direct-type turbine fan, 2 X 11KW SIEMENS motor Air exhaust Direct-type turbine fan, 2 X 11KW SIEMENS motor Air volume 2 X 35,000m3/h Empty loaded air speed +/-0.20m/s Maximum working temperature 80ºC Heat exchanger power 315KW X 2 Burner RIELLO gas burner RS5D X 2 (two stage) Controls CE standard control box Rated power 50KW

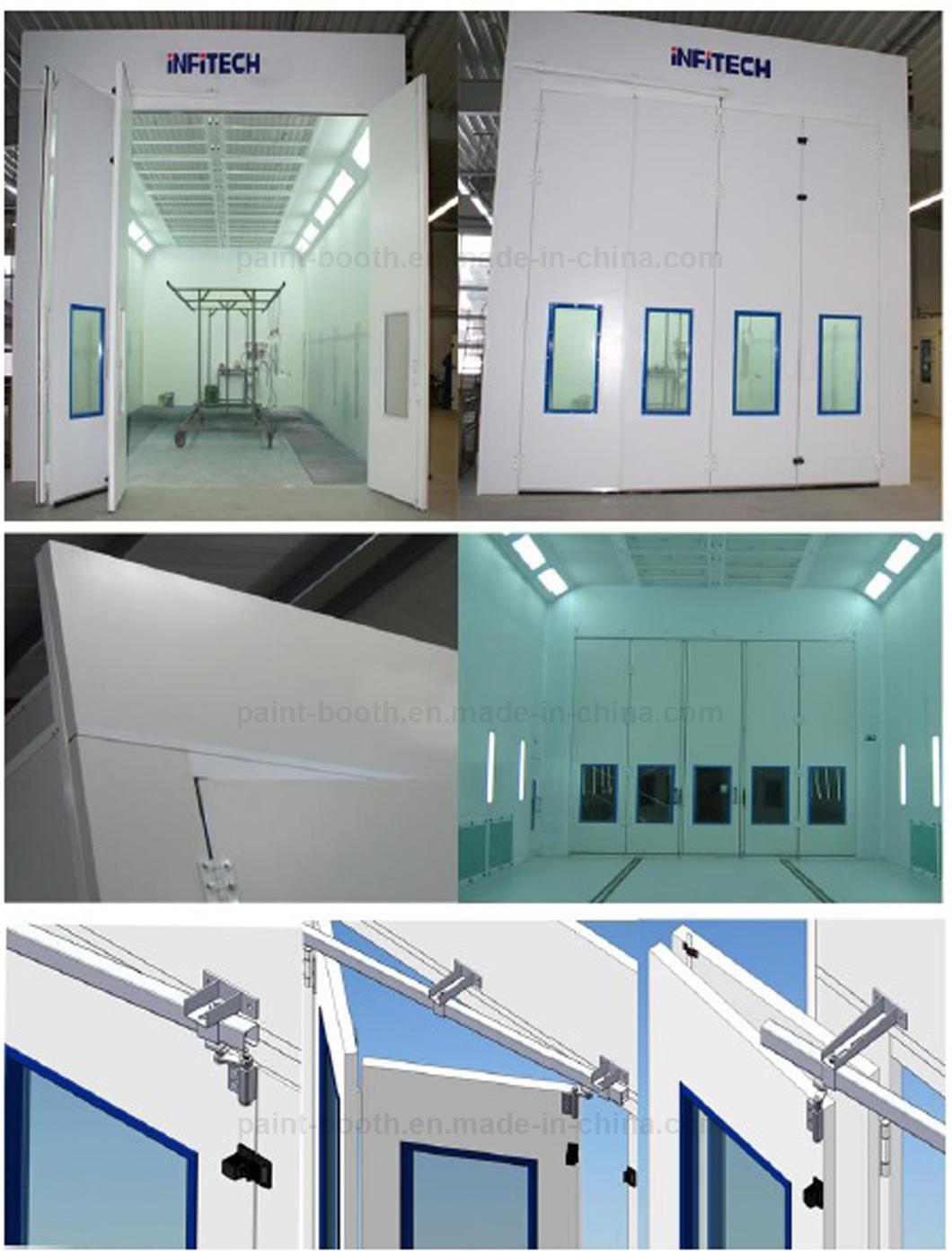

3. Details

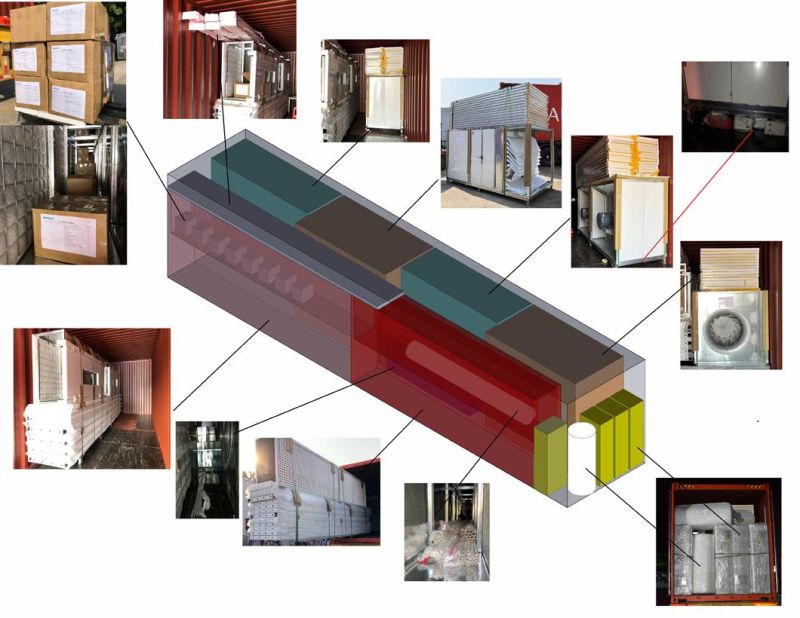

4. Packaging & Loading

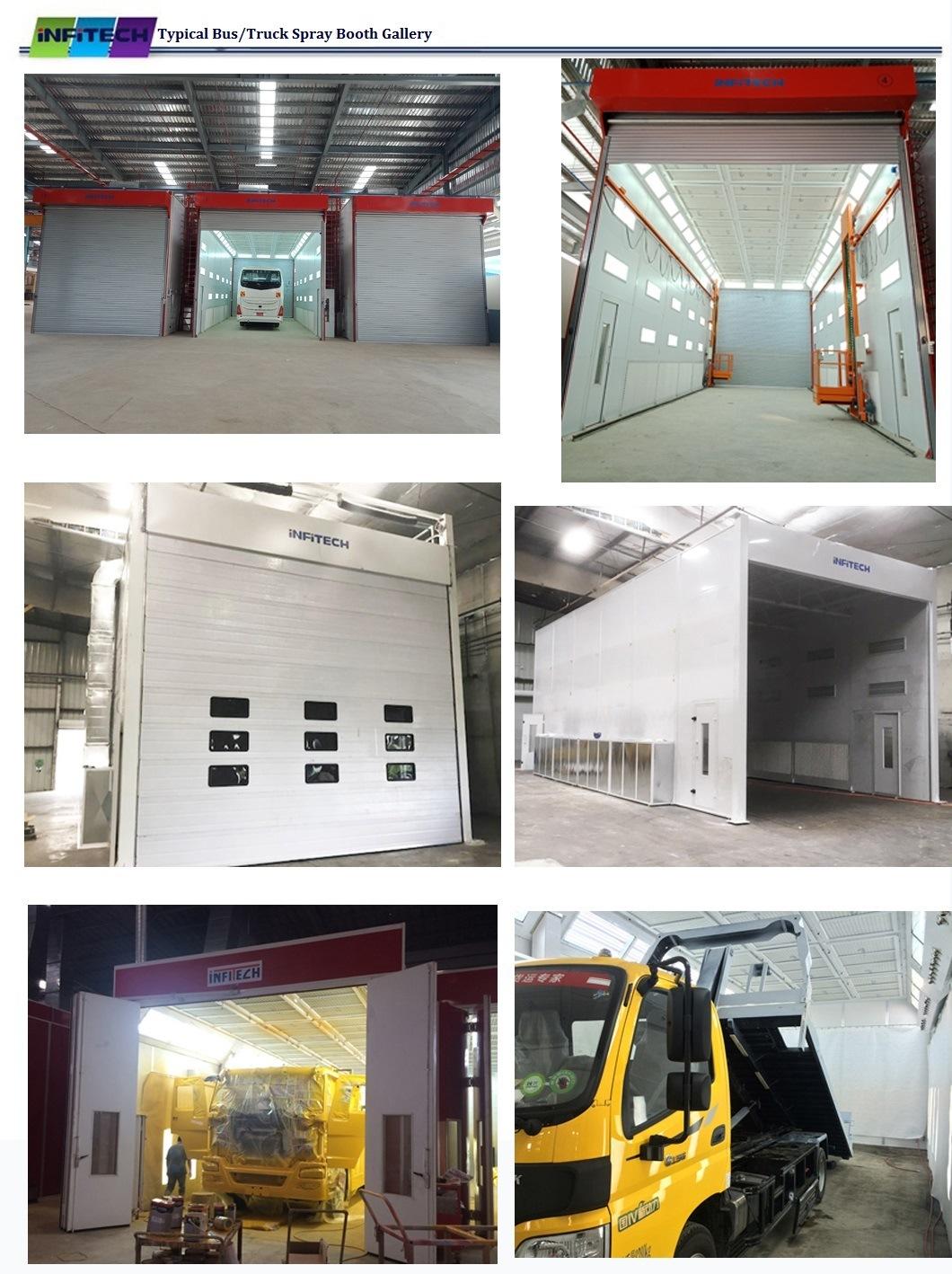

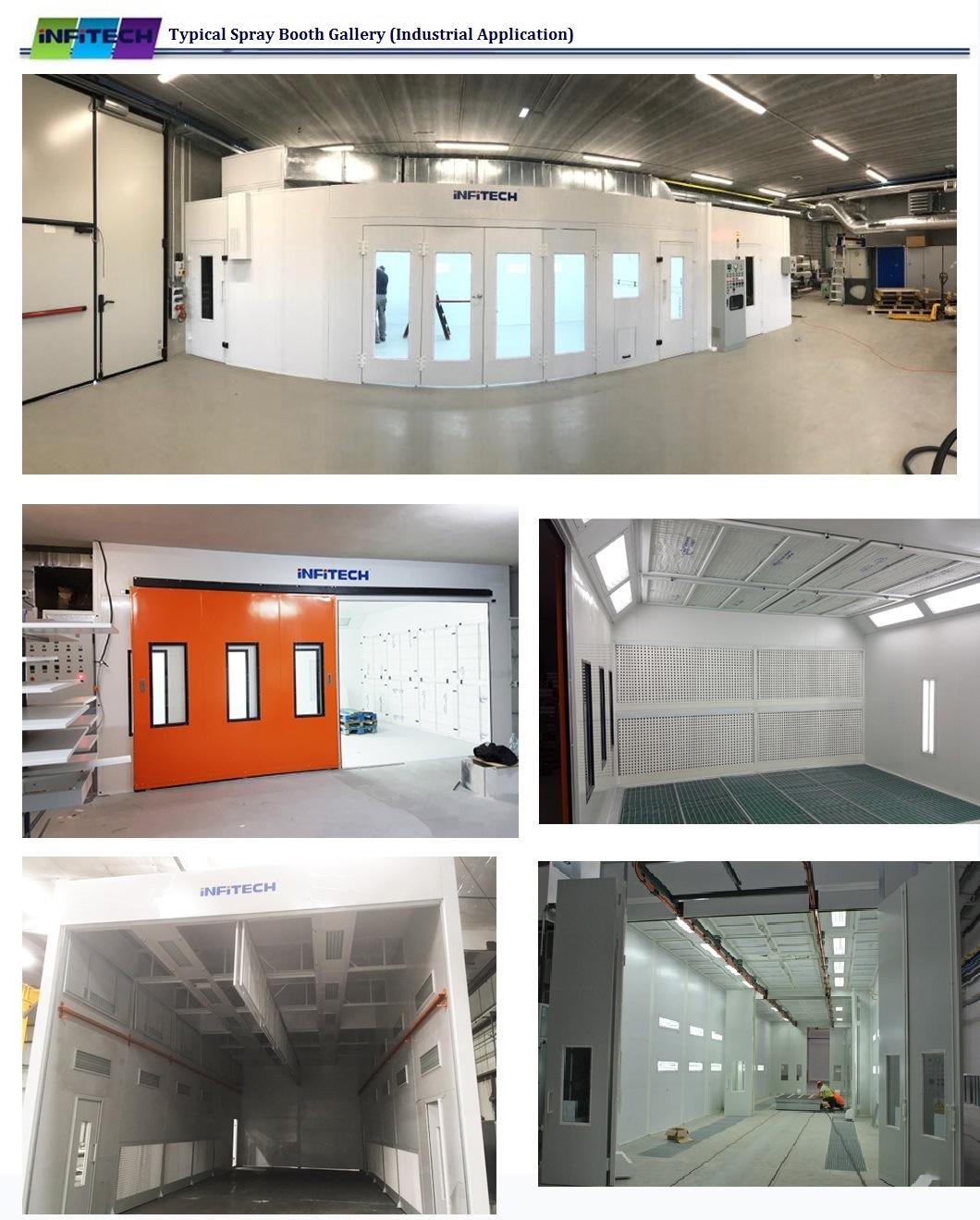

5. Typical projects

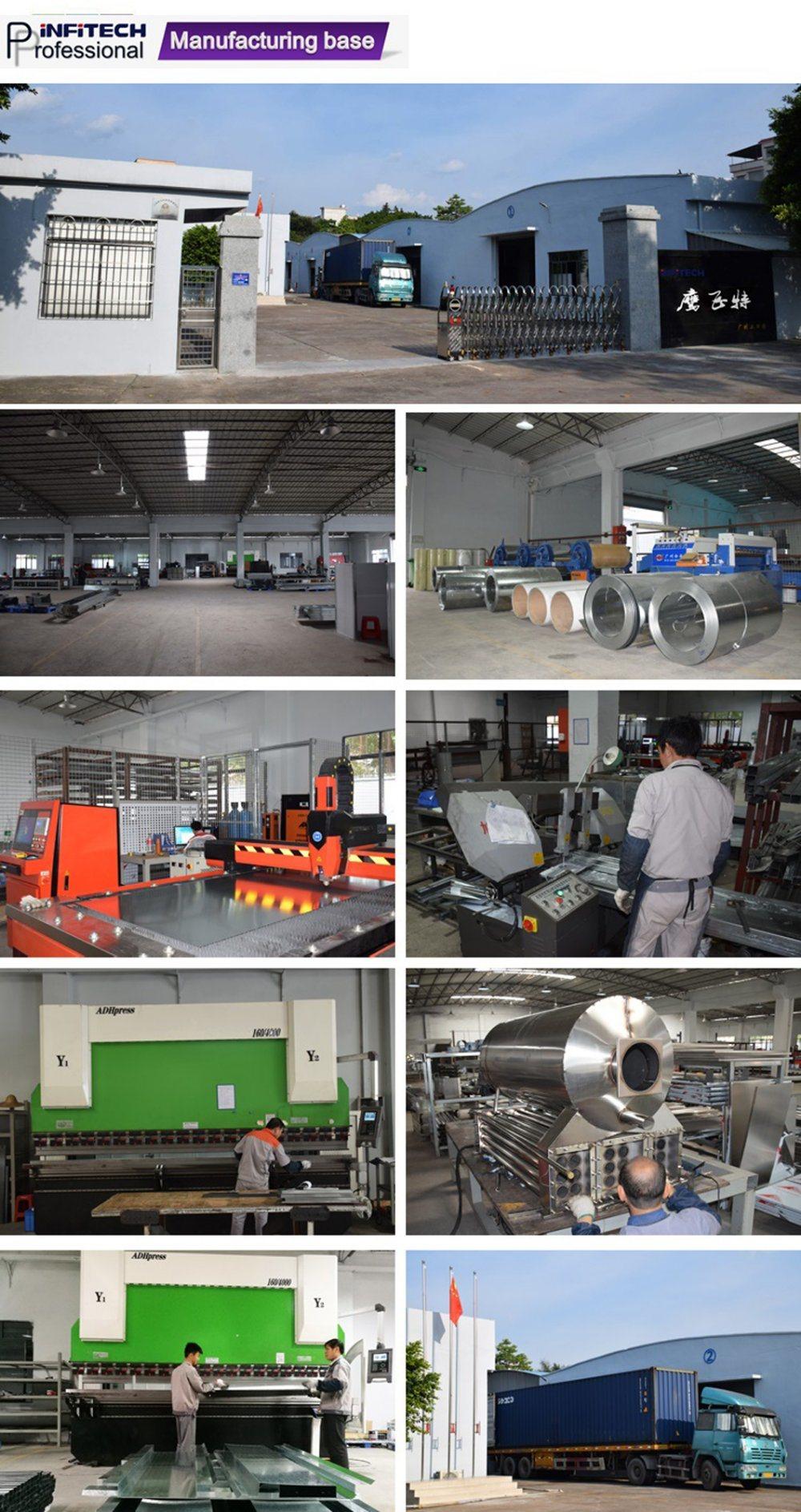

6. Company Profile
GUANGZHOU INFITECH is professional provider of painting workshop solutions. INFITECH specializes in CE certified spray booth, offering complete solution including design and layout, manufacturing, installation and maintenance. We take pride in delivering professional and ideal solution that best suits specific requirements, while maximize profits for shop owners.
Welcome to send inquiries! :-)
