• Model NO.：2.5mm
• System Operating Platform：Windows
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide, Shopping Mall, Concerts, Shows and Event, Airport
• IP Rating：IP33
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：240X240mm
• Screen Brightness：1200nits
• Refresh Rate：28800Hz-3840Hz
• Controller：Nova
• Frame Frequency：60Hz
• Transport Package：Plywood Case
• Specification：480*480mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

NO.ItemParameters1ModelV022Pixel Pitch(mm)2.53LED Configuration1R1G1B4LED TypeSMD21215Screen Resolution160000dots/sqm6Module size(mm)240*2407Module resolution(dots)96*968Scan method1/32 constant current drive9Cabinet size(mm)480*48010Cabinet resolution(dots)192*19211Cabinet materialDie-casting Aluminum12Brightness(cd/sqm)≥120013Viewing angleH:160°/ V:160°14Grey Scale14bit15Refresh rate(Hz)2880~3840HZ16Ave. power consumption (W/sqm)20017Max. power consumption(W/sqm)60018IP gradeIP3319controllerNovastar 20MaintenanceRear service21Color(T)>4.422Input Voltage(V)AC 110V-220V +/-10%23Frame frequency(Hz)6024Working humidity10~90%RH25Working temperature-30ºC~60ºC26CertificatesRoHS / CE / CCC

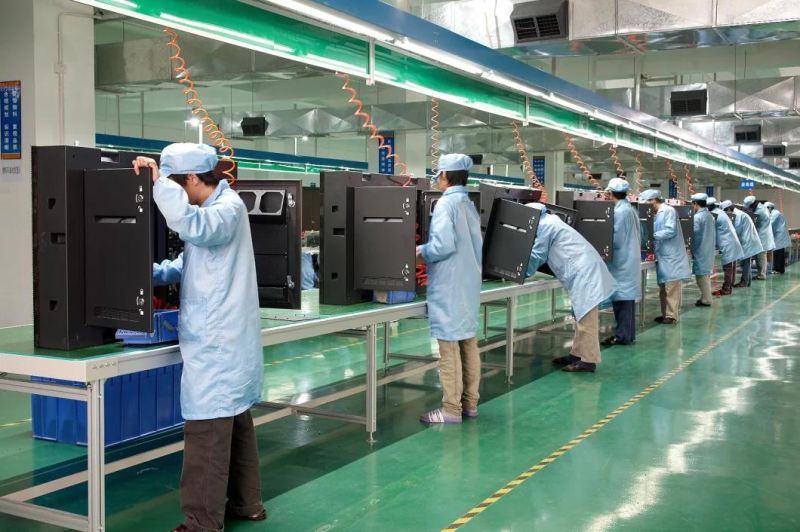

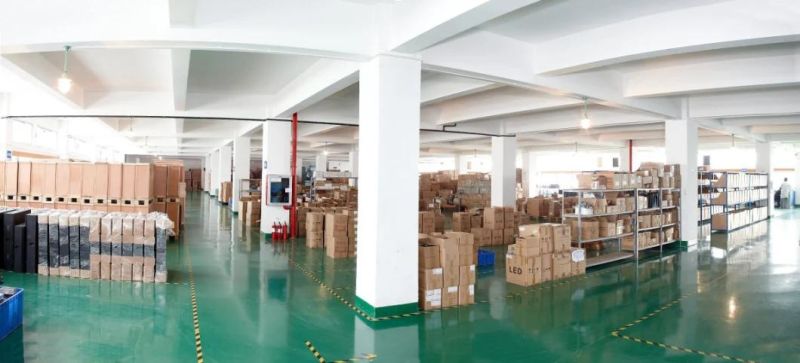

WORKSHOP:

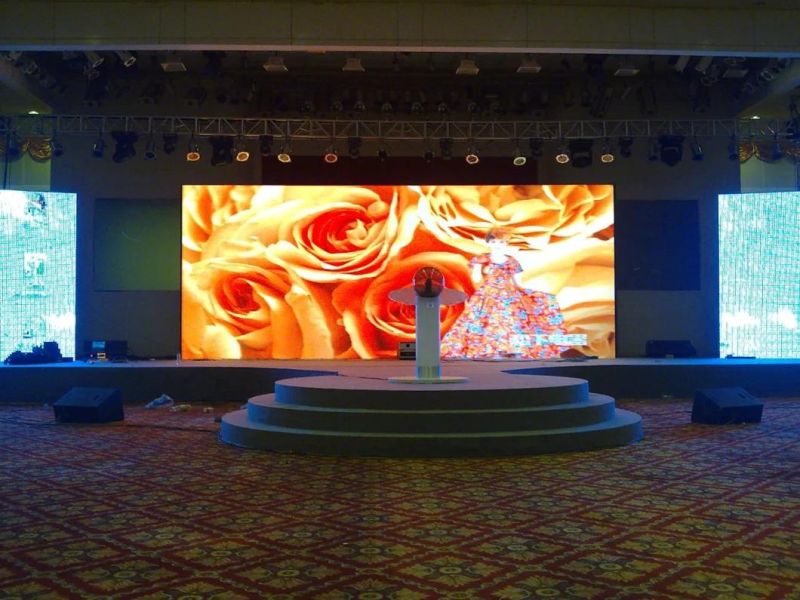

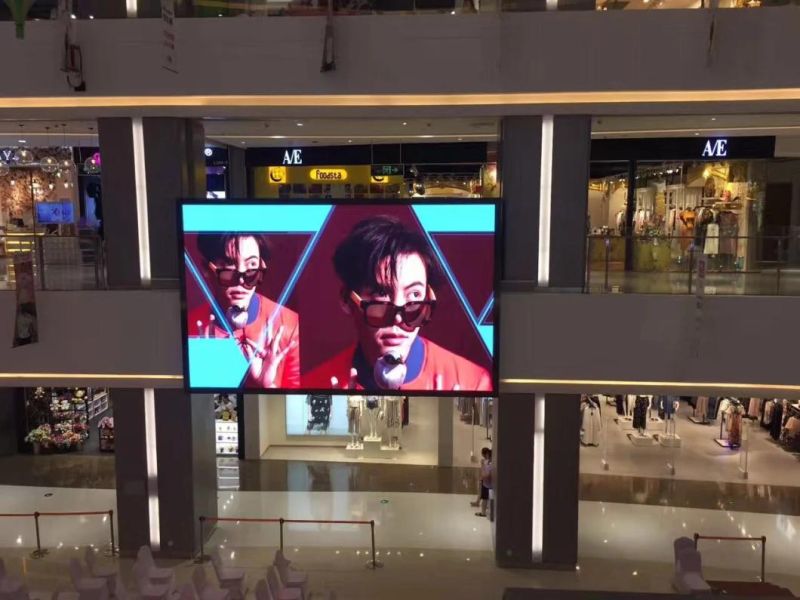

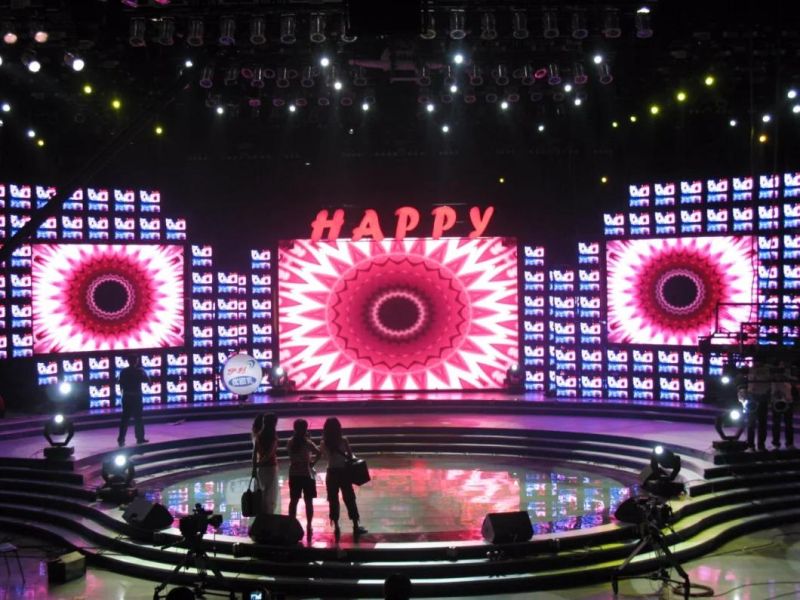

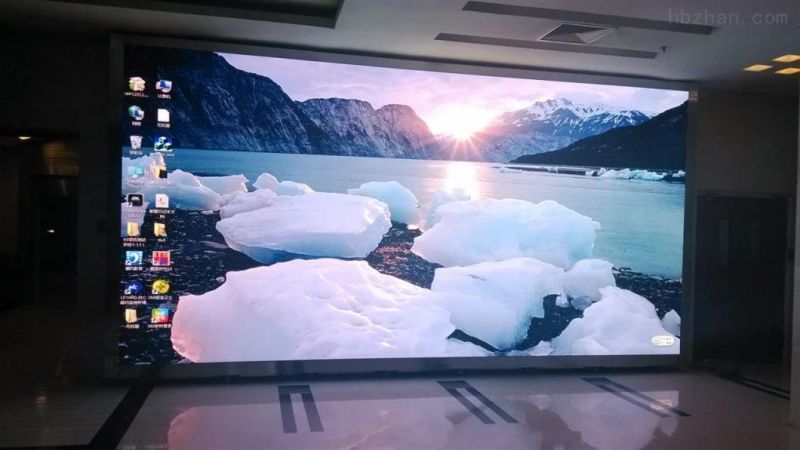

Product Photos:

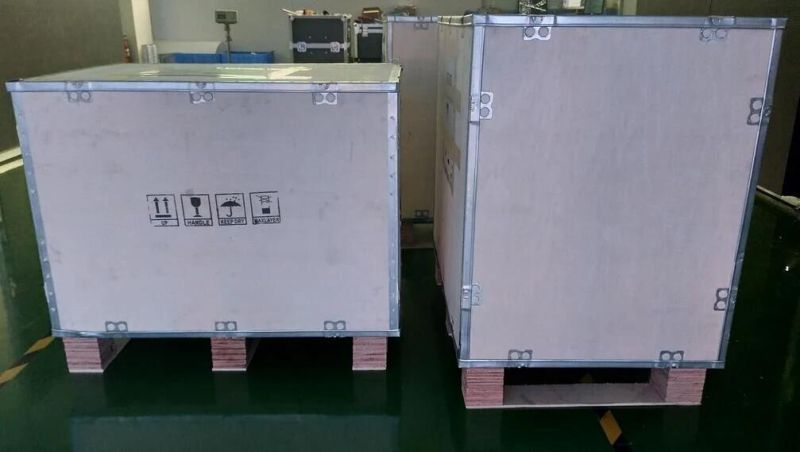

Package:

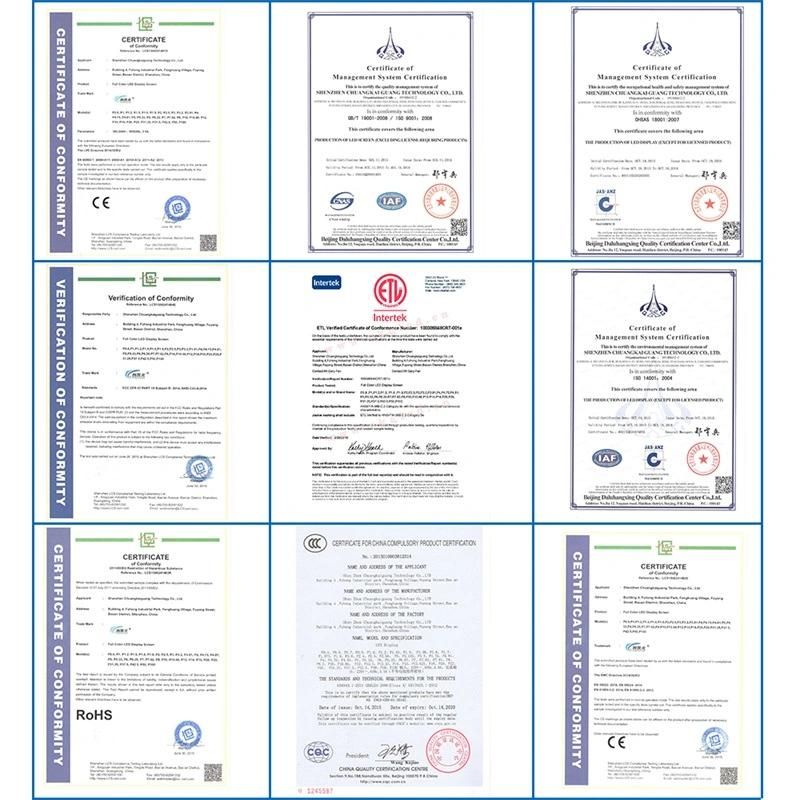

Certificates:



Our service

1. Your inquiry related to our products or price will be replied in 24hrs

2. The size can be change as you give.

3. What we show is some of our current models, welcome to give us your own ideas.

4. Protection of your sales area, ideas of design and all your private information

5. (Top Quality) + (Reasonable Price) + (Responsible After Service) = (Successful & Win)
