P5mm Full Color Indoor LED Display/Outdoor LED Display /LED Display Screen for Advertising

Danyang Yun Kai Metal Products
  • Tube Chip Color：Full Color
  • Display Function：Video Display
  • Pixel Pitch：5mm
  • Pixel Configuration：1R,1G,1B
  • Pixel Density：40,000 dots , m²
  • Scanning Mode：1,16 Scan

Base Info

  • Model NO.：5mm
  • System Operating Platform：Windows
  • Display Type：LED Video Display
  • Application：Stage Performance, Advertising, Shopping Guide, Shopping Mall, Concerts, Shows and Event, Airport
  • IP Rating：IP31
  • Certification：CE, RoHS, UL, CCC, ETL
  • Module Size：320mmx160mm
  • Module Resolution：64X32dots
  • Cabinet Size：640X640mm
  • Cabinet Resolution：128X128dots
  • Screen Brightness：1500nits
  • Refresh Rate：1920Hz-3840Hz
  • Compliance：RoHS , Ce , CCC
  • Maintenance：Front, Rear Service
  • Controller：Nova, Linsn
  • Frame Frequency：60Hz
  • Transport Package：Plywood Case
  • Specification：640mmX640mm
  • Trademark：CKGLED
  • Origin：China
  • HS Code：8528591090
  • Production Capacity：6000sqm,Month

Description

NO.ItemParameters1ModelV052Pixel Pitch5mm3LED Configuration1R1G1B4LED TypeSMD20205Screen Resolution40000dots/sqm6Module size(mm)320x1607Module resolution(dots)64x328Scan method1/16constant current drive9Cabinet size(mm)640x64010Cabinet resolution(dots)128x12811Cabinet materialIron / Aluminum12Brightness(cd/sqm)≥150013Viewing angleH:140°/ V:140°14Grey Scale14bit15Refresh rate(Hz)≥192016Ave. power consumption (W/sqm)16017Max. power consumption(W/sqm)48018IP gradeIP3119controllerNovastar / Linsn20MaintenanceRear service21Color(T)>4.422Input Voltage(V)AC 110V-220V +/-10%23Frame frequency(Hz)6024Working humidity10~90%RH25Working temperature-20ºC~50ºC26CertificatesRoHS / CE / CCC

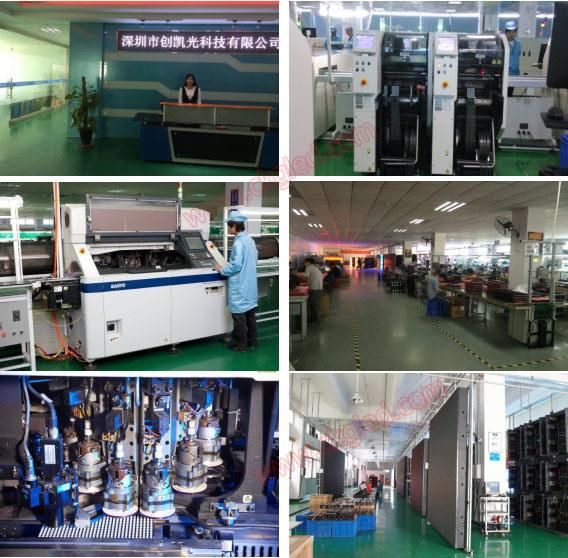

WORKSHOP:

P5mm Full Color Indoor LED Display/Outdoor LED Display /LED Display Screen for Advertising

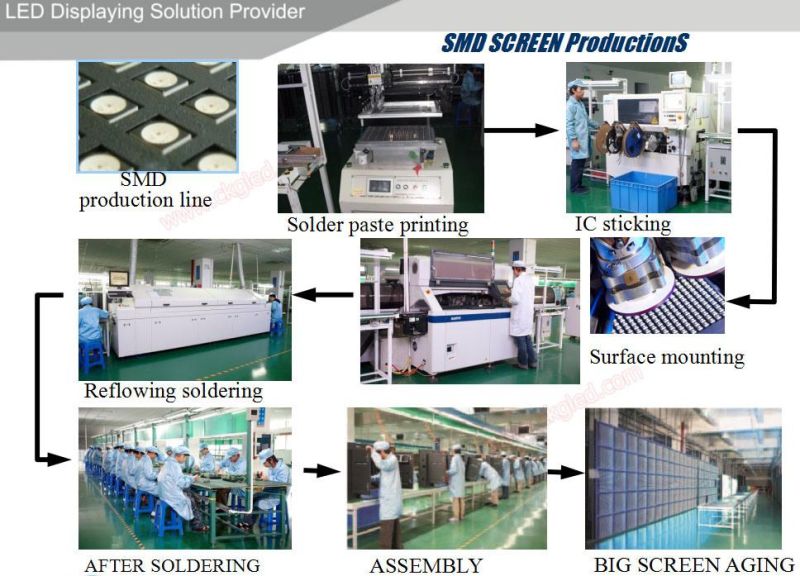

PROCESS:

P5mm Full Color Indoor LED Display/Outdoor LED Display /LED Display Screen for Advertising

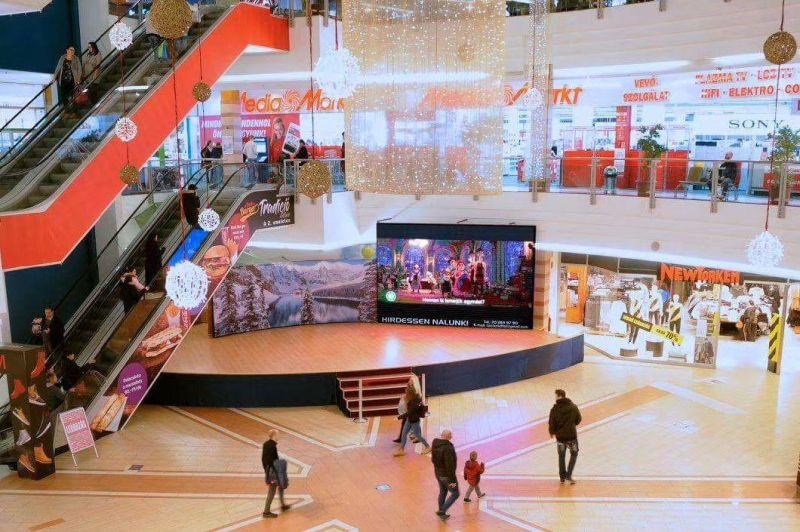

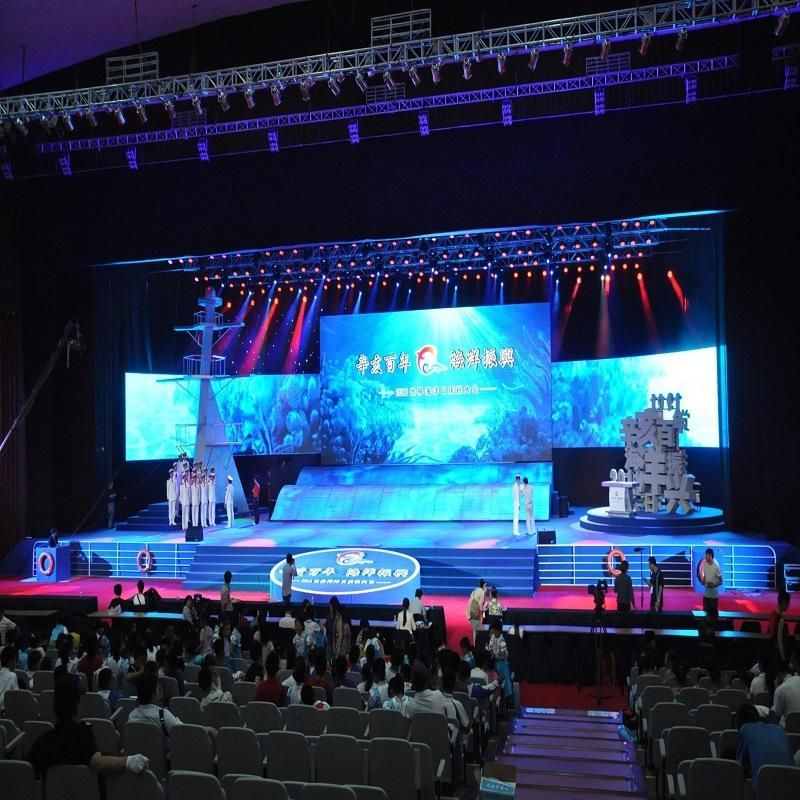

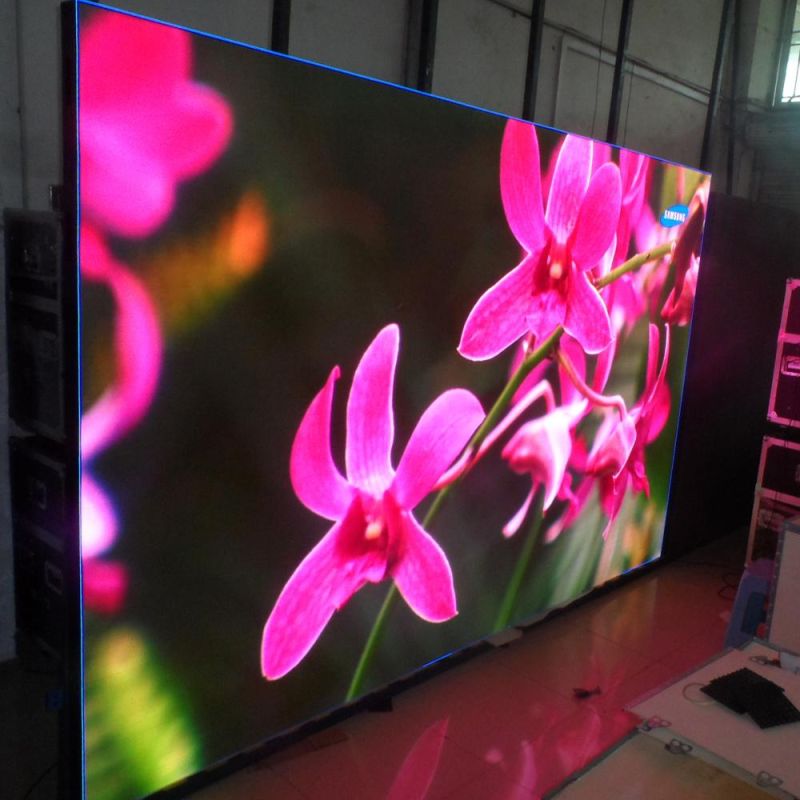

PRODUCT PHOTOS:

P5mm Full Color Indoor LED Display/Outdoor LED Display /LED Display Screen for Advertising
P5mm Full Color Indoor LED Display/Outdoor LED Display /LED Display Screen for Advertising
P5mm Full Color Indoor LED Display/Outdoor LED Display /LED Display Screen for Advertising

Package:
P5mm Full Color Indoor LED Display/Outdoor LED Display /LED Display Screen for Advertising
Certificates:
P5mm Full Color Indoor LED Display/Outdoor LED Display /LED Display Screen for Advertising

Other products:
Indoor fixed LED display:  P2.5,  P3,  P4,  P5,  P6,  P7.62,  P10

Indoor rental LED display: P3,  P4,  P5,  P6,  P10,  P3.91,  P4.81,  P6.25 ,

Outdoor fixed LED display:  P4,  P5,  P6,  P7.62,  P8,  P10

Outdoor rental LED display:  P4,  P5,  P6,  P8,  P10,  P6.667,  P3.91,  P4.81,  P5.95,  P6.25

Small pitch LED display:  P1.667,  P1.875,  P1.904,  P1.923,  P2.0, P2.5

Front service maintenance LED screen:  P10,   P16,  P20

Stadium perimeter LED screen:  P8,  P10,  P16
