• Model NO.：6mm
• System Operating Platform：Windows
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide, Shopping Mall, Concerts, Shows and Event, Airport
• IP Rating：IP43
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：192X192mm
• Module Resolution：32X32dots
• Cabinet Size：768X768mm
• Cabinet Resolution：128X128dots
• Screen Brightness：1500nits
• Refresh Rate：1920Hz-3840Hz
• Compliance：Ce
• Maintenance：Front, Rear Service
• Controller：Nova, Linsn
• Frame Frequency：60Hz
• Transport Package：Plywood Case
• Specification：768x768mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

NO.ItemParameters1ModelV062Pixel Pitch(mm)6.03LED Configuration1R1G1B4LED TypeSMD35285Screen Resolution27777dots/sqm6Module size(mm)192x1927Module resolution(dots)32x328Scan method1/16 constant current drive9Cabinet size(mm)768x76810Cabinet resolution(dots)128x12811Cabinet materialIron / Aluminum12Brightness(cd/sqm)≥150013Viewing angleH:140°/ V:140°14Grey Scale14bit15Refresh rate(Hz)≥192016Ave. power consumption (W/sqm)12017Max. power consumption(W/sqm)35018IP gradeIP3319controllerNovastar / Linsn20MaintenanceRear service21Color(T)>4.422Input Voltage(V)AC 110V-220V +/-10%23Frame frequency(Hz)6024Working humidity10~90%RH25Working temperature-20ºC~50ºC26CertificatesRoHS / CE / CCC

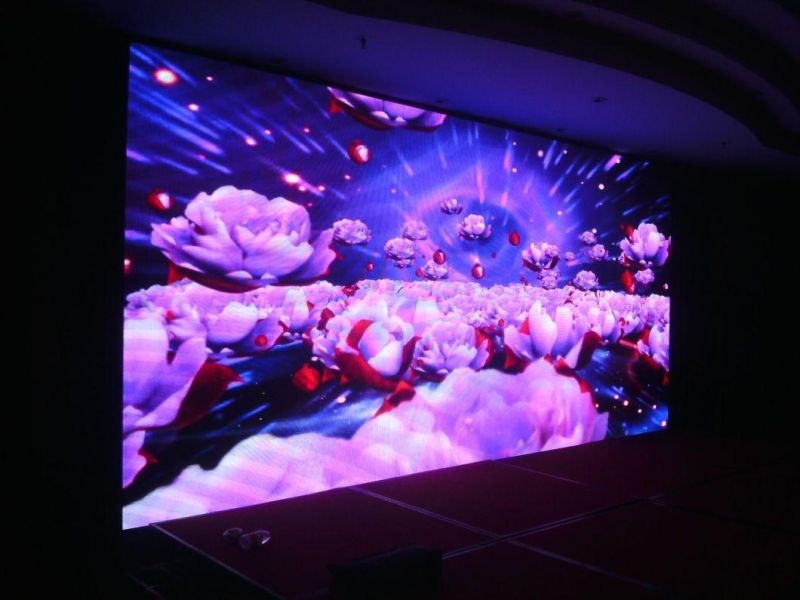

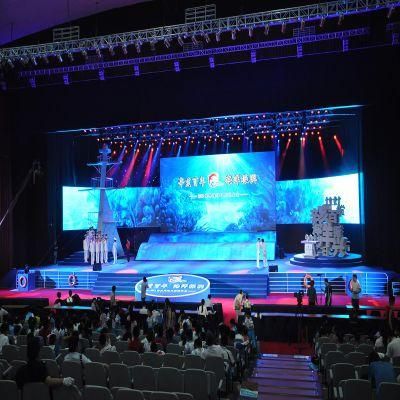

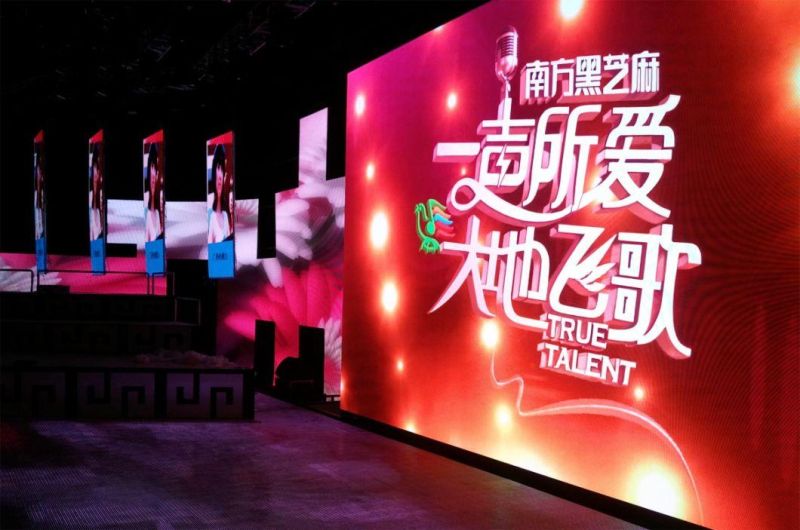

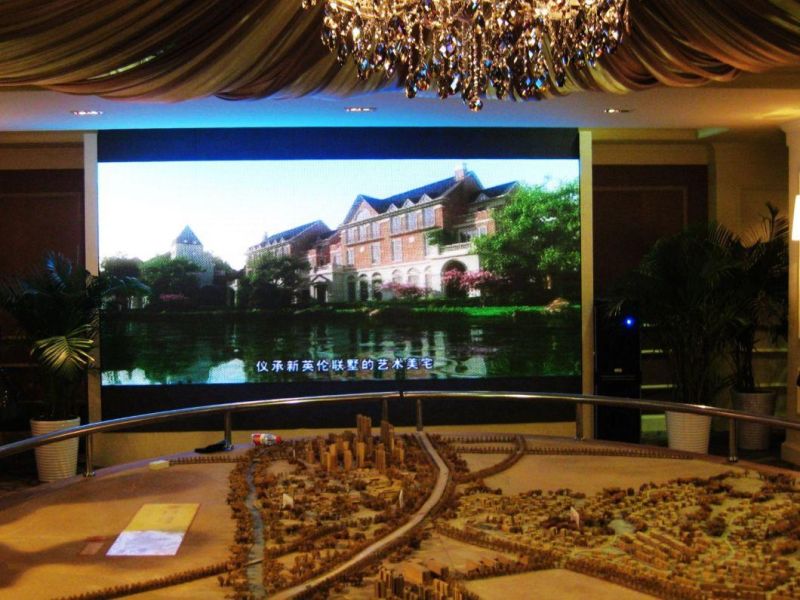

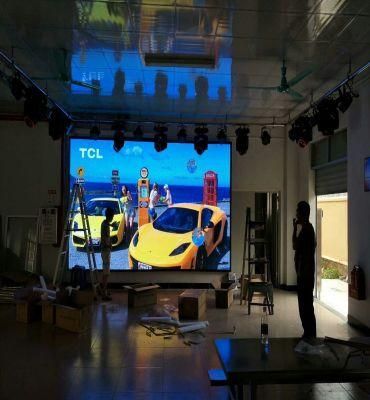

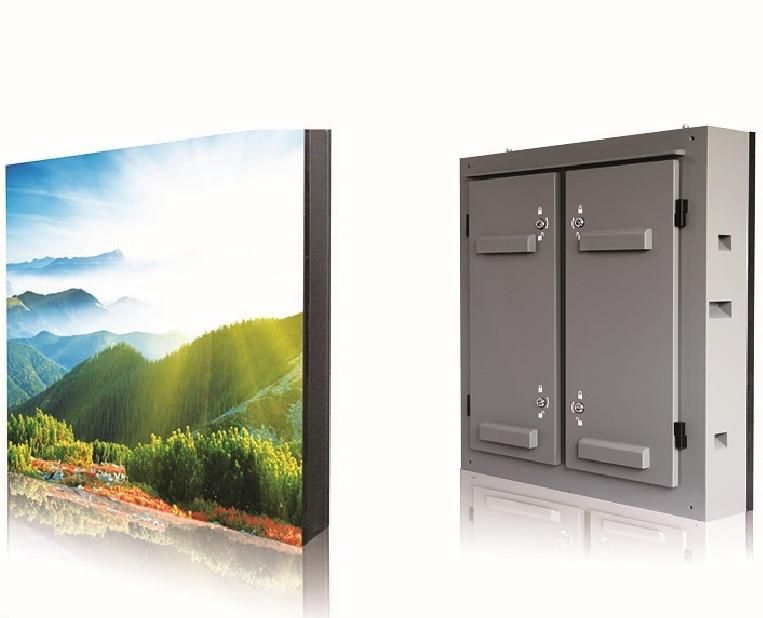

Product Photos:

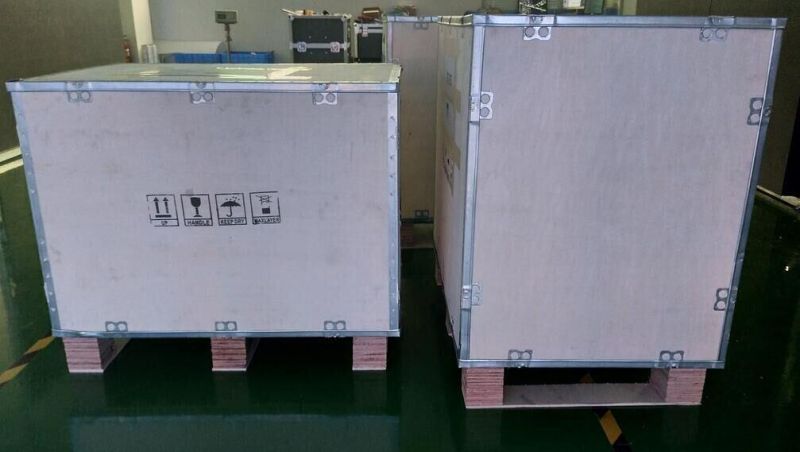

Package:



Certificates:






Warranty:

1. For the LED display ,the guarantee period will be up to 2years.

2. During the guarantee period,for any problem,please send the broken parts to us for replacing by free.However,half of freight for      replacing the broken parts will be borne by our customers.
