• Model NO.：5mm
• System Operating Platform：Windows
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide, Shopping Mall, Concerts, Shows and Event, Airport
• IP Rating：IP31
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：320mmx160mm
• Module Resolution：64X32dots
• Cabinet Size：640X640mm
• Cabinet Resolution：128X128dots
• Screen Brightness：1500nits
• Refresh Rate：1920Hz-3840Hz
• Compliance：RoHS , Ce , CCC
• Maintenance：Front, Rear Service
• Controller：Nova, Linsn
• Frame Frequency：60Hz
• Transport Package：Plywood Case,Wooden Case
• Specification：640mmX640mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

NO.ItemParameters1ModelV052Pixel Pitch(mm)53LED Configuration1R1G1B4LED TypeSMD20205Screen Resolution40000dots/sqm6Module size(mm)320x1607Module resolution(dots)64x328Scan method1/16constant current drive9Cabinet size(mm)640x64010Cabinet resolution(dots)128x12811Cabinet materialIron / Aluminum12Brightness(cd/sqm)≥150013Viewing angleH:140°/ V:140°14Grey Scale14bit15Refresh rate(Hz)≥192016Ave. power consumption (W/sqm)16017Max. power consumption(W/sqm)48018IP gradeIP3119controllerNovastar / Linsn20MaintenanceRear service21Color(T)>4.422Input Voltage(V)AC 110V-220V +/-10%23Frame frequency(Hz)6024Working humidity10~90%RH25Working temperature-20ºC~50ºC26CertificatesRoHS / CE / CCC

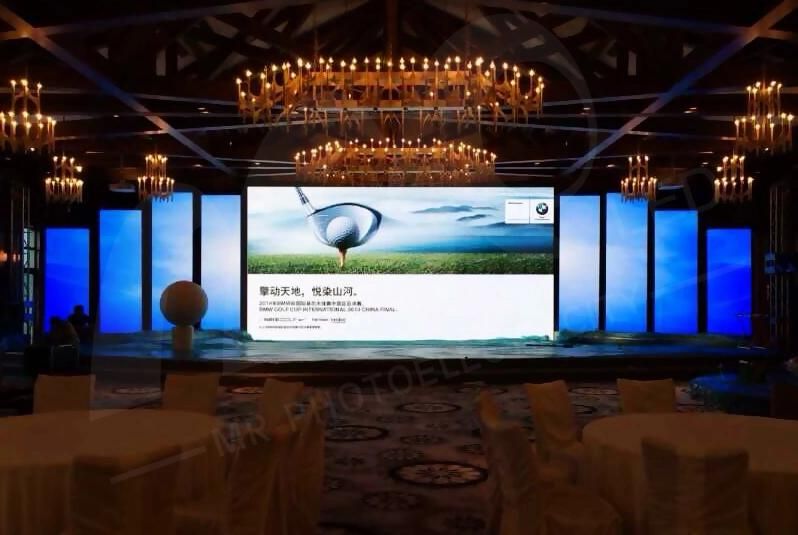

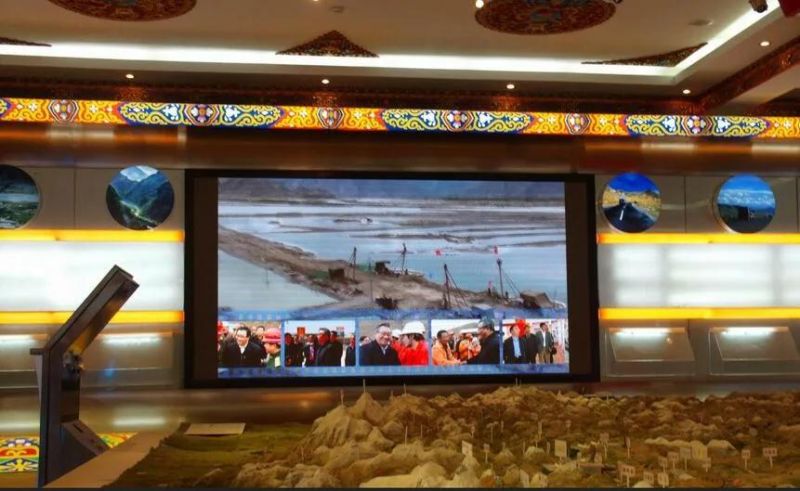

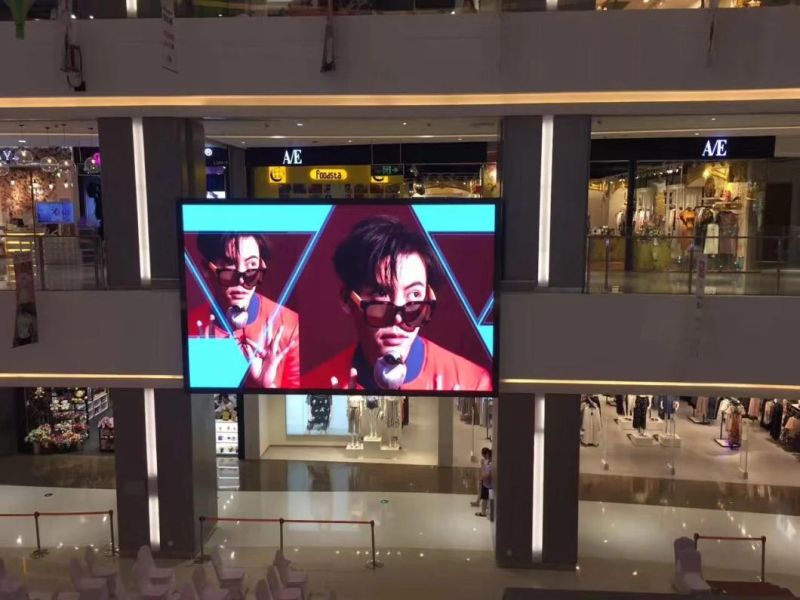

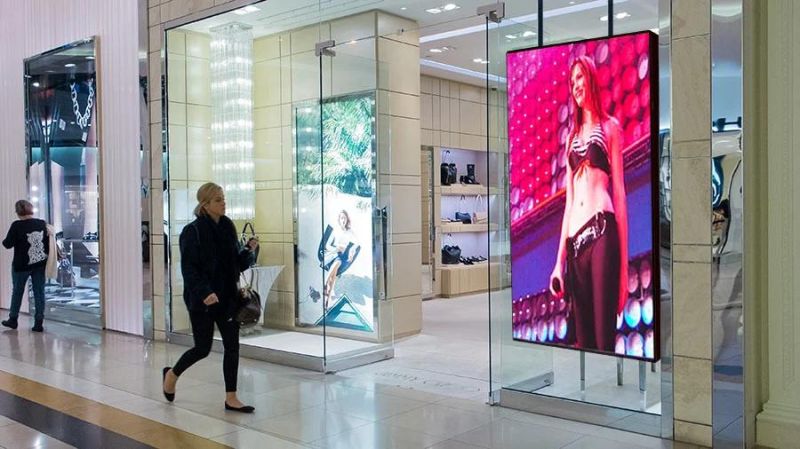

PRODUCT PHOTOS:









Package:

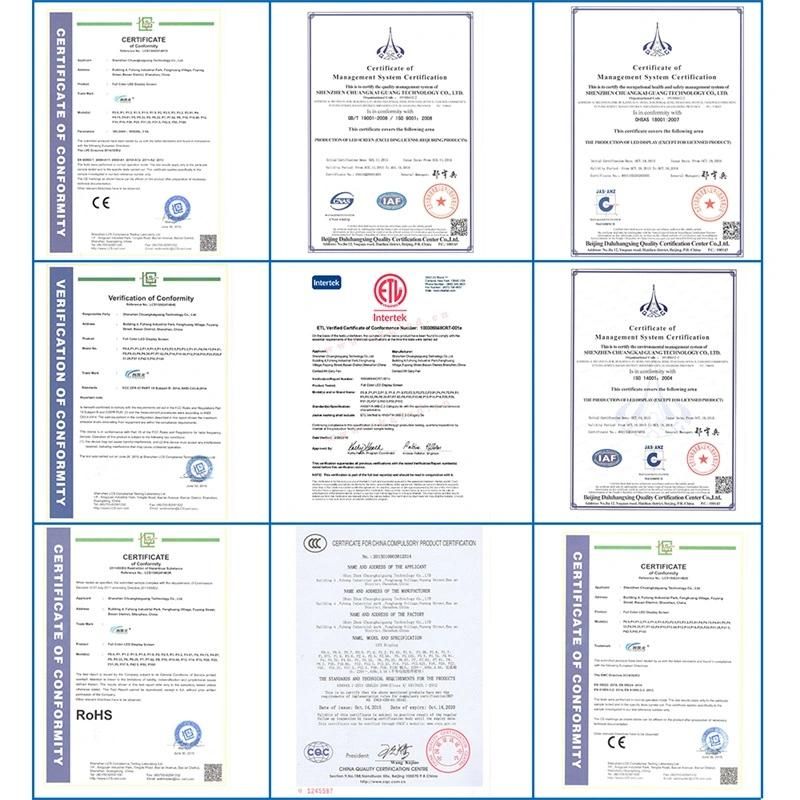

Certificates:
