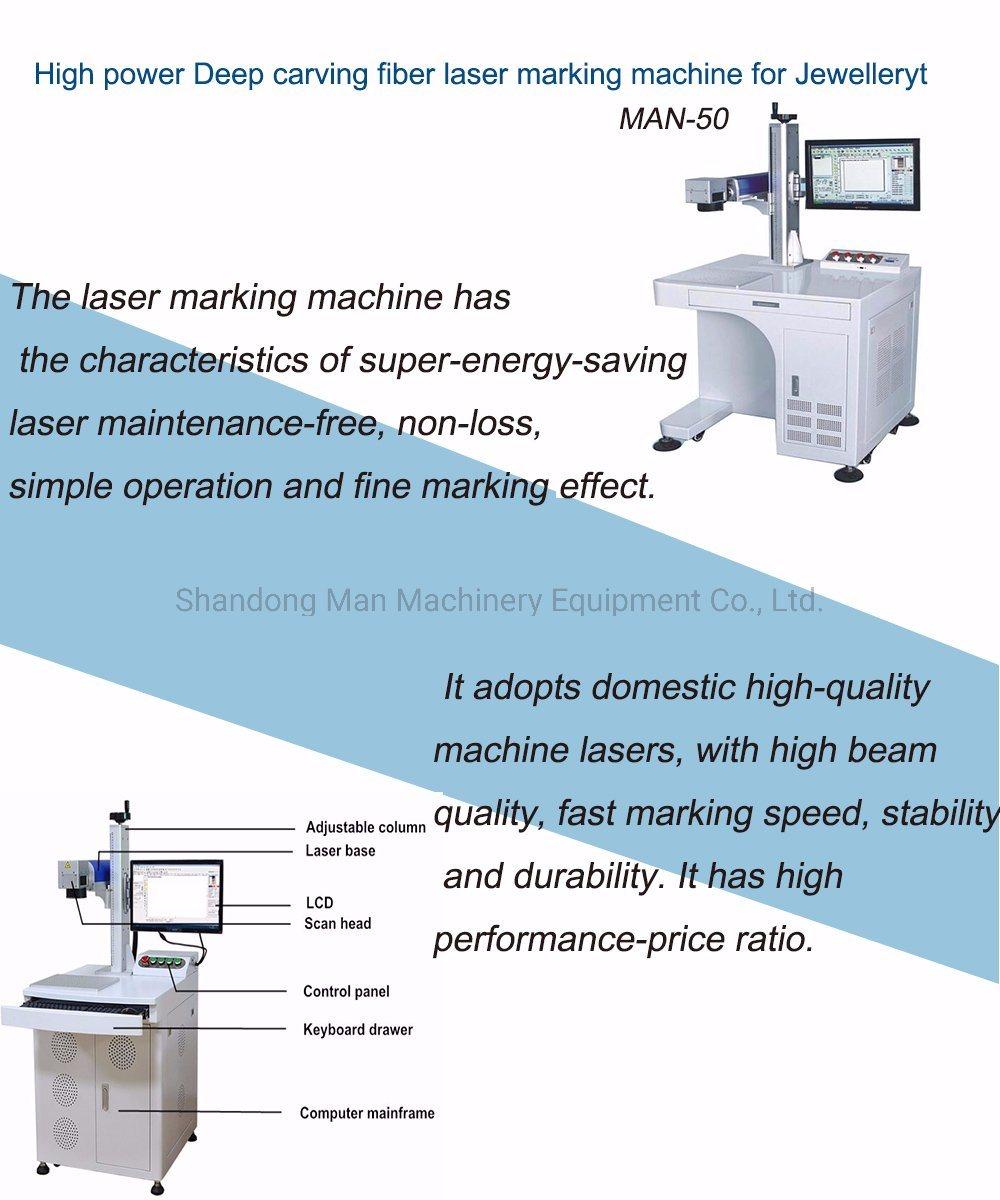

• Model NO.：MAN-50
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Certification：Ce FDA ISO
• Power Supply：AC220V±10%, 50Hz
• Minimum Character：0.2mm
• Marking Line Width：0.01 mm -0.1mm
• Making Depth：0.01 mm -0.2mm
• Laser Power：10W ,20W ,30W
• Warranty：3 Years
• Transport Package：Wooden Case
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. MAN-50 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Certification Ce FDA ISO Power Supply AC220V±10%, 50Hz Minimum Character 0.2mm Marking Line Width 0.01 mm -0.1mm Making Depth 0.01 mm -0.2mm Laser Power 10W /20W /30W Warranty 3 Years Transport Package Wooden Case Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 5000 Sets/Year

Product Description

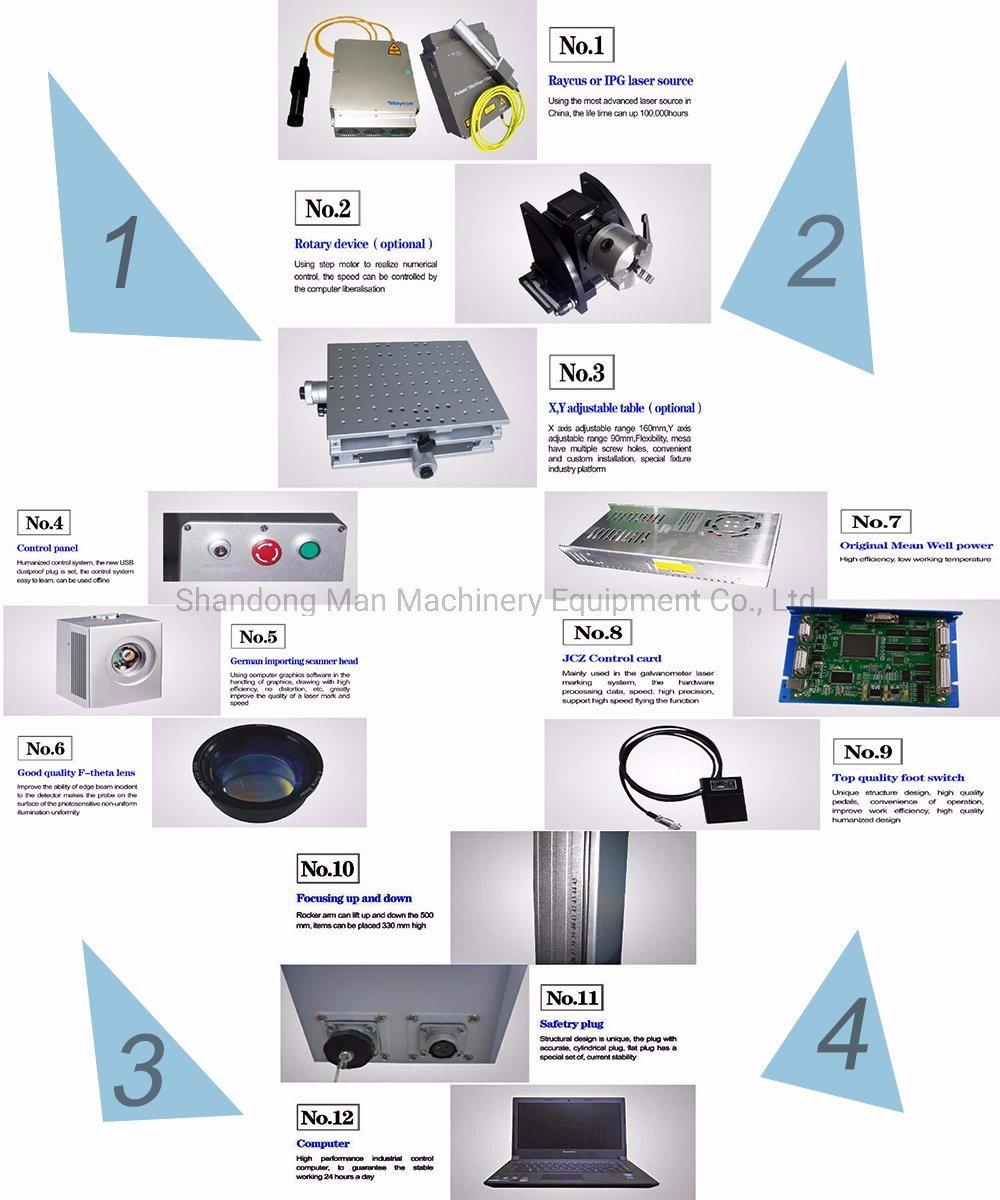

(1).Fiber laser producer and digital photoelectric galvanometer.

High performance laser producer, small volume, long working life of 10w hours, widely applied to on both metal and non-metal.

(2).Up-down working table

The table's material is aluminum and the table can move automatically according to ther processing requirements.

(3).Air cooling system.

High marking quality is based on good ventilation, ensure unimpeded air flowing

(4). High precision and easy to operate.

With high quality machine parts and EZcad software make higher precision.


Model name	MAN-F50
Laser type	IPG / RAYCUS/ /CAS/MAX/ (optional)
Laser power	20W/30W 50W/(optional)
Supports graphical format	PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF
Beam quality	m2 <2
Power stability	(8h) <± 1% rms
Pulse repetition frequency	20-2KHz
Power consumed	<800W
Minimum line width	50μm
Minimum character	0.3mm
Laser Wavelength	1064nm
Galvanometer Size	100 * 100mm (optional)
Cooling way	Air cooling
Operating voltage	110/220V ± 10% /,50/60HZ
Ambient operating temperature	15 ° C - 35 ° C
Guarantee	3 years
Optional parts	Rotary device
Machine color	blue grey ( red white,yellow black etc. for option)

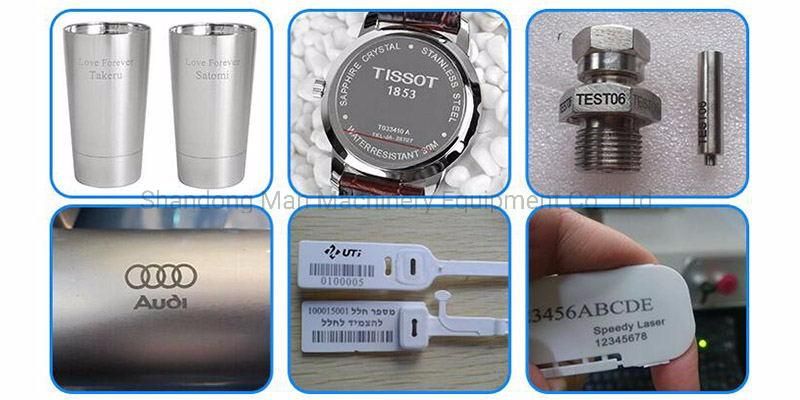

Used in garment accessories, medicine packaging, wine packaging, building ceramics, beverage packaging, fabric cutting, rubber products, shell nameplate, craft gifts, electronic components, leather and other industries. It can carve metal and many kinds of non-metallic materials. It is more suitable for processing products with high precision and precision.

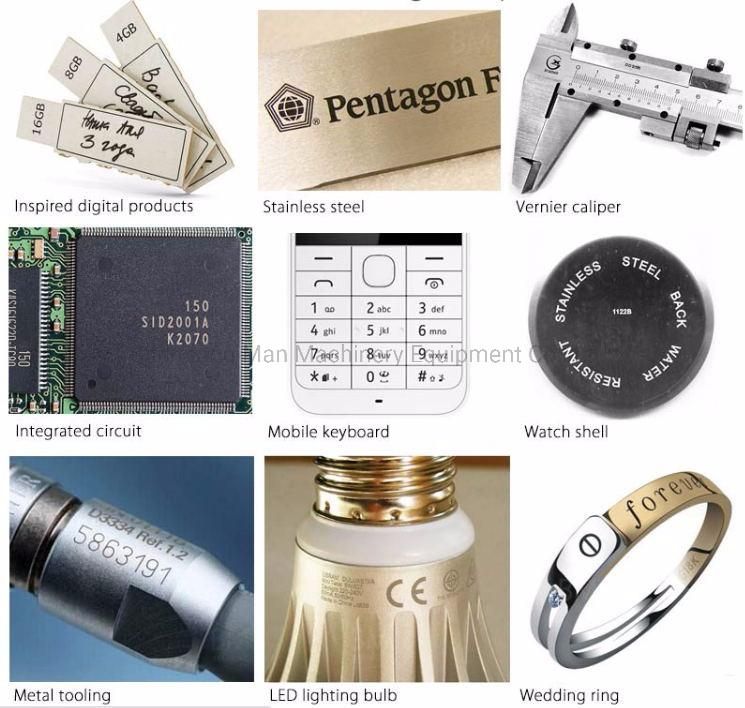

 Applied to electronic components, integrated circuits (IC), electrical appliances, mobile communications, hardware products, tool accessories, precision instruments, glasses, clocks, jewelry, automotive accessories, plastic keys, building materials, PVC pipes, medical devices and other industries.

 Include: ordinary metals and alloys (all metals such as iron, copper, aluminium, magnesium and zinc), rare metals and alloys (gold, silver, titanium), metal oxides (all kinds of metal oxides are acceptable), special surface treatment (Phosphating, aluminium anodizing, electroplating surface), ABS materials (household appliances, daily necessities), inks (light transmission keys, printing products), epoxy. Resin (encapsulation and insulation of electronic components).



Low Cost In Use >> No wearing part free of maintenance.
High Speed >> Imported laser scanning system makes the marking speed up to 7000mm/s .
High Precision>> High precision , re-position precision is 0.002mm.
Energy Saving>>The efficiency of optic electrical converting is up to 70%.
High Reliability>> MTBF ( mean time between failures ) >100 , 000 hours.
Integrated and Compact >> Small size only 0.5 M2, can be put on desk and easy to install .
Easy Operating>> easy operation ,VCD training , trouble free
10 Years Long Lifetime >> Fiber laser device adopts Germany IPG technology , 100000 hours lifetime .
No consumables>> while machine can be used free of maintenance for 8 -10 years.
Air cooling>> Adopts air cooling , has excellent cooling effect than the other cooling method.
