• Model NO.：MAN-F20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Scanning Speed：7000mm,S
• Modulation Frequency：20 kHz -180 kHz
• Laser Power：10W ,20W ,30W
• Warranty：3 Years
• Marking Area：110*110mm
• Making Depth：0.01 mm -0.2mm
• Transport Package：Wooden Case
• Specification：710*510*710mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. MAN-F20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Scanning Speed 7000mm/S Modulation Frequency 20 kHz -180 kHz Laser Power 10W /20W /30W Warranty 3 Years Marking Area 110*110mm Making Depth 0.01 mm -0.2mm Transport Package Wooden Case Specification 710*510*710mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 5000 Sets/Year

Product Description

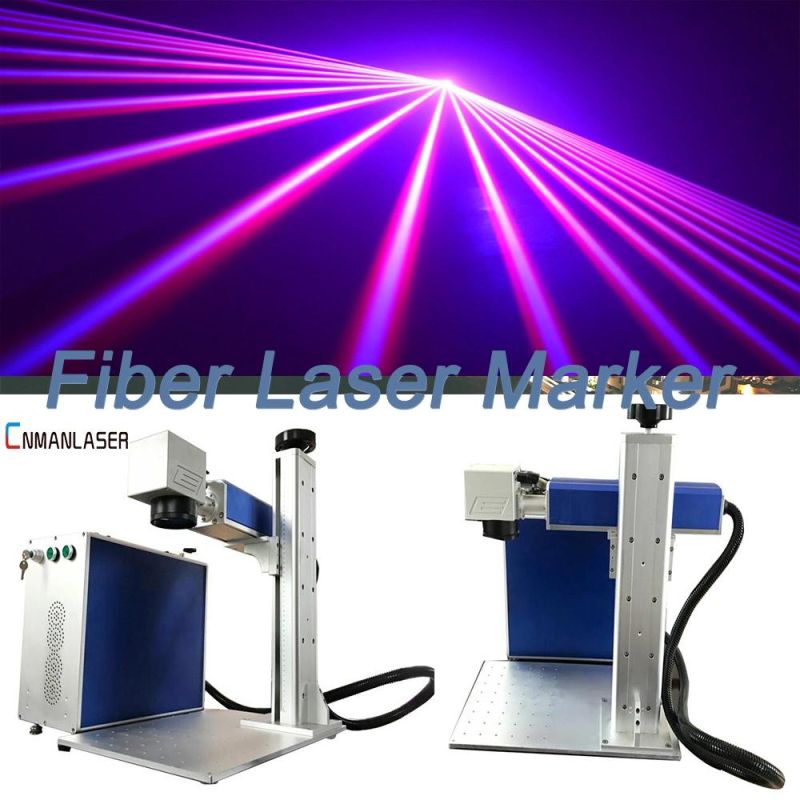

             Cheap Portable Fiber Laser Marking Engraving Machine for Metal



Fiber laser marking machine is a kind of equipment which uses high-energy, high-meticulous laser beam on the surface of objects, non-contact, fast engraving of permanent characters and patterns. The laser marking machine has the characteristics of super
energy-saving laser maintenance-free, non-loss, simple operation and fine marking effect. It adopts domestic high-quality machine lasers, with high beam quality, fast marking speed, stability and durability. It has high performance-price ratio.






Model name	MAN-F20
Laser type	Raycus/max/ipg (optional)
Laser power	20W/30W 50W/(optional)
Supports graphical format	PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF
Beam quality	m2 <2
Power stability	(8h) <± 1% rms
Pulse repetition frequency	20-2KHz
Power consumed	<800W
Minimum line width	50μm
Minimum character	0.3mm
Laser Wavelength	1064nm
Galvanometer Size	100 * 100mm (optional)
Cooling way	Air cooling
Operating voltage	110/220V ± 10% /,50/60HZ
Ambient operating temperature	15 ° C - 35 ° C
Guarantee	3 years
Optional parts	Rotary device
Machine color	blue grey ( red white,yellow black etc. for option)

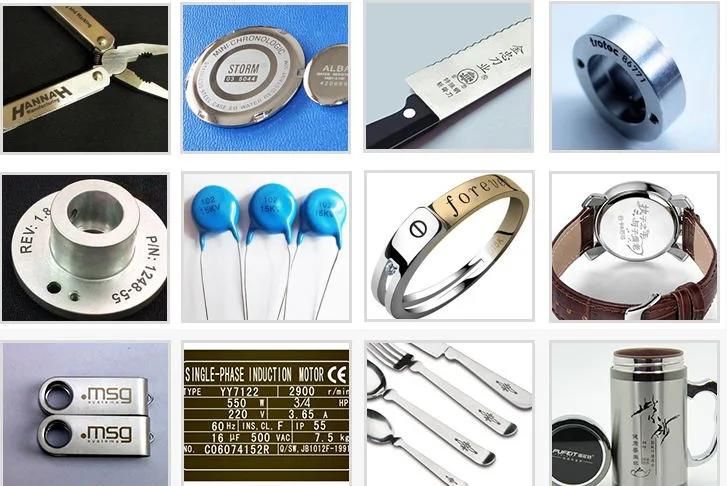

 Used in garment accessories, medicine packaging, wine packaging, building ceramics, beverage packaging, fabric cutting, rubber products, shell nameplate, craft gifts, electronic components, leather and other industries. It can carve metal and many kinds of non-metallic materials. It is more suitable for processing products with high precision and precision.

 Applied to electronic components, integrated circuits (IC), electrical appliances, mobile communications, hardware products, tool accessories, precision instruments, glasses, clocks, jewelry, automotive accessories, plastic keys, building materials, PVC pipes, medical devices and other industries.

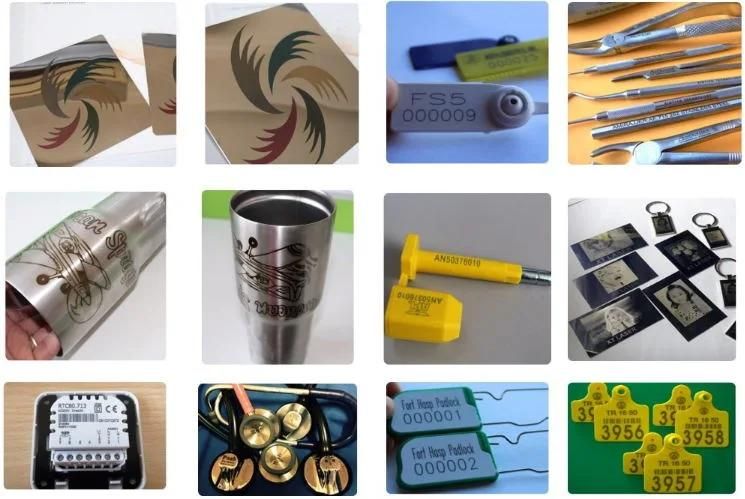

Applicable material
Include: ordinary metals and alloys (all metals such as iron, copper, aluminium, magnesium and zinc), rare metals and alloys (gold, silver, titanium), metal oxides (all kinds of metal oxides are acceptable), special surface treatment (Phosphating, aluminium anodizing, electroplating surface), ABS materials (household appliances, daily necessities), inks (light transmission keys, printing products), epoxy. Resin (encapsulation and insulation of electronic components).

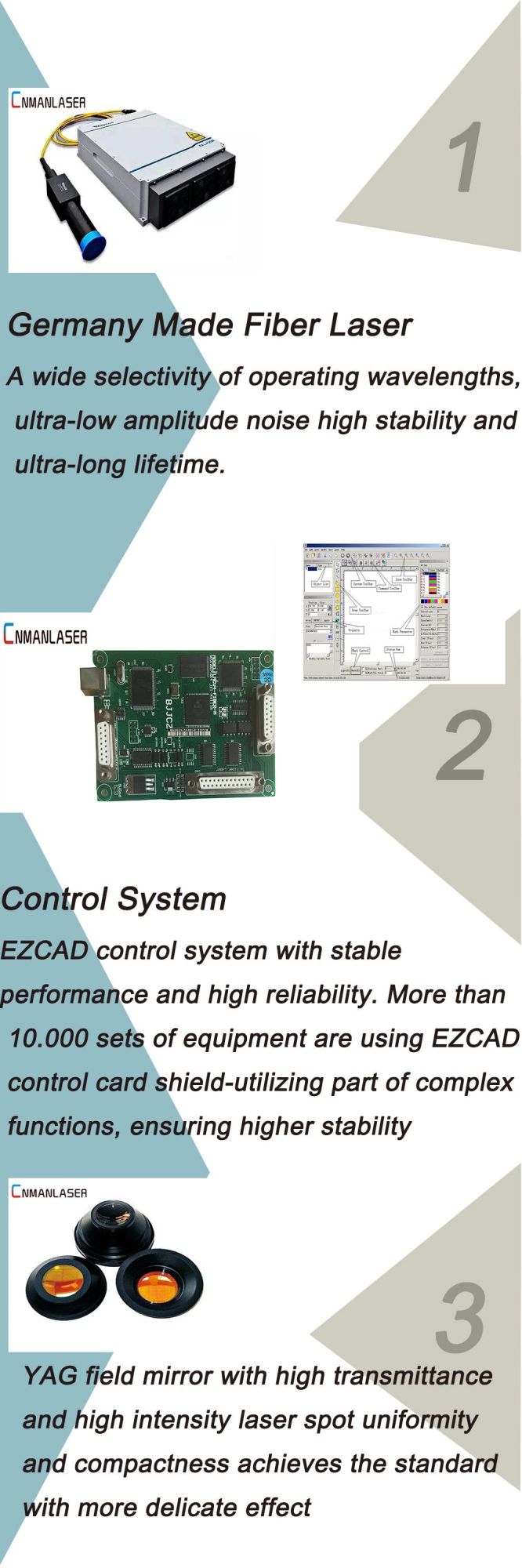

(1).Fiber laser producer and digital photoelectric galvanometer.

High performance laser producer, small volume, long working life of 10w hours, widely applied to on both metal and non-metal.

(2).Up-down working table

The table's material is aluminum and the table can move automatically according to ther processing requirements.

(3).Air cooling system.

High marking quality is based on good ventilation, ensure unimpeded air flowing

(4). High precision and easy to operate.

With high quality machine parts and EZcad software make higher precision.

Packing&Shipping:

FAQ:

1,How to choose a machine?

   Please let us know your request,then we can recommend the suitable machine for you .Such as:

    1.What kind of material will be cut or engraved? (For choosing suitable laser type.)

    2.What the thickness of your material?               (For choosing suitable laser power.)

    3.What is size for the process material?             (For choosing suitable working size.)

2,How to use it ?

     We will send you the instruction manual  in English version  and CD video with machine.

     If you still have some doubts, we can talk by telephone or skype. Our engineer also can face to face  to install or adjust machine if necessary.

3,If some problems happened  during warranty period ?

     We will supply free parts for this machine during the warranty period if machine have any problems without man-made reasons,

We also supply free after service forever.

4,How long is the delivery time?

     For standard machines, it would be 7-10 days;

For non-standard machines and customized machines according to client s specific requirements,it would be 15 to 30 days.

     It is our duty to help you offer some documents to client for customs clearance,like invoice,packing list,B/L,and other certificates,etc.

5, What is the price?
  As you know, the price is a little different according to the configuration and models.
