• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Laser Power：10W ,20W ,30W
• Modulation Frequency：20 kHz -180 kHz
• Scanning Speed：7000mm,S
• Making Depth：0.01 mm -0.2mm
• Marking Line Width：0.01 mm -0.1mm
• Minimum Character：0.2mm
• Power Supply：AC220V±10%, 50Hz
• Warranty：3 Years
• Transport Package：Wooden Case
• Specification：80*90*115 cm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Laser Power 10W /20W /30W Modulation Frequency 20 kHz -180 kHz Scanning Speed 7000mm/S Making Depth 0.01 mm -0.2mm Marking Line Width 0.01 mm -0.1mm Minimum Character 0.2mm Power Supply AC220V±10%, 50Hz Warranty 3 Years Transport Package Wooden Case Specification 80*90*115 cm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 5000 Sets/Year

Product Description

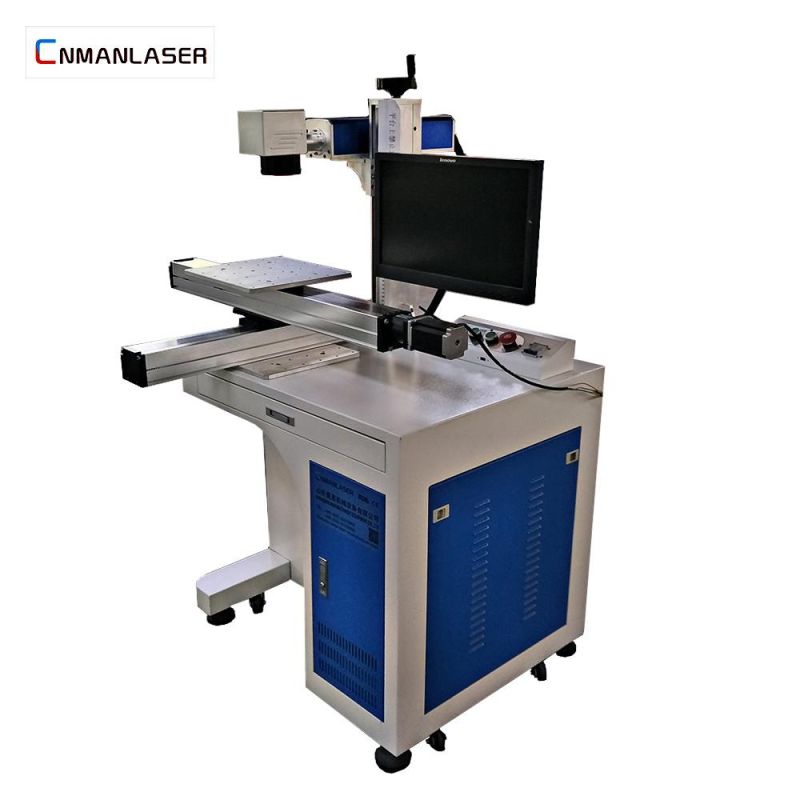

    Engraving Laser Marking Machine with Rotary Devices

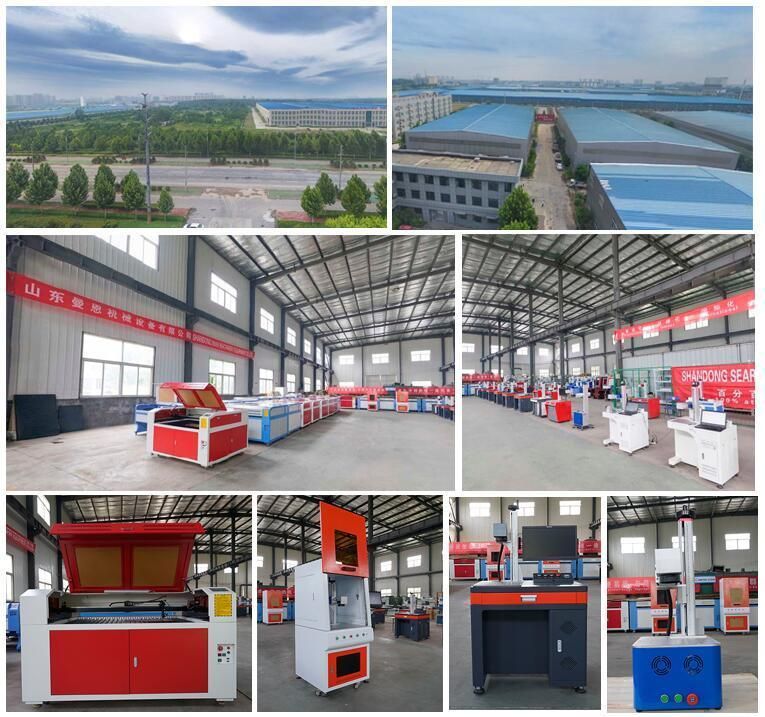

Company Profile:

        Shandong Mann Machinery Equipment Co., Ltd. was founded in 2008. Its factory and headquarters are located in Shandong, China. It has 7000 square meters of factory buildings and more than 300 workers. Professional production and export of laser engraving machine, laser cutting machine, laser marking machine, CNC engraving machine and other state-level high-tech enterprises, the company has independent import and export rights, products in the United States market have passed CE, FCC, SGS, IU, FDA certification. We have also achieved tremendous success in the international market. The main foreign markets are more than 30 countries and regions, such as the United States, Germany, Spain, Russia, Singapore and so on. We warmly welcome you to visit our factory.







Product introduction:

 1,Product :





Fiber laser marking machine is a kind of equipment which uses high-energy, high-meticulous laser beam on the surface of objects, non-contact, fast engraving of permanent characters and patterns. The laser marking machine has the characteristics of super-energy-saving laser maintenance-free, non-loss, simple operation and fine marking effect. It adopts domestic high-quality machine lasers, with high beam quality, fast marking speed, stability and durability. It has high performance-price ratio.

2,Product parameters:


Model name	MAN-F20/MAN-F30
Laser type	IPG / RAYCUS/ /CAS/MAX/ (optional)
Laser power	20W/30W 50W/(optional
Supports graphical format	PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF
Machine color	blue grey ( red white,yellow black etc. for option)
Beam quality	m2 <2
Power stability	(8h) <± 1% rms
Pulse repetition frequency	20-2KHz
Power consumed	<800W
Minimum line width	50μm
Minimum character	0.3mm
Laser Wavelength	1064nm
Galvanometer Size	100 * 100mm (optional)
Cooling way	Air cooling
Operating voltage	110/220V ± 10% /,50/60HZ
Ambient operating temperature	15 ° C - 35 ° C
Guarantee	3  year
Optional parts	Rotary device
Instructions	Video instructions&instructions book

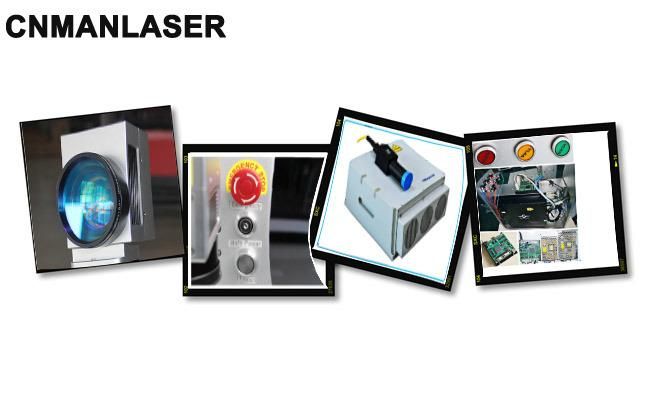

3,Detail pictures:




(1).Fiber laser producer and digital photoelectric galvanometer.

High performance laser producer, small volume, long working life of 10w hours, widely applied to on both metal and non-metal.

(2).Up-down working table

The table's material is aluminum and the table can move automatically according to ther processing requirements.

(3).Air cooling system.

High marking quality is based on good ventilation, ensure unimpeded air flowing

(4). High precision and easy to operate.

With high quality machine parts and EZCAD software make higher precision.


 Product application:

It can carve many kinds of non-metallic materials. Used in garment accessories, medicine packaging, wine packaging, building ceramics, beverage packaging, fabric cutting, rubber products, shell nameplate, craft gifts, electronic components, leather and other industries.

1. It can carve metal and many kinds of non-metallic materials. It is more suitable for processing products with high precision and precision.

2. Applied to electronic components, integrated circuits (IC), electrical appliances, mobile communications, hardware products, tool accessories, precision instruments, glasses, clocks, jewelry, automotive accessories, plastic keys, building materials, PVC pipes, medical devices and other industries.
 Applicable materials include: ordinary metals and alloys (all metals such as iron, copper, aluminium, magnesium and zinc), rare metals and alloys (gold, silver, titanium), metal oxides (all kinds of metal oxides are acceptable), special surface treatment (phosphating, aluminium anodization, electroplating surface), ABS materials (household appliances, daily necessities), inks (light transmission keys, printing products), epoxy. Resin (encapsulation and insulation of electronic components).
