• Model NO.：MAN-50
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Power Supply：AC220V±10%, 50Hz
• Minimum Character：0.2mm
• Scanning Speed：7000mm,S
• Modulation Frequency：20 kHz -180 kHz
• Laser Power：10W ,20W ,30W
• Warranty：3 Years
• Transport Package：Wooden Case
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. MAN-50 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Power Supply AC220V±10%, 50Hz Minimum Character 0.2mm Scanning Speed 7000mm/S Modulation Frequency 20 kHz -180 kHz Laser Power 10W /20W /30W Warranty 3 Years Transport Package Wooden Case Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 5000 Sets/Year

Product Description

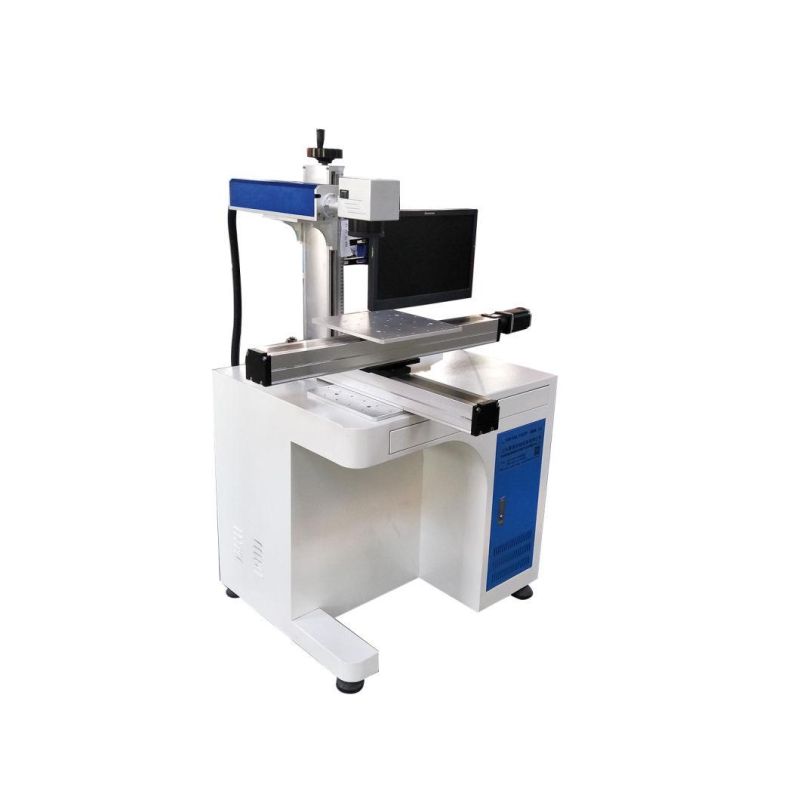

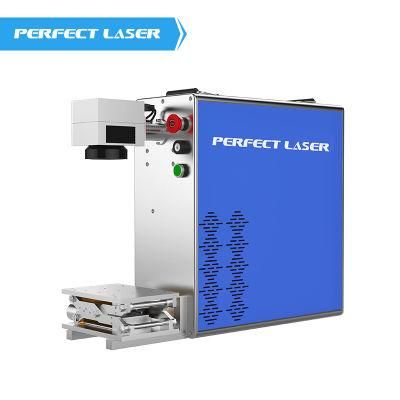

             Mini Table Metal Laser Marking Machine


Production:

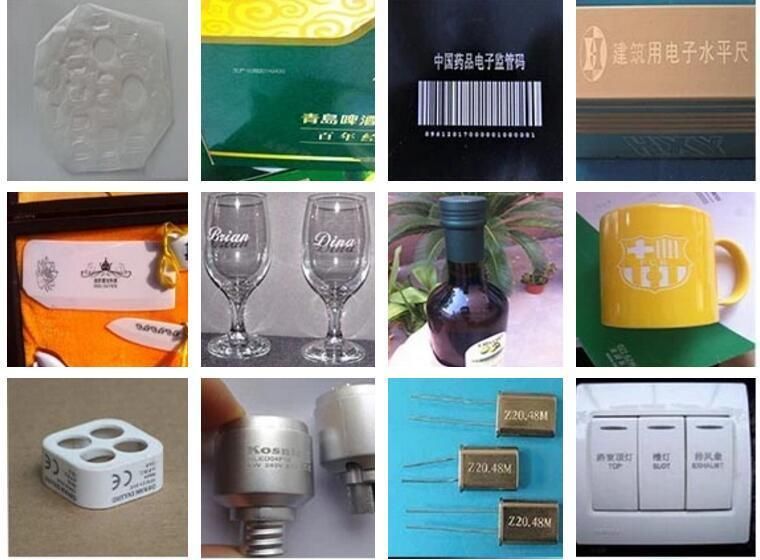

 Product application:

It can carve many kinds of metal materials. Used in garment accessories, medicine packaging, wine packaging, building ceramics, beverage packaging, fabric cutting, rubber products, shell nameplate, craft gifts, electronic components, leather and other industries.

1. It can carve metal and many kinds of non-metallic materials. It is more suitable for processing products with high precision and precision.

2. Applied to electronic components, integrated circuits (IC), electrical appliances, mobile communications, hardware products, tool accessories, precision instruments, glasses, clocks, jewelry, automotive accessories, plastic keys, building materials, PVC pipes, medical devices and other industries.

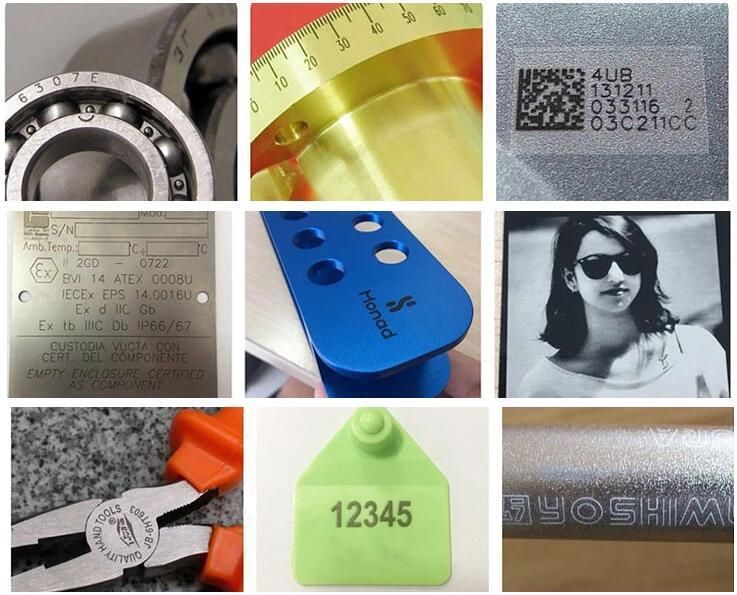

3. Applicable materials include: ordinary metals and alloys (all metals such as iron, copper, aluminium, magnesium and zinc), rare metals and alloys (gold, silver, titanium), metal oxides (all kinds of metal oxides are acceptable), special surface treatment (phosphating, aluminium anodization, electroplating surface), ABS materials (household appliances, daily necessities), inks (light transmission keys, printing products), epoxy. Resin (encapsulation and insulation of electronic components).





Technical Parameter :


Model name	MAN--F50
Laser type	IPG / RAYCUS/ /CAS/MAX/ (optional)
Laser power	20W/30W 50W/(optional)
Supports graphical format	PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF
Machine color	blue grey ( red white,yellow black etc. for option)
Beam quality	m2 <2
Power stability	(8h) <± 1% rms
Pulse repetition frequency	20-2KHz
Power consumed	<800W
Minimum line width	50μm
Minimum character	0.3mm
Laser Wavelength	1064nm
Galvanometer Size	100 * 100mm (optional)
Cooling way	Air cooling
Operating voltage	110/220V ± 10% /,50/60HZ
Ambient operating temperature	15 ° C - 35 ° C
Guarantee	3  year
Optional parts	Rotary device
Instructions	Video instructions&instructions book

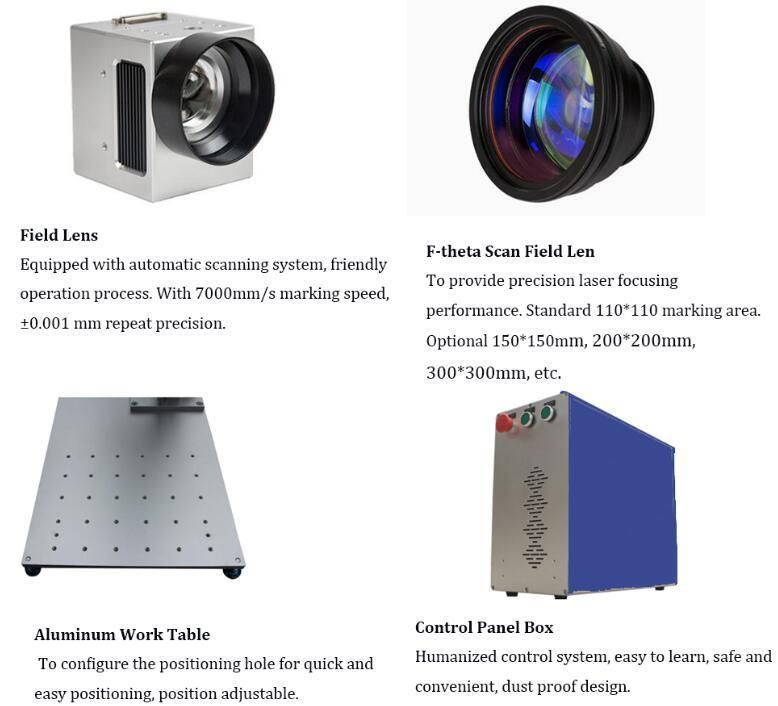

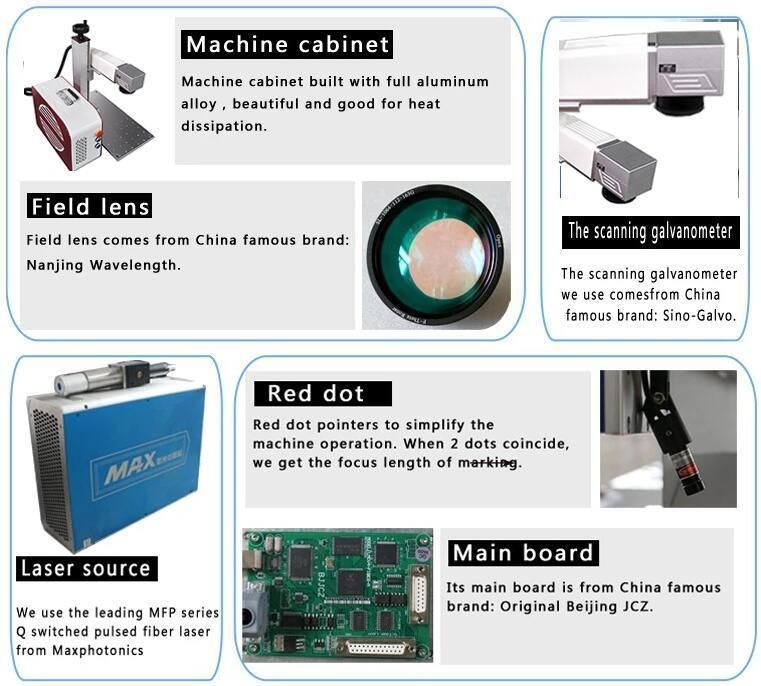

Detail display:

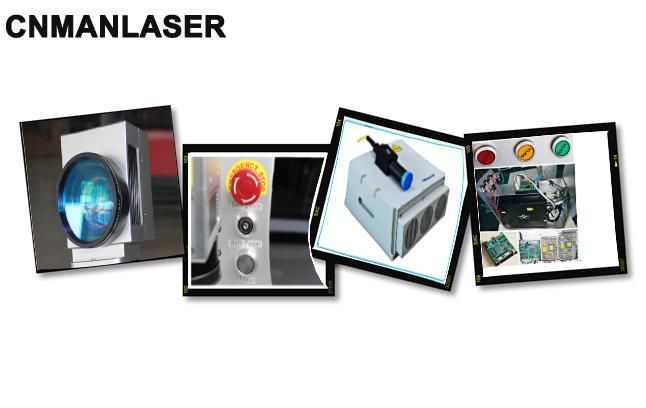

Advantage  :


1-Lifting Handle

2-Lifting Shaft: 48cm for 110mm x 110mm, 150mm x150mm,  and 200mm x 200mm working areas; 300mm x 300mm need to be lengened.

3-Laser Generator:  air cooling, enclosed metal fiber laser generator

4-rotary (optional)

 5-Position platform: 2D platform

6-Laser Power

 7- Monitor

8-Marking head: Field lens, high speed galvanometer. Fine marking, more quick and high reliability

9-Control Button: include Scanner power control button, Laser power control butten, Emergency stop.

10-Keyboard

11-Host

 service:

Pre-sale service

1.Inquiry and consulting support, provide relavent technical.

2. Sample testing support.

3.View our Factory.

4. Strict quality inspection before leaving the factory.

After-sale service

1. Our technical engineers can go to customer's site for installation and training.

2. Customers may come to our factory directly for learning and training.

We offer the training, including machine installation, drawing operations , operation, machine trouble shooting, and maintenance.

3. Our company provide life long technical service for our machines.

4. Regular visits or telephone interviews to acknowledge the equipment usage.

Packing&Shipping:





        Shandong Mann Machinery Co Ltd. is a state-level high-tech enterprise specializing in the production of laser marking machine, laser engraving machine, laser cutting machine, etc. The company has independent import and export rights, and all products have passed CE, FCC, SGS, TUV and FDA certification in the United States market. We warmly welcome you to visit our factory.
If you need anything, please contact us.
