Basic Info.

Model NO. FT-1500 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Screw Diameter 75mm*2 Transport Package Wooden Case, Wooen Block, Plastic Film Specification FT-1500 Trademark FANGTAI Origin Ruian City, Zhejiang Province HS Code 84778000 Production Capacity 120kg/H

Product Description

Single Layer Stretch Film Machine (CE)

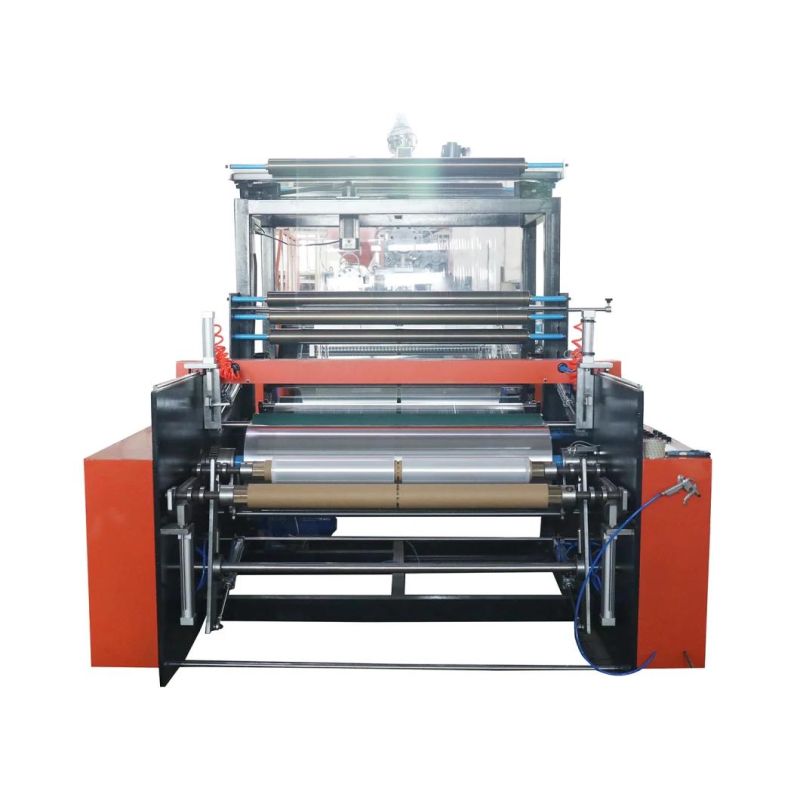

FT-500-1500 single Layer Co-extrusion Stretch Film Making Machine (Auto Changer)

Use
This machine uses LDPE and LLDPE to produce casting stretch film(could produce one-side sticky film and the other side normal), adopting double screws and double two hoppers. This co-extrusion stretch film is widely used in packing area for architecture, auto parts, hardware parts, etc.

Characteristics

Screw and cylinder are all made of 38 CrMoALA after nitrogen treatment, which has an advantage of corrosion resistance and endurance, etc.
The cooling device adopts cycle water cooling which provide the best transparent effect of the stretch film

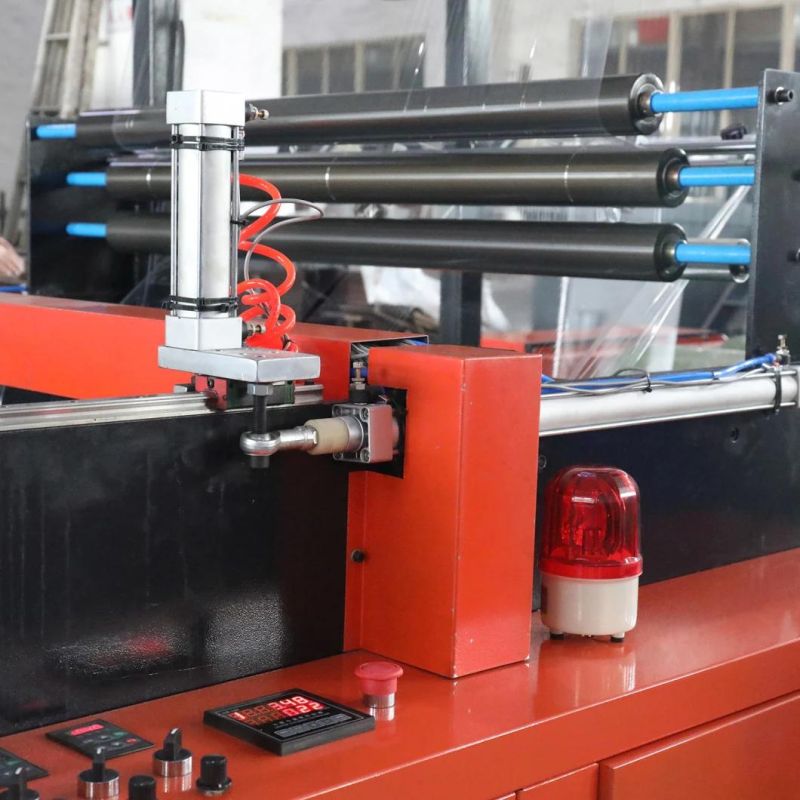

Rewinder adopts with friction-rewinding-type, with cutter device for edge correcting.

OPTIONAL EQUIPMENT
1) AUTO LOADER
2) AIR SHAFT
3) AUTO DRY HOPPER
4) ELECTRIC CHANGE
5) HYDRAULIC NET CHANGER



Main Technical Variables:

Model	FT-500double-layer	FT-1000double-layer	FT-1500double-layer
Diameter of Screw Stem	φ55mm*2	φ65mm*2	φ75mm*2
L/D Ration of Screw	28:1	28:1	28:1
Material of Screw & Barrel	38 CrMoALA	38 CrMoALA	38 CrMoALA
Rational Speed of Screw Stem	10-120rpm	10-120rpm	10-120rpm
Width of T-die Head	650 mm	1250 mm	1800 mm
Heating Way	Casting-aluminum heating device	Casting-aluminum heating device	Casting-aluminum heating device
Width of Traction Roller	650 mm	1250 mm
Width of Products	200-500mm	1000mm	1500mm
Thickness	0.015-0.05mm	0.015-0.05mm	0.015-0.05mm
Main motor power	15kw*2	18.5kw*2	22kw*2
Heating Power	30kw	51kw	72kw
Max. output(kg/h)	40	100	150
Machine weight	3T	5.5T	7T
Overall Dimensions (L*W*H)	4500*2600*2550mm	7500*4500*3200mm
