Basic Info.

Model NO. EVOH Pipe machine Engagement System Non-Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Line Speed 35m/Min,60m/Min Diameter 16mm-32mm Inverter ABB Brand Electrics Schneider PLC System Siemens Engineer Service Engineer Is Available for Overseas Service Die Head 3 Layers/ 5 Layers Die Head Moulds Servo Motor Siemens Transport Package 1X40 Gp Container Specification 16mm-32mm/16mm-63mm Trademark KAIDE Origin China HS Code 8477800000 Production Capacity 200sets

Product Description

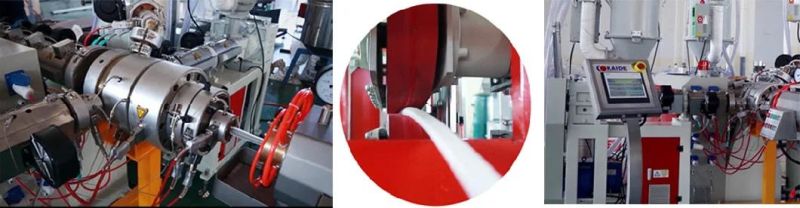

EVOH PERTPipe Making Machine,The composite EVOH PERT pipe production line adopts advanced extrusion technology with several extruders specially designed for Pe-xb pipe and co-extrusion die head mold, which makes the composite pipe bond firmly with precise size. Also with special extruder designed according to the property of  EVOH resin. It is suitable for stable extrusion of high melt pressure of oxygen barrier resin.

KAIDE is the most professional supplier in China, who manufactured oxygen barrier evoh pipe making machine. More than 85% client purchased evoh pipe lines from KAIDE. Such as ERA Pipe Group, Junxing Pipe Group, Rifeng Pipe Group, Hongyue Pipe Group, Chinaust Group, The internation customer such as +GF+, Golan Group, Plumbfast, etc.


Technical Data

Line Model	Screw Diameter	L/D	Production Scope	Production Speed
SJ-65	Ф65/30mm	33:01:00	Ф16-32mm	25m/min
SJ-65	Ф65/30mm	33:01:00	Ф16-63mm	10m/min

Advantages of EVOH oxygen barrier composite pipe:
(1) Excellent non-permeability and scent preservation, good anti-ultraviolet ray and other radiations, which greatly enlarge the pipe's lifespan and effectively avoid breeding of bacteria inner pipes.
(2) This kind of pipe will have a good market prospects and wide application in the current and future time.

Production line series

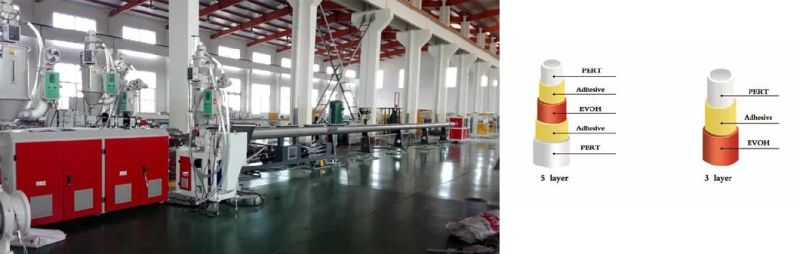

The EVOH composite Pipe Machine can produce single layer pipe, and also three-layer or five-layer,Such as :
(1) PB/EVOH pipe production line,
(2) PE-RT /EVOH pipe production line,
(3) PE-Xa/EVOH pipe production line,
(4) PE-Xb/EVOHpipe production ,
(5) PP-R/EVOH pipe production line,
(6) PA/EVOH pipe line.

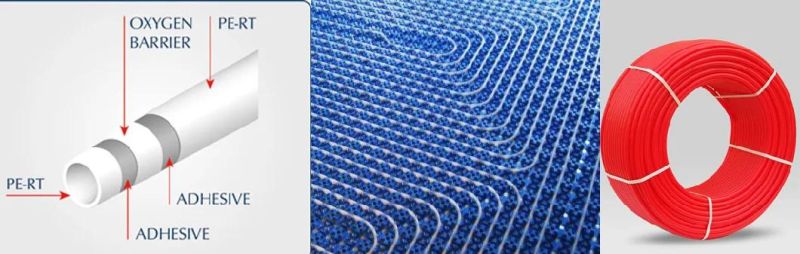

(1) Pert EVOH oxygen barrier pipe is mainly used as floor heating pipe in heating system. Plastic pipe is easy to leak oxygen, which is the common feature of plastic pipe. Ordinary PERT floor heating pipe (Pb floor heating pipe PE-X series floor heating pipe) has certain oxygen permeability, which is called "oxygen breathing" in theory.

If the PERT pipe without  oxygen barrier is used in the heating system, there will be oxygen in the heating system. At the same time, with the increase of temperature, the oxygen permeability will become more and more serious, which will breed microorganisms in the pipe. Because the life of microorganisms is very weak, more and more microorganisms will form biological slime, which will reduce the indoor heat load and affect the service life;

(2) Pert oxygen barrier pipe solves this problem. PERT oxygen barrier pipe is widely used in Europe and the United States in the 1990s, and it has been set in its standard that it must have an oxygen blocking layer. Currently, PERT oxygen barrier pipe adopts all specialized EVOH oxygen barrier material (Nippol Chemicals, Kurary), and the product has double functions of shading and oxygen barrier, which can effectively inhibit microorganisms in the system and prevent oxygen from penetrating into the pipeline system, so as to prevent water supply the metal part inside the heating system is corroded and rusted, which greatly extends the service life of the metal parts in the whole heating system. The pipe has excellent flexibility, easy bending and construction, and is widely used in heating pipeline system;

(3) Ordinary oxygen molecules entering the heating system through the plastic pipe wall will cause the following hazards:
A.Corrosion of metal components in the system.
B.React with free calcium, magnesium and sodium ions in water to produce scale.
C.Aerobic has the possibility of organic matter and microorganism, which is easy to produce algae. Algae attached to the pipe wall will thicken the pipe diameter, reduce the water flow, prolong the heating time, increase the gas cost and reduce the comfort.






For More Information, please feel free to contact us.
