Basic Info.

Model NO. FT-500 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Non-Automatic Computerized Computerized Model FT-1000500 Machine Color Orange or Blue Extruder Double Transport Package Wooden Case/Wooden Block/in Nude Specification CE Trademark Fangtai Origin China HS Code 84778000 Production Capacity 1 Set/ Month

Product Description

FT-1000 double layer stretch film making machine/ cling film machine/ wrap film machine


Use

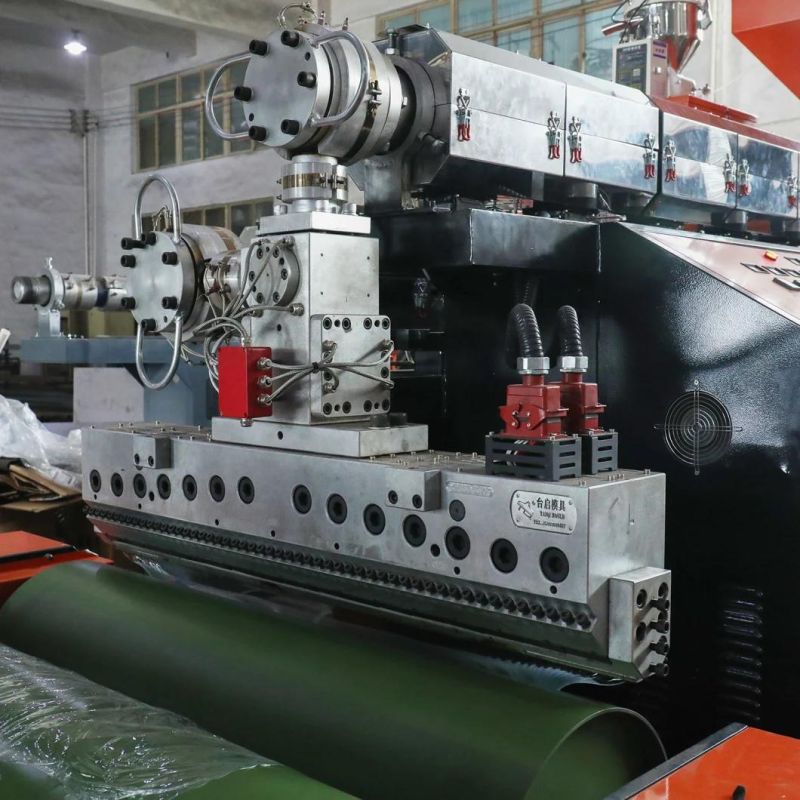

stretch film machine/ cling film mchine uses LDPE and LLDPE to produce casting stretch film(could produce one-side sticky film and the other side normal), adopting double screws and double two hoppers. This co-extrusion stretch film is widely used in packing area for architecture, auto parts, hardware parts, etc.

Characteristics

Screw and cylinder are all made of 38 CrMoALA after nitrogen treatment, which has an advantage of corrosion resistance and endurance, etc.
The cooling device adopts cycle water cooling which provide the best transparent effect of the stretch film

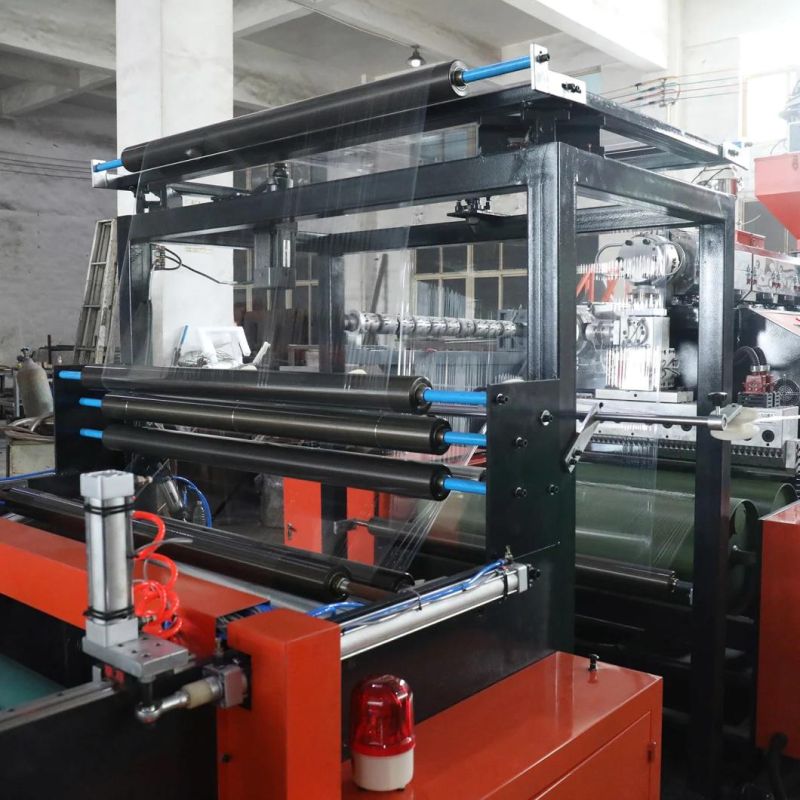

Rewinder adopts with friction-rewinding-type, with cutter device for edge correcting.

OPTIONAL EQUIPMENT
auto loader
auto dryer
electric screen net changer
hydraulic screen net changer
glue pump
auto changer, auto cutter, simens PLC controller, air shaft roller
waste edge recycling online device


Model	FT-500	FT-600	FT-1000
Diameter of Screw Stem	φ55mm*2	φ55mm*2	φ65mm*2
L/D Ration of Screw	28:1	28:1	28:1
Material of Screw & Barrel	38 CrMoALA	38 CrMoALA	38 CrMoALA
Rational Speed of Screw Stem	10-120rpm	10-120rpm	10-120rpm

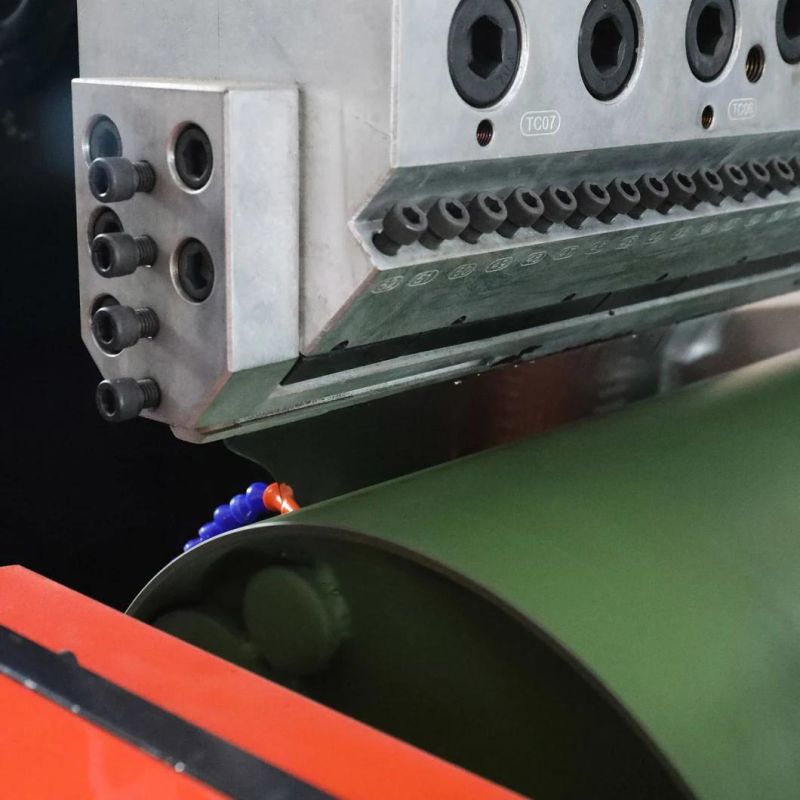

Width of T-die Head	650 mm	750 mm	1250 mm
Heating Way	Casting-aluminum heating device	Casting-aluminum heating device	Casting-aluminum heating device
Width of Traction Roller	650 mm	750 mm	1250 mm
Width of Products	200-500mm	200-600mm	1000mm
Thickness	0.015-0.05mm	0.015-0.05mm	0.015-0.05mm
Main motor power	15kw*2	15kw*2	18.5kw*2
Heating Power	30kw	30kw	51kw
Max. output(kg/h)	40	40	100
Machine weight	3T	3T	5.5T
Overall Dimensions (L*W*H)	4500*2600*2550mm	4500*2800*2550mm	7500*4500*3200mm
