Color 20W Portable Fiber Laser Marking Machine for Metal Plastic PVC
Xiamen Teambo Industry & Trade Co., Ltd.- Laser Visibility：Invisible
- Applicable Material：Metal
- Cooling System：Air Cooling
- Technical Class：Pulse Laser
- Laser Wavelength：Fiber Laser
- Laser Classification：Semiconductor Laser
Base Info
- Model NO.：MAN-20
- Type：Optical Fiber Laser Marking Machine
- Marking Method：Scanning Marking
- Model：20W,30W
- Marking Area：110mmx110mm;
- Repeat Frequency：10kHz- 100kHz
- Voltage：220V,50Hz
- Markingspeed：7000mm
- Marking Depth：0-0.5mm
- Positioning Way：Red Light
- Cooling Mode：Air Cooling
- Software：Ezcad Software
- Certification：Ce FDA
- Transport Package：Wooden Box
- Specification：710*510*710 mm
- Trademark：CNMANLASER
- Origin：Shandong
- HS Code：8456110090
- Production Capacity：500 Set,Month
Description
Optical output characteristicsMarking range F = 160 mm, range 110 x 110 mm Minimum line width 0.01mm Minimum height of characters 0.2mm
Advantage :
1) High Precision: Up to 0.0012mm, bring you the fantastic and satisfied marking effect.
2) Superior Laser Beam: The definition is 1 micron,10 times as that of traditional products.
3) No Consumables: One Fiber marker can work for more than 10 years without any consumables.
4) High Speed: 7000mm / second, is 3 to 5 times above that of traditional products
5) The fiber laser beam comes out from the IPG/Raycus fiber device directly,no need to adjust the laser optical path.
7) Low consumption: <500W, is 1/25 ~ 1/10 times as that of Diode and YAG, more economized and environmental.
8)EzCad Software, USB interface, swift and stable transmission, easy software operation, strong functions.
9) High-quality scan head, with good seal, capable to prevent dust and water, small volume, compact and solid.
10) Long lifespan of IPG/Raycus laser module: 0.1-0.2 million hrs (light pumping YAG: several hundred hrs; semi-conductor: 10,000 hrs)
11) Strong Compatibility: TTF Font, SHX, BMP, DXF, AI, PLT and other format files output from CorelDraw, PS, AutoCAD, etc.
12) Integrated Air Cooling System: The cooling effect is more excellent than the water cooling effect in YAG laser, no maintenance.
13) Deep Marking: Max. 1mm stainless steel, suitable for the industries which need high precision and depth marking effect.

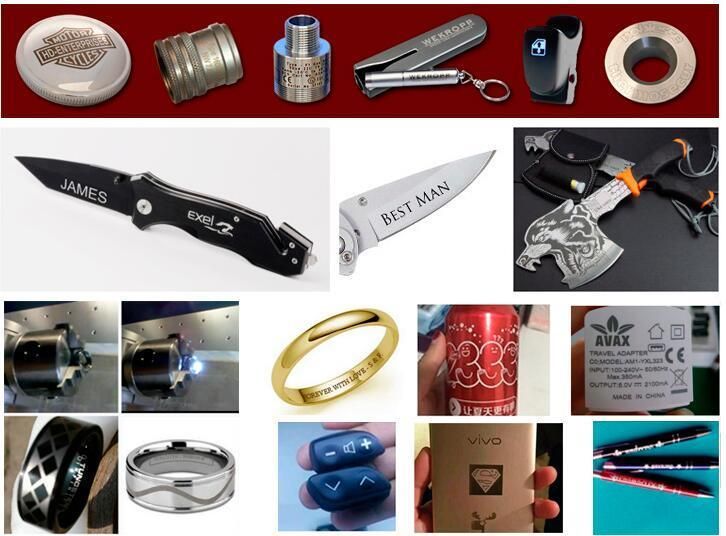

SAMPLE SHOW :
Applicable industry:
clothing materials, medicine packages, wine packages, building ceramics, beverage packages, cut fabrics,
rubber products, nameplates, crafts and gifts, electronics and leather products , all kinds of metal ect .
Applicable materials:
All kinds of nonmetals and metal materials. The machine supports a wide range of marking types including
different patterns and graphics, logos, enclosure numbers, serial numbers, and text - for example, the information of producers
and target regions, enabling effective prevention of disorderly competition caused by counterfeit products
Our Service
We provide 3 -year machine warranty.
In case it exists machine problem, we will solve the problem through email, skype, phone or video.
If the problem still exists, we will send our technician to customer's plan for machine repair.
We will respond to customer's question within two hours.
Quality Control of Fiber Laser Marking Machine
Fiber laser marking machine is our core competencies. Quality is our culture.
Our professional quality control team will make strict quality checking for every part of the machine before entering into warehouse.
Before shipment, our engineer will do machine checking within 24 continuous hours to ensure high performance and high stability.
