• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：900*800*1150 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 900*800*1150 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

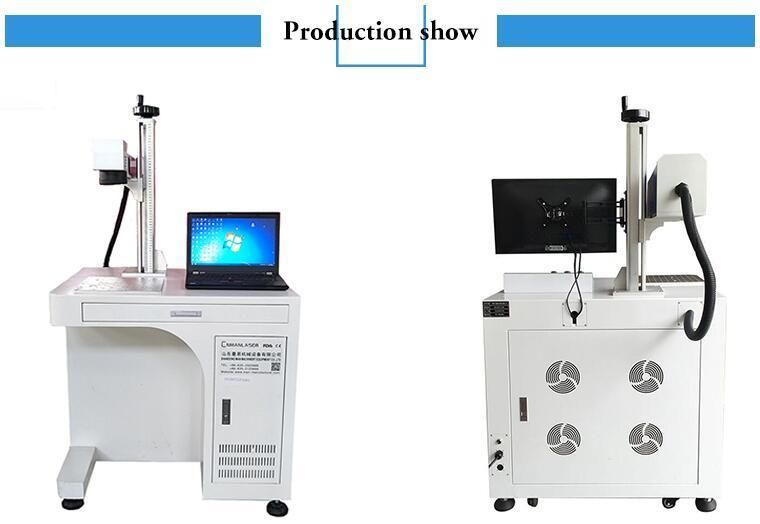

Sung-lass Mobile Watch Phones Laser Marking Machine 30W With Rotary Devices


 PRODUCTION :


1) Best Marking Effect.

Laser marking machine can provide the best marking effect. Especially good at smallest character marking.

2) Higher Accuracy.

The laser marking machine for metal can reach unto 0.001mm precision, while diode only 0.01mm.

3) Long lifetime.

Fiber laser marking machine of the lifetime can reach 100,000 hours, so the machine can be used for more then 30 years.

4) No consumables.

The laser marking machine for metal can be used for metal marking for 8-10 years without any consumables

  TECHNICAL  PARAMETER :


Laser power	10W/20W/30W/50W
Laser Wavelength	1064nm
Light beam quality	<2
Repeating precision	±0.002
Marking range	100x100mm(customize)
Marking depth	0.01~2mm
Marking speed	10000mm/s
Minimum character	0.15mm
Minimum line width	0.01mm
Repeating frequency	20KHz~30KHz
Marking content	Graphics, text, bar codes, two-dimensional code, date, batch number, serial number
Graphic format supported	bmp,png,ai,dxf,dst,plt
working voltage	220V±10%/50Hz/4A
Gross Weight	120kg
Control interface	standard USB port
Working environment	Clean and dust free or dust less
Laser module life	100000~200000 hours

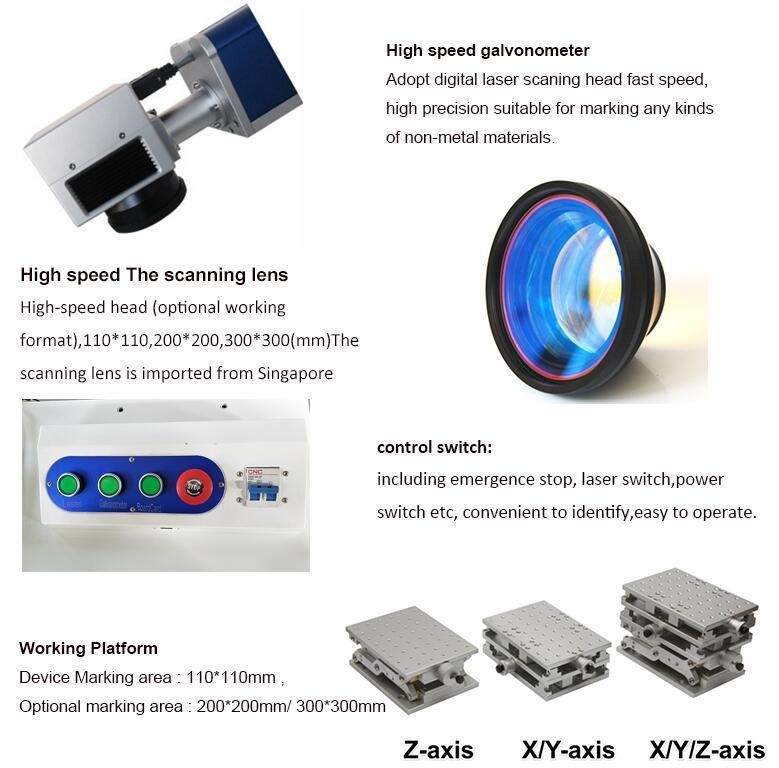

 DETAILS   IMAGES :

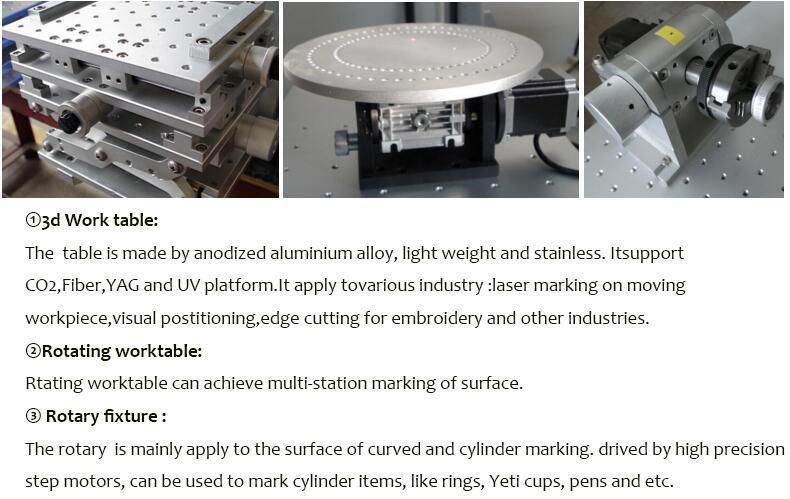

Optional Laser Parts :

01. Optical fiber marking machine rotation aid Its role is mainly to help you mark on a cylindrical object such as a ring.

It is not a standard configuration but requires an extra charge.

02. Optical fiber marking machine red light It can play an auxiliary reticle and positioning role

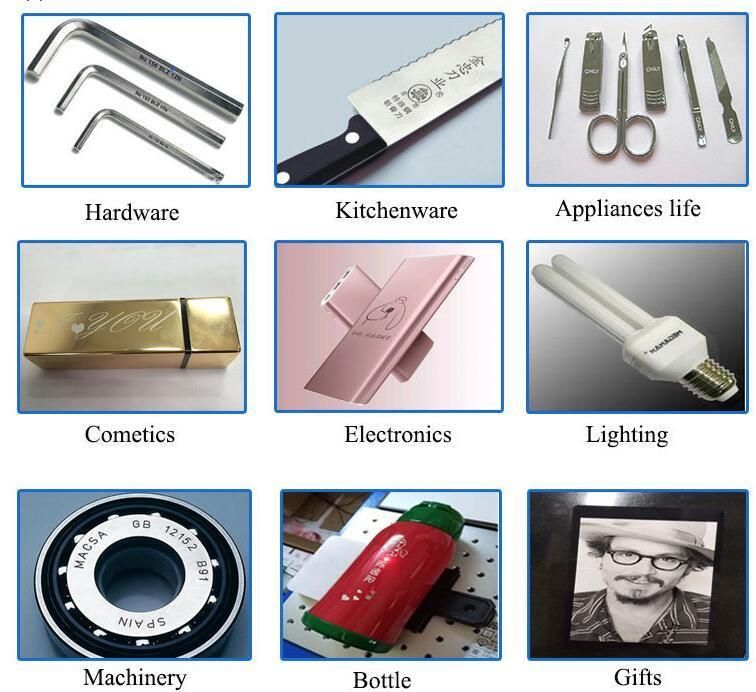

 SAMPLE SHOW :

1) Application Materials:

Materials:Metals ( Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card )

Non-metal ( Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits,

mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts,

plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.)

2).Industry:

1. Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc

2. Instrument: Panel Board, Nameplates, Precision equipment, etc.

3. Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.

4. Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.

5. Automobile Parts: Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.

6. Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc


 PACKAGING &  SHIPPING :

We have 3 layers package.

1.Outside:we adopt wood craft case.

2.Middle: the machine is covered by foam, to protect the machine from shaking.

3. Inside layer, the machine is covered by thickening plastic bag for waterproof.


 ABOUT US  :

Services :

1, Our service tenet is user experience, improve quality and courteous service.

2, The hardware services: replacement maintenance, realizing the non-production.

3, The software service: Free upgrades of marking control software.

4, Whole days after-sales service, ready to provide you with technical support.

5, Customer will received a clear answer of the repair response not more than one hour.

6, Patrol inspection once every year, free any service costs;

7, 3 years machine warranty, life-long maintenance;

8, Services of after purchase: free door-to-door, installation and commissioning, technical training and learned.

Payment term:

   1.T/T (30% of the total payment in advance, pay the balance before delivery. )

   2.Through Alibaba

   3. L/C   (at sight)
Quality Control

Laser marking machine is our core competencies. Quality is our culture. Our professional quality control team will

make strict quality checking for every part of the machine before entering into warehouse. Before shipment,

our engineer will do machine checking within 24 continuous hours to ensure high performance and high stability.

FAQ :

(1)Q: What's the package?

A: For the outside, we adopt wood craft case.

In the middle, the machine is covered by foam, to protect the machine from shaking.

For the inside layer, the machine is covered by thickening plastic bag for waterproof.

(2)Q: Will the package damaged during transportation?

A: Our package is considerate all the damage factors and make it to be safe, and our shipping  agent have full experienced in safe tranportation.

We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.

(3)Q: How to install and run the machine?

A: Our technician have installed the machine before shipping.

For some small parts installation,we will send detail training video, user's manual along with the machine.

95% customers can learn by themselves.
