• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：900*800*1150mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 900*800*1150mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

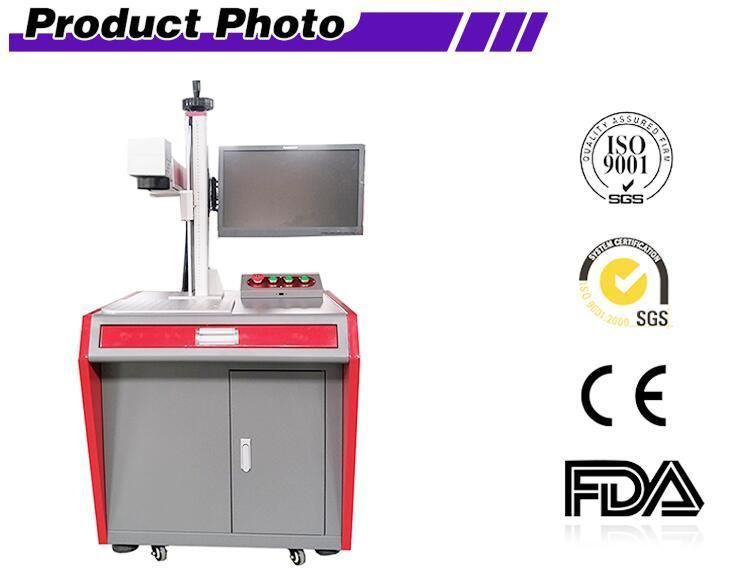

Table Top 30W Raycus Phone Case Nameplates Fiber Laser Marking Machine





1.High speed: High quality laser scanning system makes the marking speed up to 7000mm/s.

2.Long lifetime: Adopt advanced fiber generator, the life time could up to 100,000 hours.

3.High Precision Re-position precision is 0.001mm.

4.Low consumption: It is environment-protecting and energy-saving, power consumption is reduced by 3-10 times compared with YAG laser.

Using cost is really cheap.

5.Maintenance-free: The machine is maintenance-free, there is almost no any parts need to change after long term use.

6. Easy operation: The machine is very easy to use, and even the fresh man can use it well.

 TECHNICAL  PARAMETER :


Laser Type	Fiber laser
Laser Power	20W 30W 50W 70W 100W
Laser Wavelength	1064nm
Marking Area	110*110mm 150mm*150mm  175mm*175mm 200*200mm 300*300mm
Marking Depth	≤1.2mm
Marking Speed	10000mm/s
Minimum Line Width	0.012mm
Minimum Character	0.15mm
Repeated Precision	±0.003mm
Life-span of Fiber Laser Module	100 000hours
Beam Quality	M2 <1.5
Focus Spot Diameter	<0.01mm
Output Power of Laser	10%~100% continuously to be adjusted
System Operation Environment	Windows XP / W7--32/64bits / W8--32/64bits
Cooling Mode	Air cooling--Built-in
Temperature of Operation  Environment	15ºC~35ºC
Power Input	220V / 50HZ / single phase or 110V / 60HZ / single phase
Power Requirement	<400W
Optional	Rotary Device, Moving Table, other customized Automation

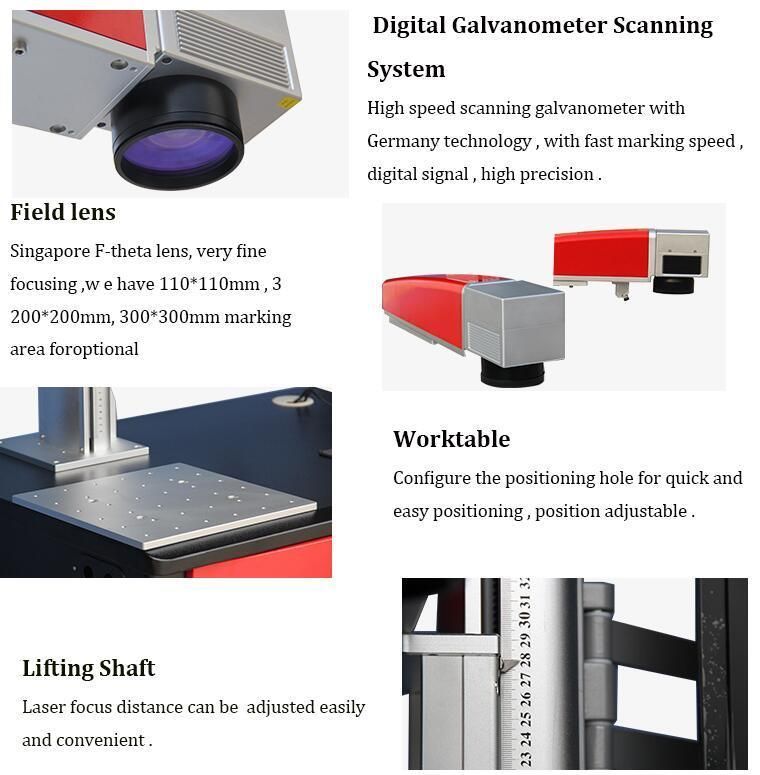

 DETAILS   IMAGES :



Optional Laser Parts :



SAMPLE SHOW :

Application Materials:

Laser marking machine can work with most metal marking applications, such as Gold, Silver, Stainless Steel, Brass,

Aluminum, Steel, Iron etc, and can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC.

Applicable industry:

1.Mechanical Parts:Bearings, Gears, Standard Parts, Motor, etc.

2.Instrument:Panel Board, Nameplates, Precision equipment, etc.

3.Daily Necessities:Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.

4.Hardware Tools:Knives, Tools, Measuring Tools, Cutting Tools, etc.

5.Automobile Parts:Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.

6.Electronic Components:Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc.



 PACKAGING &  SHIPPING :

1. We can ship. air or land to your city, it is according to your location, and machine packing size. And freight charge you need to pay for it.

We also support FOB if you have your own shipment agent.

2. Our machine producing time is 7-15 working days.

3. Delivery time, from Qingdao port to yout near port, different port the time is different.

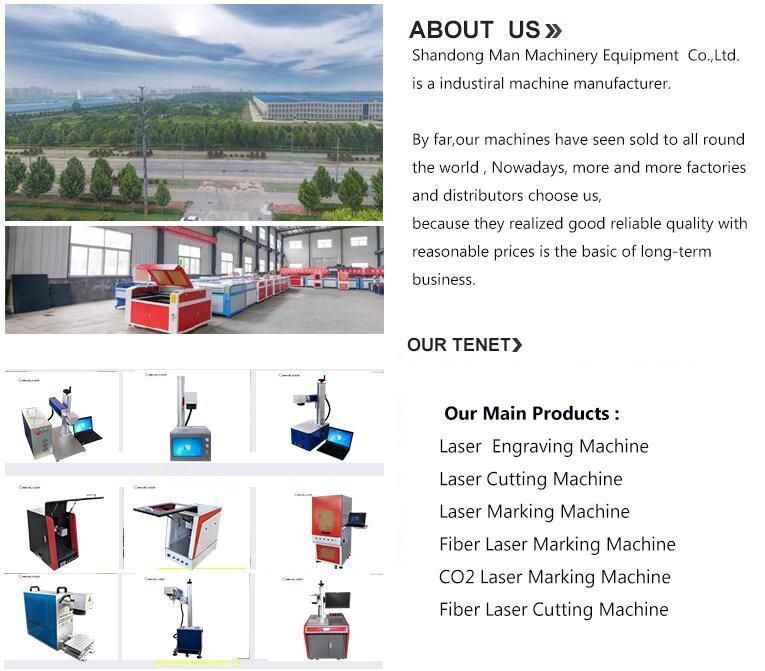

 ABOUT  US :



6.Q:Can you arrange the shipment for me?

A:We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, EXW are available.

7. Q: How can I do if the machine goes wrong?

A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else.

We will response within 24 hours as quick as we can to solve it for you.

8. Q:How to choose a proper convery fiber laser marking machine

A: Pls tell us:

1)Your material size

2)Marking size and Detailed content

3)Conveyor speed or the Quantity you need mark per day

4)It is better if you send us material,so we can test and custom more precisely
