• Model NO.：MAN-30
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：860*360*760mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-30 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 860*360*760mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

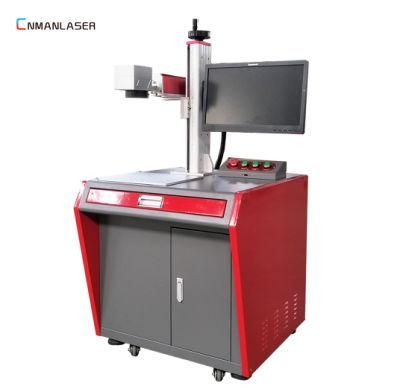

 30W 50W Portable Laser Marking Machine For Stainless Steel Pipe Plastic





Simple Introduction:

1. Pulse fiber laser source; long lifetime (100,000 hours/around 22 years if 12 hours' working time per day); without consumables; cost effective

2. Professional and powful control system. It can mark logo, character, serial number, bar code and data matrix on both metals

and some non-metals. It can meet different marking requirements.

3. English operation interface with easy operation.

4. Fast marking speed; high marking precision

5. Permanent marking, won't be wiped out by sun or rain, convenient to trace.

Laser Source( Raycus 20W/30W/50W/100W)

Scan Head (High speed scan head adopting Sino-galvoTechnology)

Field Lens (F160, F254, F290, F330, F420)

Operation System(WIN XP/7/8/10 English Version)

Marking Software(EZCAD, Engish Version)

 TECHNICAL  PARAMETER :


Model	MAN-20/ MAN-30
Laser power	Fiber 20W air cooling
Working area	110*110mm
Laser Wavelength	1064nm
Response time	0.5m/s
Frequency of pulse	20-100KHz
Max marking depth	≤0.4mm
Marking speed	≤7000mm/s
Marking lines	1-10 lines(in the marking area)
Minimum line width	0.1mm
Minimum character	0.15mm
Repeatability accuracy	±0.002mm
Resolution ratio	0.1mm
Marking content	Text,pattern,date,bar code,etc
Operation system	Microsoft Windows XP or Windows 2000
Control software	JCZ
Graphic format supported	bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc
Unit power	≤1.2KW
Operation temperature	5ºC-40ºC
Relative moisture	≤ 90%,no fog
Supply Voltage	220V/50Hz/10A

  DETAILS   IMAGES :

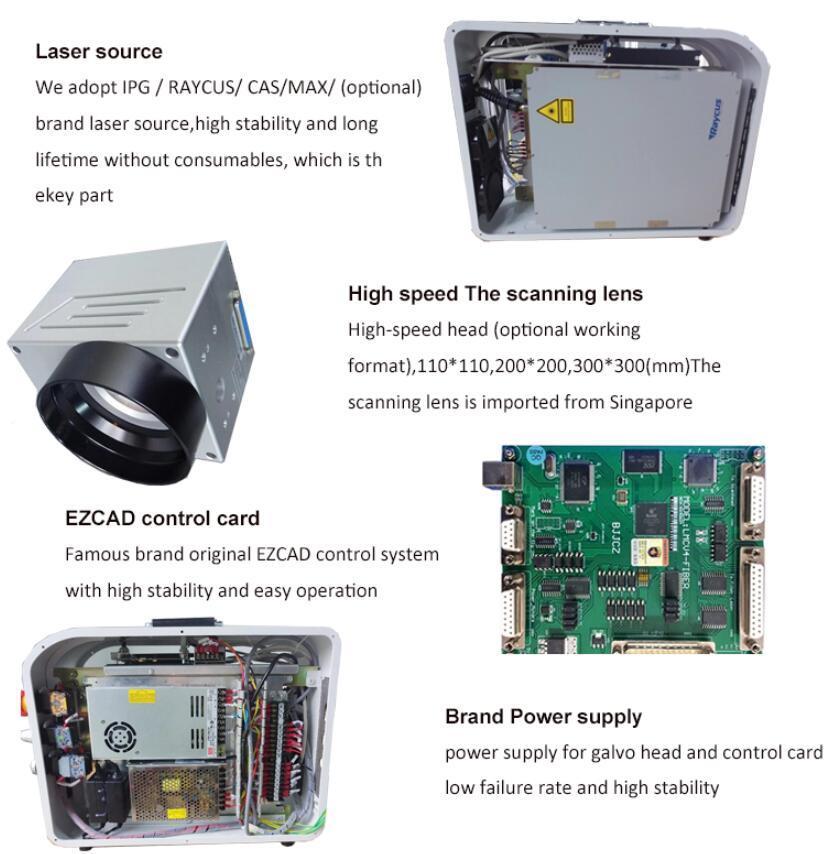

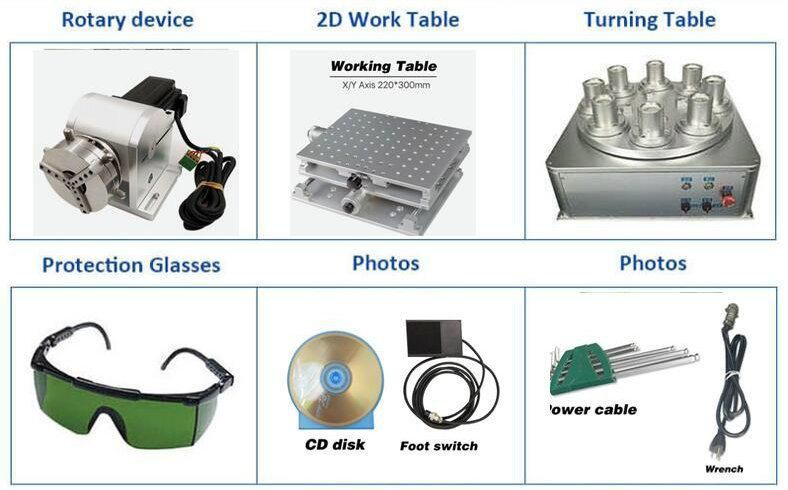

Laser parts with the machine :

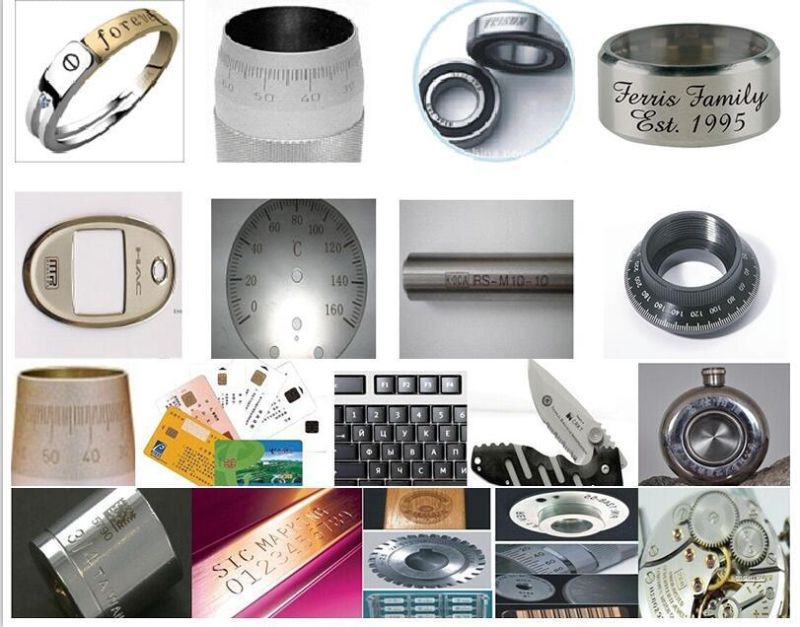

  SAMPLE SHOW :

Applicable Industries

Fiber Laser Marking Machine  is widely used in food and beverage, pharmaceutical, tobacco, leather, packaging,

building materials, lighting, accessories, cosmetics, electronics and other industries, low consumption, non-toxic, no pollution.

 Applicable Materials

This series portable fiber laser marking machine apply to Plastic, stainless steel, aluminum and other metal surface marking.

  PACKAGING &  SHIPPING :

Shipping:

Trade terms: FOB, CIF, EXW

Payment terms: T/T, Western Union, Escrow, MoneyGram

Payment condition: 30% deposit before production, 70% balance before delivery

Delivery time: 1-3 working days after deposit

Packaging: Crate box to protect the machine inside and delivery in safety.

Shipping: By sea, by air or express delivery



 SERVICES  :

Q1.How do you get the best price ?

1)Please tell me what is material that you want to cut or engrave

2)what is the MAX size of carved material

Then I will recommand the most suitable model and the best price for you.

Q2.How to Operate?

1) it's really easy to operate.

2). Video will be sent to you. After you watch videos you can install this kind of machine by yourself.

3). Software! We use CorelDraw 9 or 12 to draw pattern, if you know how to use one of them, it would be great! If you did not know!

Welcome to our class, we will show you how to draw it!

Q3.How Do I Know That I Have All The Goods I Ordered Before The Shipment?

Pictures will be sent to our clients for confirmation before the shipment.

Q4.How can I get Machine's spare parts?

There are two methods. Spare Parts ordered together with the machine, this is the safest way to transport.

The other way is you can inform us when you need to replace the consumables, we will send them to you within 24 working hours.
