• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：900*800*1150 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 900*800*1150 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

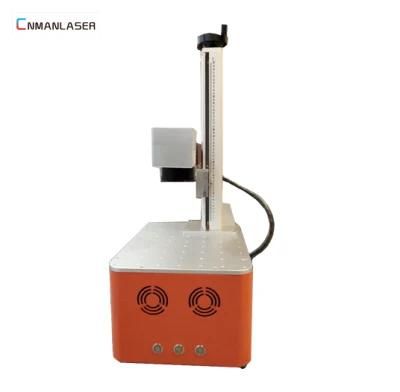

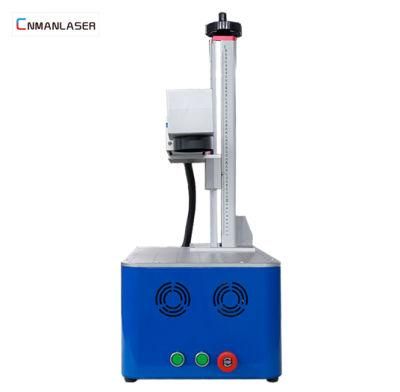

Air Cooling Laser Marking Machine For LED Light Logo Date Numbers


 PRODUCTION :



What is the  Advantages of Fiber Laser  Marking machine?

It does not affect the integrity of the part;

Produce a high-contrast permanent mark;

Requires almost no maintenance;

Can be operated from almost any Windows-based software;

Is exceptionally easy to use by practically anyone in your organization!

 TECHNICAL  PARAMETER :


Laser power	Fiber 10W/20W/30W/50W air cooling
Working area	100*100mm
Laser Wavelength	1064nm
Response time	0.5ms
Frequency of pulse	20-100KHz
Max marking depth	≤0.4mm
Marking speed	≤7000mm/s
Marking lines	1-10 lines(in the marking area)
Minimum line width	0.1mm
Minimum character	0.15mm
Repeatability accuracy	±0.002mm
Resolution ratio	0.1mm
Marking content	Text,pattern,date,bar code,etc
Operation system	Microsoft Windows XP or Windows 2000
Control software	EZCAD control software or laser2.1 marking control software
Graphic format supported	bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.
Unit power	≤1.2KW
Operation temperature	5°C-40°C
Relative moisture	≤ 90%,no fog
Supply Voltage	220V/50Hz/10A

 IMAGES DETAILS :

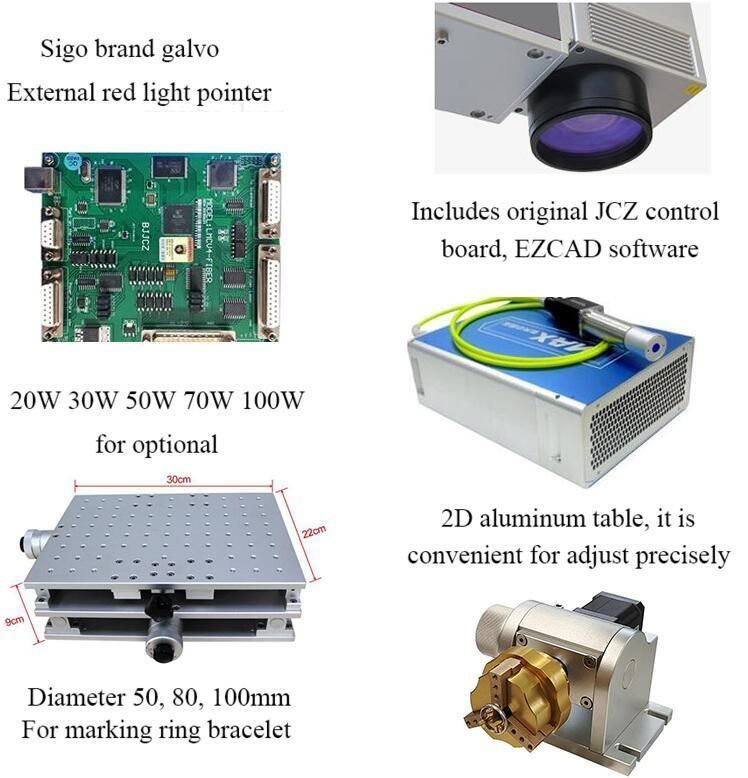

You will be get the machine including:

 1.Laser source (according the price of what you choose , there are Raycus , Max and IPG for your choose ,

different laser source with different price)

2.Laptop with software

3.EZCAD motherboard card  ( or you could choose our OEM motherboard card , it has high price - performance ratio,

and same operation as the EZCAD)

4.Free pedal

5.Free protective goggles

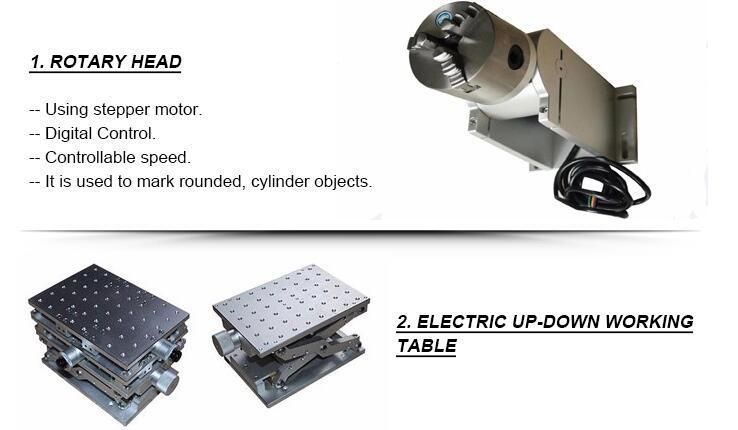

Rotary is the optional accessories , we have two type of rotary :1. 100mm diameter , can bear the weight of material

within 5 kg .2.50mm diameter , can bear the weight of material within 1kg .

Attention:

01. 3d Work table:--

The  table is made by anodized aluminium alloy, light weight and stainless.

It support CO2,Fiber,YAG and UV platform.It apply tovarious industry :laser marking on moving workpiece,

visual postitioning,edge cutting for embroidery and other industries.

02. Rotating worktable:--Rtating worktable can achieve multi-station marking of surface.

03. Rotary fixture :--The rotary  is mainly apply to the surface of curved and cylinder marking.

drived by high precision step motors, can be used to mark cylinder items, like rings, Yeti cups, pens and etc.


 SAMPLE SHOW :

Applicable materials:

 fiber laser marking machine is suitable for marking all metal materials and most of non-metal materials.

 fiber laser marking machine  is widely applied to many industries, such as Electronics, Auto parts & hardware, handcrafts, packing and so on.

01. Electronic and communication products, IC products, electric lines, cable computer components and electric appliances.

02. Automobile and motorcycle parts, instrumentation, aerospace, military products, hardware machinery, medical instruments,

measuring and cutting tools.

03. l Handicrafts, Jewelry, garments, glasses, instruments, gifts, office devices, brand scutcheon, sanitary ware appliances and other workpieces.

04.  The packing for dishware, food, drinking, smoking and alcohol, etc.


PACKAGING &  SHIPPING :

Package and shipment

1.This laser marking machine will packed intostandard plywood case, its compressive strength and bearing quality is better.

2.the board area is bit, the soil structure is good,  it is better in leakproofness and waterproof.

3.when importing, the plywood case is with fumigation-free, the procedure is simple.

4.Delivery Detail: within 3-5 days after received your payment



ABOUT US  :

1. 3 years guarantee for whole machine from production date (except consumable parts) Within guarantee

under normal use and maintenance, if something is wrong with the machine, you will get spare part for free.

2. Technical support by phone, email, whatsapp and Skype. Friendly English manual and operation video CD disk.

Engineer available to service machinery overseas. You will also get technical support and service all the lifetime.

3. Normal machine is properly adjusted before dispatch.

You will be able to use the machine immediately after received machine.

You will be able to get free training advice toards our machine in our factory
