• Model NO.：GJB Series
• Name：Ice Cream Fruit Juice Milk Pasteurization Homogen
• Material：Food Grade Stainless Steel 304 ,316
• Capacity：500L,H--10000L,H
• Pressure：250bar to 700bar
• Certificate：Ce Certificate
• Motor Brand：Siemens ,ABB
• High Pressure Homogenizer：Customized Electricity Motor
• Piston：4
• Stage：Two Stage
• Motor Power：5.5-35kw
• Voltage /Hz /Phase：Make to Your Order
• Packing：Wooden Box
• Warranty Period：One Year .
• Working Life：More Than 10 Years
• MOQ：1set
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. GJB Series Name Ice Cream Fruit Juice Milk Pasteurization Homogen Material Food Grade Stainless Steel 304 /316 Capacity 500L/H--10000L/H Pressure 250bar to 700bar Certificate Ce Certificate Motor Brand Siemens /ABB High Pressure Homogenizer Customized Electricity Motor Piston 4 Stage Two Stage Motor Power 5.5-35kw Voltage /Hz /Phase Make to Your Order Packing Wooden Box Warranty Period One Year . Working Life More Than 10 Years MOQ 1set Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

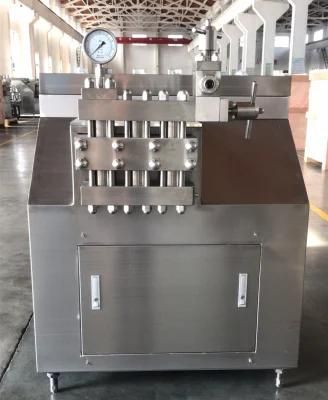

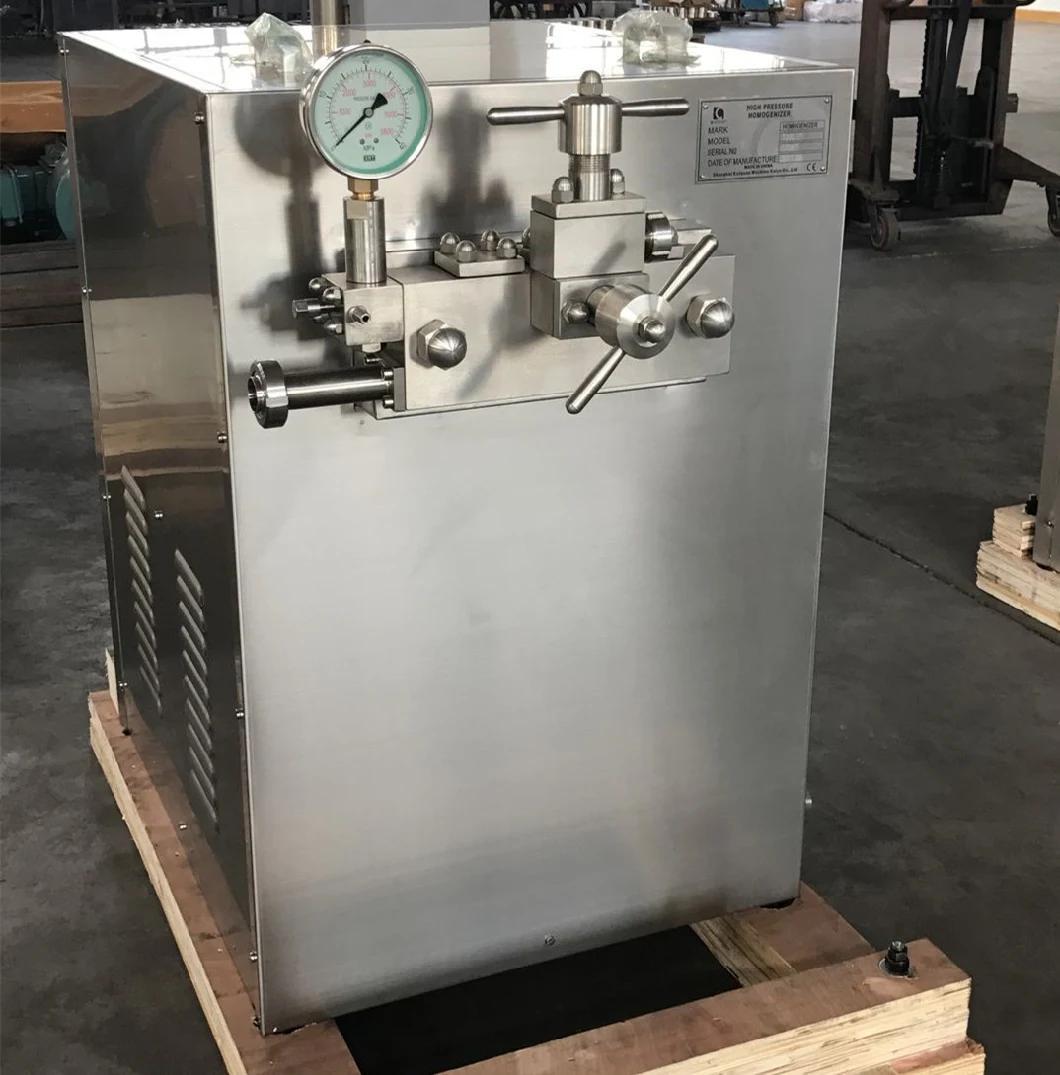

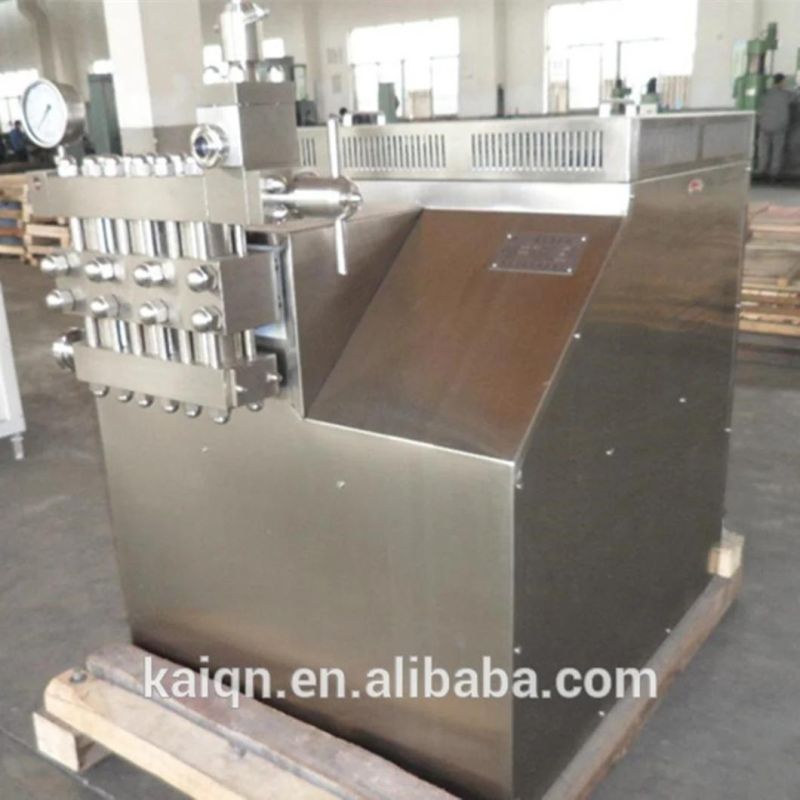

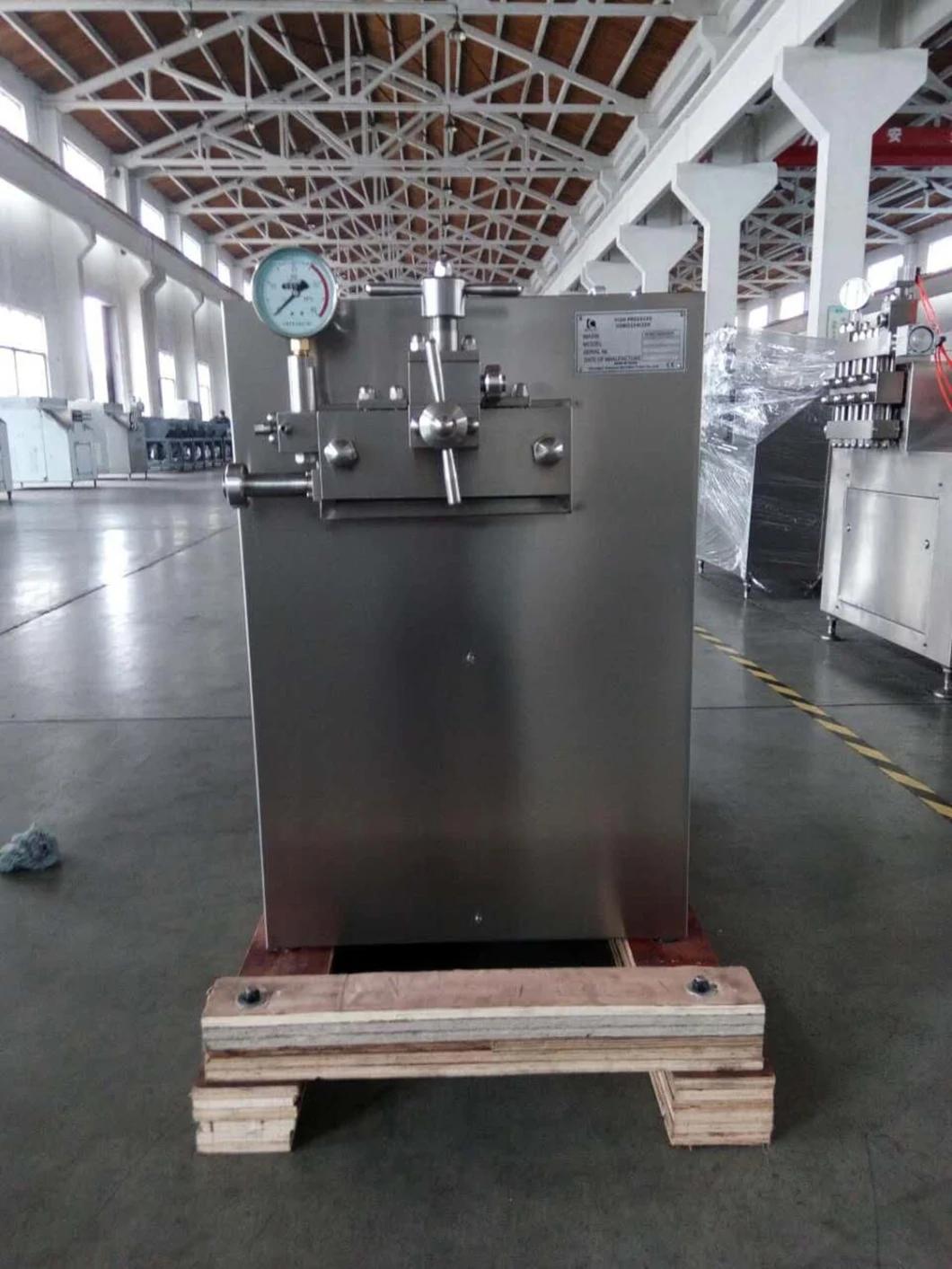

Ice Cream Fruit Juice Milk Pasteurization Homogenizer Factory



Milk High Pressure Homogenizer, You Can Buy Various High QualityMilk High Pressure Homogenizer Products from us,  the 250bar milk homogenizer,
CE CERTIFICATED HOMOGENIZER FOR MILK, JUICE, DAIRY, ICECREAM, SOYBEAN MILK, HONEY
Soybean milk homogenizer,  40MPA homogenizer
Tea drinks homogenizer,  juice homogenizer
homogenizer pumps
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life .

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
Ice Cream Fruit Juice Milk Pasteurization Homogenizer Factory .
