• Model NO.：GJB Series
• Name：5000lph Milk Drink Apple Mango Juice Homogenizer F
• Capacity：500L,H--10000L,H
• Pressure：250bar to 700bar
• Make to Order：Accept
• Homogenizer Certificate：Ce Certificate
• Homogenizer Appication：Milk , Juice, Beverage, Butter, Honey, Cream
• High Pressure Homogenizer：Customized Electricity Motor
• Stage：Two Stage
• Delivery：10 Days
• Warranty：One Year
• Packing：Wooden Box
• Motor Brand：Siemens ,ABB, China Brand
• Spare Parts：Available
• MOQ：1set
• OEM：Yes
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. GJB Series Name 5000lph Milk Drink Apple Mango Juice Homogenizer F Capacity 500L/H--10000L/H Pressure 250bar to 700bar Make to Order Accept Homogenizer Certificate Ce Certificate Homogenizer Appication Milk , Juice, Beverage, Butter, Honey, Cream High Pressure Homogenizer Customized Electricity Motor Stage Two Stage Delivery 10 Days Warranty One Year Packing Wooden Box Motor Brand Siemens /ABB/ China Brand Spare Parts Available MOQ 1set OEM Yes Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

5000LPH Milk Drink Apple Mango Juice Homogenizer For Plant Industry
Milk Yogurt Three Stage Homogenizer Price Homogenizer Equipment Cream Homogenizer




 Milk Yogurt Three Stage Homogenizer Price

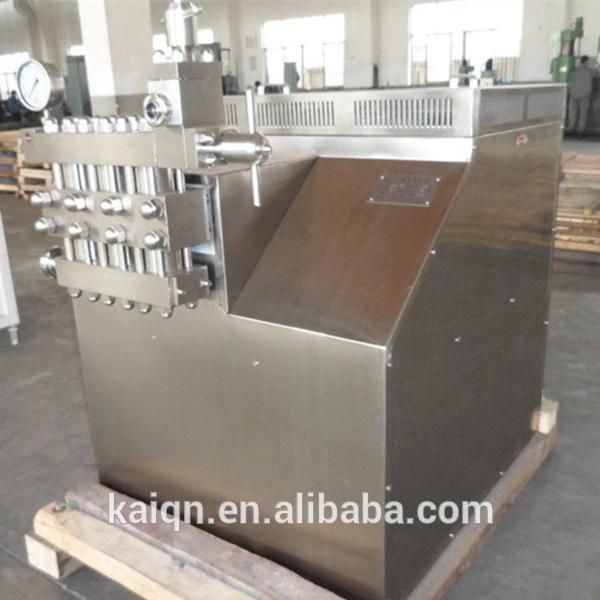

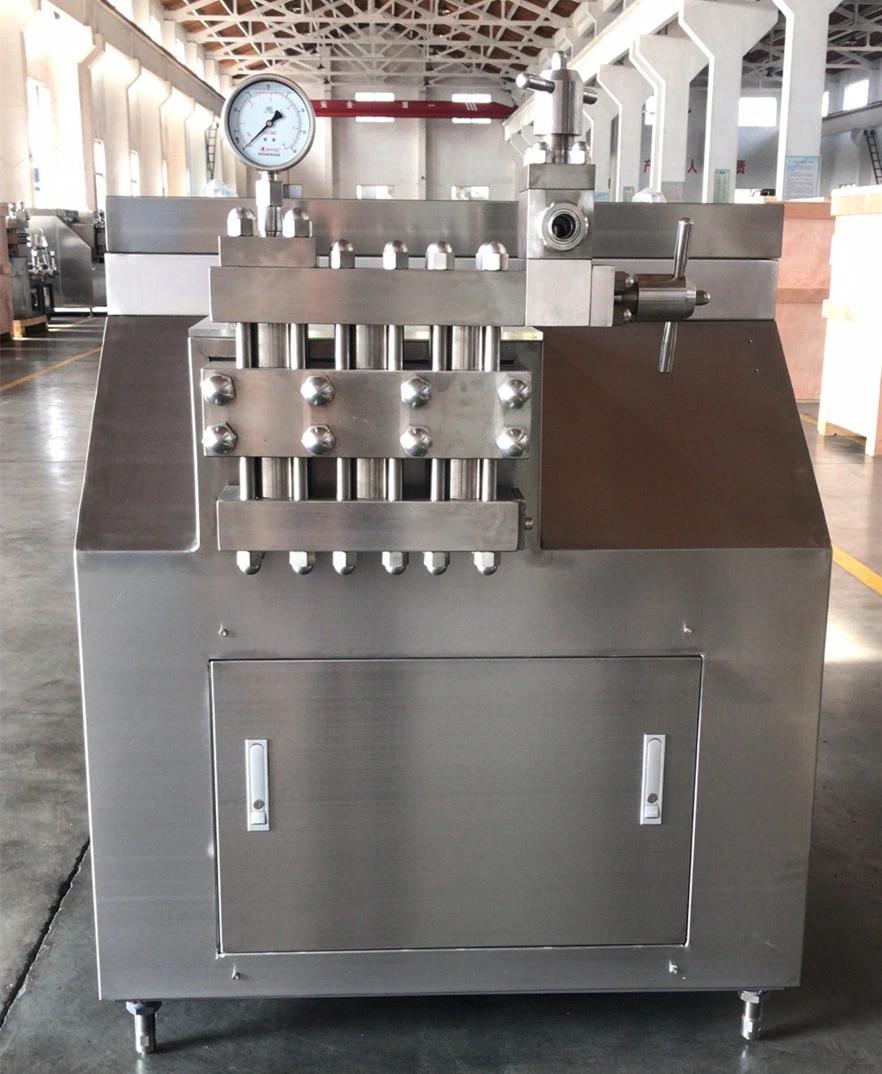

series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.


Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.

The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )




5000LPH Milk Drink Apple Mango Juice Homogenizer For Plant
