• Model NO.：KQ Series
• Name and Description：Stainless Steel Insulation Cooling Liquid Cooling
• Material：Food Grade Stainless Steel 304 ,316 ,316L
• Temperature：Digital Temperature Control
• Motor Brand：Siemens ,ABB ,China Brand .
• Capacity：1000L to 12000L
• Compressor Brand：USA Copeland
• Refrigerant Liquid：R404A , R22
• Type：Vertical , Horizontal Type
• Milk Cooling Tank Agitator：0.75kw-100kw
• Speed of Mixer：36rpm
• Working Life：More Than 10 Years .
• Warranty：Two Years
• Delivery：15 Days After Get Your Advance Payment
• Packing：Wooden Box
• Insulation：50mm Rock Wool
• Transport Package：Wooden Box
• Specification：SANITARY, FOOD GRADE
• Trademark：KQ
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Sets One Month

Basic Info.

Model NO. KQ Series Name and Description Stainless Steel Insulation Cooling Liquid Cooling Material Food Grade Stainless Steel 304 /316 /316L Temperature Digital Temperature Control Motor Brand Siemens ,ABB ,China Brand . Capacity 1000L to 12000L Compressor Brand USA Copeland Refrigerant Liquid R404A / R22 Type Vertical / Horizontal Type Milk Cooling Tank Agitator 0.75kw-100kw Speed of Mixer 36rpm Working Life More Than 10 Years . Warranty Two Years Delivery 15 Days After Get Your Advance Payment Packing Wooden Box Insulation 50mm Rock Wool Transport Package Wooden Box Specification SANITARY, FOOD GRADE Trademark KQ Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Sets One Month

Product Description

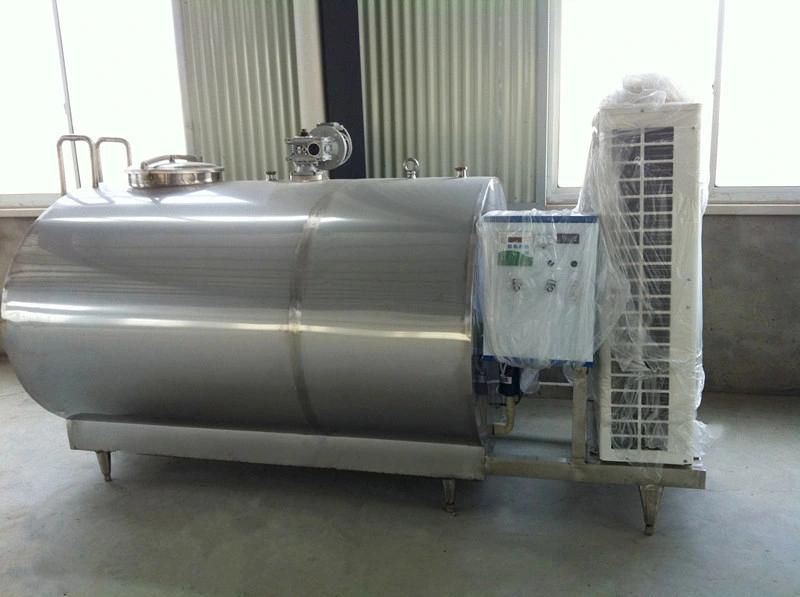

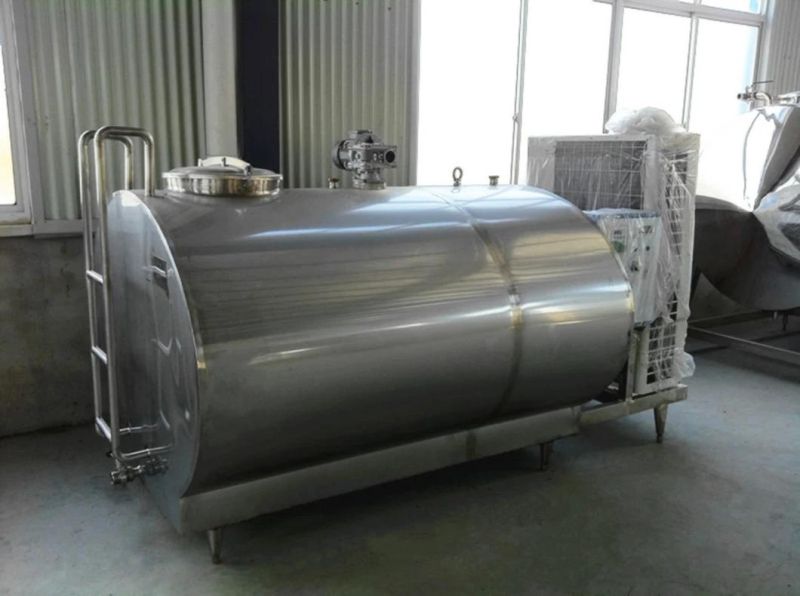

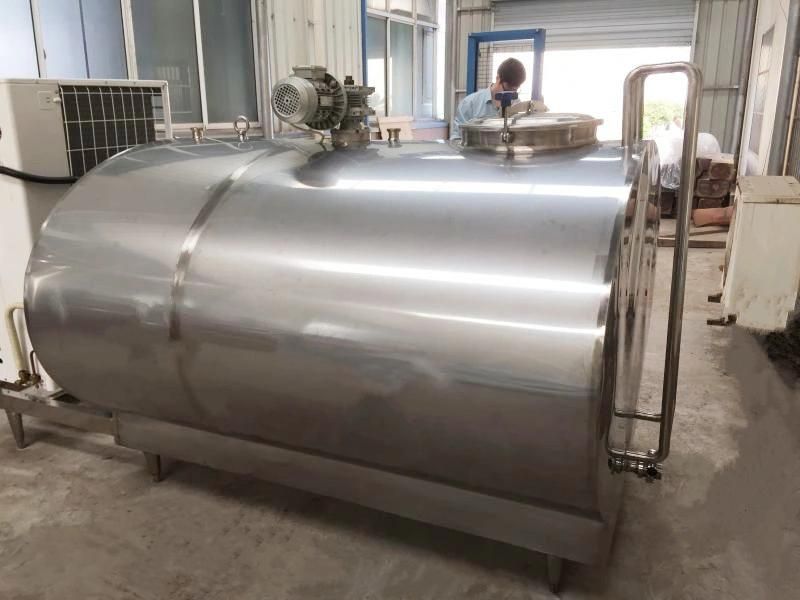

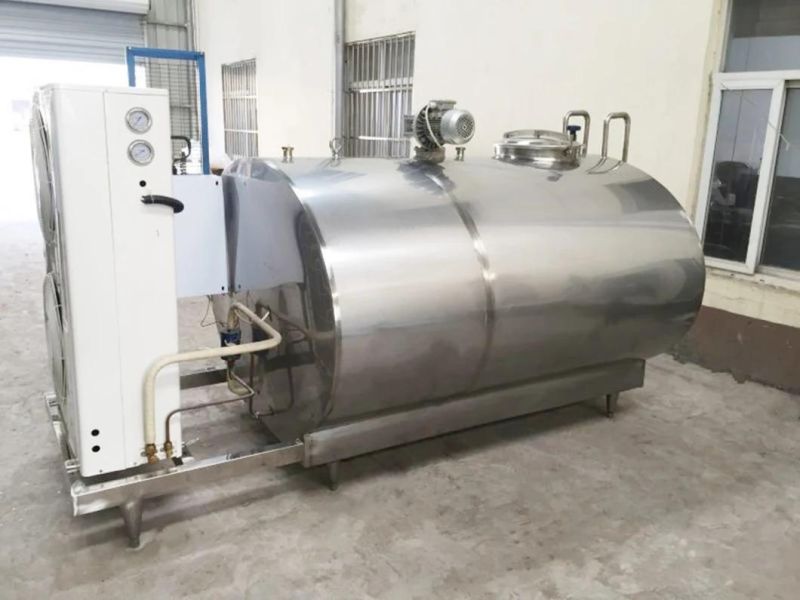

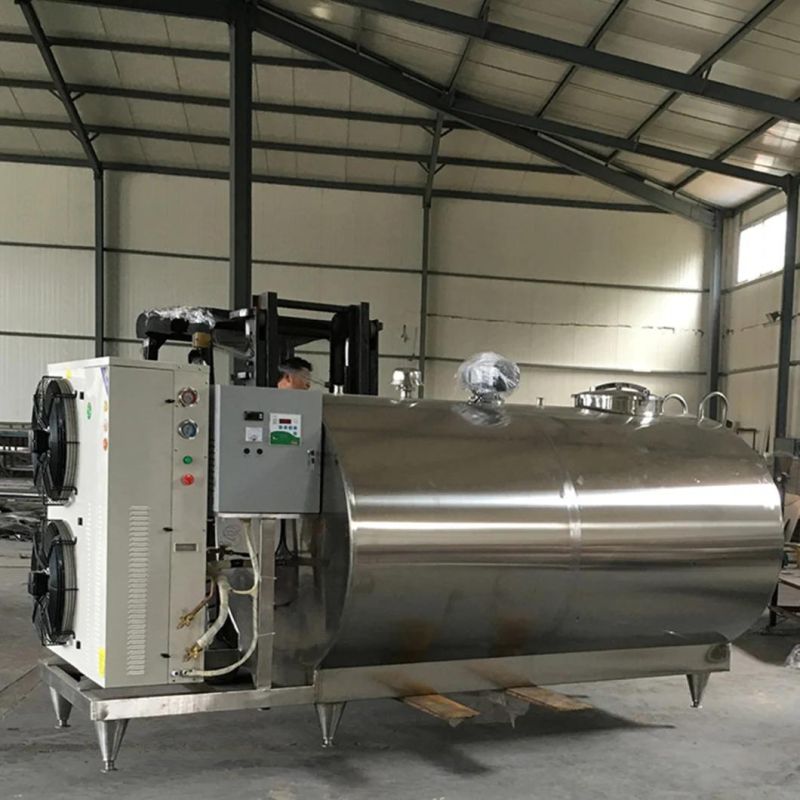

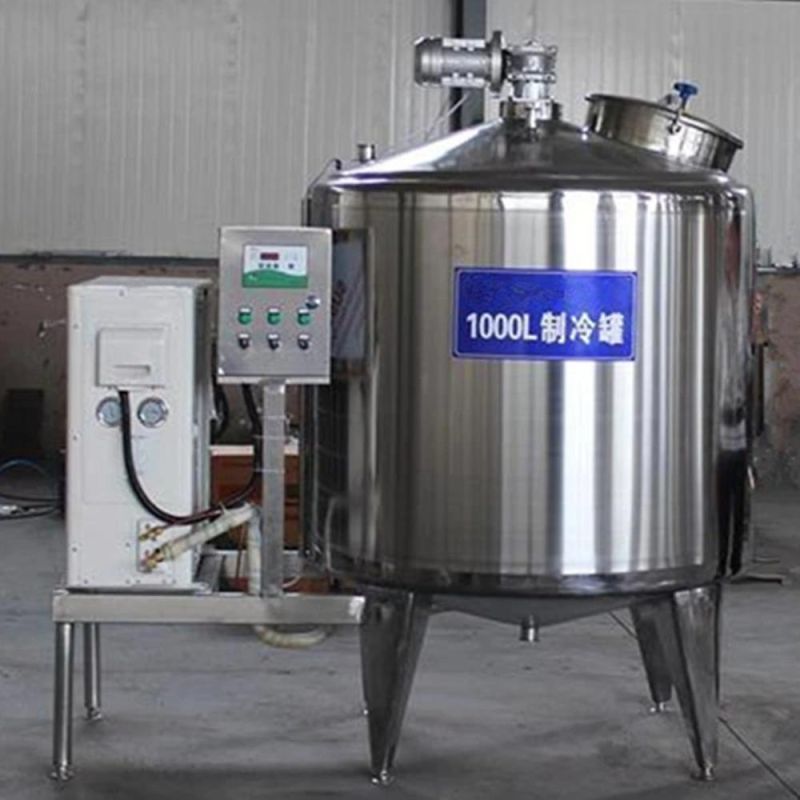

Stainless Steel Insulation Cooling Liquid Cooling Milk Storage Tank


Milk Chilling Tank, You Can Buy Various High Quality Milk Chilling TankProducts from Milk cooling & storage. Milk cooling & storage cooling tank and control unit. Rapid and efficient milk cooling is essential for preserving milk qualityrefrigerant tank   Milk Vat from Milk Cooling Tank

ITEM	Vessel Capacity(L)	Refrigeration power (W)	Rotation speed	Matched power	L× W× H	Refrigerant	Power supply
LH-M0.5	500	5322	33r/min	3KW	2200× 1350× 1150	R404A(R22)	380V/3/50Hz
LH-M1	1000	8842	33r/min	4.5KW	2200× 1350× 1550	R404A(R22)	380V/3/50Hz
LH-M1.5	1500	9214	33r/min	5KW	2200× 1200× 1750	R404A(R22)	380V/3/50Hz
LH-M2	2000	16221	33r/min	6KW	3300× 1500× 1700	R404A(R22)	380V/3/50Hz
LH-M2.5	2500	16221	33r/min	7KW	3700× 1450× 1500	R404A(R22)	380V/3/50Hz
LH-M3	3000	17221	33r/min	7KW	3950× 1500× 1700	R404A(R22)	380V/3/50Hz
LH-M4	4000	21500	33r/min	14kw	3950× 1900× 1850	R404A(R22)	380V/3/50Hz
LH-M5	5000	28442	33r/min	14KW	4200× 2100× 2000	R404A(R22)	380V/3/50Hz
LH-M6	6000	32000	33r/min	14KW	4200× 2100× 2200	R404A(R22)	380V/3/50Hz
LH-M8	8000	41668	33r/min	19KW	5200× 2200× 2150	R404A(R22)	380V/3/50Hz
LH-M10	10000	51360	33r/min	23KW	6000x2200x2150	R404A(R22)	380V/3/50Hz
LH-M12	12000	51360	33r/min	23KW	6000x2200x2300	R404A(R22)	380V/3/50Hz
LH-M15	15000	65200	33r/min	30KW	7000x2200x2400	R404A(R22)	380V/3/50Hz

The adopted imported compressor features high performance, energy saving, full seal and protection system that prevents damage due to overload. Also fitted are high / low liquid level control system and automatic cyclespray and agitating device.
Sanitary Stainless Steel Milk Storage Reception Chiling Tank Price



Automatic Cooling Milk Cooling Mixing Tank With Air Compressor Price

Stainless Steel Insulation Cooling Liquid Cooling Milk Storage Tank .
