• Model NO.：GJB Series
• Name：After Service Available High Pressure Homogenizer
• Material：Food Grade Stainless Steel 304 ,316
• Capacity：500L,H--10000L,H
• Pressure：25MPa to 100MPa
• Stage：Two Stage
• Performance：0.2um
• Piston：3 ,4
• Delivery：10 Days After Get Your Advance Payment
• Certificate：Ce ,ISO ,Certificate
• Applications：Milk Industry and Beverage
• Packing：Wooden Box
• Warranty：One Year
• Voltage：Make It to Your Order
• Motor：Siemens ,ABB,China Brand
• OEM：Yes
• Transport Package：Standard Wooden Box
• Specification：Based on special order
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. GJB Series Name After Service Available High Pressure Homogenizer Material Food Grade Stainless Steel 304 /316 Capacity 500L/H--10000L/H Pressure 25MPa to 100MPa Stage Two Stage Performance 0.2um Piston 3 /4 Delivery 10 Days After Get Your Advance Payment Certificate Ce ,ISO ,Certificate Applications Milk Industry and Beverage Packing Wooden Box Warranty One Year Voltage Make It to Your Order Motor Siemens /ABB/China Brand OEM Yes Transport Package Standard Wooden Box Specification Based on special order Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

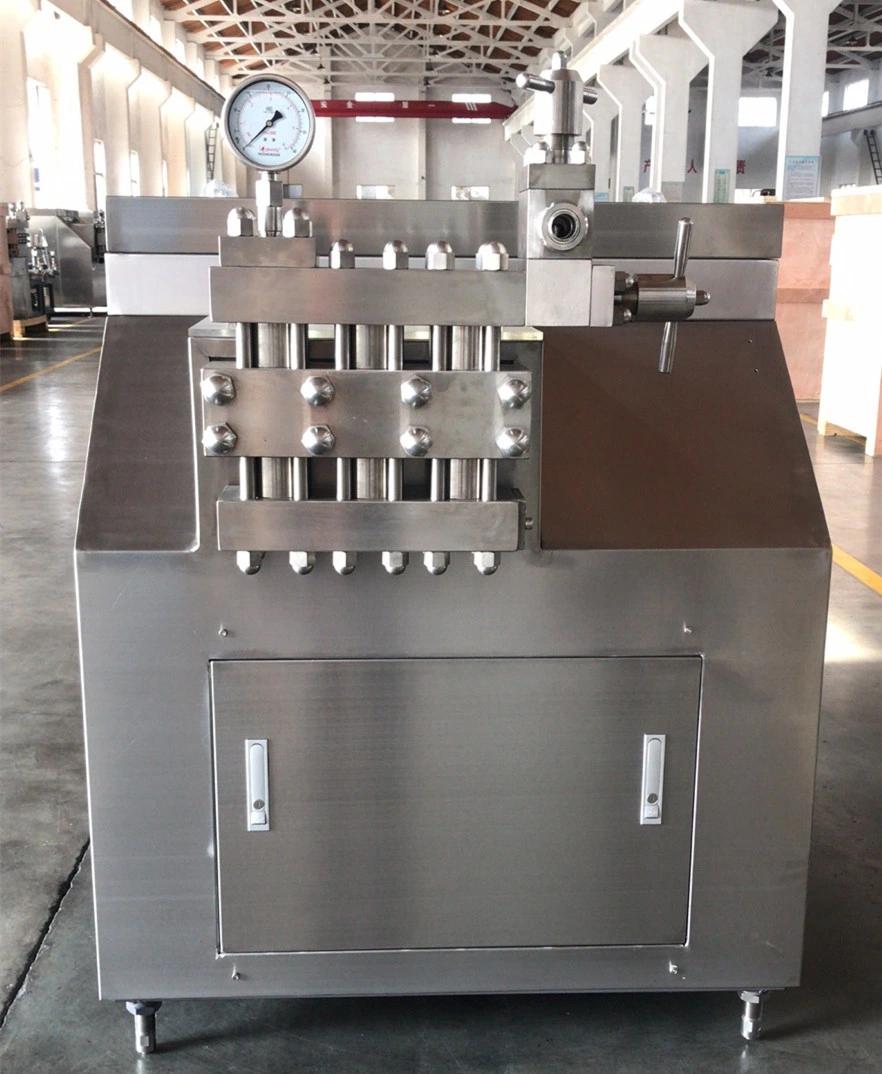

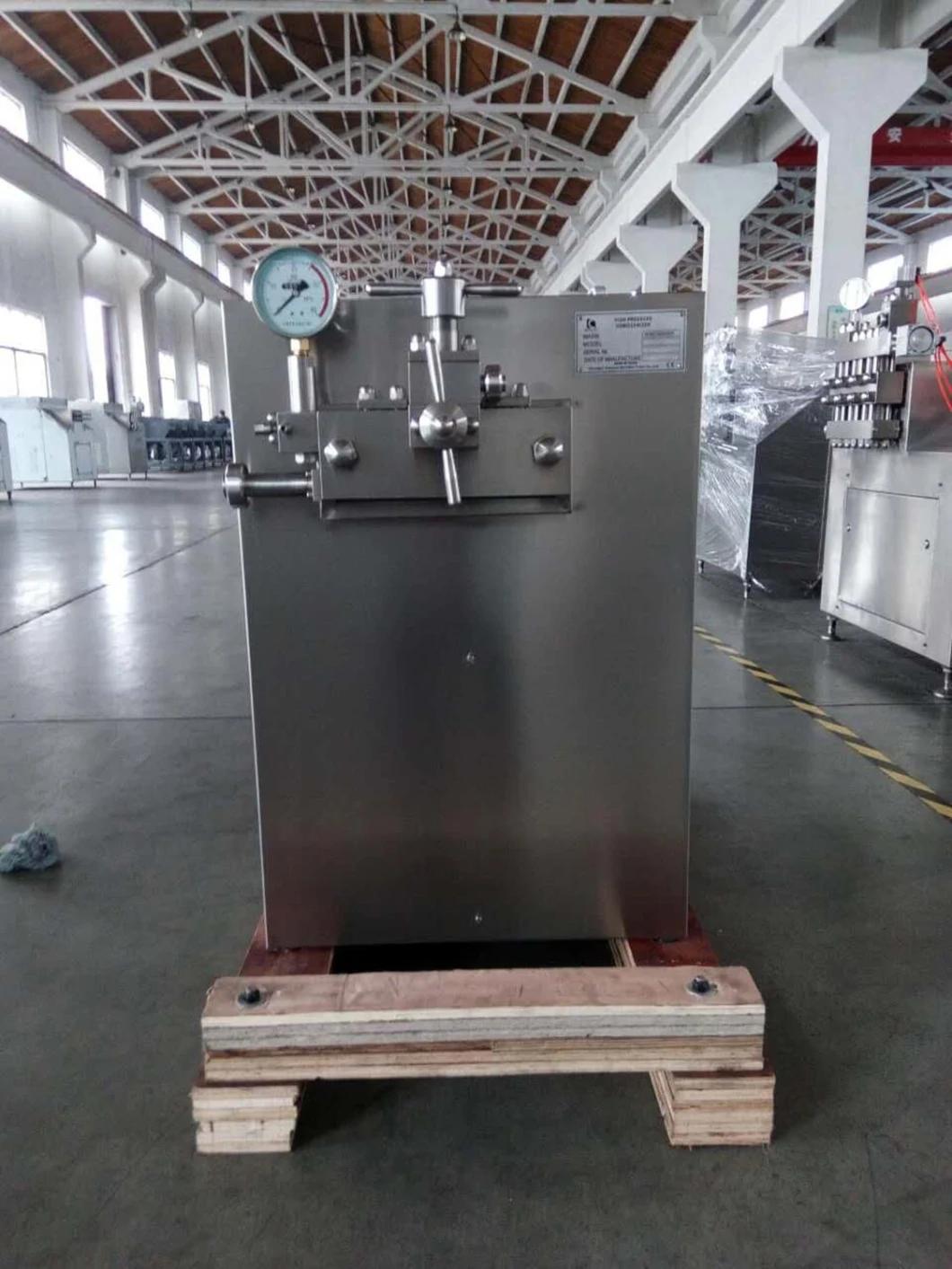

After Service Available High Pressure Homogenizer For Europe Market




Milk High Pressure Homogenizer, You Can Buy Various High QualityMilk High Pressure Homogenizer Products from us, the 250bar milk homogenizer,
CE CERTIFICATED HOMOGENIZER FOR MILK, JUICE, DAIRY, ICECREAM, SOYBEAN MILK, HONEY
Soybean milk homogenizer, 40MPA homogenizer
Tea drinks homogenizer, juice homogenizer


High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

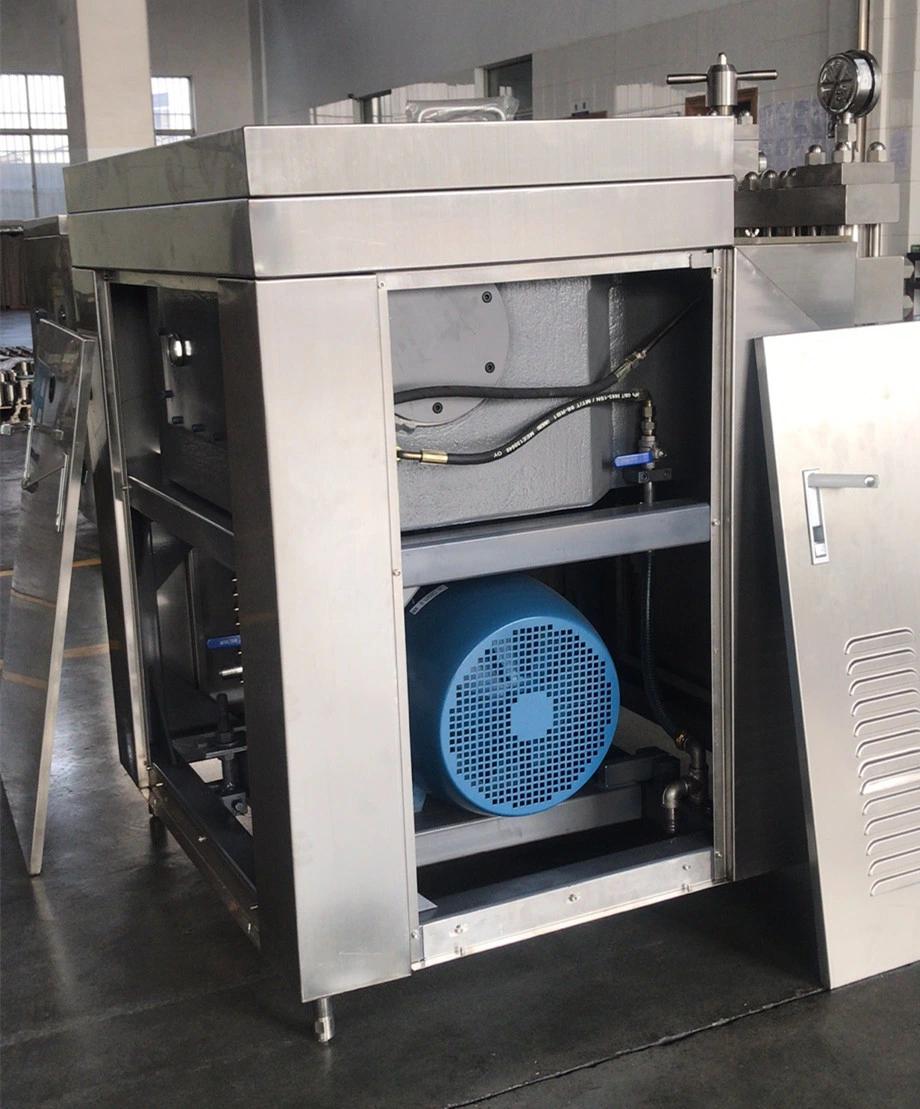

Series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.

The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
After Service Available High Pressure Homogenizer For Europe Market .
