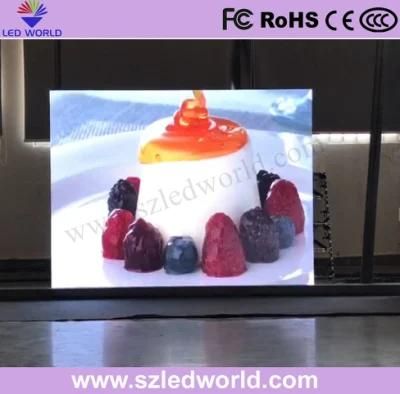

Slim Die-Cast Rental P4 LED Display Screen Hung on Truss

Xuzhou Whuchan Co., Ltd
  • Tube Chip Color：Full Color
  • Display Function：Video Display
  • Pixel Pitch：4mm
  • Pixel Configuration：1R,1G,1B
  • Pixel Density：62500dots,Sq.M
  • Scanning Mode：1,16 Scan

Base Info

  • Model NO.：Pixel 4mm
  • System Operating Platform：Win XP,Win 7,8,10
  • Display Type：LED Video Display
  • Application：Stage Performance, Advertising, Shopping Guide
  • IP Rating：IP43
  • Certification：CE, RoHS, CCC, FCC
  • Cabinet Size：480X480mm
  • Cabinet Material：Die-Cast Aluminum
  • Module Size：240X240mm
  • Module Resolution：60X60dots
  • Transport Package：Flight Case or as Required
  • Specification：CE, FCC. ROHS, 3C
  • Trademark：PRT
  • Origin：Shenzhen
  • HS Code：8528591090
  • Production Capacity：3000sq. M,Month

Description

Pixel pitch4mmPixel Configuration1R1G1BLED componentSMD2121 blackSize of module240mm x 240mmResolution of module60x60Size of cabinet480mm x 480mm x 60mmResolution of cabinet120x120Material of CabinetDie-casting AluminumWeight of Cabinet10.5KGSBrightness>1200cd/sq.mDensity62500dots/sq.mBest viewing angle140 /140Pixel Configuration1R1G1BBest viewing distance3-50MMaximum power consumption1200W/sq.mAverage power consumption640W/sq.mDriving method1/15 scanControl methodSynchronizationGray scale65536Colors256*256*256Color temperature3200-9300kUniformity97%Working voltageAC220V/110V±10%Working temperature-20ºC~+50ºC±10%Working humidity10% ~ 90%MTBF10,000 hoursFrame frequence50/60HzRefresh frequence>3000HzIP gradeIP31Life Span100,000 hoursData transafer methodRJ45Pratical standardCCC  TUV-CE  ETL etc.Effectivce Communication
Distance(without relay)Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KMAccepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
