Indoor High Resolution LED Video Display P2.6 Panel 1000mm X 750mm

Xuzhou Whuchan Co., Ltd
  • Display Function：Video Display, Image & Text Display, Text Display, Market Display
  • Pixel Pitch：2.604 mm

Base Info

  • Model NO.：P1.56
  • Pixel Configuration：1R,1G,1B
  • Pixel Density：147456 Dots
  • Scanning Mode：1,32 Scan
  • System Operating Platform：Win 7, Win 10
  • Display Type：LED Video Display
  • Application：Stage Performance, Advertising, Shopping Guide
  • IP Rating：IP43
  • Certification：CE, RoHS, UL, CCC, ETL
  • Weight：7kg,PCS
  • Controller：Nova Star,Colorlight
  • Maintenance：Front Service
  • Installation Method：Fix ,Hoisting
  • Humidity：10%-95%
  • Operating Temperature：-40~-75
  • Maximum Power：600W,M2
  • Module Size：250mm X 250mm
  • Cabinet Material：Die-Casting Aluminum
  • Refresh Rate：3840Hz
  • LED Lamp：Nationstar

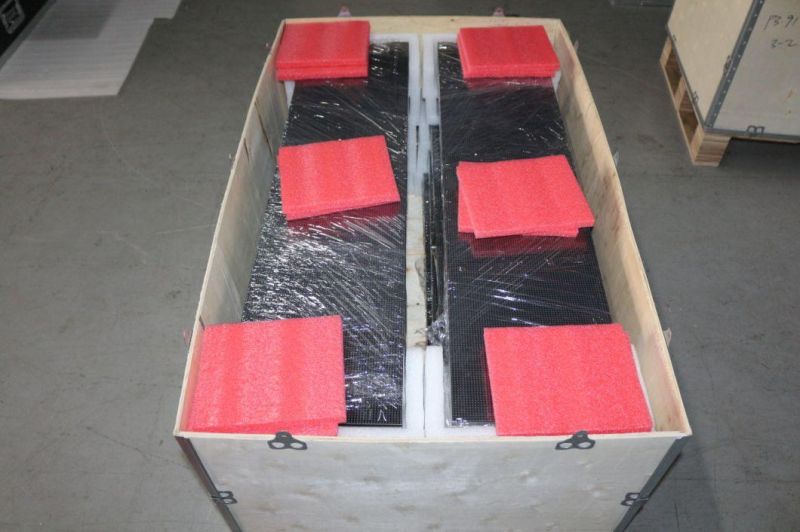

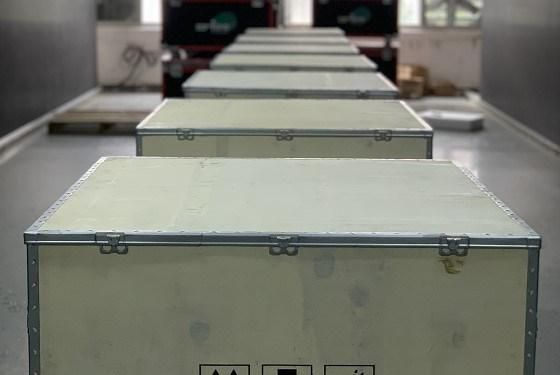

  • Transport Package：Wooden Case
  • Specification：1000mm*250mm*42mm
  • Trademark：PRTLED
  • Origin：Shenzhen
  • HS Code：8528591090
  • Production Capacity：5000square,Month
  • Package size per unit product：75.00cm * 25.00cm * 45.00cm
  • Gross weight per unit product：4.500kg

Description

P5 SMD Outdoor full Color LED Panel 800x1200mmPixel pitch2.604 mmSize of cabinet/panelW1000 x H 250 x D45 mm /750 x 250 x 45 mmResolution of cabinet/panel384x 96 dots / 288 x 96 dotsWeight of Cabinet/panel7kgs/4.5kgs/pcBrightness≤800 cd/mDensity65536dots/m²Best viewing angle160° /160°Pixel Configuration1R1G1BBest viewing distance3-40MMaximum power consumption<800W/m²Average power consumption<180W/m²Driving method1/32 scanControl methodSynchronization/AsynchonizationMaintenanceFront service Gray scale16 bitsColor temperature6500k ~14000KWorking voltageAC90-260VWorking temperature-40ºC~+75ºCStorage temperature-55ºC~+120ºCOperating humidity10% ~90%MTBF10000 hoursFrame frequence50/60HzRefresh frequence>3840HzIP grade(Front/Back)IP31Life Span>100,000 hoursData transafer methodRJ45Effectivce Communication
Distance(without relay)Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KMSystems operating platformWINDOWS(WIN95,WIN2000,WINXP,WIN7/8), and interfaces for secondary developmentIndoor High Resolution LED Video Display P2.6 Panel 1000mm X 750mmIndoor High Resolution LED Video Display P2.6 Panel 1000mm X 750mmIndoor High Resolution LED Video Display P2.6 Panel 1000mm X 750mm
Indoor High Resolution LED Video Display P2.6 Panel 1000mm X 750mmIndoor High Resolution LED Video Display P2.6 Panel 1000mm X 750mm
Indoor High Resolution LED Video Display P2.6 Panel 1000mm X 750mm


All of PRTLED's products produced based on the quality standard of CE,ROHS,FCC,and with strict control system to confirm no problem for each process,and before packing, test the whole screens with 72 hours at least,to ensure good stability,with less after-sale service, so we obtained a good reputation from customers


Indoor High Resolution LED Video Display P2.6 Panel 1000mm X 750mm

Indoor High Resolution LED Video Display P2.6 Panel 1000mm X 750mm

Indoor High Resolution LED Video Display P2.6 Panel 1000mm X 750mm

Why choose PRTLED?
  1. PRTLED is a professional manufacturer of LED display screens more than years. We have strong R&D team to ensure high end products with user-friendly design ,and often updated to meet different requests
  2. Our prices are high competitive due to our large-scale procurement of raw material.  We can help you to win more orders if you are distributors.also the end users will also be satisfied with our quality and price.

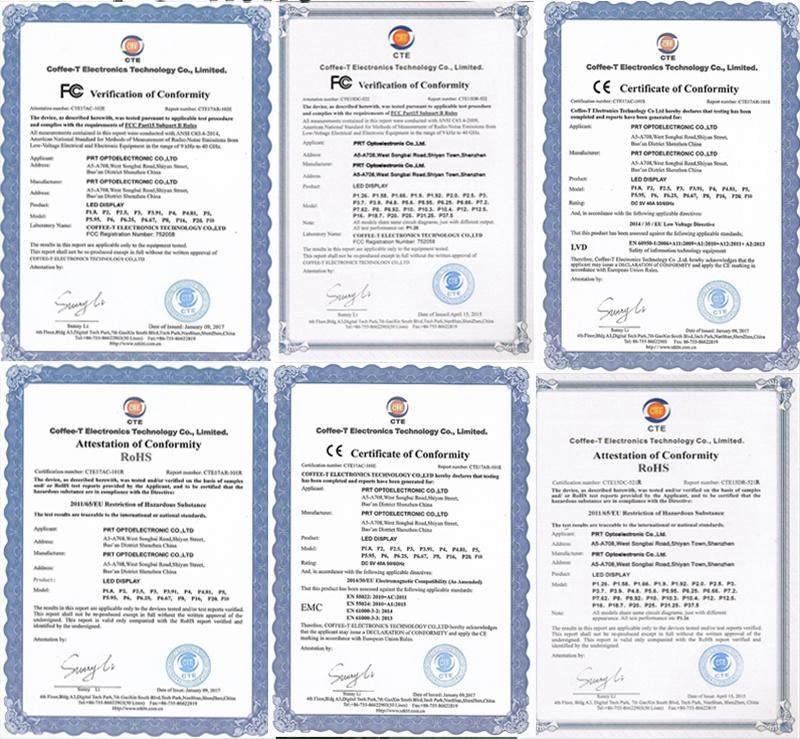

  3. We have CE, FCC and RoHs certifications to confirm the quality. our products have been sent out to more than 50 countries .We have rich experience in handling all problems when you import goods from China .
  4. We have a wide variety of products for you to choose from P0.9mm to P10mm for indoor,and P2.6 to P16 for outdoor.All products are strictly tested before release to next process, and we test every LED screen 72 hours before delivery.
  5. Our salesmen/saleswomen have gotten well training to provide customers with professional advice on specific projects. Processional engineers are on standby, can offer guidance, on site technical support as requested.
  6. We offer 2-3 years warranty and life time maintenance .Even after warranty time expired , we will only charge material costs
 FYI: we would like to know more details before offering you the best quotation:
1. What is screen size and what cabinet you prefer.
2. What is the best viewing distance with your project.
3. For fixed or rental installation.
4. When do you need to get goods and is it urgent or not.
5. Any special requests such as video processor, hanging bar, flight case for package.

Thank you for your visit, if you want more details, please contact us without hesitation !
