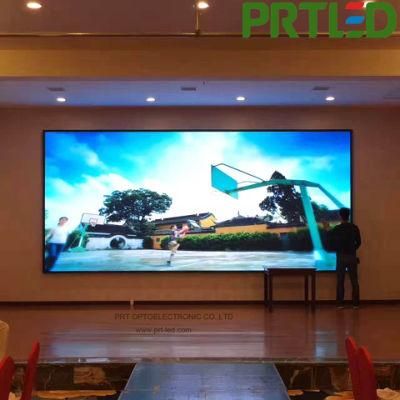

Full Color Indoor P4 Wall Fixed LED Panel Commercial Advertising LED Display Screen
Xuzhou Whuchan Co., Ltd- Tube Chip Color：Full Color
- Display Function：Video Display
- Pixel Pitch：4mm
- Pixel Configuration：1R,1G,1B
- Pixel Density：62500 Dots,Sqm
- Scanning Mode：1,16 Scan
Base Info
- Model NO.：P4
- System Operating Platform：Win XP,Win 2000,Win7,8
- Display Type：LED Video Display
- Application：Stage Performance, Advertising, Shopping Guide, Indoor Rental
- IP Rating：IP43
- Certification：CE, RoHS, CCC, FCC
- Color of LEDs：Black 2121
- Module Size：256X128mm
- Module Resolution：64X32 Dots
- Transport Package：Wooden Case
- Specification：CE, RoHs, FCC, CCC
- Trademark：PRT
- Origin：Shenzhen China
- HS Code：8528591090
- Production Capacity：3000sq. M,Month
Description
P4 SMD2121 Indoor full Color LED Screen SpecificationPixel pitch 4mm Pixel Configuration 1R1G1B LED component SMD2121 black Size of module 256mm x 128mm Resolution of module 64x32 Size of cabinet 768mm x 768mm x 110mm Resolution of cabinet 192x192 Material of Cabinet Iron/Aluminum Weight of Cabinet 17KGS Brightness >1500cd/sq.m Density 62500dots/sq.m Best viewing angle 140 /140 Pixel Configuration 1R1G1B Best viewing distance 3-50M Maximum power consumption 1200W/sq.m Average power consumption 640W/sq.m Driving method 1/16 scan Control method Synchronization Gray scale 65536 Colors 256*256*256 Color temperature 3200-9300k Uniformity 97% Working voltage AC220V/110V±10% Working temperature -20ºC~+50ºC±10% Working humidity 10% ~ 90% MTBF 10,000 hours Frame frequence 50/60Hz Refresh frequence >3000Hz IP grade IP31 Life Span 100,000 hours Data transafer method RJ45 Pratical standard CCC TUV-CE ETL etc. Effectivce Communication
Distance(without relay) Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Distance(without relay)
Single-mode optic fiber: 10KM
