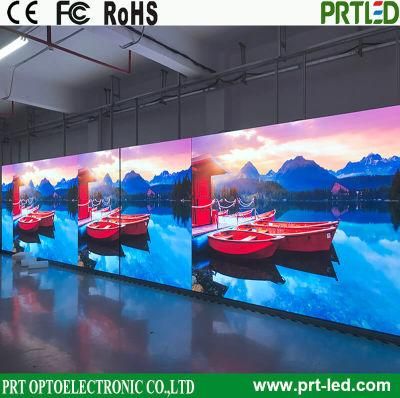

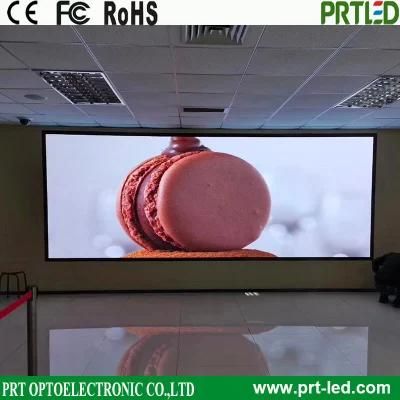

Public Advertising P2 P3 P4 Indoor LED Panel Display Full Color Electronic Video Wall
Xuzhou Whuchan Co., Ltd- Tube Chip Color：Full Color
- Display Function：Video Display
- Pixel Pitch：4mm
- Pixel Configuration：1R,1G,1B
- Pixel Density：62500 Dots,Sqm
- Scanning Mode：1,16 Scan
Base Info
- Model NO.：P4
- System Operating Platform：Win XP, Win 2000, Win7,8
- Display Type：LED Video Display
- Application：Stage Performance, Advertising, Shopping Guide, Indoor Rental
- IP Rating：IP43
- Certification：CE, RoHS, CCC, FCC
- Color of LEDs：Black 2121
- Module Size：256X128mm
- Module Resolution：64X32 Dots
- Transport Package：Wooden Case
- Specification：CE, RoHs, FCC, CCC
- Trademark：PRT
- Origin：Shenzhen China
- HS Code：8528591090
- Production Capacity：3000sq. M,Month
Description
P4 SMD2121 Indoor full Color LED Screen SpecificationPixel pitch 4mm Pixel Configuration 1R1G1B LED component SMD2121 black Size of module 256mm x 128mm Resolution of module 64x32 Size of cabinet 768mm x 768mm x 110mm Resolution of cabinet 192x192 Material of Cabinet Iron/Aluminum Weight of Cabinet 17KGS Brightness >1500cd/sq.m Density 62500dots/sq.m Best viewing angle 140 /140 Pixel Configuration 1R1G1B Best viewing distance 3-50M Maximum power consumption 1200W/sq.m Average power consumption 640W/sq.m Driving method 1/16 scan Control method Synchronization Gray scale 65536 Colors 256*256*256 Color temperature 3200-9300k Uniformity 97% Working voltage AC220V/110V±10% Working temperature -20ºC~+50ºC±10% Working humidity 10% ~ 90% MTBF 10,000 hours Frame frequence 50/60Hz Refresh frequence >3000Hz IP grade IP31 Life Span 100,000 hours Data transafer method RJ45 Pratical standard CCC TUV-CE ETL etc. Effectivce Communication
Distance(without relay) Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development

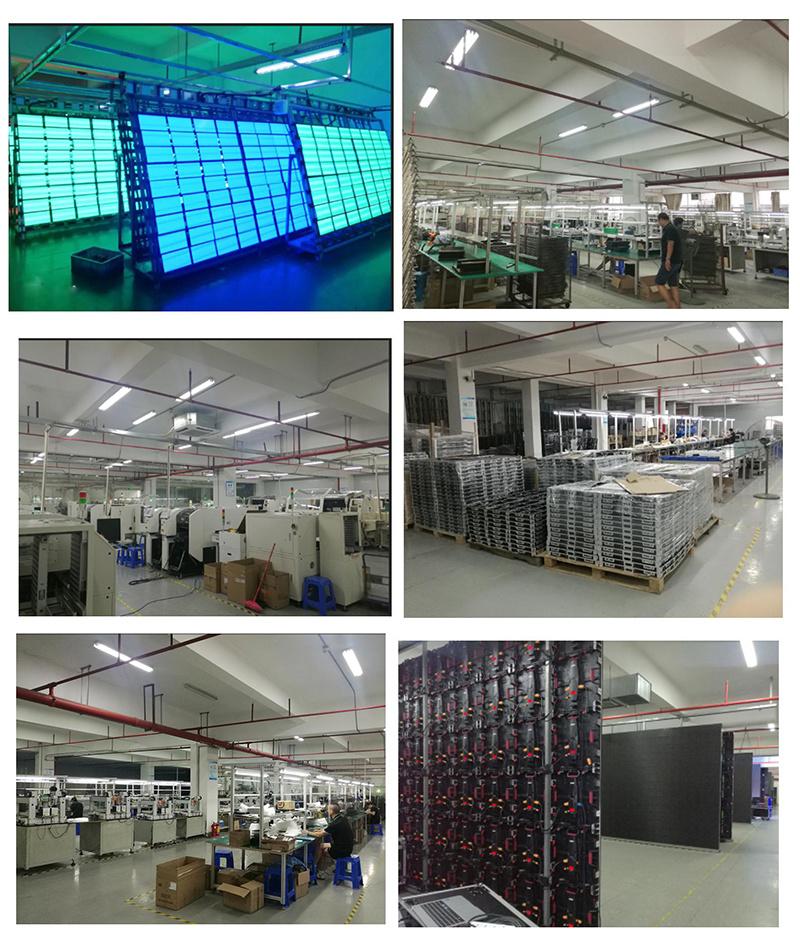

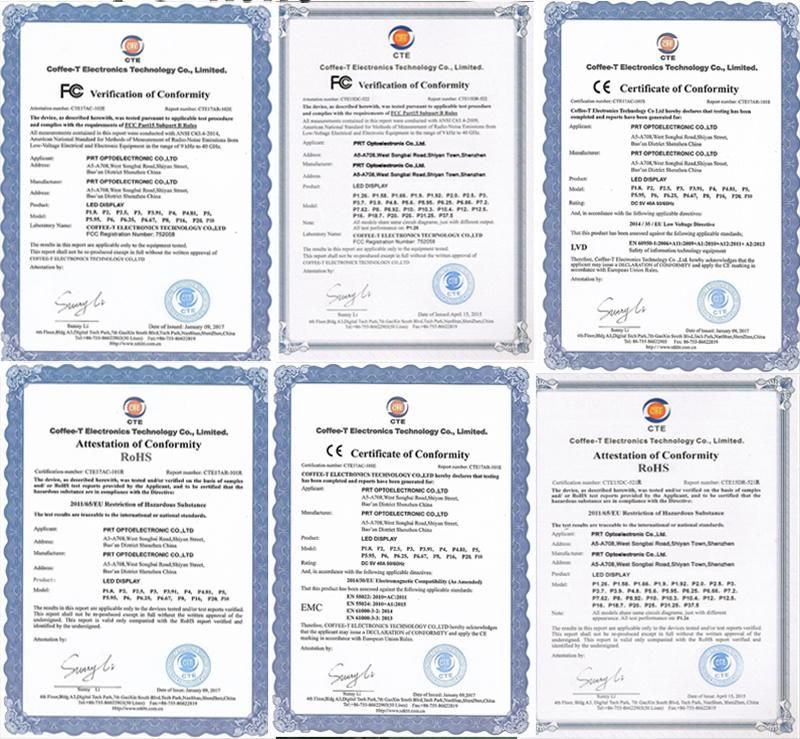

Our products got the certificates of CE,ROHS,FCC,and with a strict quality control system,ensure the quality at each production process,
to confirm the good quality when customers get the products,and with free training through internet by teamviewer, skype,wechat etc,to gurantee the operation .
