P10 Full Color Outdoor LED Open Sign (Double-Sided)
Xuzhou Whuchan Co., Ltd- Tube Chip Color:Full Color
- IP Rating:IP65
- Pixel Pitch:10mm
- Pixel Configuration:1R, 1G, 1B
- Display Function:Video Display
- Average Power Consumption:300W , m²
Base Info
- Model NO.:P10
- Pixel Density:10000 dot , m²
- Scanning Mode:1,4 Scan
- Display Type:LED Video Display
- Application:Advertising,Stage Performance,Rental
- Certification:CE, RoHS, CCC, FCC
- LED Encapsulation:DIP 346
- Module Size:160X160mm
- Module Resolution:16X16dots
- Protection Grade:IP65
- Transport Package:Wooden Case or as Required
- Specification:CE, FCC. ROHS, 3C
- Trademark:PRT
- Origin:Shenzhen China
- HS Code:8528591090
- Production Capacity:3000sq. M,Month
Description
P10 Outdoor full Color LED Screen SpecificationPixel pitch 10mm Pixel Configuration 1R1G1B LED component DIP346(Epistar) Size of module 160mm x 160mm Resolution of module 16x16 Size of cabinet 1600mmx 800mm x 250mm(customized sizes) Resolution of cabinet 160x80dots Material of Cabinet Iron with back doors Weight of Cabinet <150KGS Brightness >7500cd/sq.m Density 10000dots/sq.m Best viewing angle 110 /60 Best viewing distance 10-150M Maximum power consumption <800W/sq.m Average power consumption <300W/sq.m Driving method 1/4 scan Control method Synchronization Gray scale 65536 Colors 256*256*256 Color temperature 3200-9300k Uniformity 97% Working voltage AC220V/110V±10% Working temperature -20ºC~+50ºC±10% Working humidity 10% ~ 90% MTBF 10,000 hours Frame frequence 50/60Hz Refresh frequence >1800Hz IP grade IP65 Life Span 100,000 hours Data transafer method RJ45 Pratical standard CCC TUV-CE ETL etc. Effectivce Communication
Distance(without relay) Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
also can produce with pixel pitch 3mm,4mm,5mm,6mm,8mm,6.67mm and 10mm with customized screen sizes.
Our service:
1. Guarantee
(1) We guarantee all our displays, modules, parts for two full years. During this time, we will replace or remand our goods for free if there is something problem with them.
(2) After two years we will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation if you need
3. Maintenance and Consultation
(1) We provide full maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consultation by E-mail, call, skype,teamviewer or other ways for free.

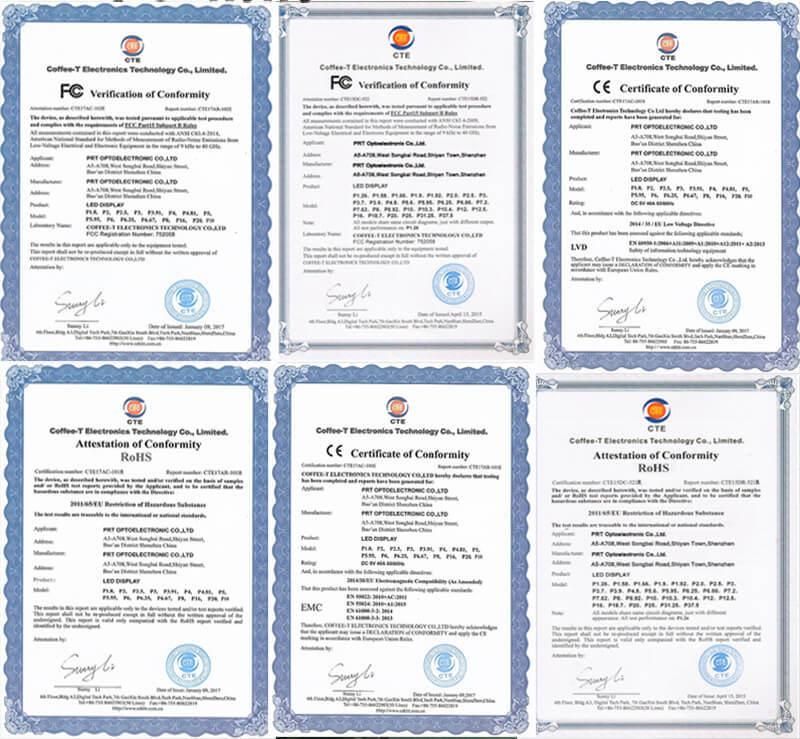

4. Documents and Certification
(1) We provide the operation manual, software, test report and so on.
(2) We can also provide all kinds of certification such as CE,FCC,ROHS,UL and so on.
5. CAD Drawing and Fixing
(1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
(2) We will send our engineers to your place if we are expected after our negotiation.
Our products meet the international standards to confirm the quality request

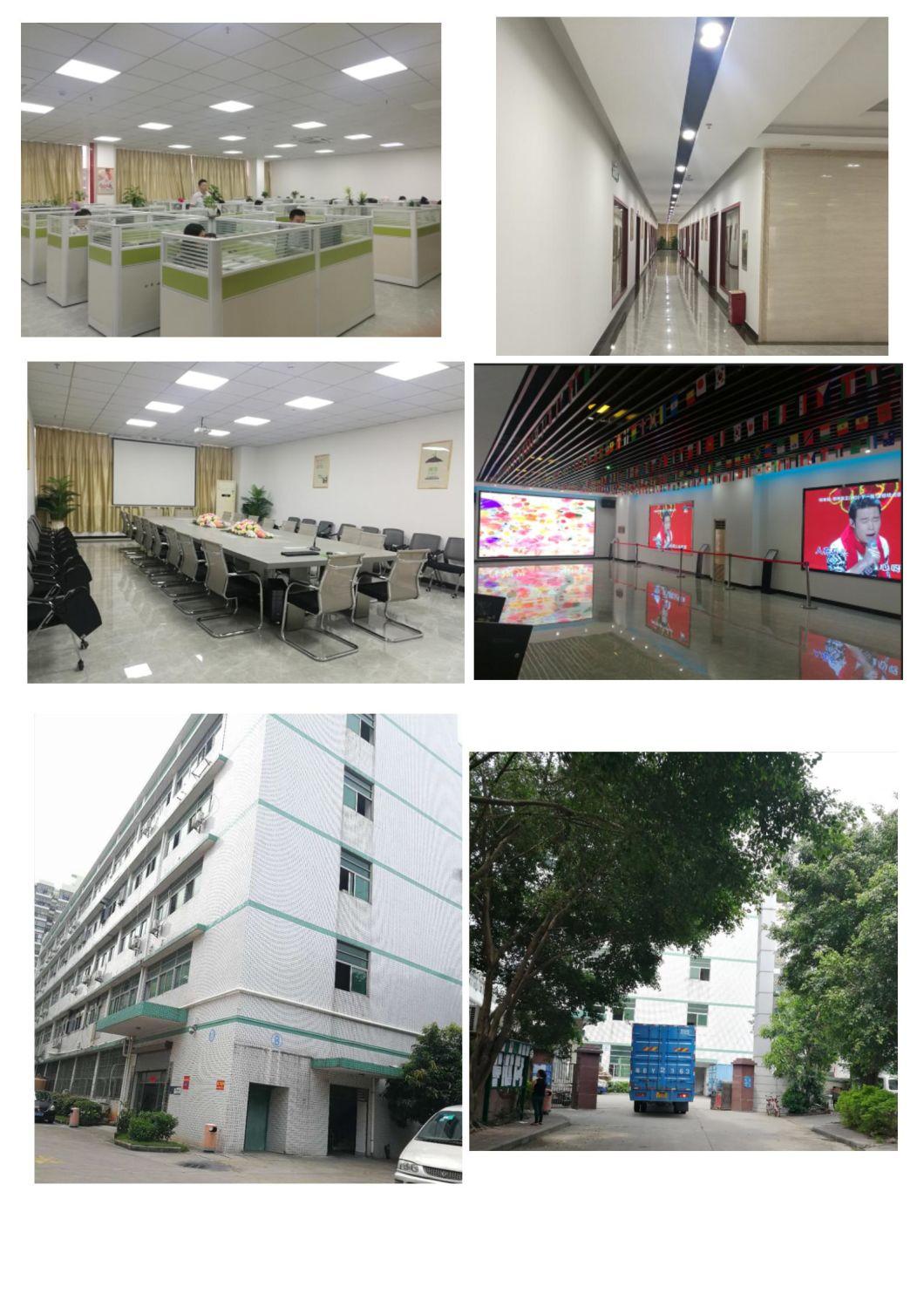

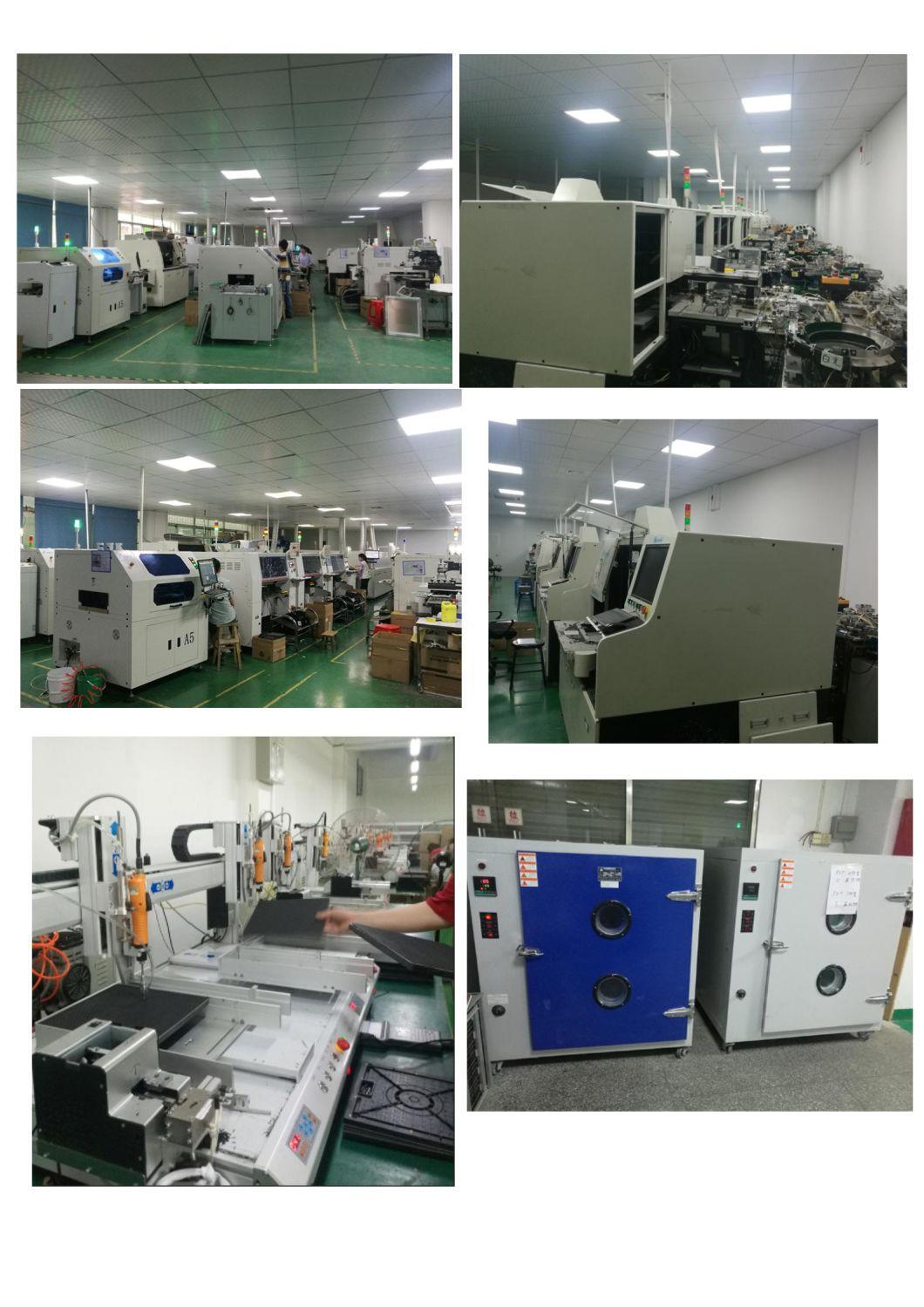

Our factroy :
