High Brightness P16 Mobile Truck LED Display Panel
Panhong Chemical Co., Limited.- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：16mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display
- Average Power Consumption：600W , m²
Base Info
- Model NO.：outdoor-P16
- Pixel Density：3906dots
- Scanning Mode：1,4 Scan
- Display Type：LED Video Display
- Application：Advertising
- Certification：CE, RoHS, CCC
- Brightness：>8000nit
- Operating Ambient Humidity：10%--95%
- Waterproof：IP67 Front IP65 Rear
- Best Viewing Distance：14-300m
- Product：Outdoor Full Color P16 LED Display Screen
- Module Size：256*128
- Module Dots：16*8
- Usage：Outdoor Advertising LED Display
- Life Span Time：100, 000 Hours
- Mtbf：10, 000 Hours
- Transport Package：Anti-Shaking Wooden;Air Flight Case;Carton Case.
- Specification：CE, ROHS, SGS. ETC.
- Trademark：FOXGOLDEN
- Origin：Shenzhen
- HS Code：8528591090
- Production Capacity：4000sqm,Month
Description

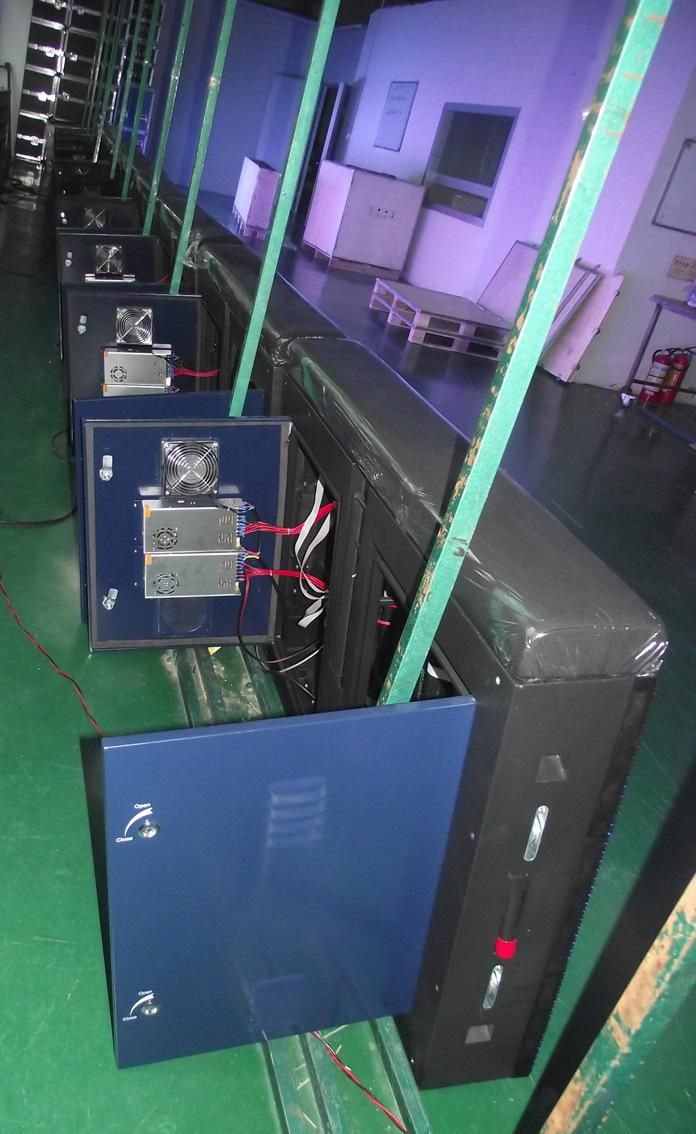

Technical parameterUnit module Module size 256*128mm Pixel pitch 16mm Pixel density 3906dots/m2 Pixel configuration R1G1B Led specification Φ 5ellipse Pixel resolution W: 16dots*H: 8dots Cabinet Dimension 1024mm*768mm*110mm Quantities of module 24pcs Power supply 5pcs Thermal discharge Fan*2pcs Total weight 55kg Best viewing angle 12-300m Temperature Storage: -35° C~+85° C Working: -35° C~+85° C Thickness 11cm can adjustable Remarks: cabinet size can changed, upon project need. Power Working voltage AC220V/110V± 10% Average power consumption 250-480W Max. Power consumption ≤ 560W/sqm Current ≤ 20mA(single LED) Control system CPU Pentium4 or above Operating system WIN98/2000/NT/XP Control method Synchronization Main technical parameter Driving device Static scanning Drive type Constant Current driver IC Refresh frequency ≥ 400Hz Grey scale/colors 256 levels of each color(R/G/B)/16.7M color Brightness of white balance More than 8000cd/sqm Brightness adjustment 256 levels of each color(R/G/B)by software Operating ambient humidity 10%--95% Video signal PAL/NTSC Control system DVI display card+full color controller card MTBF ≥ 10, 000hours Life span ≥ 100, 000hours Flatness Tolerance of interpixel ≤ 0.3mm Tolerance of modules clearance≤ 0.6mm Power switch Automatic switch Display mode 1024*768 Communication distance Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m.
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM Software LED media player
Foxgolden Group Ltd
Address: No.57,Shuitian Fourth Industrial Park,Shiyan Town,Baoan District,Shenzhen City,China

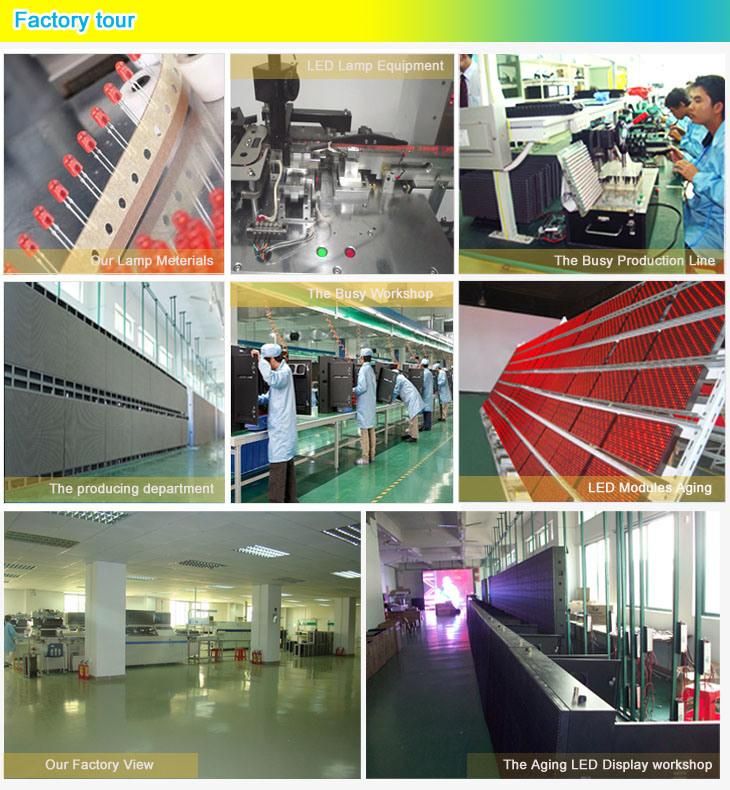

Foxgolden had been engaged in designing and manufacturing LED display for more than 11 years. Our products have certificates like CE/FCC/RoHS/NQA /SGS/ISO.
The best quality products and excellent service will be provided to you by our professional team.
