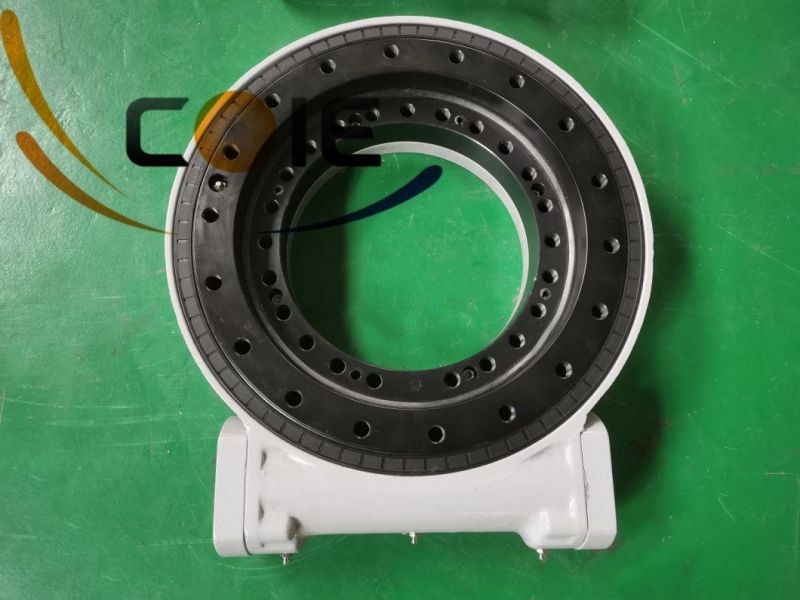

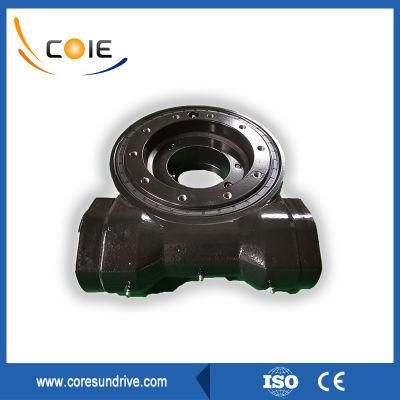

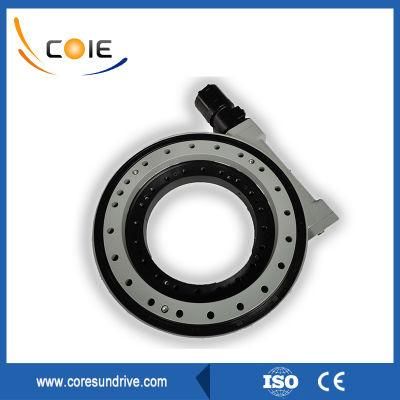

Slew Drive Slew Bearing Slew Ring
Showtime Packing Co., Ltd- Material：42CrMo
- Holding Torque：38.7kn.M
- Tilting Moment Torque：33.9kn.M
- Output Torque：12.2kn.M
- Output Speed：1rpm
- Gear Ratio：59:1
Base Info
- Model NO.：WH9-59-25RH
- IP Class：IP65
- Static Axial Load：338kn
- Static Radial Laod：135kn
- Transport Package：Wooden Case
- Specification：WH9-59-25RH
- Trademark：Coresun Drive
- Origin：Changzhou
- HS Code：8483409000
- Production Capacity：5000PCS,Month
Description
Model
Place of Origin
Changzhou,China
Brand
Coresun Drive
Outer Dia.
270mm
IP Class
IP65
Inner Dia.
175mm
Tilting Moment Torque
33.9KN.m
Holding Torque
38.7KN.m
Mounting Bolts
M16
IP65
Gear Ratio59
59:1
Efficiency
40%
CoreSun - Practical Slewing Drive&Slewing Bearing Promoter. We are committed to researching, developing and applying high quality, precision transmission equipment products,who provides reliable mechanical actuator for horizonal single axis, dual-axis photovoltaic tracking system, CSP,CPV solar tracking design.Our professional and high-quality products will be also applied well as a steady solution on aerial working platform, truck crane, timber grab, drilling rig, spray equipment, hydraulic module vehicle,automated assembly lines, wind yaw systems,etc.
Coreun Drive rotation Drive product department of the independent technology and technology development to adapt to the market demand the high quality of rotation Drive products, Coresun Drive have full strain more specifications of the mature rotary Drive products and custom design and manufacture of such products for the customer the ability, for need to load in the low speed heavy load, high speed and high speed light load, the application of HanWang all can provide the corresponding product or solution.
Coresun Drive worm gear and worm type rotary Drive including cylindrical worm and enveloping worm two major categories, including cylindrical worm is suitable for medium speed overloaded and enveloping worm for overloading at low speed and high precision application, can self-locking worm gear and worm rotation Drive, in the field of dynamic movement can provide basis for security and to further simplify equipment overall design, is the superior industrial fittings.

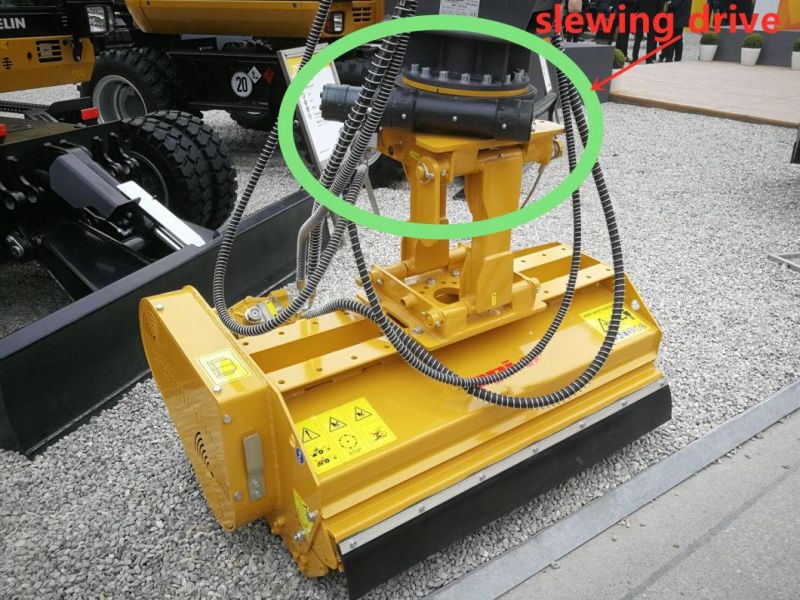

Coresun Drive Slew Bearing Slew Drive Production Photo and Application
Coresun Drive Slew Drive Slew Bearing Slew Ring Relevant Certification as following
